Operating Instructions

for the

Multifunction

Remote Control

IN1174

Euroheat Distributors

(H.B.S.) Ltd.,

Unit 2, Court Farm

Business Park,

Bishops Frome,

Worcestershire,

WR6 5AY.

Thermic Distribution

Europe SA,

B-5660 Frasnes-lez-

Couvin,

Belgium.

WARNING

Important Safety Information

Read this manual thoroughly prior to installing, programming or operating this remote control.

This remote control system requires three (3) AAA and four (4) AA alkaline batteries to power the transmitter

and receiver. This remote control system should only be used as described in this manual. Any other use is not

recommended and will void the warranty.

NEVER LEAVE THE TRANSMITTER HANDSET ON TOP OF THE APPLIANCE AS IT MAY DAMAGE BOTH

THE HANDSET AND THE SURFACE OF THE APPLIANCE.

NOTE

Due to the sensitive temperature monitoring components in the transmitter, it is necessary to allow the transmitter

to stabilize to room temperature before accurate room temperatures are displayed. If the transmitter is activated

from a severe cold condition, allow 15 minutes for accurate temperature readings to appear on the LCD.

Installation

Turn appliance OFF and allow to cool before installing or servicing. Any modiﬁcation of components will void the

warranty and may cause a ﬁre hazard.

Contents

Installation ................................................................................................................... 2

Contents of Kit .............................................................................................................. 3

Features and Speciﬁcations........................................................................................... 3

Fitting the Remote Control Motor from Remote Kit: MS9174........................................ 4

Fitting the Remote Control Motor from Remote Kit: MS9219........................................ 5

Batteries ....................................................................................................................... 6

Reciever Plugs............................................................................................................... 8

Testing the Receiver’s Motor Operation ........................................................................ 9

Setting the Display to Show Temperature................................................................... 10

The Temperature Display ............................................................................................ 11

Low Battery................................................................................................................. 11

Setting the Auto Temperature .................................................................................... 12

Child Lock.................................................................................................................... 13

If More than One Remote System Within the Same Property ..................................... 14

Optional Transformer .................................................................................................. 15

Thermostatic HI/LO Remote Control.

This hi/lo remote control system provides a safe, reliable and user-friendly remote control.

The remote can be operated in “Manual” mode by pressing the “ ” button to raise the ﬁring rate or the “ ”

button to reduce the ﬁring rate.

When the “Auto” button is pressed two temperatures are displayed. The upper one, showing the ambient

temperature, and the lower one, showing the set temperature. By pressing the “ ” and “ ” buttons the

set temperature can be raised or lowered. In the “Auto” mode the ﬁring rate of the stove will be increased or

lowered to achieve an ambient temperature matching that of the set temperature.

The initial movement will be made within ﬁve seconds and thereafter at ﬁfteen minute intervals.

The unit will only instigate four consecutive movements in either direction, which will take the stove to its

maximum or minimum ﬁring rate.

Description Qty

Transmitter (Handset) 1

Battery Alkaline AAA

(for transmitter) 3

Receiver (Assembly)

consists of:

Receiver Box

L Bracket with ON/HI OFF/LO Buttons

Battery Alkaline AA (for Receiver) 4

Wall Holster 1

Wall Holster Screws 2

Raw Plugs 2

Velcro 1

Installation Instructions 1

Motor with leads and plug 1

Contents of Kit

Features and Speciﬁcations

Contemporary ergonomic style transmitter with large LCD display

Back lit LCD display

Battery powered transmitter and receiver

Easy access front battery door

Preprogrammed for quick installation

Low battery indication

Child proof lockout

Thermal shutdown and out of range shutdown on transmitter

Quick disconnect wiring assembly

Reset switch

Carefully inspect the contents for shipment

damage. If any parts are missing or damaged,

immediately contact the dealer from whom

you purchased the kit. Do not attempt to install

any part of the kit unless all parts are in good

condition.

Fitting the Remote Control Motor from Remote Kit: MS9174

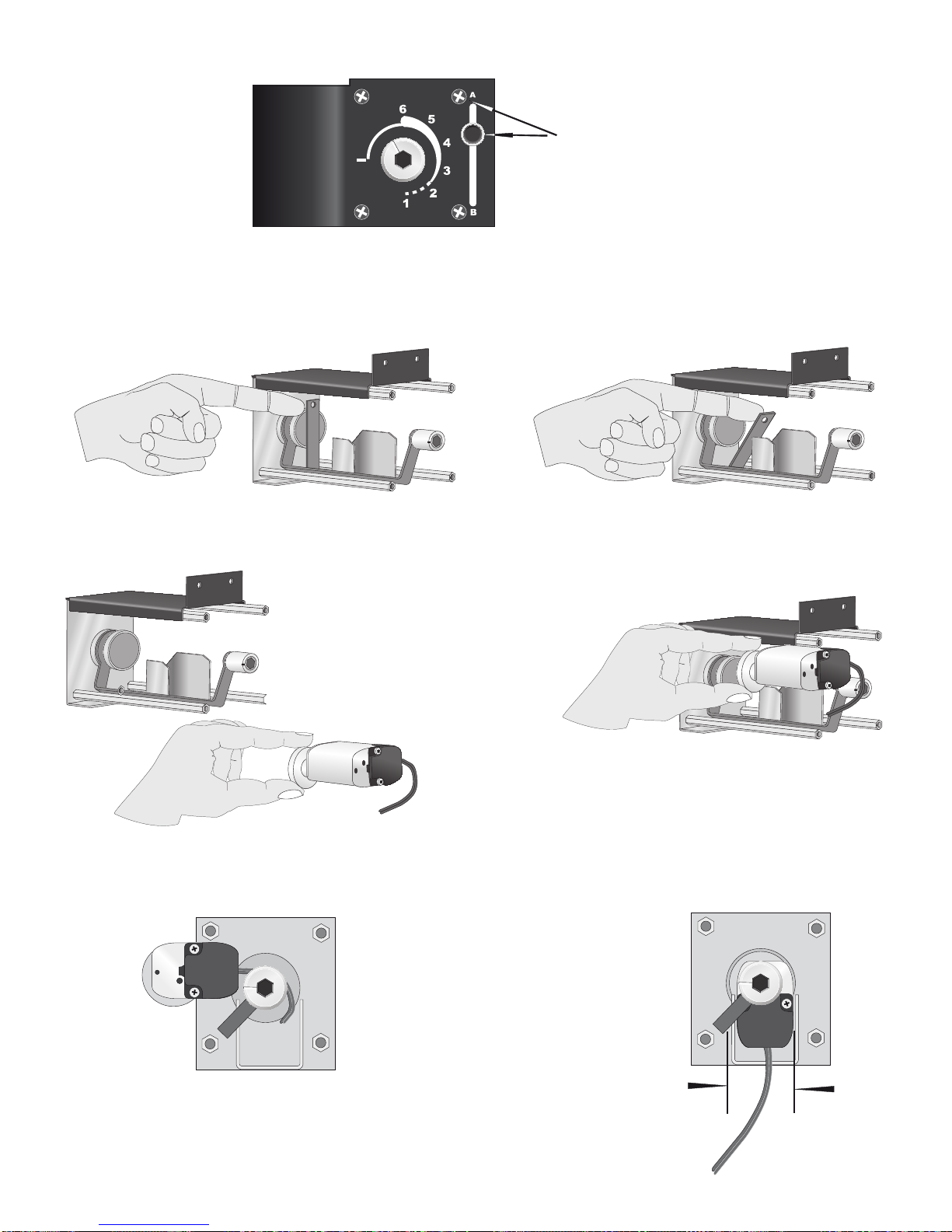

At the rear of the appliance you will see the

motor ﬁtting bracket. This incorporates a magnet

and the mechanism friction plate.

The friction plate is hinged. To ﬁt the motor this

friction plate needs to be detached from the magnet

and swung to the left.

The motor can now be slipped into place.

The magnet retains the motor.

Connect the electrical lead to the receiver box and

place the receiver box in its holder.

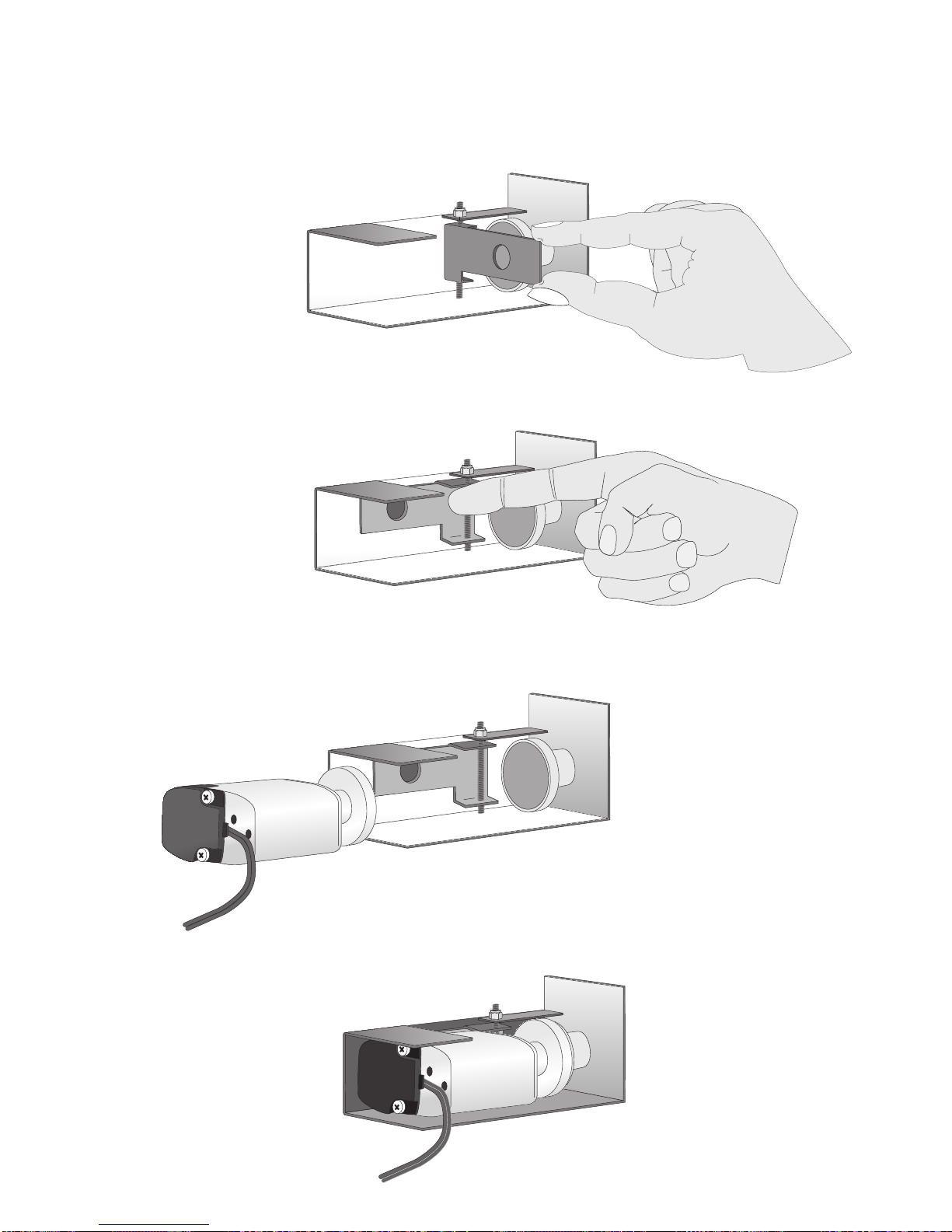

Fitting the Remote Control Motor from Remote Kit: MS9219

The friction plate is hinged. To ﬁt the motor this friction plate needs to be detached from the magnet and swung

downwards.

The motor can now be slipped into place. The magnet retains the motor.

Connect the electrical lead to the receiver box and

place the receiver box in its holder.

Remove the four screws

securing the facia plate

and the single grub screw

securing the air direction

lever knob.

Slip the motor in from the side, when over the retaining

bracket rotate to the right and lower into place. The motor

is retained by the magnet.

Batteries

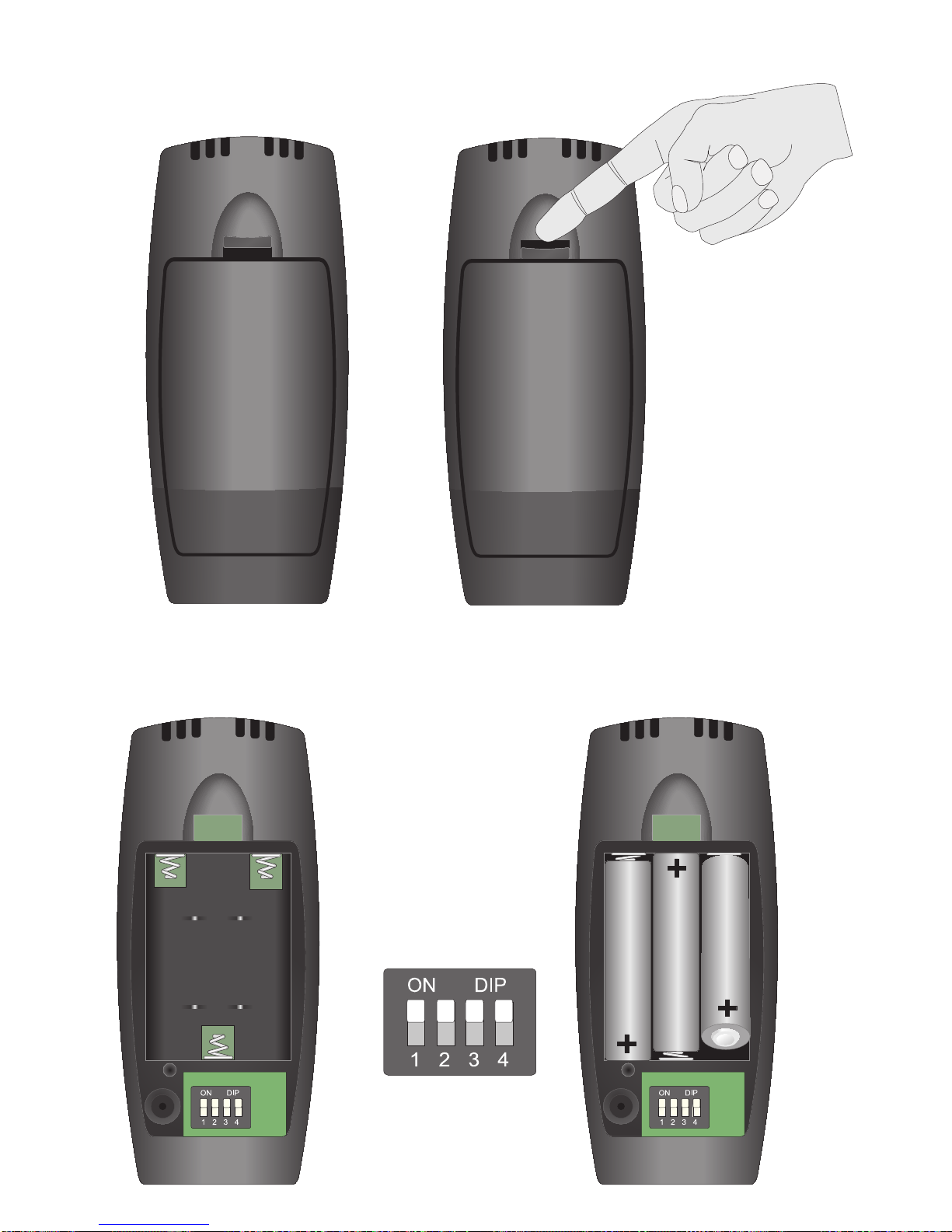

The battery compartment cover is opened by pulling the retaining catch towards the cover and then away from

the body of the handset.

Positive end inserted

last when ﬁtting

Positive end removed

ﬁrst when replacing

The batteries, three “AAA-RO3 Size 3, 1.5v” are ﬁtted with the positive end, marked with a ” ” symbol, at the

opposite end to the spring. Always ﬁt the batteries by inserting the negative end, marked with a “ “symbol,

against the spring ﬁrst. When removing the batteries the positive end should be lifted out ﬁrst.

Ensure that all the dip

switches are set to the ON

position when ﬁtting the

batteries for the ﬁrst time.

Ensure that the batteries are ﬁtted the correct way round as the

receiver will not work if incorrectly ﬁtted.

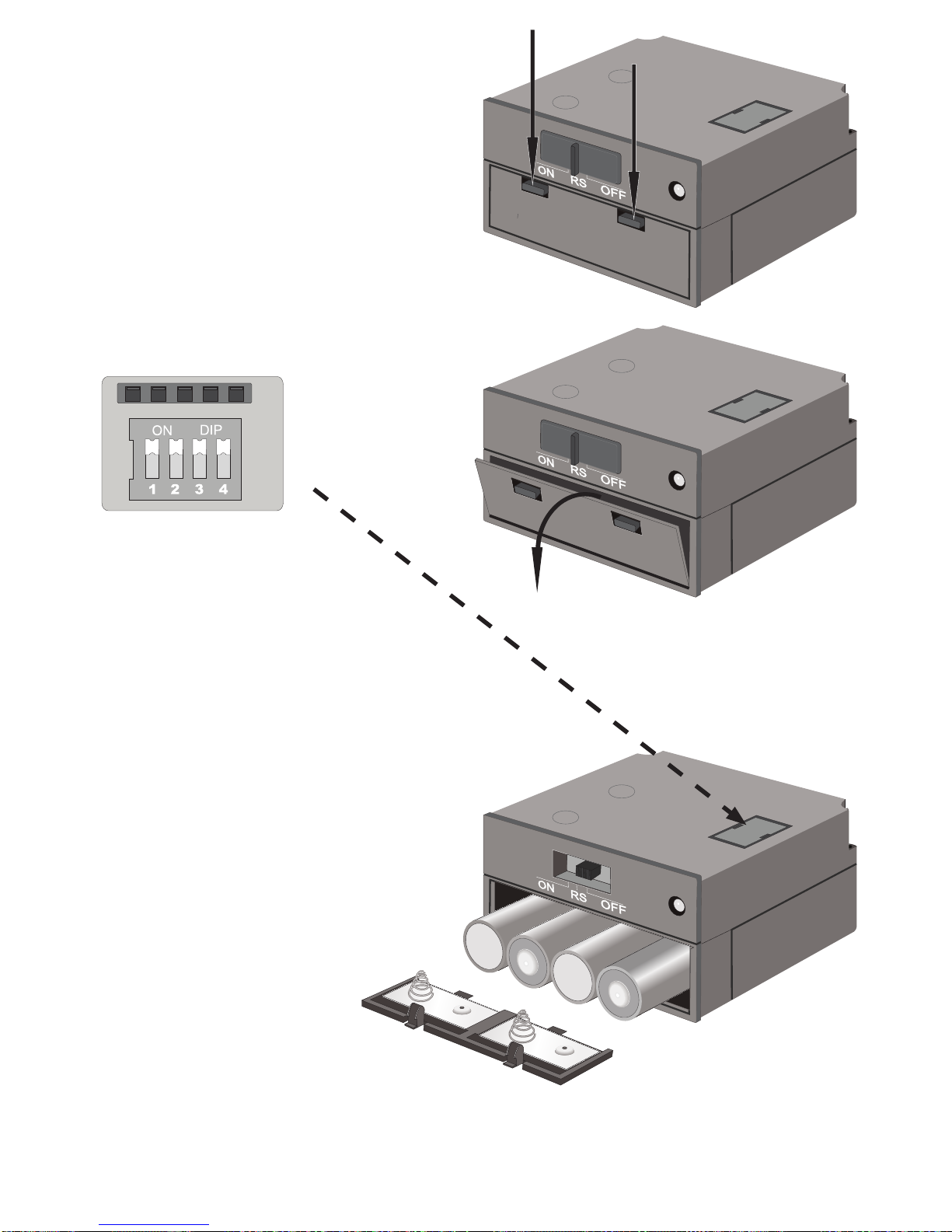

Pull down the two latching levers gently and pull

them away from the receiver, allowing the cover to

pivot downwards and be released.

The batteries supplied with the kit are for test purposes only and will only have a limited life, new batteries

should be ﬁtted as soon as is practical.

Ensure that all the dip

switches are set to the ON

position when ﬁtting the

batteries for the ﬁrst time.

Clip on the manual override switch

cover plate.

Receiver Plugs

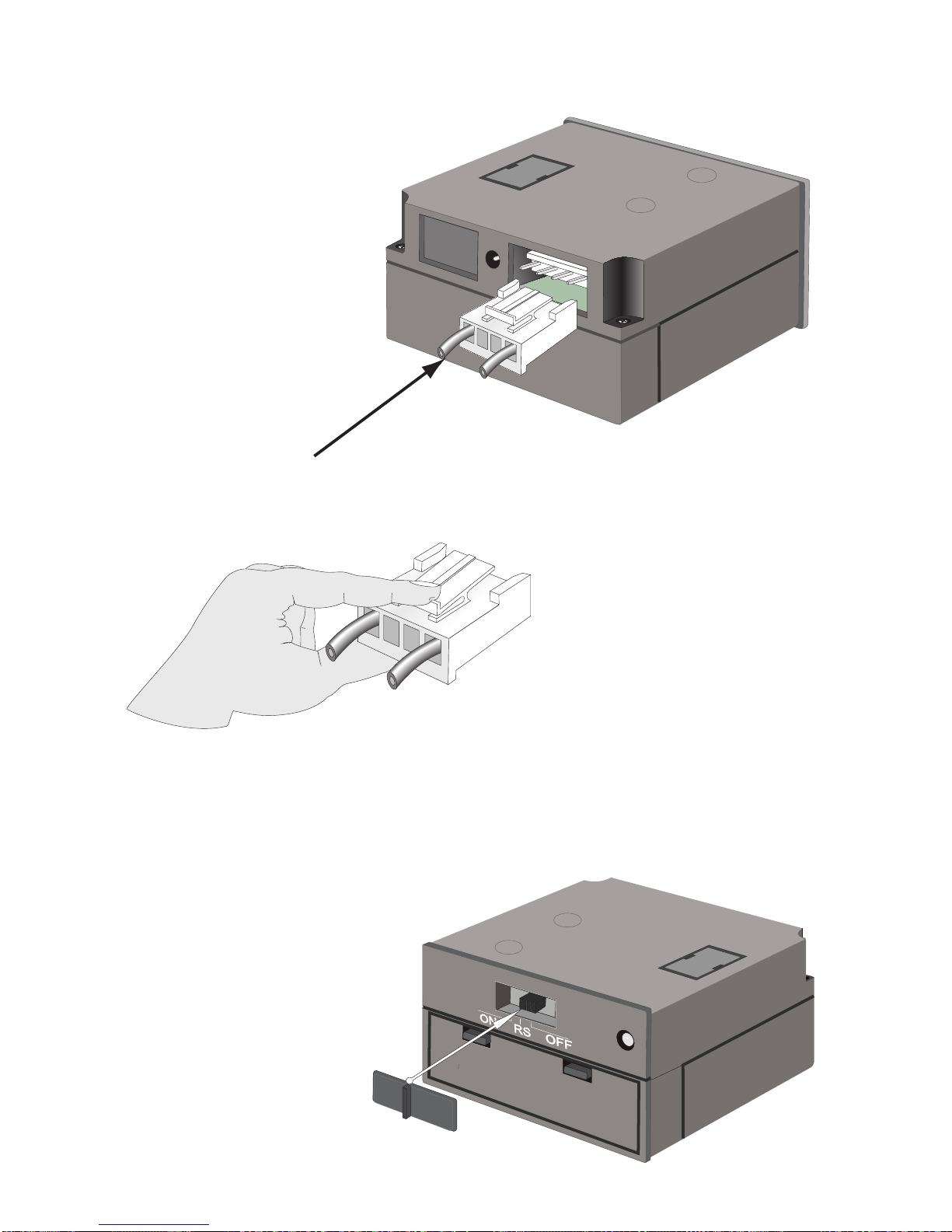

Insert the plug that connects the receiver’s output to the motor with the retaining latch uppermost.

The latch will be heard to click when the plug is fully engaged.

If it becomes neccessary to remove the motor plug the latch should be

squeezed to release the locking mechanism.

Testing the Receiver’s Motor Operation

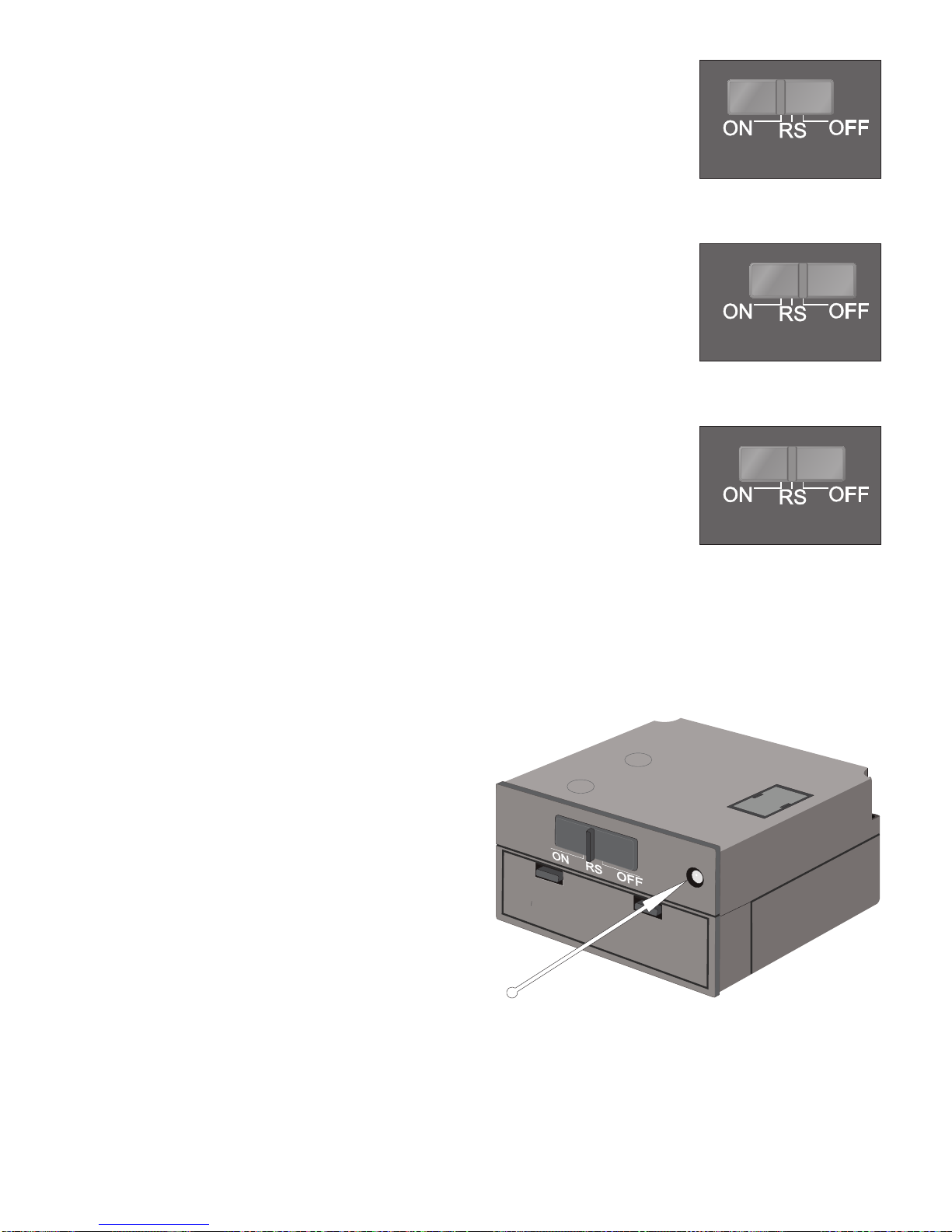

Moving the switch on the receiver to its ON position will cause the motor to run

for ten seconds. If the motor is installed in the stove it will drive the stove to its

maximum ﬁring position.

Moving the switch on the receiver to its OFF position will cause the motor to run

for ten seconds. If the motor is installed in the stove it will drive the stove to its

minimum ﬁring position.

Receiver Indicator Light

Moving the switch on the receiver to its RS position will set the receiver to respond to radio signals from the

handset.

The red indicator will ﬂash slowly and continuously when

the batteries are almost exhausted.

The red indicator will ﬂicker when receiving a signal from

the handset.

WARNING

Low battery power in the transmitter or receiver can affect the operation of the remote control in any mode. In

some cases the motor which operates the air ﬂaps may run continuously with low battery conditions. Replace

batteries to stop this occurring.

Setting the Display to Show Temperature

in Fahrenheit or Centigrade.

The handset will automatically show temperature in fahrenheit unless the

handset is re-programmed to change the display to read centigrade.

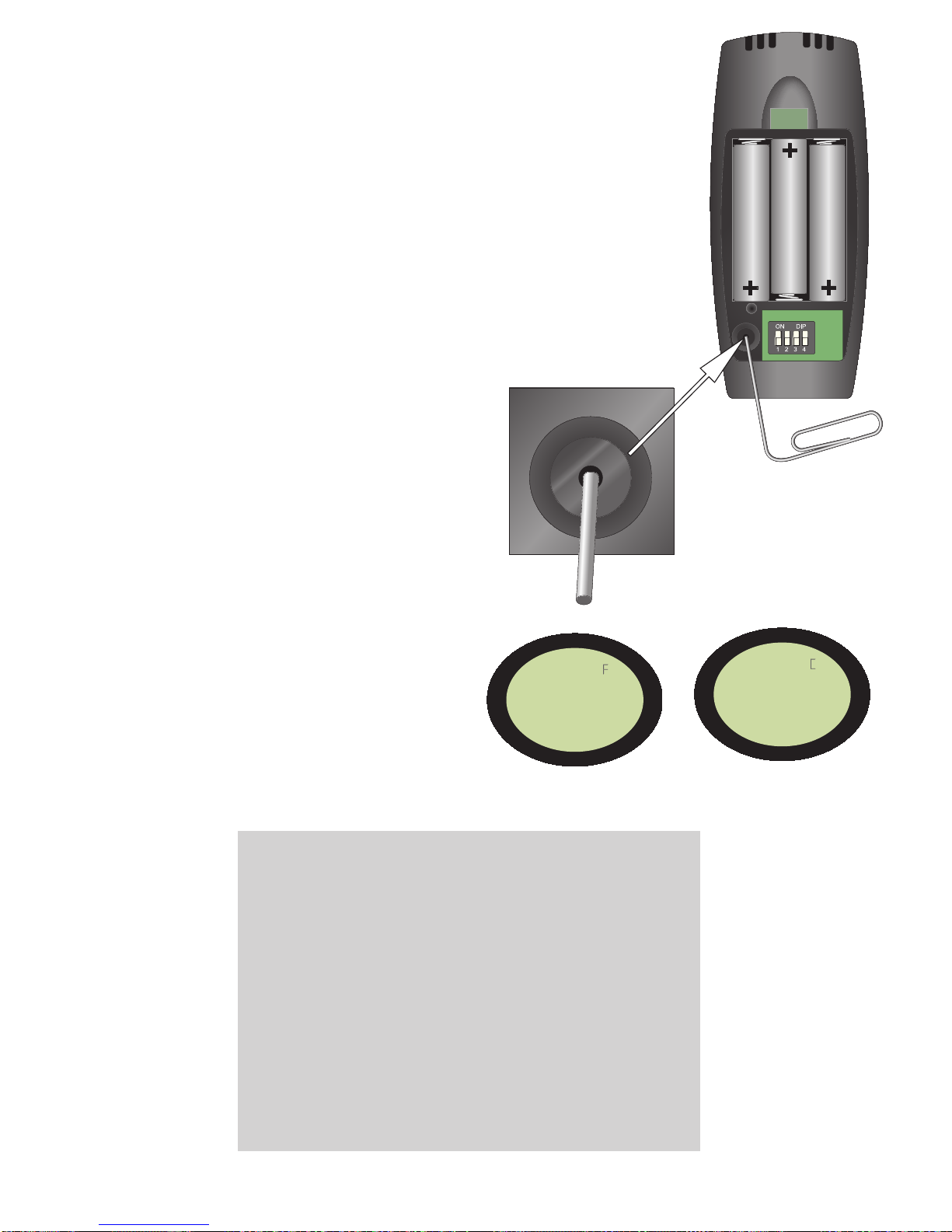

To change the display to read temperature in degrees centigrade remove the

back battery access panel and identify the “reset” switch which is to the left of

the “dip switches”.

By carefully inserting, brieﬂy, a ﬁne point, for which the end of an unravelled

paper clip is ideal, the display will show every symbol in its memory for two

seconds and then change to show just the “F” symbol.

Pressing the “ ” button will change this to a

“C” symbol. The handset is now programmed

to display temperature in degrees centigrade

and after a few seconds the display will

show its normal temperature and function

display.

Repeating the above procedure will reset the

handset to read fahrenheit.

TEMPERATURE CONVERSION CHART

ºC ºF ºC ºF ºC ºF ºC ºF

0 32.0 10 50.0 20 68.0 30 86.0

1 33.8 11 51.8 21 69.8 31 87.8

2 35.6 12 53.6 22 71.6 32 89.6

3 37.4 13 55.4 23 73.4 33 91.4

4 39.2 14 57.2 24 75.2 34 93.2

5 41.0 15 59.0 25 77.0 35 95.0

6 42.8 16 60.8 26 78.8 36 96.8

7 44.6 17 62.6 27 80.6 37 98.6

8 46.4 18 64.4 28 82.4 38 100.4

9 48.2 19 66.2 29 84.2 39 102.2
