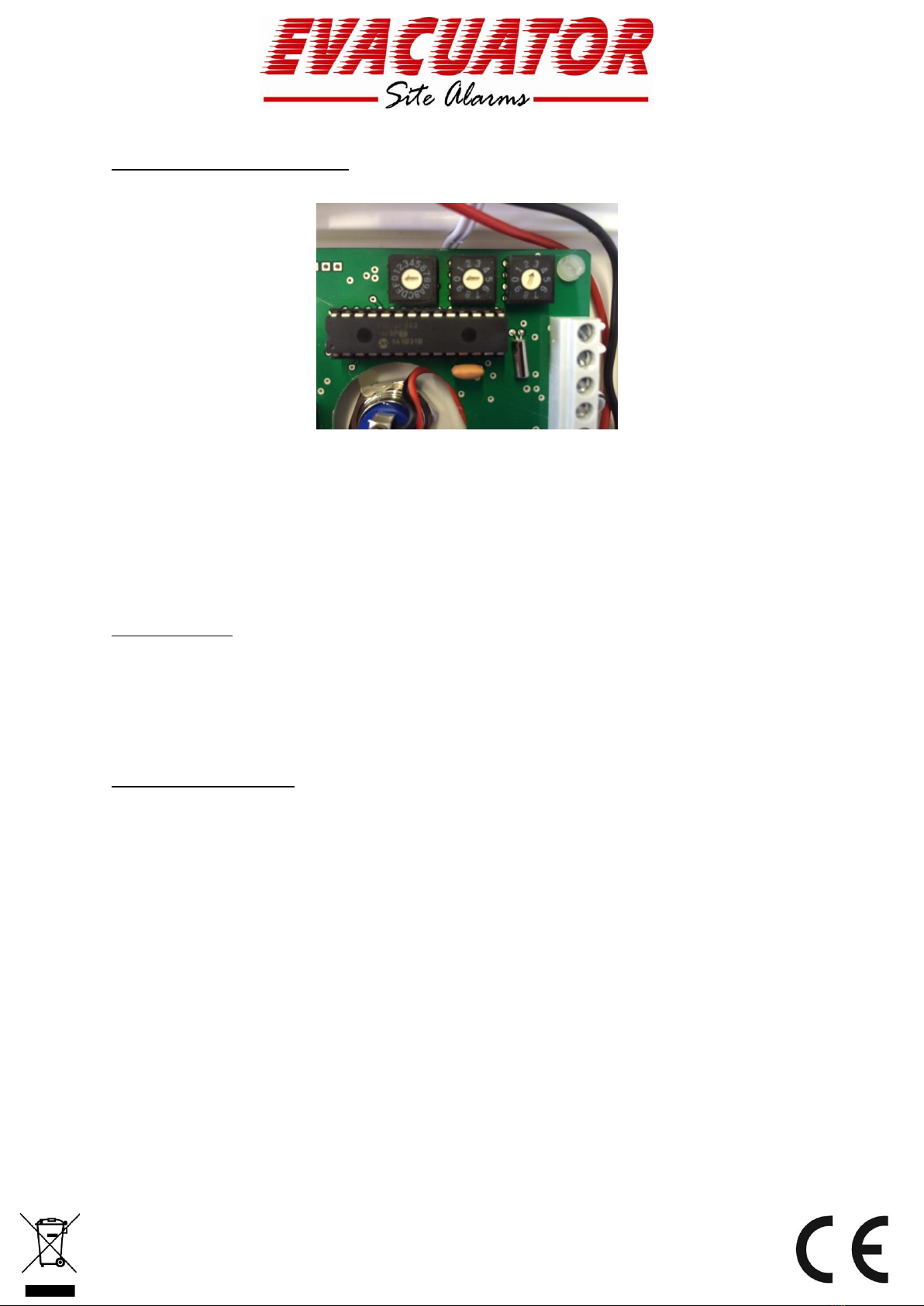

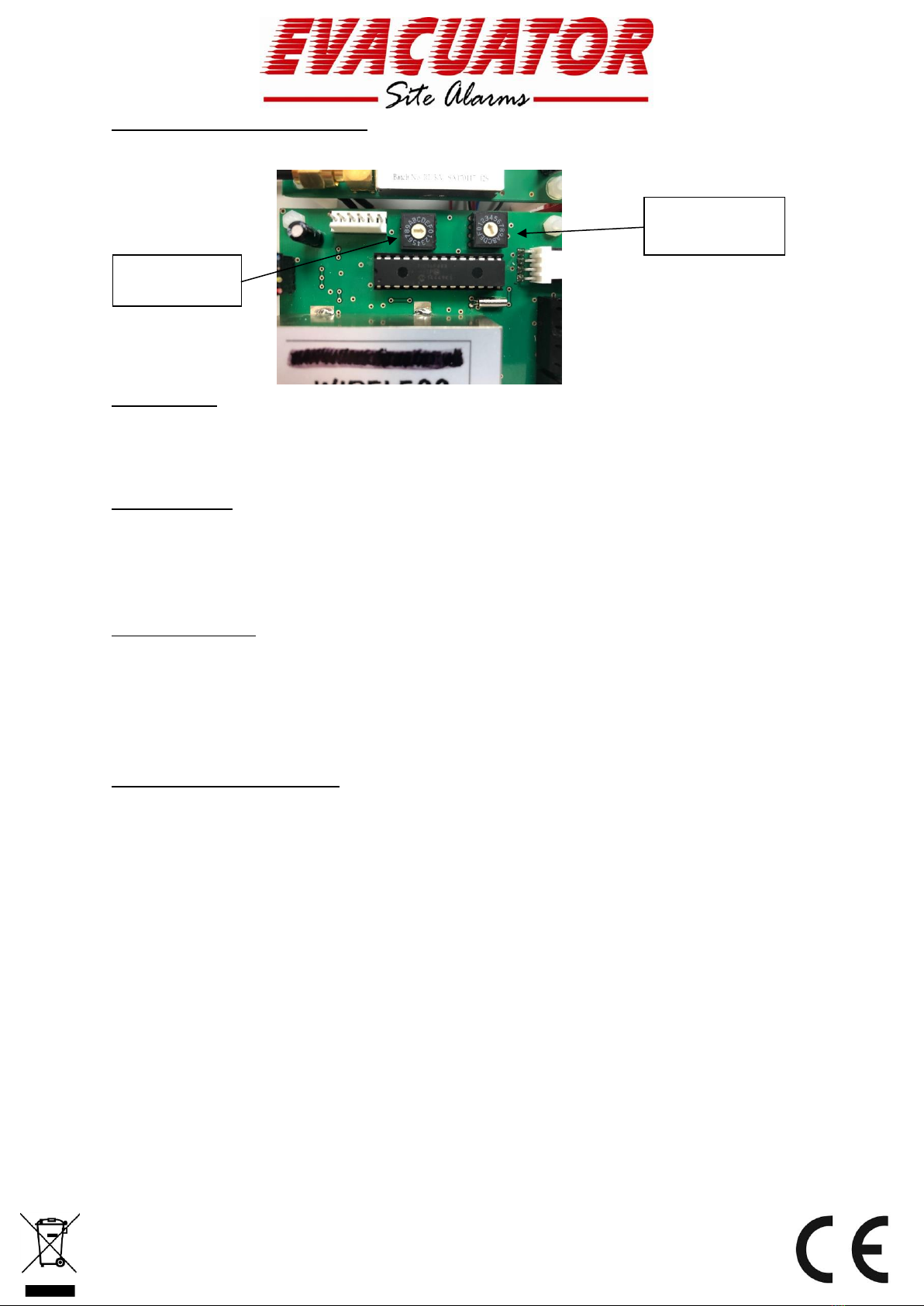

Device Numbering Zone Master PCB
Frequency Dial
This dial must be common to your 600 Zone Master Touch Screen Panel, from default this is set
Frequency 0. Your chosen frequency must be common throughout the site
Device/Zone Dial
This Dial is your Zone number dial, this is Dial assigns your zone leader its number. This must go up in
numerical order so the first Zone will be number 1, second number 2 etc. Your 600 Touch Screen
panel will be set to 0 at all times

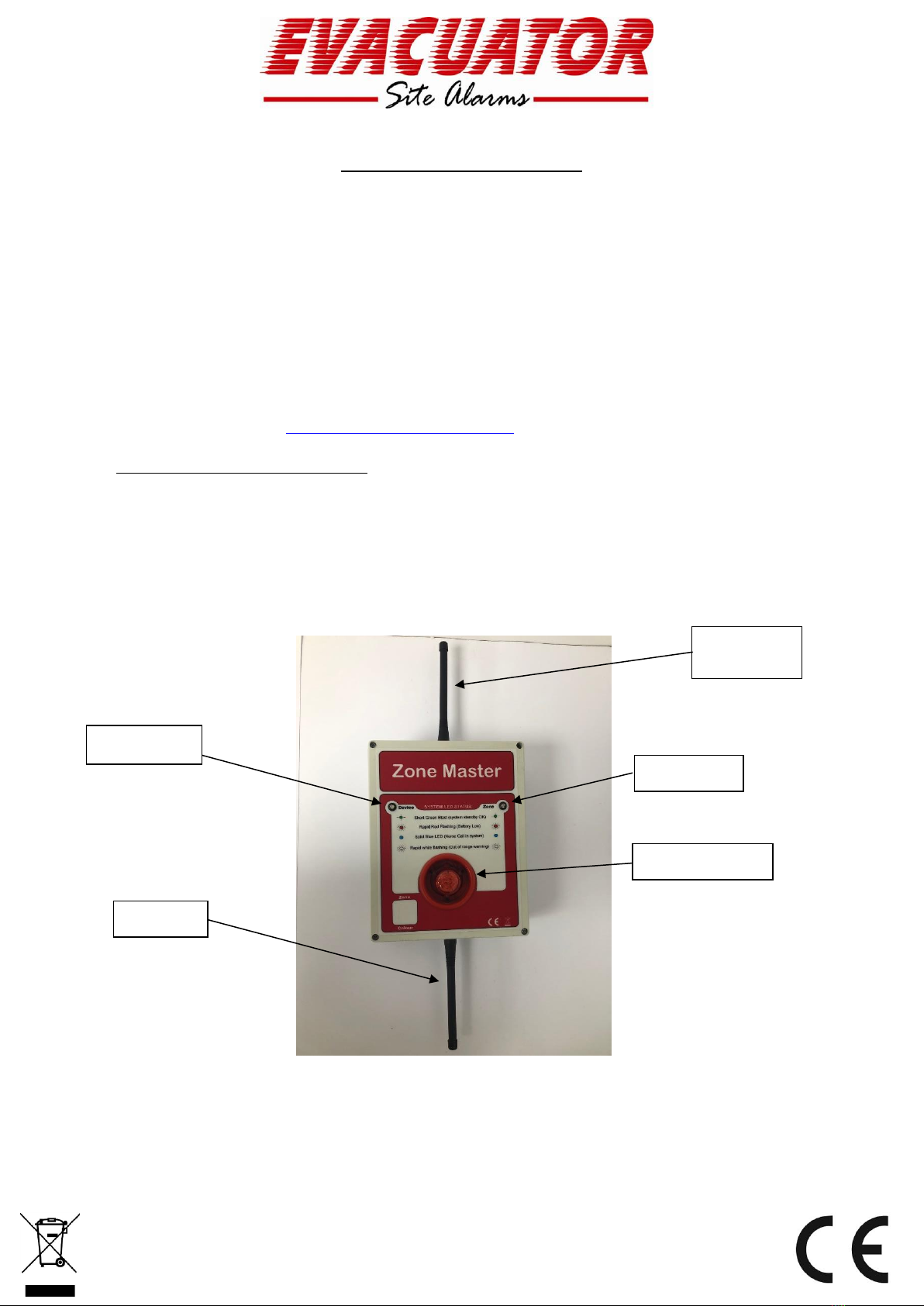

Fitting the Antennas
The rubber duck antenna should now be fitted to the Silver TNC docking point located on the front
cover. The Antenna should be placed over the TNC connector and screwed in a clockwise motion
until it locates into place. Test that it has been located correctly by gently pulling on the Antenna in
an outwards motion.
Pairing The Zone Master System
1. Power on the 600 Touch Screen Base Station ensuring it is set to the correct Zone Number
(0) and the Antenna is in place
2. Within 30 seconds of powering on the Touch Scree Base Station connect the battery of Zone
Master number 1 ensuring all the dials, antennas etc have been set and are in place
3. The Zone Master “ZONE”LED should settle in to a steady couple of times per minute flash
after a short wait. Once this happens this shows connection between the Zone Master and
600 Touch Screen Base Station
4. Connecting the Synergy Side of the system is the same as a usual system. Set your “00”
device ensuring the frequency dial is common to the dial on the Synergy PCB in the Zone
Master. Connect the battery on the “00”device and the “DEVICE”LED will settle down into
its twice per minute flash
5. You are now free to add further Zone Masters, do this by connecting the power cable and
repeating steps 3 & 4. There will be no need to switch further Zone Masters on within the 30
second Base Station bootup, these can be switched on and paired as and when needed
(Please make sure the zone numbers go in numerical order as repeating a zone number
will confuse the system)
