Event Lighting ENFORCER580 Manuale utente

ENFORCER580

580W LED HYBRID MOVING HEAD

USER MANUAL

For safety, please read this user manual carefully before initial use.

Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to

change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions. Please consult Event Lighting

for any clarification or information regarding this item.

www.event-lighting.com.au V1.0

www.event-lighting.com.au

Safety Instructions

WARNING

• Do not open this device, there is no user-serviceable parts inside. Risk of electric shock.

•Do not look at the light source when the device is on.

•CAUTION: This unit's housing may be hot during and after operation.

•Install this device in a location with adequate ventilation, at least 20 inch (50 cm) from adjacent surfaces.

•Do not leave any flammable material within 50 cm of this unit while operating or connected to power.

•Use a safety chain when mounting this device overhead.

•Do not operate this device outdoors or in any location where dust, excessive heat, water, or humidity may affect it.

•Do not operate this device if the housing, lenses, or cables appear damaged.

•Do not connect this device to a dimmer or rheostat.

•ONLY connect this device to a grounded and protected circuit.

•ONLY use the hanging bracket to carry this device.

•In case of a serious operating problem, stop using immediately.

•The maximum ambient temperature is 104° F (40° C). Do not operate this device at higher temperatures.

Power Input & Power Linking

This device has an auto-switching power supply work with input voltage range of 100~240 VAC, 50/60 Hz.

Link up to the maximum 8A. DO NOT exceed this.

Fuse Replacement

If the fine-wire fuse of the device fuses, only replace the fuse by a fuse of same type and rating.

Before replacing the fuse, unplug mains lead.

Procedure:

Step 1: Unscrew the fuse holder on the rear panel with a fitting screwdriver from the housing (anticlockwise).

Step 2: Remove the old fuse from the fuse holder.

Step 3: Install the new fuse in the fuse holder.

Step 4: Replace the fuse holder in the housing and fix it.

www.event-lighting.com.au

Product Installation

This device can be mounted in many orientations provided each

individual device is secured by the use of correct mounting bracket.

Use a safety chain when mounting this device overhead.

www.event-lighting.com.au

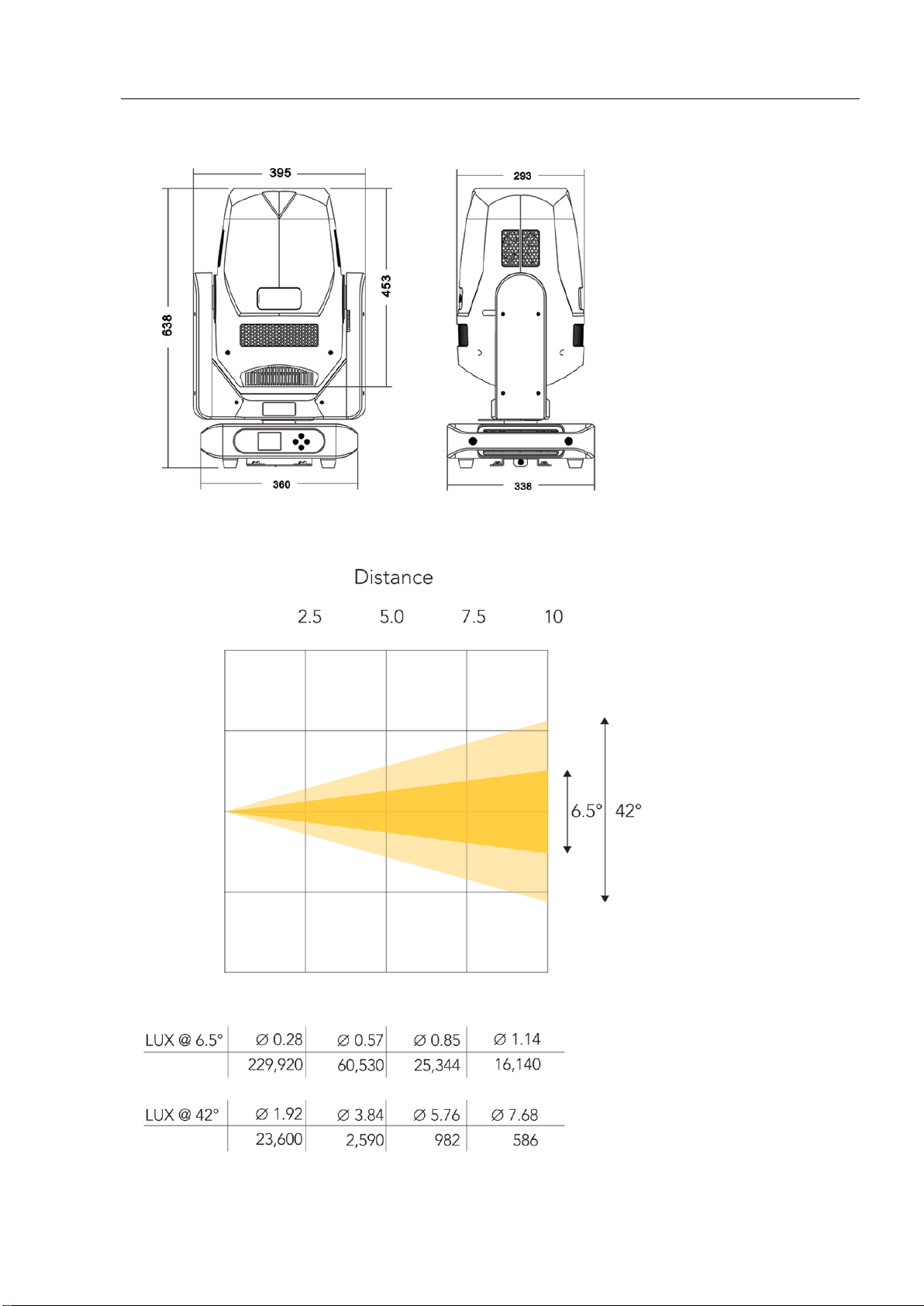

Dimensions

Lux Chart

www.event-lighting.com.au

Colour Wheel

Open

Red

Blue

Green

Orange

Indigo

Magenta

www.event-lighting.com.au

Fixed Gobo Wheel

Position 1

Position 2

Position 3

Position 4

Position 5

Position 6

Position 7

Position 8

www.event-lighting.com.au

Rotating Gobo Wheel

Position 1

Position 2

Position 3

Position 4

Position 5

Position 6

Animation Wheel

www.event-lighting.com.au

Description

Information

Address

DMX address, 1-512

Runtime

Unit uptime

Version

Software version

Temperature

Mainboard temperature

Light source temperature

Fan Speed

Fan 1 speed

Fan 2 speed

Setting

Reset

Restart unit

Reset to factory settings

Channel Set

Signal

Signal source:

DMX512/Artnet/Program

Offline Set

Home/Hold

Fan Mode

Normal/Performance/Quiet

Wireless Set

On/Off

Adjust

Artnet Set

Artnet settings: IP address

Artnet settings: Subnet mask

Artnet settings: Universe

Lamp

Auto on

Light up

Lamp Adjust

Lamp Fail

Display

Language

English/Chinese

Backlight

On/Off/Flash

Reverse

Reverse display orientation; On/Off

User

Setting Lock

Input code to lock settings

Key lock

On/Off

Test

On/Off

Program

Select program 1-8

Program 1-8

www.event-lighting.com.au

DMX Chart

Channel

Min

DMX

Max

DMX

Name

Function

255

Pan

Pan movement

255

Pan-fine

Fine pan movement

255

Tilt

Tilt movement

255

Tilt-fine

Fine tilt movement

Colour wheel

6 colours

221

Colour arbitrary positioning

222

239

Rotate left

240

255

Rotate right

255

Cyan

Cyan 0..100%

255

Magenta

Magenta 0..100%

255

Yellow

Yellow 0..100%

255

Colour

temperature

Fixed gobo

8 gobos

143

Gobo arbitrary positioning

144

199

Rotate left

200

255

Rotate right

Rotating gobo

7 gobos

135

Gobo arbitrary positioning

136

195

Rotate left

196

255

Rotate right

Gobo Rotation

TBD

123

Rotating gobo angle

124

187

Rotate left

188

191

Stop

192

255

Rotate right

255

Dimmer

Dimmer 0..100%

255

Dimmer-fine

Fine dimmer 0..100%

Strobe

Open

Strobe 1

Strobe 2

100

131

Strobe 3

132

175

Strobe 4

176

247

Strobe 5

248

251

Random strobe 1

252

255

Random strobe 2

Dimmer mode

Refresh rate 300Hz (dimmer auto

delay)

127

Dimmer no delay

128

191

Refresh rate 1200Hz (dimmer no

www.event-lighting.com.au

delay)

192

255

Dimmer no delay

Prism

No effect

255

Prism effect

Prism rotation

Prism is 0

123

Prism angle

124

187

Rotate left

188

191

Stop

192

255

Rotate right

255

Zoom

255

Zoom-fine

Fine zoom

255

Focus

255

Focus-fine

Fine focus

127

Iris

Open to close

128

135

136

173

Iris Movement 1

174

211

Iris Movement 2

212

249

Iris Movement 3

250

255

Frost

No effect

255

Linear frost

Animation Wheel

No effect

239

Animation effects

240

255

Rotate left and right

255

Frame 1A

255

Frame 1B

255

Frame 2A

255

Frame 2B

255

Frame 3A

255

Frame 3B

255

Frame 4A

255

Frame 4B

Frame Angle

No effect

239

Angle

240

255

Rotate left and right

255

Frame angle fine

Frame Macro

No effect

255

Total of 63 effects

255

Scan speed

Fast to slow

Reset

Reset all
