Event Lighting PRO PAR Manuale utente

PRO PAR

Model No. PAR4X12B

USER MANUAL

For safety, please read this user manual carefully before initial use.

Event Lighting reserves the right to revise the manual at any time. Information and specifications within this

manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any

errors or omissions. Please consult Event Lighting for any clarification or information regarding this item.

www.event-lighting.com.au

Ver 1.0.1 (27 Apr 2020)

www.event-lighting.com.au

CONTENTS

Safety Instructions

Product Installation

Diagrams

Control Board Operation

DMX chart

Technical specifications

Warranty

www.event-lighting.com.au

Safety Instructions

WARNING

•

Do not open this device, there is no user-serviceable parts inside. Risk of electric shock.

•

Do not look at the light source when the device is on.

•

CAUTION: This unit's housing may be hot during and after operation.

•

Install this device in a location with adequate ventilation, at least 20 inch (50 cm) from adjacent surfaces.

•

Do not leave any flammable material within 50 cm of this unit while operating or connected to power.

•

Use a safety chain when mounting this device overhead.

•

Do not operate this device outdoors or in any location where dust, excessive heat, water, or humidity may affect it.

•

Do not operate this device if the housing, lenses, or cables appear damaged.

•

Do not connect this device to a dimmer or rheostat.

•

ONLY connect this device to a grounded and protected circuit.

•

ONLY use the hanging bracket to carry this device.

•

In case of a serious operating problem, stop using immediately.

•

The maximum ambient temperature is 104° F (40° C). Do not operate this device at higher temperatures.

Product Installation

This device can be mounted in many orientations provided each individual device is secured by the use of correct

mounting bracket.

Use a safety chain when mounting this device overhead.

www.event-lighting.com.au

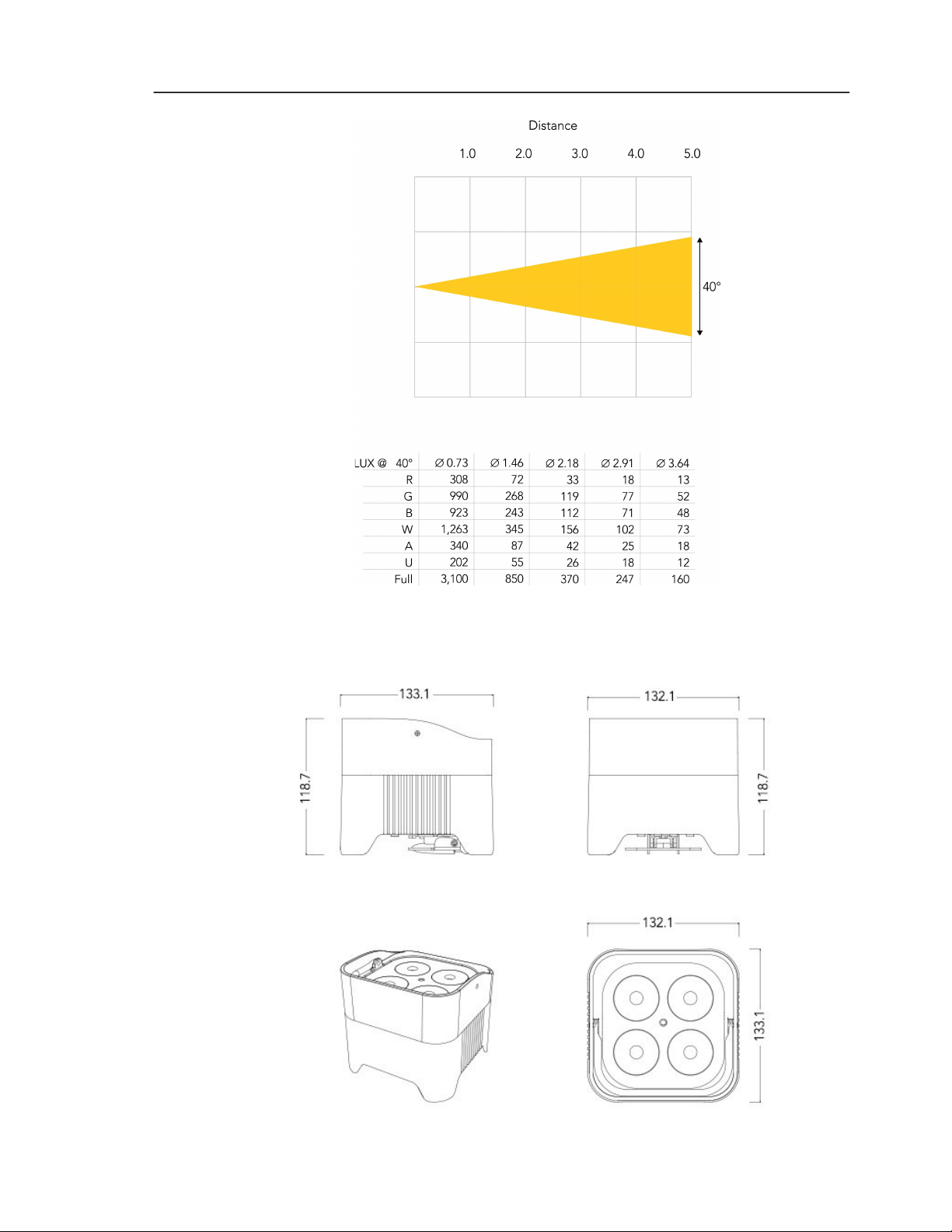

Lux Chart

Dimensions

www.event-lighting.com.au

CONTROL BOARD OPERATION

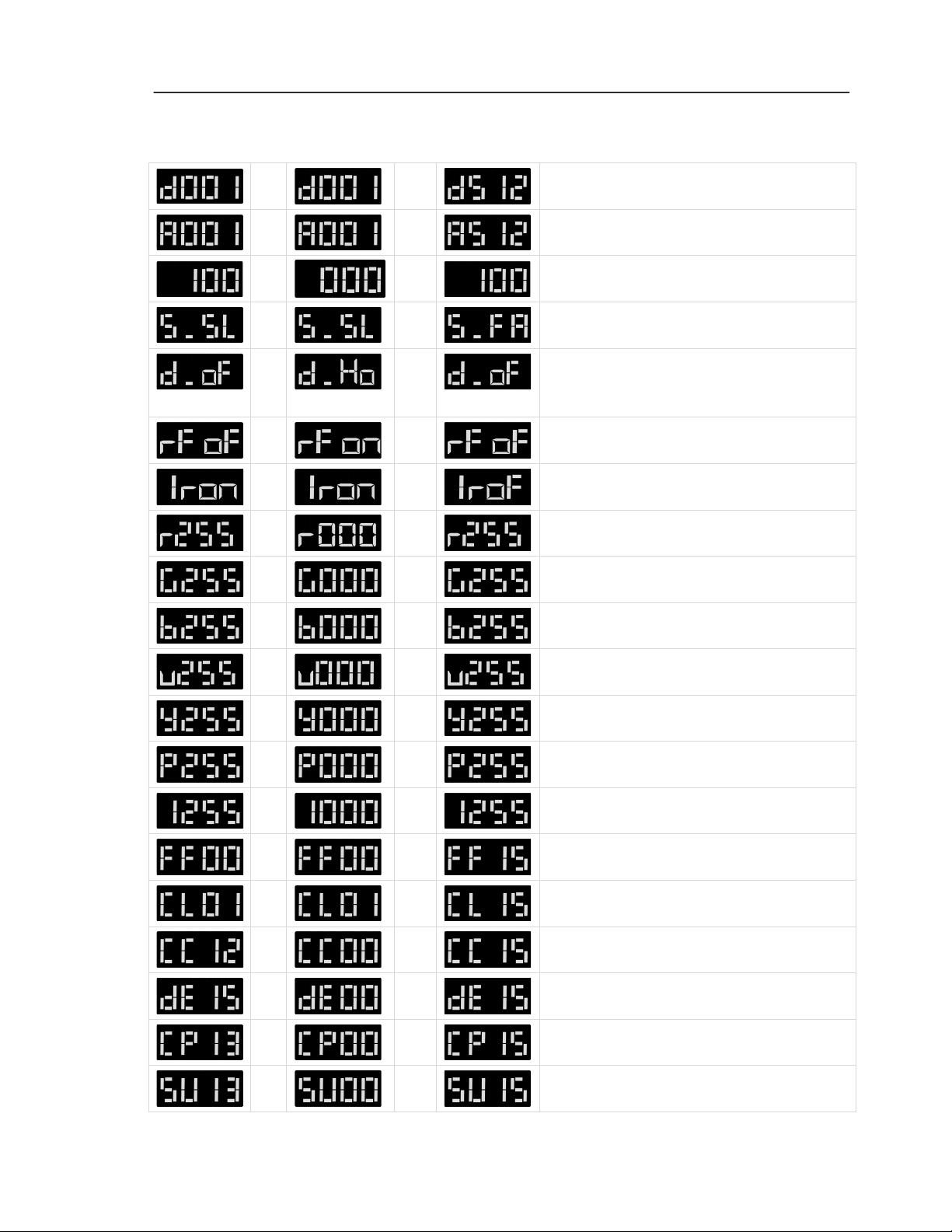

Menu Map

Select DMX address for 6 ch mode

Select DMX address for 10 ch mode

Remaining percentage of battery power

Set dimming speed (SL: slow / FA: fast)

When lost DMX signal,

ho: keep the last DMX signal state

OF: blackout

Switch on/off wireless DMX control

Switch on/off IR remote control

Set red colour intensity

Set green colour intensity

Set blue colour intensity

Set white colour intensity

Set amber colour intensity

Set UV colour intensity

Display IR control brightness level

Set strobe speed

Select 15 static colour modes, see chart: Static

colour mode

Select 16 speed of auto colour switch mode

Select 16 speed of auto colour fading mode

Select 16 speed of auto colour pulse out mode

Select sound active mode with different sound

sensitive level

www.event-lighting.com.au

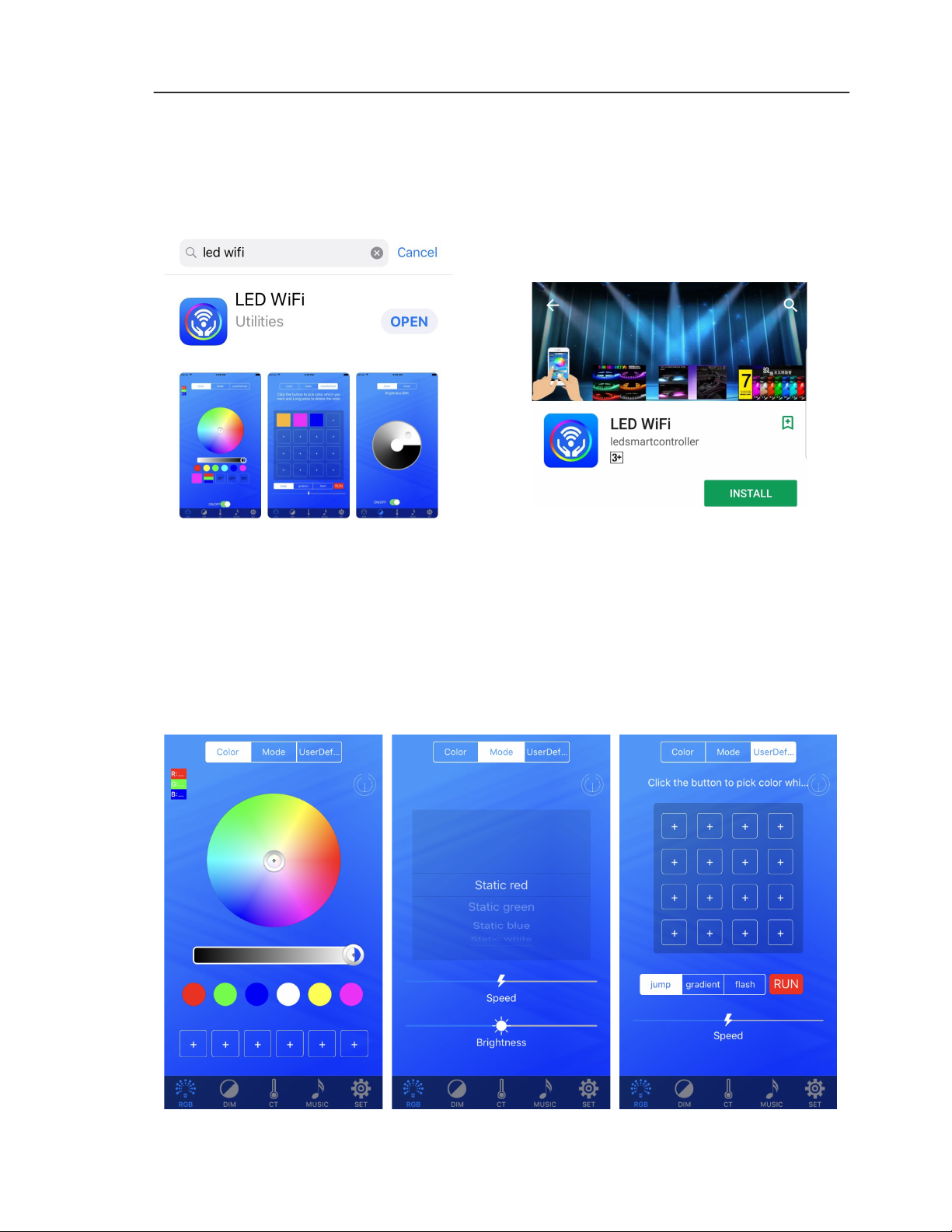

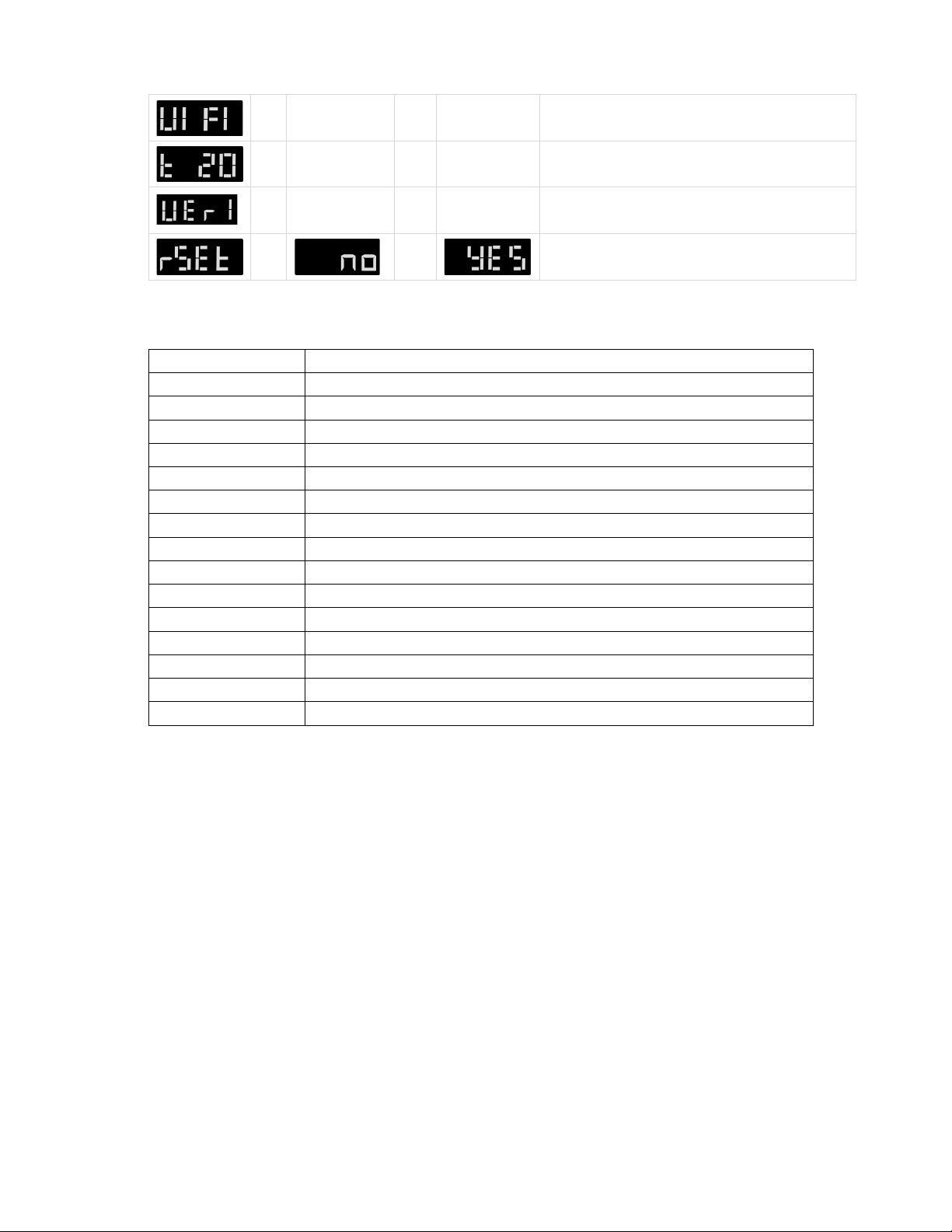

Wi-Fi Control Mode

Display current temperature

Display version number

Reset

Static colour mode

Value:

Function:

R + G

B + R + UV

G + B

R + G + B + A + UV

R + W

C10

G + W

C11

R + A

C12

B + W + UV

C13

R + B + W + UV

C14

G + B + W

C15

R + G + B + W + A + UV

Wireless DMX mode

Set up wireless DMX

The fixture needs to be paired from the wireless DMX transmitter. Follow below steps to pair.

Step 1: Connect the DMX512 controller to the wireless DMX transmitter.

Step 2: Switch on the PAR6x12OB, turn on the wireless DMX control on from control panel ‘rfon’

Step 3: Set the PAR6x12OB to DMX mode. (AXXX or dXXX)

Step 4: Switch off the PAR6x12OB. Press and hold the ‘DMX select’ button whilst switching on the fixture. Once the

fixture turns on the ‘wireless status’ light will be lit white and the unit will be in ‘setup mode’.

Step 5: The ‘wireless indicator’ will be lit to a specific colour to indicate the protocol being used for the transmission as

shown in TABLE1. Pressing the button will cycle through the colours and once you want to set the protocol pressing the

button for more than 1s will save the protocol. The transmitters, receivers and transceivers will remember the protocol

used even after a power cycle with their built in memory chip.

Now you need to setup as for WDMX mode or EL mode

www.event-lighting.com.au

Protocols TABLE1

Colour

Protocol

Red

ELDMX Transmit and receive

Green

W-DMX Receive

Blue

W-DMX G3 Transmit

Using W-DMX mode

Transmitters

Pressing the button momentarily will connect to all unconnected receivers in the coverage area.

Pressing the button for more than 3s will disconnect all receivers in the coverage area.

Receivers

Pressing the button for more than 3s will disconnect the device with a transmitter.

NOTE:

The colour of the light will indicate the group as shown in Table2.

The receiver will not connect with a new transmitter unless it is disconnected first.

W-DMX Status Indicators TABLE2

Protocol

Action

Description

W-DMX Receive

White

No connection

Red

Deleting Connection

Red Fast Flash

Connection Lost

Green Fast Flash

Connecting to Transmitter

Green Slow Flash

Connected but no DMX signal

Green

Connected with DMX signal

W-DMX Transmit

Red

Deleting All Receivers

Blue Fast Flash

Connecting with the receivers

Blue Slow Flash

No DMX input

Blue

Transmitting DMX

Using EL wireless DMX mode

Changing Channel Group

Pressing the Button will show you the current channel group being used and pressing it again will cycle through the

groups. The colour of the light will indicate the group as shown in Table3.

Status Indicators TABLE3

Protocol

Action

Description

ELDMX

Solid Colour (Red, Green, Blue,

Yellow, Cyan, Magenta)

1 of the 6 colour groups

Flashing Red

Transmitting DMX

Flashing Green

Receiving DMX

www.event-lighting.com.au

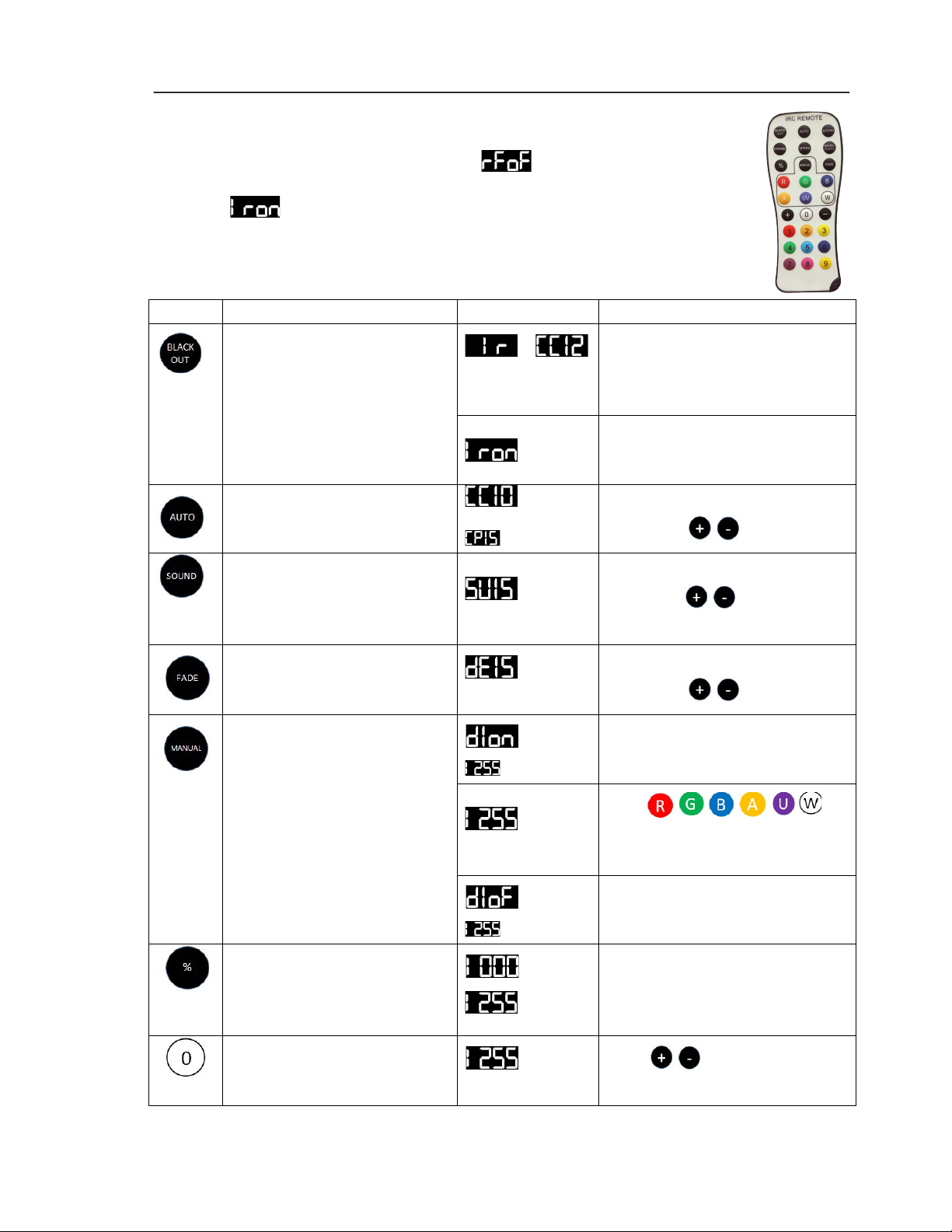

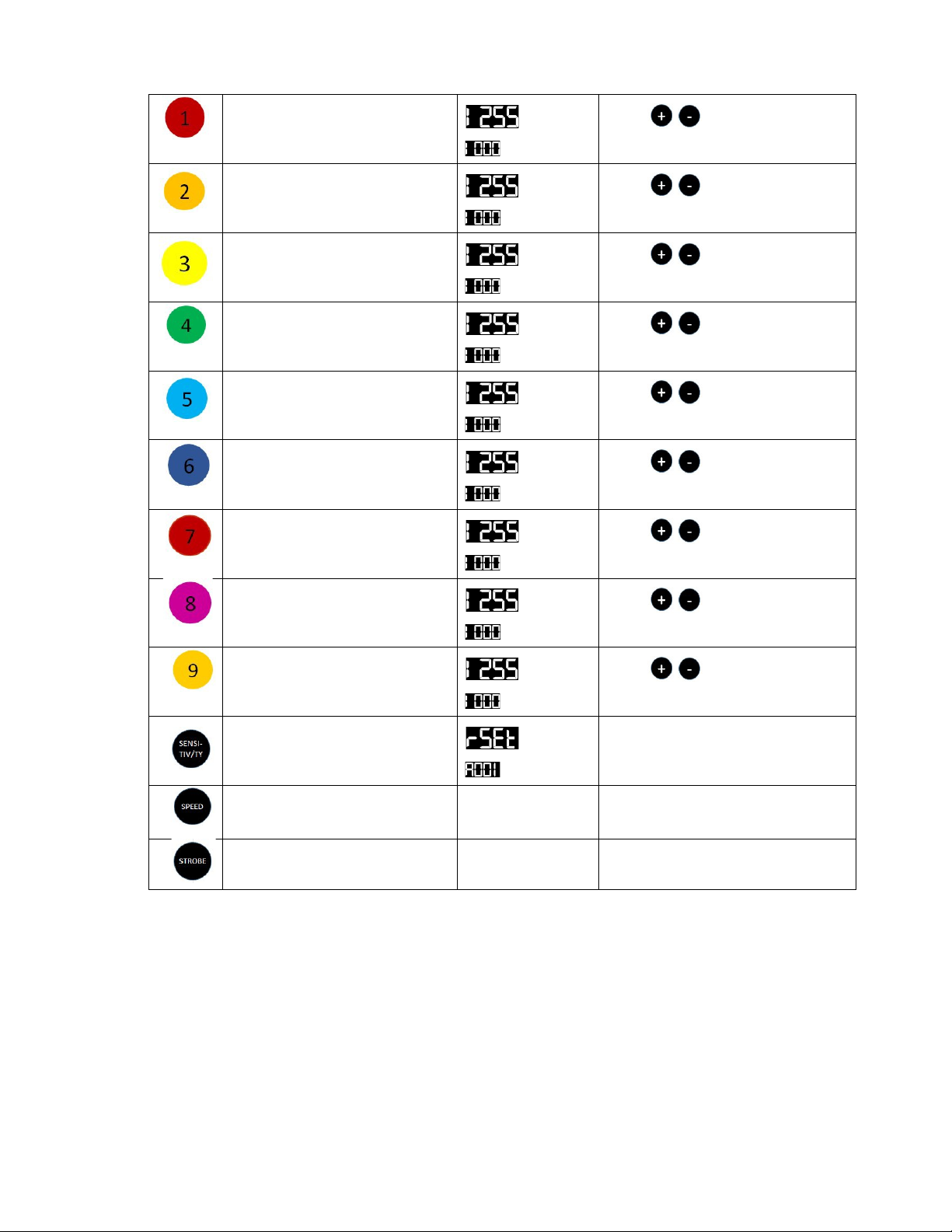

IR remote control mode

-You must switch off wireless DMX function, select .

-Select , then use IR remote to switch on IR remote control mode.

Key

Function

Display

Switch on/off IR function

or your last setting

Pressing <blackout> button to switch on

the fixture IR function, fixture will go to

CC12 auto colour switch mode or your

last setting

Pressing <blackout> button when unit

under IR mode, fixture will blackout and

on IR standby mode

Select auto colour switch mode (CC)

or auto colour pulse out mode (CP)

with different speed

between

Using <Auto> button to select CC or CP

mode, using to change speed.

Select sound active mode (SU) with

different sensitivity level

Pressing <SOUND> button to select SU

mode, using to change

sensitivity level

Select auto colour fade mode (dE)

with different speed

Pressing <FADE> button to select dE

mode, using to change speed.

Select manual colour mode

Pressing <MANUAL> button to entry

manual colour mode

Using

button to cycle though 20% change of

intensity of each colour separately.

Pressing <MANUAL> button to quit

manual colour mode, fixture will blackout

Select intensity of LED full on mode

Pressing <%> button to cycle though

10% change of intensity on static colour

(R255+G255+B255+W255+A255+U255)

mode.
