Event Lighting M1S80W Manuale utente
SPOT MOVING HEAD
M1S80W
USER MANUAL
For safety, please read this user manual carefully before initial use.
Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to
change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions. Please consult Event Lighting
for any clarification or information regarding this item.
www.event-lighting.com.au
V1.0
1
www.event-lighting.com.au
Safety Instructions
WARNING
• Do not open this device, there is no user-serviceable parts inside. Risk of electric shock.
• Do not look at the light source when the device is on.
•CAUTION: This unit's housing may be hot during and after operation.
• Install this device in a location with adequate ventilation, at least 20 inch (50 cm) from adjacent surfaces.
• Do not leave any flammable material within 50 cm of this unit while operating or connected to power.
• Use a safety chain when mounting this device overhead.
• Do not operate this device outdoors or in any location where dust, excessive heat, water, or humidity may affect it.
• Do not operate this device if the housing, lenses, or cables appear damaged.
• Do not connect this device to a dimmer or rheostat.
• ONLY connect this device to a grounded and protected circuit.
• ONLY use the hanging bracket to carry this device.
• In case of a serious operating problem, stop using immediately.
• The maximum ambient temperature is 104° F (40° C). Do not operate this device at higher temperatures.
Power Input & Power Linking
This device has an auto-switching power supply work with input voltage range of 100~240 VAC, 50/60 Hz.
Link up to the maximum 8A. DO NOT exceed this.
Fuse Replacement
If the fine-wire fuse of the device fuses, only replace the fuse by a fuse of same type and rating.
Before replacing the fuse, unplug mains lead.
Procedure:
Step 1: Unscrew the fuse holder on the rear panel with a fitting screwdriver from the housing (anticlockwise).
Step 2: Remove the old fuse from the fuse holder.
Step 3: Install the new fuse in the fuse holder.
Step 4: Replace the fuse holder in the housing and fix it.

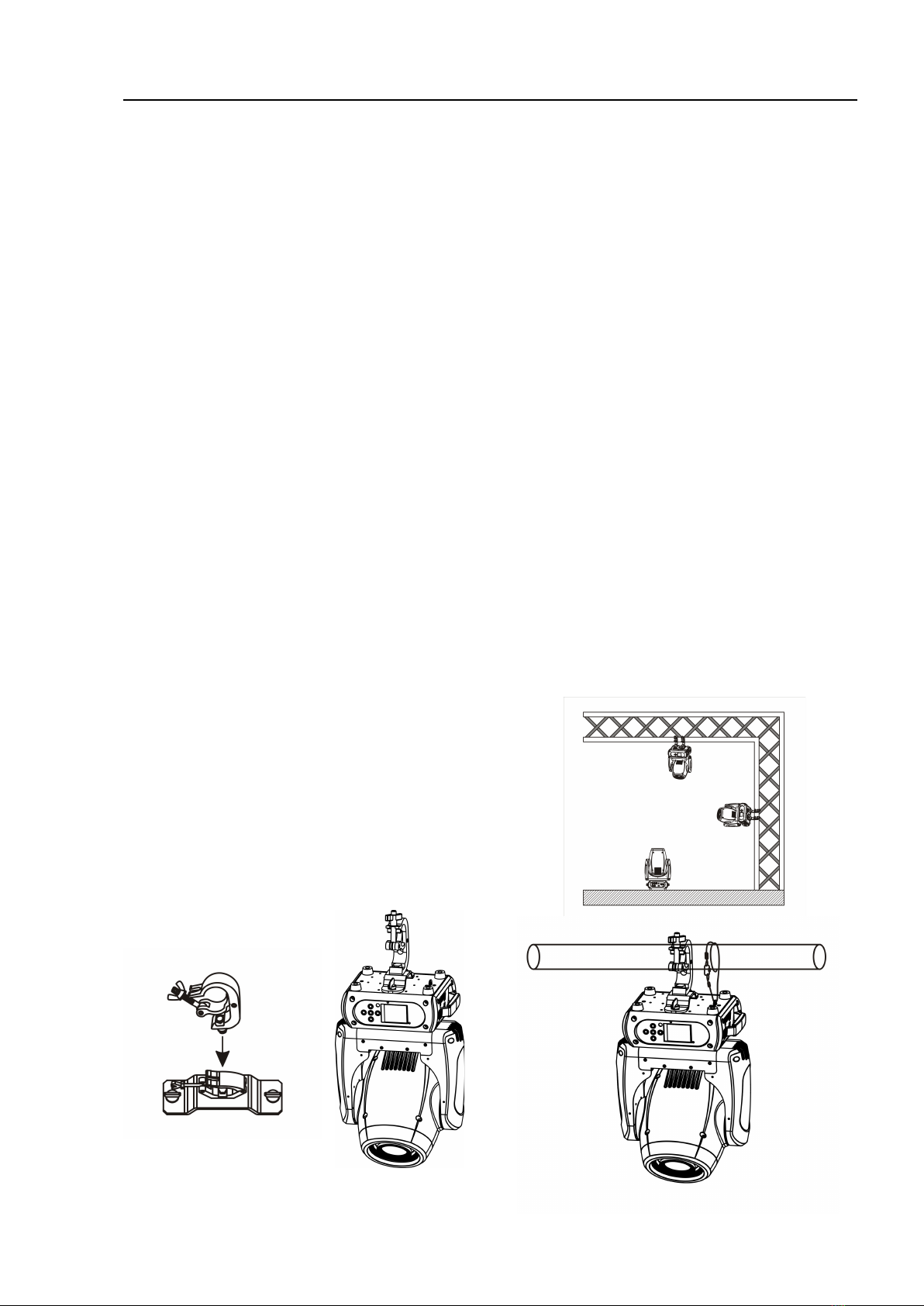

Product Installation
This device can be mounted in many orientations provided each
individual device is secured by the use of correct mounting bracket.
Use a safety chain when mounting this device overhead.
2
www.event-lighting.com.au

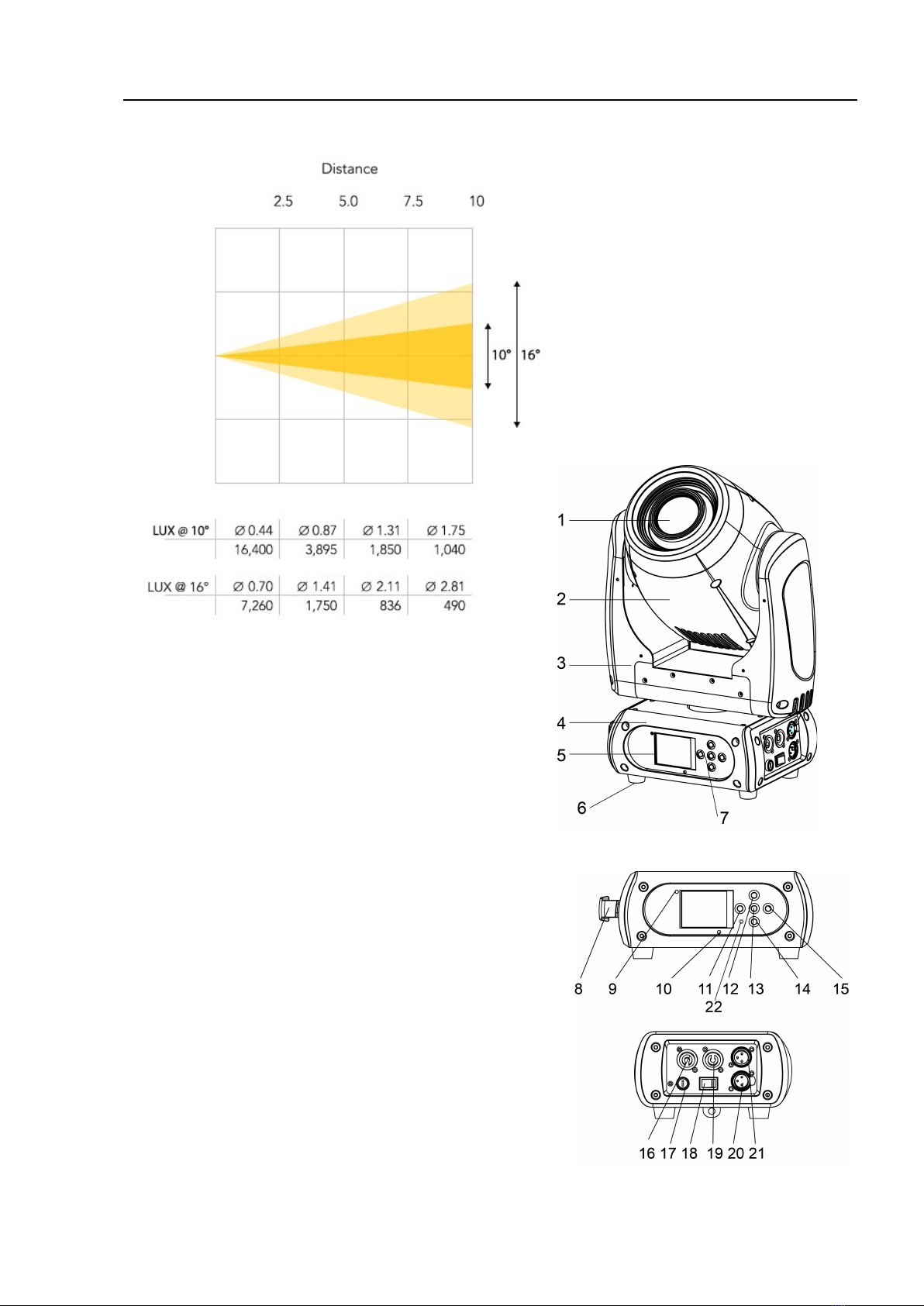

Product appearance, LUX chart, Dimensions
1. Project lens 12. Up button
2. Head 13. Enter button
3. Arm 14. Down button
4. Base 15. Right button
5. Display 16. Powercon in
6. Foot stand 17. Fuse
7. Operation button 18. Power switch
8. Handle 19. Powercon out
9. Wireless indicator 20. 3-pin DMX in
10. Mic 21. 3-pin DMX out
11. Left Button 22. Battery indicator
3
www.event-lighting.com.au

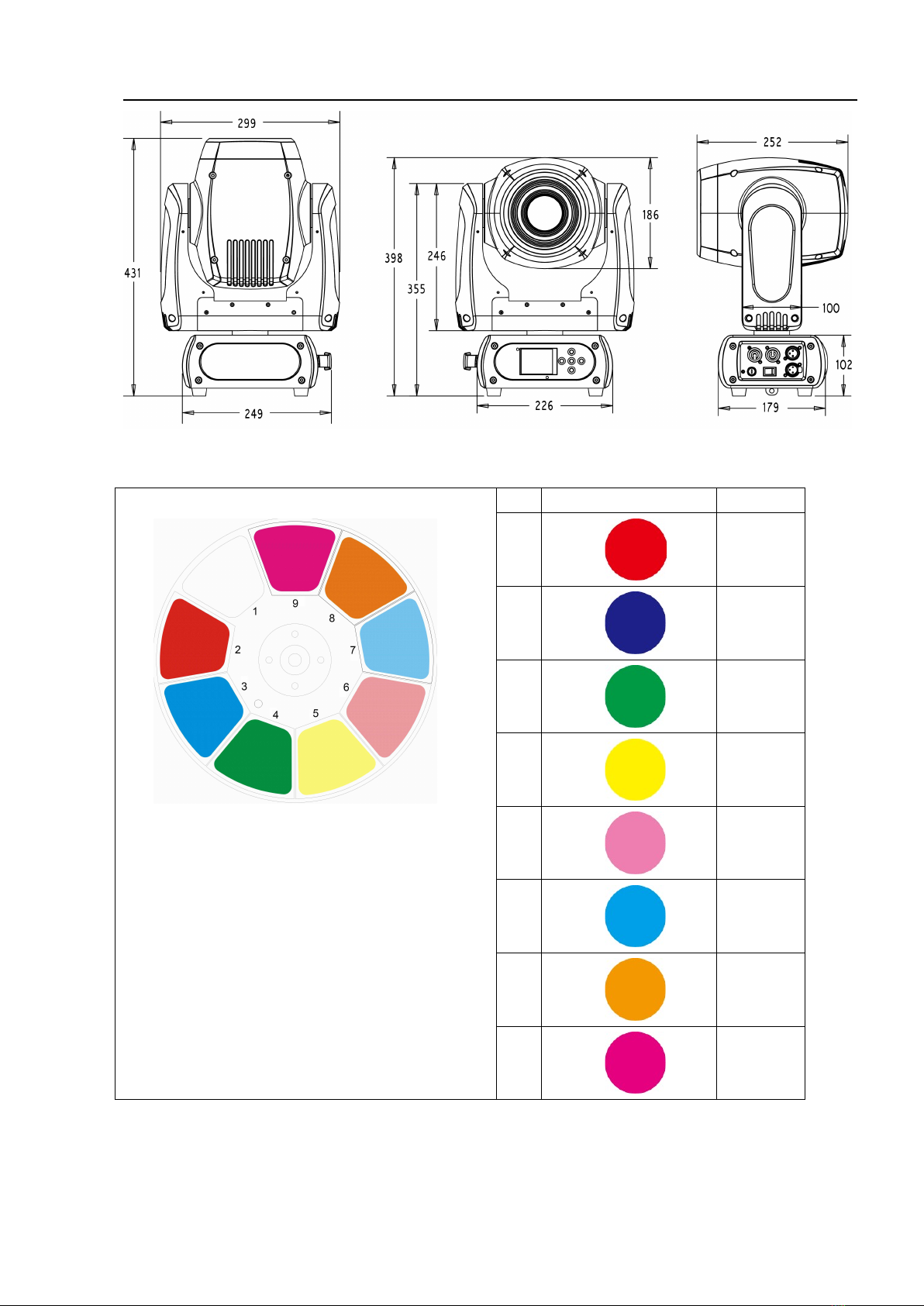

Color Wheel
1 Open
2 Red
3 Blue
4 Green
5 Yellow
6 Pink
7 Sky blue
8 Orange
9 Magenta
4
www.event-lighting.com.au
Gobo Wheel
Rotating gobo wheel (slot-in-out gobos)
Rotating gobo wheel
Position 1
Position 2
Position 3
Position 4
Position 5
Position 6
Position 7
Position 8
5
www.event-lighting.com.au
Menu operation
Description of icons in the menu
CONNECT LIGHT INFOMATION SET PROGRAM
Menu
Default setting shadowed. Mark with ①can be basic reloaded, ②be program reloaded, ③can be private reloaded.
Connect
DMX Address①XXX DMX address setting
Wireless①XXX Wireless Enabled
Light
Max Temperature①80~139℃90℃/176~282℉176℉Lamp off if temperature continuously
over for 2 minutes
Lamp Adjust①PAN…… Adjust value of channel
Information
Time Info. Current XXXX(Hours) Fixture boot time
Fixture Life XXXX(Hours) Fixture total run time
Temperature Near Lamp Temp (depends on fixture) Temperature Sensors
Fans Speed Near Lamp Fan (depends on fixture) Fan speed Sensors
Channel Value PAN…… Display value of channel
Error Message Pan, Tilt…… Error channels
Fixture Model xxxxxxxxxxxx Display model brand and model
Software Ver. 1U01 V1.0.00…………….. Version of each IC
Set
Reset
All Reset all
Pan & Tilt Reset Pan & Tilt
: :
Movement
Pan Reverse①ON/OFF Pan Reverse
Tilt Reverse①ON/OFF Tilt Reverse
Pan Degree①630/540 Choose Pan Degree
Encoders①ON/OFF Encoder wheel on/off
Pan/Tilt Mode①Stand/Smooth Choose pan/tilt mode
UI Set
Mic Sens. ③0~99%,(60%) Sensitivity of Mic
No Signal①Close/Hold/Auto/Music Mode when no signal
Temperature. C/F①Fahrenheit /Celsius Temperature at ℃/℉
Fans Mode①Auto Speed /High Speed Fans mode
Hibernation①OFF, 01M~99M，(15M) Sleeping mode
Backlight①02~60m (02m) Show backlight time
Flip Display①ON/OFF Display 180°reverse
Display Bright③00~31 (10) Display Brightness
Brand Show①ON/OFF Show brand or not
Key Lock①ON/OFF Key lock on/off
Language③En/Fr/Sp/简/繁Language Select
Fixture Set Silent Mode①ON/OFF Silent Mode
Frequency①600Hz--- (1200Hz) Frequency
6
www.event-lighting.com.au
Users
User Mode①
Standard Standard mode
Extended Extended mode
: :
User User program mode
Edit User③
Max Channel = XX
Edit users modePAN = CH01
:
Calibration③
-Password- =xxx Password: 050
Pan =xxx Calibrate channel value
: :
Fixture ID③
Name Name
Rdm Mode RDM Mode
-Password- Password: 050
PID Code Set PID of RDM
Wireless Set①DMX On Cable ON/OFF DMX On Cable
Reset Connect ON/OFF Reset Connect
Reload Default
Basic Reload(①) ON/OFF Basic Reload
Program Reload(②) ON/OFF Program Reload
---Password--- XXX Password: 050
Private Reload(③)ON/OFF Private Reload
All Reload ON/OFF All Reload
Program
Play①
DMX Receive DMX Receive
Slave Receive Slave Receive 1,2,3 Choose slave position
Sequence Master / Alone Run Sequence
Music Master / Alone Music mode
Select Chase②
Chase Part 1 Chase 1 ~ 8 Chase 1
Select and run auto programChase Part 2 Chase 1 ~ 8 Chase 2
Chase Part 3 Chase 1 ~ 8 Chase 3
Edit Chase②
Chase 1 Chase Test Test
: Step 01 =xxx Beginning scene
Chase 8 Step 64 =xxx Ending scene
Edit Scenes②
Edit Scene 001 Pan, Tilt ,…… =xxx Input manual scene
~ Edit Scene 250 --Fade Time-- =xxx Modify manually fading time
--Secne Time-- =xxx Modify manually scene time
DMX Input Input scene from exterior controller
Scenes Record ScXX=>ScXX Auto Input scenes
7
www.event-lighting.com.au
DMX Chart
Channel Name Function Min
DMX
Max
DMX
St Ex Ba1 Ba2
1 1 1 1 Pan Pan Coarse 0 255
2 2 2 Pan fine Pan Fine 0 255
3 3 2 3 Tilt Tilt Coarse 0 255
4 4 4 Tilt fine Tilt Fine 0 255
5 5 3 5 Movement Speed fastest to Slowest 0 255
6Movement
Function
Normal 0 15
Movement With Blackout 16 31
TBD 32 255
6 7 Shutter Function
Normal Shutter Functions 0 15
Pulse-effect Forward 16 31
Pulse-effect Reverse 32 47
Random Strobe 48 63
TBD 64 255
7 8 Shutter
Normal Shutter Functions
Close 0 31
Strobe Rate (slow to fast) 32 223
Open 224 255
Pulse-effect Forward
Close 0 31
Strobe Rate (slow to fast) 32 223
Open 224 255
Pulse-effect Reverse
Close 0 31
Strobe Rate (slow to fast) 32 223
Open 224 255
Random Strobe
Close 0 31
Strobe Rate (slow to fast) 32 223
Open 224 255
4 6 Shutter
Shutter closed 0 31
No function (shutter open) 32 63
Strobe effect slow to fast 64 95
No function (shutter open) 96 127
Pulse-effect in sequences 128 159
No function (shutter open) 160 191
Random strobe effect slow to fast 192 223
No function (shutter open) 224 255
8 9 5 7 Dimmer Dimmer (Close to Open) 0 255
8
www.event-lighting.com.au
9 10 Color Function
Indexed 0 15
Indexed With Blackout 16 31
Forward Spin 32 47
Reverse Spin 48 63
Continuous 64 79
Color Bounce 80 111
TBD 112 255
10 11 Color
Indexed & Indexed With Blackout & Color
Bounce
Open 0 13
Between Open and Red 14 27
Red 28 41
Between Red and Blue 42 55
Blue 56 69
Between Blue and Green 70 83
Green 84 97
Between Green and Yellow 98 111
Yellow 112 125
Between Yellow and Pink 126 139
Pink 140 153
Between Pink and Sky Blue 154 167
Sky Blue 168 181
Between Sky Blue and Orange 182 195
Orange 196 209
Between Orange and Magenta 210 223
Magenta 224 237
Between Magenta and Open 238 255
Forward Spin Stop to fastest 0 255
Reverse Spin Stop to fastest 0 255
Continuous Positioning from 0-360 degrees 0 255
6 8 Color
Indexed
Open 0 2
Between Open and Red 3 5
Red 6 8
Between Red and Blue 9 11
Blue 12 14
Between Blue and Green 15 17
Green 18 20
Between Green and Yellow 21 23
Yellow 24 26
Between Yellow and Pink 27 29
Pink 30 32
Between Pink and Sky Blue 33 35
Sky Blue 36 38
9
www.event-lighting.com.au
Between Sky Blue and Orange 39 41
Orange 42 44
Between Orange and Magenta 45 47
Magenta 48 50
Between Magenta and Open 51 53
Indexed With Blackout
Position 1 (Open) 54 56
Position 2 ~ Position 18 57 106
Indexed With Bounce
Position 1 107 119
Position 2 ~ Position 9 120 223
Forward Wheel Spin
Stop to fastest 224 239
Reverse Wheel Spin
Stop to fastest 240 255
11 12 Rot Gobo
Function
Indexed 0 15
Indexed With Blackout 16 31
Forward Spin 32 47
Reverse Spin 48 63
Continuous 64 79
Shake 80 95
TBD 96 255
12 13 Rot Gobo
Indexed & Indexed With Blackout & Shake
Position 1 (Open) 0 31
Position 2 32 63
Position 3 64 95
Position 4 96 127
Position 5 128 159
Position 6 160 191
Position 7 192 223
Position 8 224 255
Forward Wheel Spin Stop to fastest 0 255
Reverse Wheel Spin Stop to fastest 0 255
Continuous Positioning from 0-360 degrees 0 255
7 9 Rot Gobo
Indexed
Position 1 (Open) 0 5
Position 2 6 11
Position 3 12 17
Position 4 18 23
Position 5 24 29
Position 6 30 35
Position 7 36 41
Position 8 42 47
Indexed With Blackout
