EVEREST REFRIGERATION EBD1 Manuale utente
Owner’s Manual
Direct Draw
Keg Refrigerators
EBD1, EBD2, EBD3, EBD4
EBDS2-24, EBD2-24, EBD3-24, EBD4-24
EBD2-BB, EBD2-BBG, EBD3-BB, EBD3-BBG
EBDS2-BB-24, EBD2-BB-24, EBD3-BB-24
EBDS2-BBG-24, EBD2-BBG-24, EBD3-BBG-24
EBD2-CT, EBD3-CT, EBD4-CT
www.EVERESTref.com
Direct Draw Keg Refrigerators
EBD1, EBD2, EBD3, EBD4, EBDS2-24, EBD2-24, EBD3-24, EBD4-24, EBD2-BB, EBD2-BBG,
EBD3-BB, EBD3-BBG, EBDS2-BB-24, EBD2-BB-24, EBD3-BB-24, EBDS2-BBG-24, EBD2-
BBG-24, EBD3-BBG-24, EBD2-CT, EBD3-CT, EBD4-CT
Contents
1. Hydrocarbon Guidelines 1
2. Installation Instructions 3
3. General Safety 17
4. Electrical Safety 18
5. Operation 19
6. Care and Maintenance 24
7. Troubleshooting Guide 27
8. Warranty Information 29
Everest Owner’s Manual
Hydrocarbon Guidelines
1
1. Hydrocarbon Guidelines
This section applies to R290 Hydrocarbon units only. To identify the refrigerant type, see the
data plate in the cabinet interior.
DANGER - Risk of fire or explosion. Flammable refrigerant used. Do not use mechanical devices or other
means to accelerate the defrosting process. Do not puncture refrigerant tubing.
DANGER - Risk of fire or explosion. Flammable refrigerant used. To be repaired only by trained service
personnel. Do not puncture refrigerant tubing.
CAUTION - Risk of fire or explosion. Flammable refrigerant used. Consult Service Manual or Owner’s
Manual before attempting to install or service this product. All safety precautions must be followed.
CAUTION - Risk of fire or explosion. Flammable refrigerant used. Dispose of properly in accordance with
federal or local regulations.
CAUTION - Risk of fire or explosion due to puncture of refrigerant tubing; follow handling instructions
carefully. Flammable refrigerant used.
WARNING - THIS UNIT USES R290, A HYDROCARBON, PROPANE REFRIGERANT THAT IS
ENVIRONMENTALLY FRIENDLY BUT IS ALSO HIGHLY FLAMMABLE AND EXPLOSIVE. PLEASE READ
THIS MANUAL CAREFULLY AND FOLLOW ALL SAFETY PRECAUTIONS CONTAINED HEREIN TO AVOID
THE RISK OF FIRE OR EXPLOSION. FAILURE TO FOLLOW THE SAFETY PRECAUTIONS MAY RESULT IN
SERIOUS INJURY, OR DEATH, AND/OR PROPERTY DAMAGE.
Hydrocarbon Guidelines
2
Propane (R290) is highly approved for use as a refrigerant in commercial, self-contained units in the US under limited
use conditions. It can only be used in new equipment. Backfitting or modifications of old equipment are not allowed. It
must be charged in a strictly limited volume of up to 150 grams (5.3 oz) per refrigeration circuit. Even though this is a
small amount, it still presents a fire or explosion hazard if it leaks out of parts that hold refrigerant. When it comes in
contact with air, a flammable propane-air mixture can be created and easily ignited by electrical sparks, open flames
or hot surfaces. The risk is higher in small, confined, poorly ventilated spaces. Propane will settle at lower zones
because it is heavier than air. To reduce these risks, observe the following precautions
• Avoid installation of unit in areas with open flames or in general vicinity of open flames or high surface
temperatures.
• Avoid unit installation in small, confined spaces. Ensure ample ventilation at all times. Keep all exhaust vents
free of any blockage or obstruction.
• Do not rely on smell to detect potential leaks of propane refrigerant. Propane refrigerant is a high purity
propane gas and does not contain odourants or stenching agents. These additives are typically used in fuel-
grade propane and natural gas in order to give them a distinctive smell which makes it easier to detect leaks.
• General service and repairs must be performed in well-ventilated areas.
• General service and repairs must be performed only by professionals authorized by Everest Refrigeration.
• Component shall be replaced with Everest-issued, like components to minimize the risk of possible ignition
resulting from incompatible parts or improper repairs.
• Do not modify, re-appropriate, or remove any functional part(s) from the unit.
• Handle the unit with care to avoid any damage.
• Practice safety guidelines when transporting the unit. Consult with your local Department of Transportation for
requirements in moving flammable gasses.
Installation Instructions
3
2. Installation Instructions
This section applies to all Everest products. Correct installation ensures proper performance and
longevity of your appliance. Professional installation by a trained refrigeration technician and
electrician is recommended. Warranty is void if the following guidelines are not met.
1. Inspect for any freight damage upon delivery
of the unit. If damage is detected, immediately
report it to an Everest representative. Everest is
not responsible for damage that occurs during
shipment.
2. Keep the unit upright at all times. The
compressor contains oil, refrigerant, lubricants,
and various chemicals. When tilted, these fluids
may shift and travel to sections where they
don’t naturally occur. This will lead to system
contamination and compressor failure.
3. Some units require caster installation for
proper performance. Visit our website at www.
everestref.com and enter your product’s model
number in the search field to determine its caster
requirements.
4. Do not place your hands under the unit when
moving it to avoid injury from sharp edges,
protruding parts or weight impact.
5. Select a location with good air ventilation.
Poor ventilation rapidly increases ambient
temperature. High ambient temperatures
exceeding 86°F (30°C) promote excessive
compressor activity in order to maintain the
desired cabinet temperature. This will result in
decreased performance, advanced component
failure, and the risk of fire.
6. Select a location away from heat-generating
equipment such as stoves, ovens, etc. Heat sources
rapidly increase the temperature of the immediate
vicinity. High temperatures exceeding 86°F (30°C)
promote excessive compressor activity in order
to maintain the desired cabinet temperature. This
will result in decreased performance, advanced
component failure, and the risk of fire.
7. A distance of 6” is required for back side and
left side clearance. This ensures proper ventilation
and prevents overheating which can lead to
advanced component failure and the risk of fire.
8. Select a location with a hard, leveled surface.
Use a leveling tool on the unit to ensure proper
alignment. Proper door function and condensate
removal is dependent on accurate balance.
Install the front leg stabilizers for units that come
standard with it to ensure proper door / drawer
functions and unit stability.
9. Select a location close to an electrical wall
outlet to ensure direct connection without the use
of extension cords.
10. Select a location away from severe moisture
conditions. This may compromise the unit’s
electrical components and lead to electrical
shocks or the risk of fire.
11. Select a location that will not expose the
unit to extremely dusty conditions. Environments
with high dust and debris content will significantly
hasten condenser coil and condenser coil air
filter blockage and will result in decreased
performance, advanced component failure, and
the risk of fire.
12. Do not build an enclosure or cabinet around
the unit. This will restrict air ventilation resulting
in elevated compressor activity, decreased
performance, advanced component failure, and the
risk of fire.
13. The unit is not intended for use in food trucks.
Limited space, lack of ventilation, and ambient
temperatures exceeding 86°F (30°C) typical to this
setting will result in elevated compressor activity,
decreased performance, advanced component
failure, and the risk of fire.
14. The unit is intended for indoor use only.
Outdoor use will cause a decrease in performance,
advanced component failure, and the risk of fire.
15. Ensure that the draft assembly is installed
before turning on the equipment. Refer to Chapter 2
for proper installation guidelines.
Installation Instructions
4
1. Some models come standard with shelves, shelf clips and
notched pilasters. Each shelf requires four clips. Attach the
shelf clips onto the pilasters by inserting its top hook into a
pilaster notch followed by the bottom hook. Do not use pliers
or other crimping tools to modify the shape of the shelf clips.
This will result in shelf mounting instability.
Shelf Installation
2. Place shelves on the shelf clips making sure all corners are
mounted securely and evenly with identical distance from the
unit’s floor and up. Always lay the back of each shelf down on
the rear clips before the front.
3. When removing a shelf, unmount the shelf from the shelf
clips. To detach the shelf clip from the pilaster, tilt up the shelf
clip until the bottom hook clears, followed by the top hook.
Installation Instructions
5
Product Load Level & Shelf Placement
Models : EBD1, EBD2, EBD3, EBD4, EBDS2-24, EBD2-24, EBD3-24, EBD4-24
EBD2-BB, EBD3-BB, EBDS2-BB-24, EBD2-BB-24, EBD3-BB-24, EBD2-CT
EBD3-CT, EBD4-CT
Side View
Front Rear
Front View
Fan
Airflow
Installation Instructions
6
Product Load Level & Shelf Placement
Models : EBD2-BBG, EBD3-BBG, EBDS2-BBG-24, EBD2-BBG-24, EBD3-BBG-24
Side View
Front Rear
Front View
Load Level 11”
Load Level 11”
2”
2”
Load Level 11”
Load Level 11”
Fan
Airflow
Installation Instructions
7

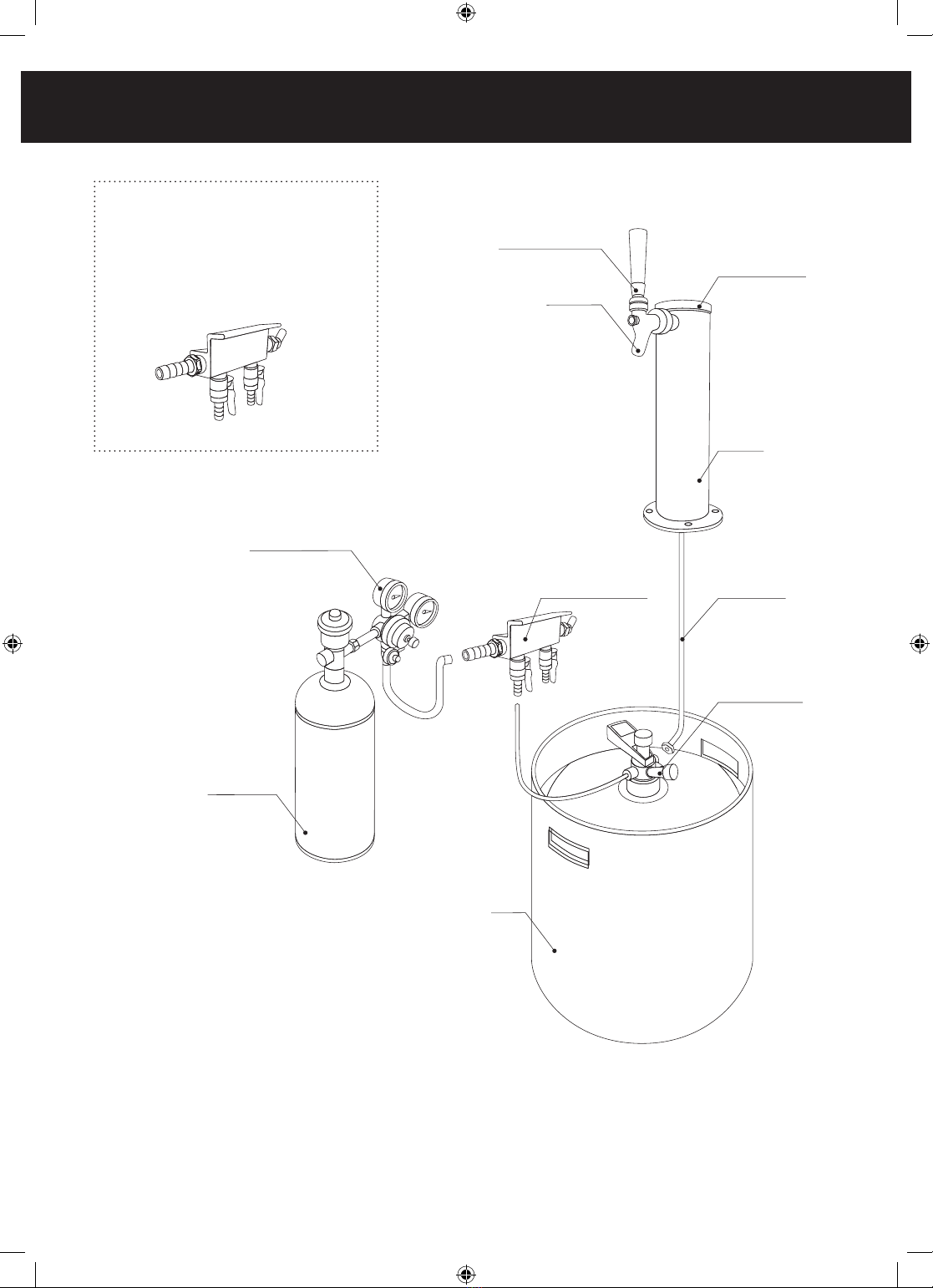

Draft Assembly - Single Faucet
Faucet Handle
Faucet
Tower Cover
Tower
Beer Line
CO2Regulator
CO2Tank
Keg
Keg Coupler
Air Distributor
Air Distributors are included in Direct
Draw Keg Refrigerators that have
multiple faucets and kegs. Each keg
is connected to a valve on the air
distributor.
The Keg, Keg Coupler,
CO2Regulator, CO2Regulator
Line Coupler and CO2Tank
are not included with the
Direct Draw Keg Refrigerator.
These items can be obtained
from your chosen beverage
distributor.
