EverFocus EMV400 FHD Manuale utente

EMV400 FHD

4 Channels 1080p Full HD Mobile DVR

Quick Installation Guide

Release Date: May, 2018

All the images including product pictures or screen shots in this document are for example only.

The images may vary depending on the product and software version. Information contained in

this document is subject to change without notice.

EMV400 FHD Mobile DVR

1. Introduction

The latest EverFocus digital video recorder generation is based on H.264 compression

technology, resulting in enhanced recording capacity and improved network image transmission

speed with high image quality. The 1080p full HD mobile DVR EMV400 FHD can support 4

channels analog SD/HD cameras, delivering and recording up to 1080p full HD resolution.

Its comprehensive features along with the embedded 3-axis g-sensor function enable the almost

universal application of this full HD mobile DVR series. It supports various interfaces such as

three USB ports / RS-485 / RS-232 / Panic Button / CAN bus / GPS, 3G, 4G and Wi-Fi Antenna.

The design of RCA video/audio outputs at front panel makes your installation easy. You can

install one 2.5”hard disk in the HD mobile DVR. You can also install one SD Card for alarm event

backup recording. The User Interface has been specially designed to fit mobile small-sized

monitor.

EMV400 FHD is equipped with anti-shock and anti-vibration housing. M12 connectors are also

equipped. The power supply supports voltage regulator, and delay on/off. In addition, the Full

HD mobile DVRs are SAE-J1455, EN50155, E-Mark, CE and FCC certified.

You can use EverFocus Mobile Applications, MobileFocus, to remotely view the camera streams

from the HD mobile DVR through your handheld devices; or use EverFocus Xfleet system for

remote fleet management. You can also use EverFocus EF-Reader to remotely back up

recordings from the HDD/SD card of the mobile DVRs. The full HD mobile DVR is the ideal

solution for your mobile surveillance needs.

Minimum System Requirements

Before installing, please check that your computer meets the following system requirements.

Operating System Windows XP (32-bit) / Win7 (32 and 64-bit)

CPU Intel Core I3-2100

RAM 2GB

VGA Intel HD 2000

LAN Speed 10 / 100 / 1000 Mbps (RJ45)

Web Browser IE11 and later, Firefox 50 and earlier, Chrome 44 and earlier, EF

browser

Other Remote

Application

1. EverFocus’ Xfleet fleet management server system.

2. EverFocus’ mobile app: MobileFocus (iOS / Android); MobileFocusHD

(iPad).

EMV400 FHD Mobile DVR

Packing List

•HD Mobile DVR x 1

•HDD Tray (with two HDD lock keys and 8 screws packed inside the tray) x 1 (see 2.2 Hard

Disk Installation)

•Mounting Bracket (you can use either bracket to mount the MDVR to the vehicle, please

order either one you preferred before shipping. The two types of mounting bracket

cannot be used simultaneously. See 2.1.1 Mounting for more details.

- Z-Type Bracket x 2 (includes Long Screw with washers x 4; Short Screw with washers x 4)

Note: To meet the EN50155 standard, Z-Type Bracket is required.

- Anti-Vibration Bracket x 1 (already installed on the mobile DVR)

Note: To meet the SAE-J1455 standard, Anti-Vibration Bracket is required.

•IR Remote Control (with two AAA batteries. See Note 3) x 1

•Power Harness Cable x 1

•Video Cable x1 (see 3.2 Video Cable / Power-Out Cable)

•Audio Cable x 1 (see 3.3 Audio Cable)

•D-Sub Cable x 1 (see 3.4 D-Sub Cable)

•Power-Out Cable x 1 (see 3.2 Video Cable / Power-Out Cable)

•Quick Installation Guide x 1

Optional Accessories

•3G Antenna: For using 3G network function

•4G Antenna: For using 4G LTE network function (LTE frequency bands differ among regions)

•GPS Antenna: For using GPS function

•Wi-Fi Antenna: For using Wi-Fi function

Note:

1. Equipment configurations and supplied accessories vary by country. Please consult your

local EverFocus office or agents for more information. Please also keep the shipping

carton for possible future use.

2. Contact the shipper if any items appear to have been damaged in the shipping process.

3. Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries

according to the instructions.

a. Use only two AAA dry cell batteries.

b. Do not dispose of the batteries in a fire as it may explode.\

EMV400 FHD Mobile DVR

Front Panel

FHD

17 9

34 6 81 10

No. Name Description

1 USB2.0 Port Three USB2.0 ports for connecting to the USB storage device or

mouse.

2 HDD Drive Tray Install a 2.5” HDD for recording.

3 SD Card Slot

Insert a SD / SDHC card (up to 32GB) for alarm event backup

recording (see 2.3 SD Card Installation). To enable the SD card

function, see 6.4.1 Alarm in the User’s Manual. You can also see

Tested SD Cards in 2.3 SD Card Installation for tested card brands.

4 Function Key This Function key is currently reserved.

5 IR Receiver Receives data from the infrared remote control.

6 System LEDs

•Alarm: Turns on when the connected alarm I/O is triggered;

turns off when the alarm I/O stops being triggered.

•GPS: Turns on continuously when the mobile DVR is receiving

GPS data.

•System Fail: Turns off when system is acting normally. Turns on

when these events occur: System Clock Error / Fan Fail / Disk

Temperature Over / Disk Fail / Disk Off / Network Loss.

•Heater: Blinks when heater on; off blinking when heater off.

•HD R/W: Blinks when the HDD is reading or writing.

•Power: Turns on continuously when the power is supplied.

Blinks when Battery power error occurs (lower than 9V or

higher than 36V) or 12VDC power supply error.

7 Main Monitor

RCA video output for connecting to a monitor for live view,

playback and displaying OSD.

Note this mobile DVR has three Main Monitor outputs, one on the

front panel and the other two on the rear panel. All of the Main

Monitor ports can be connected simultaneously.

8 HDD Key Lock Lock and unlock the HDD tray.

9 Audio Out

RCA audio output for connecting to the speakers. The audio output

only works during playback. Speakers with a (built-in) amplifier and

external power supply are required.

10 Ethernet Port One RJ-45 port for connecting to the network.

EMV400 FHD Mobile DVR

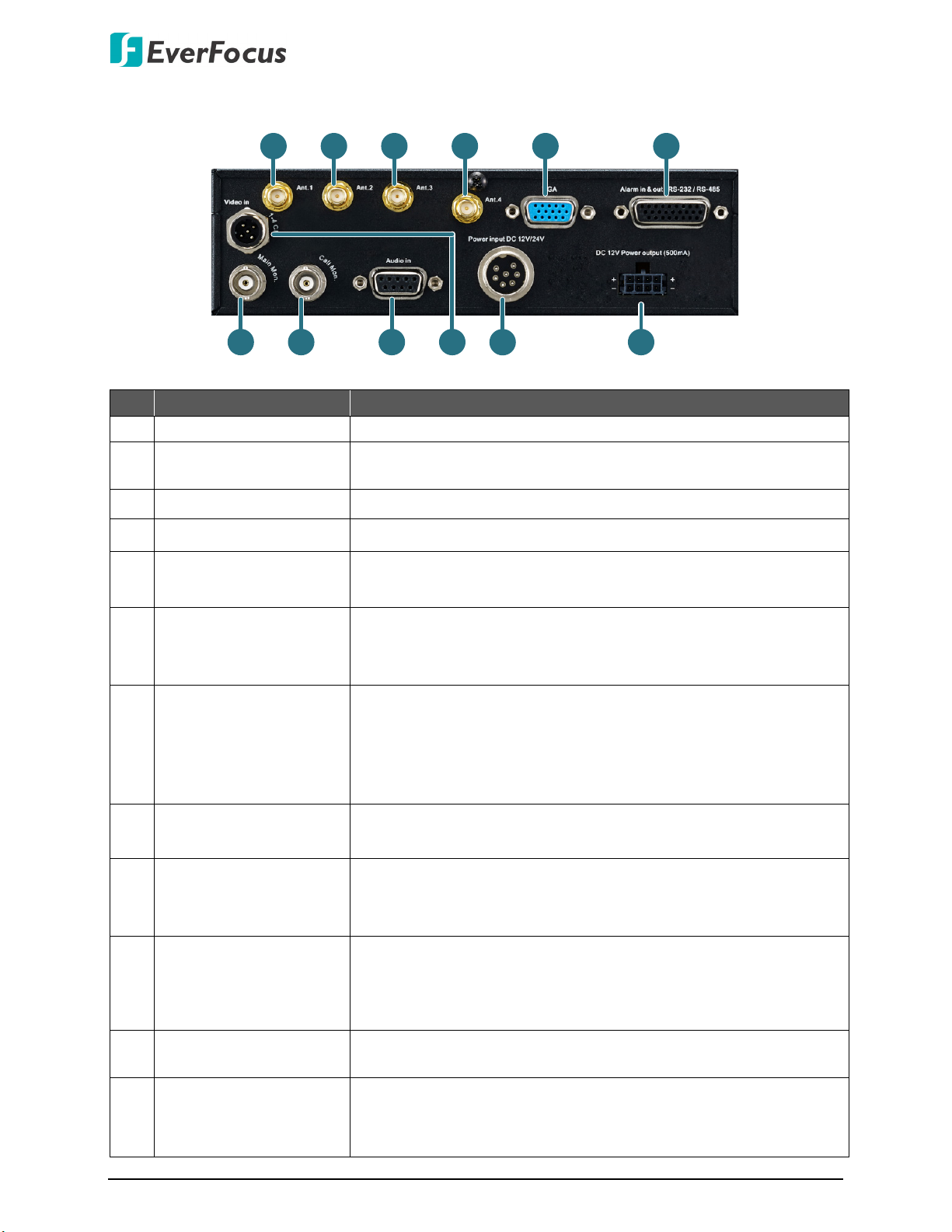

Rear Panel

1 2 3 4 56

7 8 9 11 12

No. Name Description

Antenna 1 (3G/4G)

Connects to the 3G or 4G Antenna for using 3G/4G function.

2 Antenna 2 (4G)

Connects to the 4G Antenna for using 4G LTE function. Note

that the 4G function is required to use both Antenna 1 and 2.

3 Antenna 3 (GPS) Connects to the GPS Antenna for using GPS function.

4 Antenna 4 (Wi-Fi) Connects to the Wi-Fi antenna for using Wi-Fi function.

5 Main Monitor (VGA) VGA video output for connecting to the main monitor for live

view, playback and displaying OSD.

6 D-Sub Connector

D-Sub connector for connecting to the Alarm I/O, RS-232 (CAN

bus) or RS-485 devices (such as analog PTZ cameras). For

details, please refer to 3.4 D-Sub Cable.

7 Main Monitor (BNC)

BNC video output for connecting to the main monitor for live

view, playback and displaying OSD.

Note the mobile DVR has 3 Main Monitor outputs, one on the

front panel and the other 2 on the rear panel. All of the Main

Monitor ports can be connected simultaneously.

8 Call Monitor (BNC) BNC video output for connecting to the call monitor for

displaying the live view.

9 Audio Input

D-Sub connector for connecting to the supplied Audio Cable.

For details, please refer to 3.3 Audio Cable. Microphones with a

(built-in) amplifier and external power supply are required.

10 Video Input

M12 connector for connecting to the supplied Video Cable. You

can then connect analog HD / SD cameras to the Video Cable.

* The mobile DVR doesn’t support HD-TVI / HD-CVI / HD-SDI

cameras.

11 DC Power Input

Power harness cable for connecting to 9 ~ 36VDC power

source. For details, please refer to 3.1 Power Harness Cable.

12 12VDC Power Outputs A total of 12VDC, 5A power supply to the connected cameras.

Please refer to 3.2 Video Cable / Power-Out Cable.

EMV400 FHD Mobile DVR

2. Getting Started

2.1 Installation

Before installation, choose a location in the vehicle where it can:

•Provide convenient access for installing or removing the hard disk

•Allow air to flow around the fan vents. Inadequate or improper air flow can impede proper

operation of the mobile DVR

Please avoid installing the mobile DVR to the following locations in the vehicle:

•That is subject to high vibration / sunlight levels

•That is subject to be drenched of the rain

•Where passengers can interfere with the mobile DVR

•Next to a heater duct

The following table lists the recommended location options in the vehicle:

Location Convenient

Operation

Easy to

Install

Low

Vibration

Good

Air Flow

Bottom of glove box- horizontal mount

Yes Yes Yes Yes

Bottom of passenger seat next to the driver

No Yes Yes Yes

Underneath bulkhead-horizontal mount

Yes Yes No Yes

Front of bulkhead-horizontal mount Yes Yes Yes Yes

Beside deriver seat-horizontal mount

Yes Yes Yes Yes

Note: Do not install the mobile DVR on the floor or on the transmission access hatch. These

locations have the highest levels of vibration and may be subject to water damage.

EMV400 FHD Mobile DVR

2.1.1 Mounting

You can use the provided mounting bracket in the package to mount the mobile DVR inside the

vehicle. Two mounting types are available, Support-Mount and Suspend-Mount.

Support-Mount Suspend-Mount

Interface

EMV400 HD

If the mounting bracket you ordered is a Z-Type Bracket, both of the above two mounting types

are supported. Please note that to meet the EN50155 standard for the mobile DVR, the Z-Type

Bracket is required to be used.

If the mounting bracket you ordered is an Anti-Vibration Bracket, only the Support-Mount is

supported. Please note that to meet the SAE-J1455 standard for the mobile DVR, the

Anti-Vibration Bracket is required to be used.

Z-Type Bracket Anti-Vibration Bracket

EMV400 HD

EN50155 Standard Supported -

SAE-J1455 Standard - Supported

Support-Mount Supported Supported

Suspend-Mount Supported -

Dimensions and Installation

To install the mobile DVR onto a surface using Z-Type Brackets:

With Z-Type Bracket

272mm/10.709"

73mm/2.866"

EMV400 HD

EMV400 FHD Mobile DVR

1. Attach the supplied two Z-Type Brackets to the Fixing Bracket on the mobile DVR. Use

the supplied four Short Screws with washers to screw the Z-Type Brackets to the

Fixing Bracket.

Z-Type Bracket

Fixing Bracket

2. Screw the mobile DVR to the surface using the supplied four Long Screws with washers.

To install the mobile DVR onto a surface using Anti-Vibration Bracket:

136.3mm/5.4"

63.4mm/2.5"

178mm/7"

50mm/1.969"

229.6mm/9"

207.4mm/8.2"

235.7mm/9.3"

218mm/8.6"

192mm/7.6"

Ø5.5mm/Ø0.2"

The Anti-Vibration Bracket is already installed on the mobile DVR. Users need to prepare

four screws to screw the mobile DVR onto a surface. The screw diameter on the

Anti-Vibration Bracket is Ø5.5mm / Ø 0.2”.

EMV400 FHD Mobile DVR

2.2 Hard Disk Installation

The mobile DVRs supply with a 2.5” HDD tray for inserting a Hard Disk for video recordings.

Please follow the steps below to install the Hard Disk.

Note: The mobile DVR does not support hot swap for the hard disk. Ensure to power off the

mobile DVR before removing the hard disk. Also ensure to remove the hard disk only after

the power was completely shut off. This would protect and extend the operating life of the

hard disk.

1. Make sure the mobile DVR is powered-off, and unlock the HDD Tray using the supplied key.

Locked

Unlocked

EMV400 FHD

2. To install the HDD, press the Release Latch to the right, and the Locking Arm will pop up.

Release LatchLocking Arm

EMV400 FHD

3. Gently pull out the Locking Arm to take out the HDD tray.

HDD Tray

Locking Arm

EMV400 FHD

EMV400 FHD Mobile DVR

4. Take out the supplied HDD screw pack inside the HDD Tray, insert a HDD in the HDD Tray

and then screw the HDD to the tray with the supplied 8 screws.

5. Insert the HDD Tray into the drive bay and close the Locking Arm until you hear a click.

EMV400 FHD

6. Lock the HDD Tray before you power on the mobile DVR.

Locked

Unlocked

EMV400 FHD

Indice

Altri manuali EverFocus Registratore digitale

EverFocus

EverFocus TUTIS-16F3 Manuale utente

EverFocus

EverFocus EDR1620 Manuale utente

EverFocus

EverFocus PowerPlex EDR1600 Manuale utente

EverFocus

EverFocus VANGUARD 4x2H Manuale utente

EverFocus

EverFocus EMV200 DVR Manuale utente

EverFocus

EverFocus Paragon 264 Series Manuale utente

EverFocus

EverFocus eNVP-JNN-IV-V0008 Manuale utente

EverFocus

EverFocus NVR8008X Manuale utente

EverFocus

EverFocus EDSR-400 Manuale utente

EverFocus

EverFocus eIVP-CFS-IV-V0004 Manuale utente

EverFocus

EverFocus 920 Manuale utente

EverFocus

EverFocus ELUX16x2 Manuale utente

EverFocus

EverFocus EDVR SERIES Manuale utente

EverFocus

EverFocus Paragon264 Series Manuale utente

EverFocus

EverFocus PARAGON264x4--32CH Series Manuale utente

EverFocus

EverFocus PowerPlex EDR1600 Manuale di servizio

EverFocus

EverFocus eZ.HD PARAGON FD 16x4 Manuale utente

EverFocus

EverFocus EPHD04+ HDcctv Manuale utente

EverFocus

EverFocus ECOR960 4F2 Manuale utente

EverFocus

EverFocus EDVR16D1/250 Manuale utente

EverFocus

EverFocus H.265 VANGUARD II Series Manuale utente

EverFocus

EverFocus EDVR-16D1 Manuale utente

EverFocus

EverFocus VANGUARD 16x8H Plus Manuale utente

EverFocus

EverFocus eIVP5600 Manuale utente

Manuali Registratore digitale popolari di altre marche

FLIR

FLIR M3100E Series Manuale utente

VTRACKPRO

VTRACKPRO FPRO300 Manuale utente

Swann

Swann NVR-7085 models Manuale utente

XtendLan

XtendLan DVR-1670C Manuale utente

urmet domus

urmet domus 1093/004AHD Manuale utente

Holux

Holux M1 Manuale utente

CMOS DOTCOM

CMOS DOTCOM ANX-1670 Manuale utente

Whistler

Whistler D16VRS Manuale utente

Defender Security

Defender Security 82-20235 Manuale utente

MISUMI

MISUMI MP-WF100M Manuale utente

Speco

Speco D8HU Manuale utente

UST

UST DDR-E04AA Istruzioni per l’uso

Consolidated

Consolidated Digital Video Recorder Manuale utente

Mace

Mace DVR0404RW Guida rapida

RCA

RCA RTD315W Manuale utente

FSM

FSM Colibri Grande PRO Manuale utente

Hauppauge

Hauppauge HD PVR 2 Manuale utente

Identivision

Identivision ICR-PH161i PIONEER Manuale utente
