EverFocus 350HQ Manuale utente
H
Hi
ig
gh
h
R
Re
es
so
ol
lu
ut
ti
io
on
n
W
We
ea
at
th
he
er
rp
pr
ro
oo
of
f
C
Ca
am
me
er
ra
a
E
E
Z
Z
S
S
e
e
r
r
i
i
e
e
s
s
User’s Manual
and
Operation Instructions
Notice
This manual is presented to the users of EZ series by EverFocus Electronics
Corp. With years of engineering researches, EverFocus has spared no effort
to provide the high quality products to the worldwide users. For the policy
of continual product improvement, EverFocus reserves the right to make
changes to the product specifications and documentation without notice.
All the components of the products, including accessories, components, and
outlook, are based on the agreements of each deals to satisfy all kinds of
users. Meanwhile, please be advised that every step of operation must
follow the instruction of this manual to keep EZ series working under the
best condition. Please notice that EverFocus will not be charged any claims
or renewing cases resulted from inappropriate operation.
Table of Contents
Safety Warning …………………………………….. 1
Introduction………………………………………….2
Specification…………………………………………3
Major Parts Names…..………………………………4
Installation Instructions………………………….… ..5
Settings……………………………………………….7
Simple Instructions for the desiccant pack…………. 10
1. Handle the camera with care.
Be careful when handling the camera, do not drop it or subject
it to strong shock or vibration to prevent any damages to it. Do
not disassemble it or place it on an unstable base.
2. Do not install the camera near electric or magnetic fields.
Installed the camera away from TV, radio transmitter, magnet,
electric motor, transformer, audio speakers because the
magnetic fields generate from above devices will distort the
video image.
3.Do not install the camera in the high temperature environment.
Installed the camera away from stoves, or other heat generating
devices as the high temperature could cause deformation,
discoloration or other damages of the camera.
Install the camera at where the temperature range will stay
between -40℃~ +50℃.
.
4. Never face the camera toward the sun.
Never aim the camera at the sun or other extremely bright objects
whether it is in use or not.
5.Cleaning
Do not touch the surface of CCD sensor by hand directly. Use a soft
cloth to remove the dirt from the camera body. Use lens tissue or a
cotton tipped applicator and ethanol to clean the CCD sensor and the
camera lens. When the camera is not in use, put the cover cap on the
lens mount.
Safety Warning
1
The new EZ series offers great performance in 1/3”image format color
CCD camera. The EZ series is ideal for outdoor applications such as
parking lots, gas stations or shopping malls. The sophisticated circuit
design provides a heater that turns on at 10℃for cold weather. The EZ
series will provide protection against the elements and provide an excellent
quality picture.
Main Features :
?? High Resolution: 520 TV Lines.
?? Built-in Aspherical vari-focal lens for versatile application.
?? Designed with sturdy aluminum shell specifically for outdoor
surveillance.
?? Removable sun shield.
?? The heater allows the camera to be used in extremely low temperature
to -40°C.
Introduction
2
Model 350HQ 550EX
Pickup device:
1/
3
”
interline transfer CCD
Picture element: NTSC: 768(H) x 494(V)
PAL: 752(H) x 582(V)
Horizontal resolution:
520
TV Lines
Sensitivity: 0.5lux/F=1.2;
1.43lux/F=1.6 1.0lux color, 0.15lux
monochrome/F=1.2
Video output:
1.0Vp
-
p, 75 ohm
Lens focal length: Vari-focal lens f=3.8~9.5mm /
Vari-focal lens f=3.7~12mm
Gamma Correction:
>0.45
S/N ration:
Over 48db
Back light Comp.: On/Off switch
Auto gain control:
On/Off switch
Flickerless:
On/Off switch
Line Lock:
On/Off switch
Sync. Mode:
Internal Sync.
Weather proof rate IP 66
Power source:
DC12V/AC24V
Power Consumption:
5
W max
, 15W when heater is active
Dimension: 83(W) x70(H) x172.5(L) mm
Operating
temperature: -40℃~ +50℃,20~80%
Specification
3
Mounting
Base
Swivel
Screw
Assembly
Screw
Sun Shield
Cover
Back Fixing Plate
Mounting
Base
Swivel
Screw
Assembly
Screw
Sun Shield
Cover
Back Fixing Plate
Major Parts Names and Their Functions
Fixing Screw Front
Fixing Plate
Fixing Screw Front
Fixing Plate
Mounting Bracket
O-ring Seal
Heater
Lens
Focus Zoom
IRIS ALC/Level Adjustment
Control Switch Mounting Bracket
O-ring Seal
Heater
Lens
Focus Zoom
IRIS ALC/Level Adjustment
Control Switch
4
Set-Screw
1. Using the supplied screws, mount the bracket base on the desired
location.
2. Connect the BNC connector of the camera to a monitor or other video
device through a 75 ohm type coaxial cable with BNC female connector
at cable extension.
3. Connect the AC24V or DC12V regulated power source of the camera
(power jack) to the power-in jack with 2mm plug. For DC12V power
source, please make sure the power plug is center+ outer-for heater
normal operation.
4. If the factory settings out of focus, or any other adjustment is required,
follow the procedures below.
a. Remove the fixing screw in the front,which hold the sun shield
cover. Remove the sun shield cover.
b. Twist open and carefully remove the housing cover.
(Please pay attention to prevent damage to the “O”-Ring seal.)
c. Loosen the focal lens and focus locking screws.
d. Adjust the lens to bring the subject into focus.
(Caution: Heater elements could be hot! When camera power is on,
use caution when adjusting the camera.)
e. Retighten the screws.
f. Please refer to the Settings section for the details of the other
adjustments. Adjust accordingly if necessary.
Installation Instructions
5
g. When all the adjustments and settings are completed, overlaying the
cover gently. Be careful not to damage to the “O”-Ring and camera
components.
h. To reassemble the sun shield, match the hole on the sun shield to
the back fixing plate of camera, Fix the screw on the front fixing plate.
Make sure the wider side of the fixing plate holdsthe edge of the
camera well.
5. Attach the camera onto the mounting bracket.
6. Loosen the swivel screw and point the camera to the desired direction.
7. Tighten the swivel screw. To strengthen the fixing power of the swivel
screw, tighten the set-screw with the set-screw wrench. (supplied)
Notes:
(A) Make wiring connections only after it has been determined that
power has been disconnected.
(A) There is a desiccant pack attached to the housing base under the
camera which is designed to absorb any moisture trapped inside the
housing during adjustment. To avoid excessive moisture build up,
it is recommended that the camera not be installed in rainy or
excessively damp conditions. It is also advisable to limit the
number of times the housing cover is removed. The desiccant pack
can be replaced if condensation develops inside the housing.
6
The camera is set up at factory and normally requires no adjustments.
Sometimes, however, adjustments may be necessary. Please refer to the
following description for the function details.

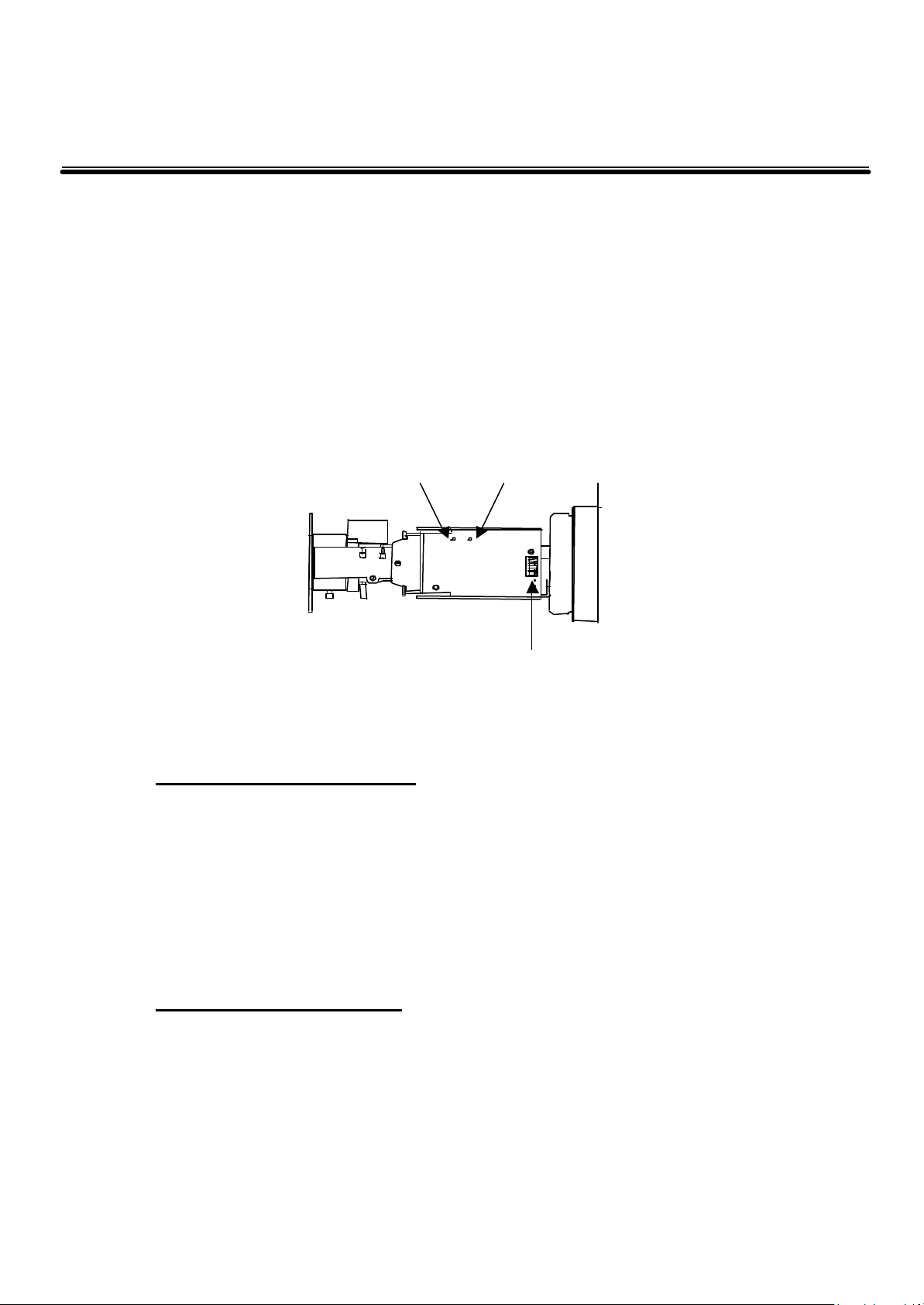

??The IRIS ALC and IRIS Level adjustments are located on the side
circuit board, use a screwdriver to adjust if it’s necessary.
IRIS Level Adjustment
To adjust brightness level –
?? Turn the IRIS Level Adjustment VR counterclockwise to get darker
picture.
?? Turn the IRIS level adjustment VR clockwise to get brighter picture.
IRIS ALC Adjustment
To select light metering method –
?? Turn the IRIS ALC Adjustment VR counterclockwise for Average
Metering.
?? Turn the IRIS ALC Adjustment VR clockwise for Peak Metering.
Settings
7
IRIS ALC
Adjustment
IRIS Level
Adjustment
Control Switches
