EverFocus EZ-VF325NH Manuale utente

EVERFOCUS

1/3” 550 TVL High Resolution

DSP Color Mini Bullet Camera

Operation Instructions

Model No. EZ-VF325NH

Please read this manual first for correct installation and operation. This manual should be retained

for future reference. The information in this manual was current when published. The

manufacturer reserves the right to revise and improve its products. All specifications are therefore

subject to change without notice.

PRECAUTIONS

1. Do not install the camera near electric or magnetic fields.

Install the camera away from TV, radio transmitter, magnet, electric motor, transformer,

audio speakers since the magnetic fields generate from above devices will distort the video

images.

2. Never disassemble the camera nor put impurities in it.

Disassembly or impurities may result in trouble or fire.

3. Never face the camera toward the sun.

Direct sunlight or severe ray may cause fatal damage to sensor and internal circuit.

4. Keep the power cord away from water and fluid.

Touching the wet power cord may result in electric shock.

5. Do not operate the camera beyond the specified temperature, humidity or

power source ratings.

Use the camera at temperatures within -10ºC ~ 50ºC (14ºF to 122ºF) and humidity between

20%~ 80%. The input power source is 12VDC.

PREFACE

The stylish appearance can be applied as per installer's ideal locations on the ceiling or wall.

The mini bullet camera designed with advanced digital processing circuitry for high resolution

1/3" color interline transfer CCD sensor. Very low power consumption of 150mA or less.

FEATURES

z1/3” Sony Super HAD CCD image sensor with approximately 410,000 pixels.

z550 TVL of horizontal resolution.

zRevolutionary integrated 10-bit Digital Signal Processor (DSP) delivers sharp color images

and excellent picture quality.

zLow light sensitivity 1.0 Lux/F=1.2.

zWide-range automatic electronic shutter: up to 1/100,000.

PACKAGE CONTENTS

zCamera Unit x 1

zMounting bracket x 1

zScrews x 3

zManual x 1

SPECIFICATIONS

Video Format NTSC

Image Sensor 1/3" Sony ICX638 Super HAD CCD

Scanning System 2:1 Inter lace

Scanning Frequency H: 15734 KHZ, V:59.94 Hz

Sensitivity 0.2 Lux/F=2.0

Total Pixels 811 (H) x 508 (V), 401k

Effective Pixels 768 (H) x 494 (V), 380K

Horizontal Resolution 550 TVL

S/N Ratio Over 45B

Electronic Shutter 1/50(1/60)~1/100,000

Lens Type f=3.6, Fixed Iris

Option Mirror, Digital Day/Night

Auto Gain Control Yes

Auto White Balance Yes

Gamma Correction 0.45

Video Output BNC 1.0Vp-p, 75ohm

Sync. Mode Internal Sync

Power Source 12VDC + 10%

Power Consumption 90mA max

Dimensions 66 (L) x 19 (W) x 19 (H) mm / 2.6" (L) x 0.75" (W) x 0.75" (H)

Weight 0.3 kg ; 0.7lbs

Operating Temperature -10°C~50°C ; 14°F~122°F (20%~80% Humidity)

DIMENSIONS

19mm / .75"

54.7mm / 2.15"

50mm / 2"

28.6mm / 1.1

40mm / 1.6"

24.8mm / 1"

¼” UNC

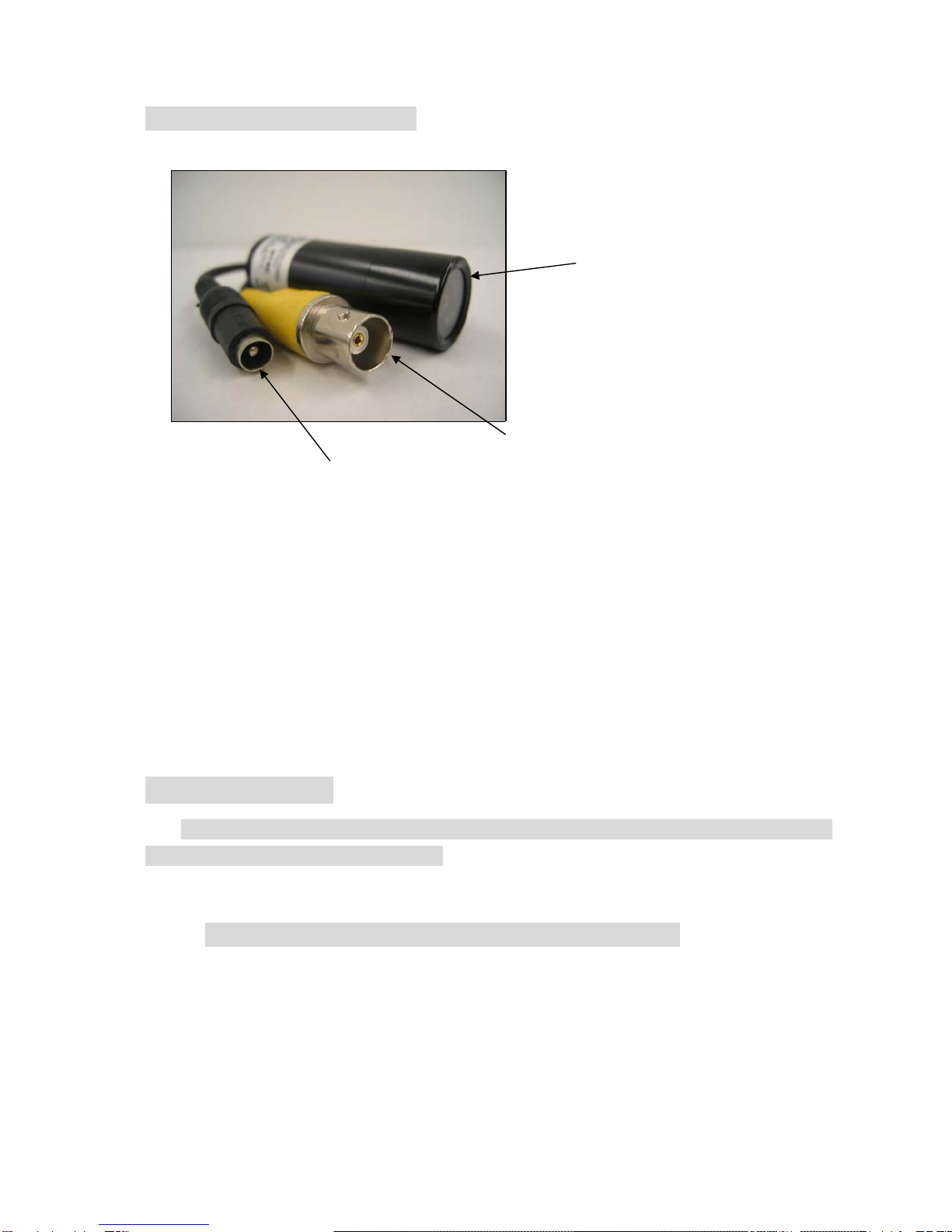

MAJOR PARTS FUNCTIONS

(1) Lens

This Vari-Focal Lens allows users to adjust the Zoom and Focus manually.

(3) Video Output BNC Connector

BNC 1.0Vp-p, 75ohm. Use the connector to connect with the video in connector of a monitor.

(2) Power input

Use the connector to connect with 12VDC power adaptor.

INSTALLATION

This section covers detailed steps of the simple installation. Please follow instructions

for preventing any unnecessary damage

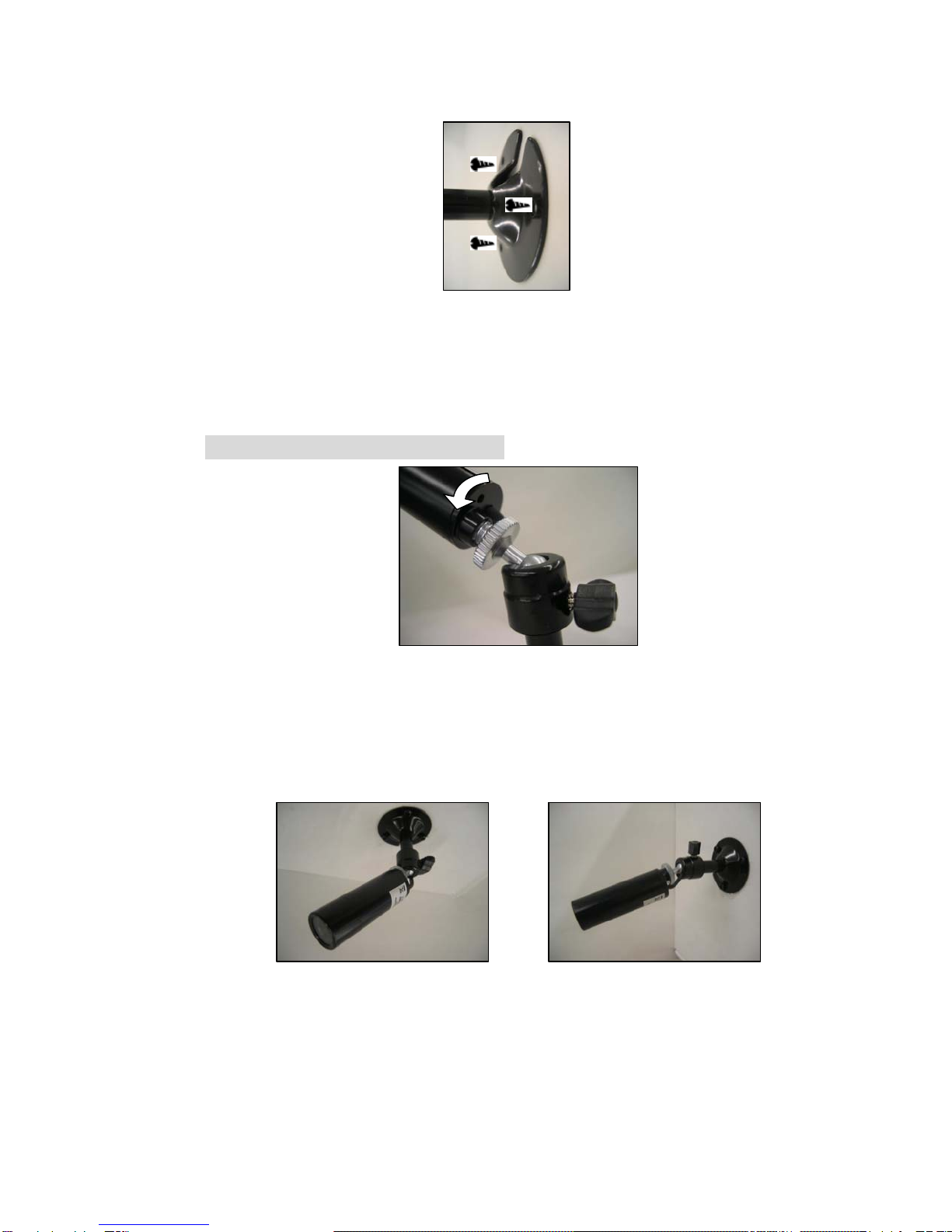

1. Secure camera mounting bracket to mounting surface.

a. If Application calls for wires to go through the ceiling or wall, drill a hole on the

ceiling or wall.

b. Mark and drill 3 holes in mounting surface according to the dimensions

portion in this manual.

c. Fix the bracket to the mounting service with included screws see figure 1-1

2. Fix camera to mounting Bracket.

a. Install camera on bracket by tuning the camera clockwise on to the ¼” screw on

the bracket until camera is facing up.

b. Turn the bracket’s securing ring to tighten the cameras position.

Above in figures 2-2, 2-3, are the examples of installation on ceiling or wall.

Figure 2-1

Figure 2-2 Figure 2-3

Figure 1-1

3. Connect Power and Video

a. Connect pigtail (male power adapter) to the camera female power connector.

See Figure 3-1.

b. Connect power to pigtail wires (pigtail- male power adapter is purchased

separately)

Pigtail Polarity: (Important since DC voltage is used)

Black Wire with white stripe is positive and solid black wire is negative. See

figure A4-2.

d. Connect video cable to a BNC female cable run. See figure A4-3.

Negative

Positive

(white stripe)

Figure 3-1

Figure 3-2

Troubleshooting

No power

Check to be certain that you have sufficient current or amperage from the power supply.

Amount of current needed depends on voltage. See this manuals spec. sheet for information on

power consumption.

Picture output is horizontal.

Depending on camera will be installed on wall or on ceiling, you may have to remove camera

module and rotate it so can install for wall or ceiling. See InstallationA step 2 for explanation

and steps.

EverFocus Electronics Corp.

Head Office:

12F, No.79 Sec. 1 Shin-Tai Wu Road,

Hsi-Chih, Taipei, Taiwan

TEL: +886-2-26982334

FAX: +886-2-26982380

www.everfocus.com.tw

USA L.A. Office:

1801 Highland Ave. Unit A

Duarte, CA 91010, U.S.A.

TEL: +1-626-844-8888

FAX: +1-626-844-8838

www.everfocus.com

USAN.Y. Office:

415 Oser Avenue Unit S

Hauppauge, NY 11788

TEL: 631-436-5070

FAX: 631-436-5027

www.everfocus.com

Europe Office:

Albert-Einstein-Strasse 1

D-46446 Emmerich, Germany

TEL: 49-2822-9394-0

www.everfocus.de

China Office:

Room B-05D-1, KESHI PLAZA , Shangdi

Information Industry Base,

Haidian District, Beijing China

100085

TEL: +86-10-62973336/37/38/39

FAX: +86-10-62971423

www.everfocus.com.cn

Japan Office:

1809 WBG MARIBU East 18F,

2-6 Nakase.Mihama-ku.

Chiba city 261-7118, Japan

TEL: +81-43-212-8188

FAX: +81-43-297-0081

www.everfocus.com

our EverFocus product is desi

ned and

manufactured with high quality materials and

components which can be recycled and

reused.

This symbol means that electrical and

electronic equipment, at their end-of-life,

should be disposed of separately from your

household waste.

Please, dispose of this equipment at your

local community waste collection/recycling

centre.

In the European Union there are separate

collection systems for used electrical and

electronic product.

Please, help us to conserve the environment

we live in!

Ihr EverFocus Produkt wurde entwickelt und

hergestellt mit qualitativ hochwertigen

Materialien und Komponenten, die recycelt

und wieder verwendet werden können.

Dieses Symbol bedeutet, dass elektrische und

elektronische Geräte am Ende ihrer

Nutzungsdauer vom Hausmüll getrennt

entsorgt werden sollen.

Bitte entsorgen Sie dieses Gerät bei Ihrer

örtlichen kommunalen Sammelstelle oder im

Recycling Centre.

Helfen Sie uns bitte, die Umwelt zu erhalten, in

der wir leben!

P/N: MED3G03000_Ver.B
