EverFocus ED200E Manuale utente

EVERFOCUS

Color Dome Camera

Operation Instructions

Model No. ED300E/200E

Please read this manual first for correct installation and operation. This manual should be retained

for future reference. The information in this manual was current when published. The

manufacturer reserves the right to revise and improve its products. All specifications are therefore

subject to change without notice.

PRECAUTIONS

1. Do not have camera immersed in water.

2. Do not disassemble it or place it on an unstable base.

3. Do not touch the surface of CCD sensor by hand directly.

4. Never face the camera toward the sun.

5. Use proper power source otherwise the camera will not function correctly.

6. Use the camera at temperatures within 0℃~ 50℃/32℉~122℉and humidity between 20%~

80%. The input power sources are 12VDC only and 12VDC/24VAC.

PREFACE

The ED200/300 color dome camera with vari-focal/fixed Lens Series are compact, CCD Color

Cameras. Their stylish appearance can be applied as per installer's ideal locations on the ceiling.

The dome camera design with advance digital processing circuitry for middle/high-resolution 1/3"

color interlines transfer CCD sensor, it has DIP switch for FL ON/OFF, Mirror ON/OFF, AGC

ON/OFF and D/N ON/OFF. The dome camera uses a fixed/vari-focal auto iris lens for discreet

surveillance or close-up viewing and it features with Iris Level volume control for the best

viewing quality.

FEATURES

zDesigned with advance digital signal processing circuitry for high image quality

zThe high sensitivity is achieved by using 1/3” SONY Super HAD interline transfer color

CCD

zBuilt-in vari-focal type, mechanical auto iris lens

zBuilt-in fixed lens

zAble to adjust the viewing range with manual zoom lens (for vari-focal lens only)

zWith manual PAN/TILT mechanism

zFL, Mirror,AGC and D/N functions ON/OFF switchable

zCompact size: 108 mm O.D. x 80 mm H / 4.3” O.D x 3.2” H

zSystem available for NTSC or PAL

STANDARD ACCESSORIES

zCamera Unit

zOperation Instructions (this document)

MAJOR PARTS NAMESAND FUNCTIONS

○

1Camera Cover

This cover will protect the camera for avoiding dust and damage.

○

2Lens

This vari-focal Lens allows users to adjust the Zoom and Focus manually.

Built-in fixed lens: 3.6; 4.3; 6.0 or 8.0 mm

○

3Base

The camera unit sets in the dome base, when it is shipping from the factory.

○

4Focus Ring (for vari-focal lens only)

To set the focus, and loosen the Focus ring knob, please turn the ring toward <F> or <N> if

necessary.

○

5Zoom Ring (for vari-focal lens only)

If you like to adjust the viewing range, please loosen or tighten the Zoom ring. Turn the ring

towards <W> for Zoom out or <T> for Zoom in. When camera setting is finished, please

tighten the zoom ring knob.

○

6Flickerless

The factory setting is FL OFF.

○

7Mirror

The factory setting is Mirror OFF.

○

8Auto Gain control on/off switch

The factory setting is AGC ON.

○

9D/N

The factory setting is D/N OFF.

○

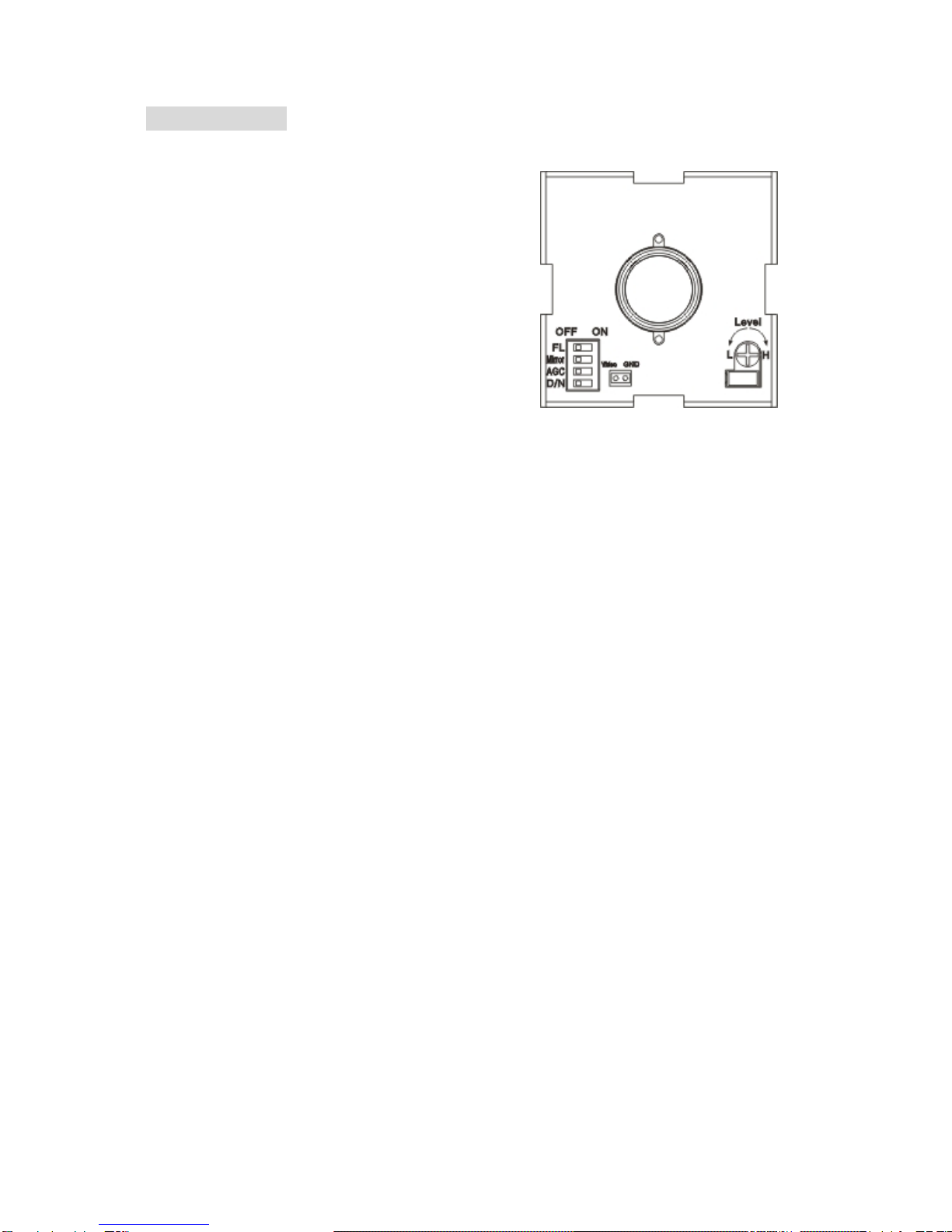

10 Monitor Test Pin

For monitor use. When setting up the camera, connect a monitor to this video output pin and

to the GROUND pin using alligator clip cables, then use the image displayed on the monitor,

set the surveillance angle.

○

11 Level Volume Control (for vari-focal lens only)

The iris level control for the lens.

○

12 Power input

Please connect the connector of camera to 12VDC or 24VAC power source.

○

13 Video Output BNC Connector

Please connect to the BNC connector of Monitor video in.

INSTALLATION

1. Remove the plastic dome cover.

2. Lossen the two screws of the supporting bracket to remove the camera body.

3. Use four screws to fix the camera base on the ceiling.

4. Put the camera body back to the supporting bracket, then tighten the two screws to

fix the camera.

5. Connect the BNC connector of the camera to a color monitor, or other video device

through a 75 ohm type coaxial cable with BNC female connector at cable

extension.

6. Connect the 12VDC or 24VAC power source to the power jack of camera.

NOTE: Please do not scratch or damage the lens while making any kind of setting.

LENS ADJUSTMENT (For Vari-Focal Lens only)

Zoom and focus adjustments

After the camera is installed, the zoom and focus

of the lens must to be adjusted.

1. Loosen the zoom ring knob, and turn

the ring towards <W>or <T>if necessary.

W side (Zoom out)

The viewing range will be wider and the target is smaller.

T side (Zoom in)

The viewing range will be smaller and the target is larger.

2. Loosen the focus ring knob, and turn the ring towards <F>or <N>if necessary.

Repeat steps 1 and 2 till the best image had been obtained. When lens setting is completed,

please tighten the zoom ring and focus ring knobs.

ADJUSTMENT

FL (Flickerless)

When picture flicker fiercely, turn FL on, then

the camera will stabilize the speed of electronic

shutter at 1/100(S)(NTSC) or 1/120(S)(PAL)

automatically, and reduce the flicker immediately.

The default setting is OFF.

Mirror

Mirror ON: Set a horizontal image inversion.

Mirror OFF: Disable the inversion.

Auto Gain ControlAdjustment

AGC ON: The sensitivity increases automatically when the light is low.

AGC OFF: A-low-noise picture is obtained when camera is under a low light condition.

D/N (Day/Night)

D/N ON: When light environment is under 5 Lux, the camera will switch to black and white mode.

However, when light environment is over 10 Lux, the camera will switch to color mode.

Please be informed that any D/N switch will result a delay of 4~5 seconds.

D/N OFF: Camera stays in color mode.

Note: when AGC setting is OFF, then D/N function will be inactive.

Level Volume Control (for vari-focal lens only)

The iris level of lens can be adjusted by the level control. Turn the level control to the right

direction (H) and video images will become brighter. Turn the level control to the left direction (L)

and the video images will become darker.

SPECIFICATIONS

*Lens models and availability vary in different regions

Type ED200E ED300E

Pickup Device 1/3'' SONY Super HAD CCD

Video Format NTSC or PAL

Scanning System NTSC: 525 TV lines, 60 fields/sec

PAL: 625 TV lines, 50 fields/sec.

Picture Elements NTSC: 510(H) x 492(V);

PAL: 500(H) x 582(V)

NTSC: 768(H) x 494(V);

PAL: 752(H) x 582(V)

Horizontal Resolution 380 TV Lines 520 TV Lines

Sensitivity 0.3 Lux/F=1.2 0.4 Lux/F=1.2

S/N Ratio Over 48dB (AGC off)

Electronic Shutter 1/50(1/60)~1/100,000

*Lens Type Fixed

Vari-focal lens,

Auto Iris

f=2.6~6mm

f=3.7~12mm,F=1.2

f=9~22mm,F=1.6

Fixed

Vari-focal lens,

Auto Iris

f=2.6~6mm

f=3.7~12mm,F=1.2

f=9~22mm,F=1.6

Iris Level No Adjustable No Adjustable

Auto Gain Control No ON/OFF Switch No ON/OFF Switch

Flickerless No ON/OFF Switch No ON/OFF Switch

H-Mirror No ON/OFF Switch No ON/OFF Switch

Day/Night Mode No ON/OFF Switch No ON/OFF Switch

Auto White Balance Yes

Gamma Correction 0.45

Video Output

2 video outputs

BNC 1.0Vp-p, 75ohm

Additional testing video output 1.0Vp-p, 75ohm

Sync. Mode Internal sync

Power Source 2 types: 12VDC only & 12VDC/24VAC

Power Consumption 12VDC: 2.5W max

24VAC: 4.5VA max

Dimensions 108 mm (O.D.) x 80 mm (H) ; 4.3” (O.D.) x 3.2” (H)

Weight 0.3kg ; 0.7 lbs

Operating Temperature 0°C~50°C ; 32°F~122°F (20%~80% Humidity)

Certifications FCC/CE

EverFocus Electronics Corp.

Head Office:

12F, No.79 Sec. 1 Shin-Tai Wu Road,

Hsi-Chih, Taipei, Taiwan

TEL: +886-2-26982334

FAX: +886-2-26982380

www.everfocus.com.tw

USA L.A. Office:

1801 Highland Ave. Unit A

Duarte, CA 91010, U.S.A.

TEL: +1-626-844-8888

FAX: +1-626-844-8838

www.everfocus.com

USA N.Y. Office:

415 Oser Avenue Unit S

Hauppauge, NY 11788

TEL: 631-436-5070

FAX: 631-436-5027

www.everfocus.com

Europe Office:

Albert-Einstein-Strasse 1

D-46446 Emmerich, Germany

TEL: 49-2822-9394-0

www.everfocus.de

China Office:

Room B-05D-1, KESHI PLAZA , Shangdi

Information Industry Base,

Haidian District, Beijing China

100085

TEL: +86-10-62973336/37/38/39

FAX: +86-10-62971423

www.everfocus.com.cn

Japan Office:

1809 WBG MARIBU East 18F,

2-6 Nakase.Mihama-ku.

Chiba city 261-7118, Japan

TEL: +81-43-212-8188

FAX: +81-43-297-0081

www.everfocus.com

our EverFocus product is desi

ned and

manufactured with high quality materials and

components which can be recycled and

reused.

This symbol means that electrical and

electronic equipment, at their end-of-life,

should be disposed of separately from your

household waste.

Please, dispose of this equipment at your

local community waste collection/recycling

centre.

In the European Union there are separate

collection systems for used electrical and

electronic product.

Please, help us to conserve the environment

we live in!

Ihr EverFocus Produkt wurde entwickelt und

hergestellt mit qualitativ hochwertigen

Materialien und Komponenten, die recycelt

und wieder verwendet werden können.

Dieses Symbol bedeutet, dass elektrische und

elektronische Geräte am Ende ihrer

Nutzungsdauer vom Hausmüll getrennt

entsorgt werden sollen.

Bitte entsorgen Sie dieses Gerät bei Ihrer

örtlichen kommunalen Sammelstelle oder im

Recycling Centre.

Helfen Sie uns bitte, die Umwelt zu erhalten, in

der wir leben!

P/N: MED2G02000
