EverFocus EHD300N Manuale utente

EVERFOCUS

1/3” Color Rugged Dome Camera

Operation Instructions

Model No. EHD300N

Please read this manual first for correct installation and operation. This manual should be retained

for future reference. The information in this manual was current when published. The

manufacturer reserves the right to revise and improve its products. All specifications are therefore

subject to change without notice.

PRECAUTIONS

1. Do not install the camera near electric or magnetic fields.

Install the camera away from TV, radio transmitter, magnet, electric motor, transformer,

audio speakers since the magnetic fields generate from above devices will distort the video

images.

2. Never disassemble the camera nor put impurities in it.

Disassembly or impurities may result in trouble or fire.

3. Never face the camera toward the sun.

Direct sunlight or severe ray may cause fatal damage to sensor and internal circuit.

4. Keep the power cord away from water and liquid.

Touching the wet power cord may result in electric shock.

5. Never install the camera in areas exposed to water, oil or gas.

Water, oil or gas may result in failure, electric shock or fire.

6. Cleaning

Do not touch the surface of sensor by hand directly. Use a soft cloth to remove the dirt from

the camera body. Use lens tissue or a cotton swab and ethanol to clean the sensor and the

camera lens.

7. Do not operate the camera beyond the specified temperature, humidity or

power source ratings.

Use the camera at temperatures within –10℃~ 50℃/14℉ ~ 122℉ and humidity between

20%~ 80%. The input power source is 12VDC/24VAC.

PREFACE

The most technically advanced EHD series are the newest vandal-resistant Color Rugged

Dome Camera from EverFocus Electronics. The Color Rugged Dome Camera can withstand

a blow from a 10-pound sledgehammer and has a built-in heater that allows for operation in

low temperatures. It is perfect for all high-profile crime-prone applications such as building

entrances, retail stores, and shopping malls. EHD series are unquestionably one of the

world's toughest cameras and is your best choice for vandal resistance.

FEATURES

z1/3” SONY Super HAD color CCD pick up device for more than 520 TV lines of

horizontal resolution

zLow light sensitivity of 0.4 lux/F=1.2 is achieved by using 1/3” SONY Super HAD

interline transfer color CCD

zThe electronic shutter andAGC allow the camera to be used in environment with

varying light levels

z12VDC/24VAC switches automatically power supply

zS/N Ratio reaches 48 dB or more

zBuilt-in Vari-focal lens

zFlickerless, Mirror, AGC and BLC ON/OFF switchable

zWith manual Pan/Tilt mechanism

zRugged dome designed for vandal proof

zRugged Dome designed with 3-axis which provides the best installation for ceiling

and wall mount

zIP66 weatherproof

INSTALLATION

1. Loosen the 4 fix screws on the housing cover by using the attached wrench (Figure 1).

Please pay attention not to damage the lens.

2. Remove the camera.

To remove the camera, first unplug the wire connection on the back of the camera. Then

loosen the 2 locking screws on the camera base, push the camera base to the right (toward

heater direction, as shown in Figure 2), remove the camera from the mounting base.

Reinstall the camera and the cable while the base mounting is completed.

Figure 1

Figure 2

Locking Screws

Vari-Focal Lens

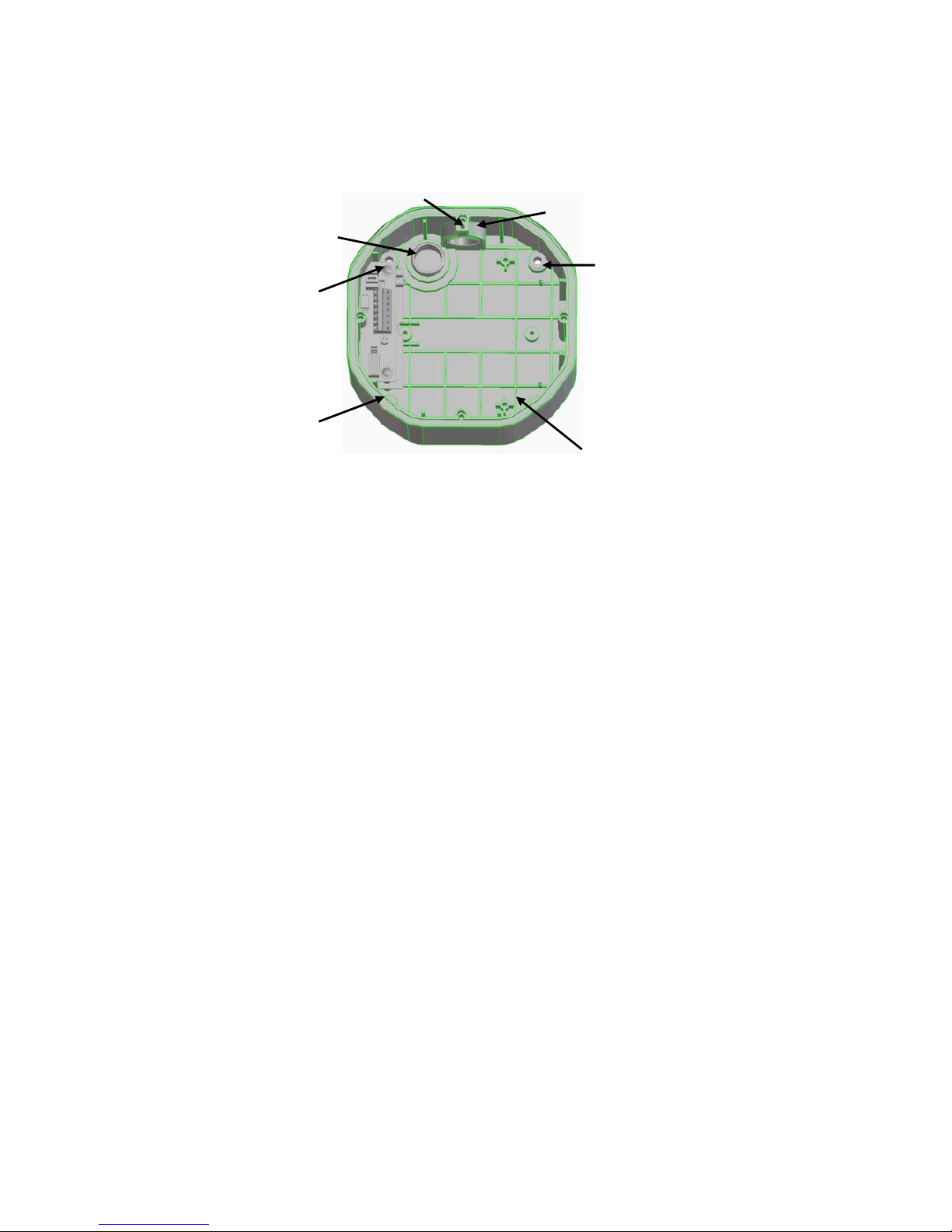

3. Mounting the base.

Attach the base to the wall or ceiling, fix the base by the 4 setscrews attached in the

accessory pack. Please make sure if the mounting is strengthened enough to

support it, if not, please reinforce the mounting according to the environment.

Note: The diameter of the screw hole isψ4.7mm.

Conduit plug setscrew

Side conduit entry

Back conduit entry

Mounting Setscrew

Figure 3

Mounting Setscrew

Caution: To prevent moisture leaking into the housing, apply an appropriate

gasket or sealant around the conduit connection.

4. Wire Connection

The camera comes with a conduit plug

pre-installed in the PF 1/2 conduit entry on

the side. The screw can be removed and

installed in the back conduit entry. Loosen

the conduit plug setscrew (as shown in

Figure 4) before removing the conduit plug.

Side conduit entry (PF1/2)

Conduit plug

Back conduit entry (PF1/2)

Figure 4

Termination Board

Connect the power supply cable (12VDC/24VAC), video output and alarm

output to the proper connectors shown as Figure 5.

The V. Phase adjustment screw is located on the termination board. The

vertical phase may require adjustment to synchronize the vertical phase of the

camera with other camera in the system when it is to be used in the line-lock

sync mode. Make the adjustment when the vertical phase of the camera does

not match with other cameras.

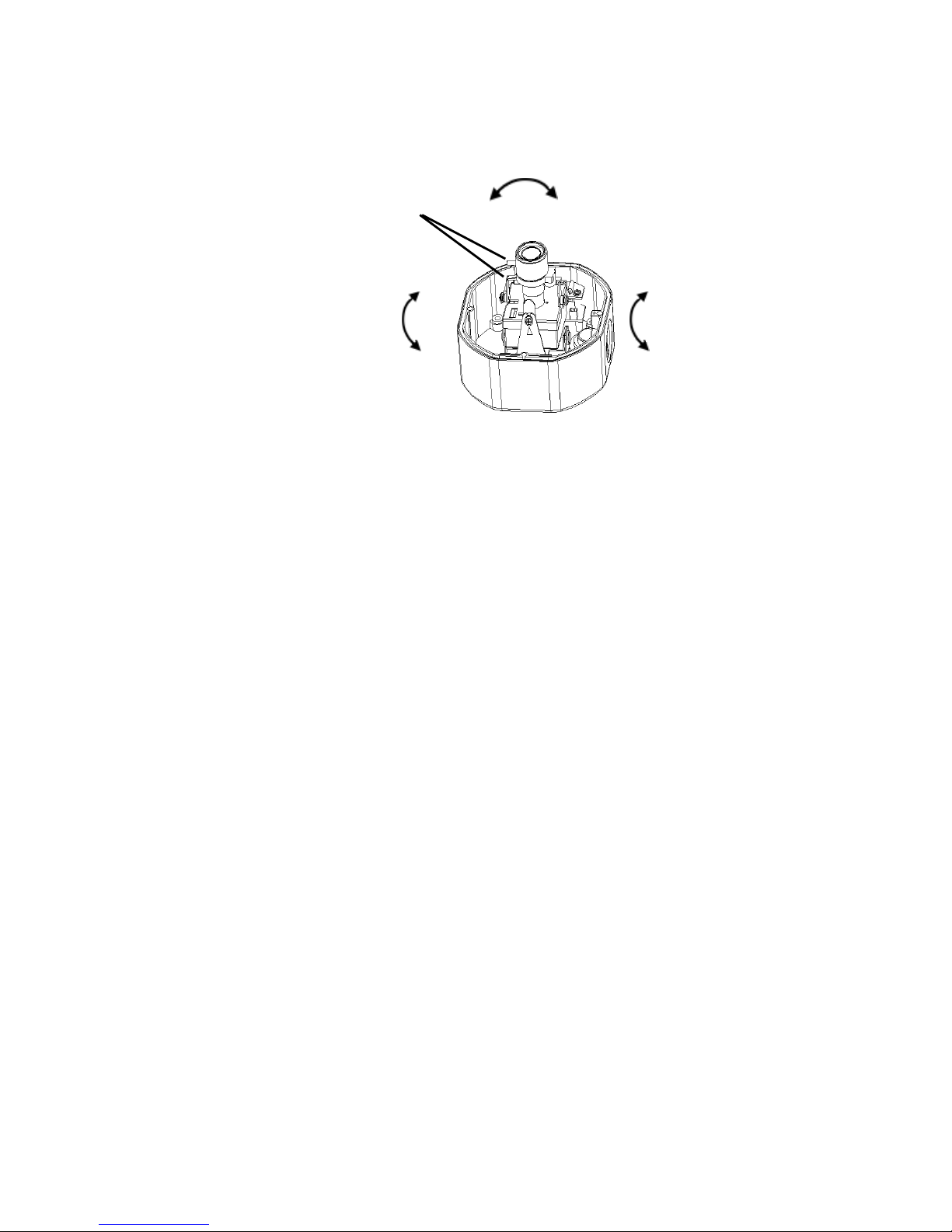

5. View Angle Adjustment

The camera can be rotated 360° horizontally, 140°vertically and 60° 3’rd axis

view angles (as shown in Figure 6). Adjust the proper camera view angle as

needed. If a vari-focal lens is used, you may adjust the focus and zoom of

the lens to bring the object in focus. Be sure to loosen the locking screws on

the lens before you make adjustment.

Video

Alarm COM

Micro Switch for Alarm trigger

GND

Alarm NO Alarm NC

Power In (+)

V. Phase Adjustment VR

Figure 5

Power In (-)

Figure 6

Lens fixing Screws

140°

360°

60°

DIPSWITCH FUNCTION

¾BLC (Back Light Compensation)

When BLC is turned on, the AGC, FL and IRIS operating point is determined by averaging over

the center area instead of entire field-of-view, so that a dimly-lit foreground object at center area

can be clearly distinguished from brightly-lit backgrounds. BLC should not be used unless it is

needed to compensate for back-light.

The default setting is OFF. For Auto-Iris lens model, the brightness can also be adjusted via the

Iris level control VR.

¾AGC (Automatic Gain Control)

AGC ON: The sensitivity increases automatically when light is low.

AGC OFF: A-low-noise picture is obtained under a low light condition.

The default setting is ON.

¾FL (Flickerless)

When picture flicker fiercely, turn FL on, then the camera will stabilize the speed of electronic shutter at 1/100(S)(NTSC) or 1/120(S)(PAL)

automatically, and reduce the flicker immediately. The default setting is OFF.

¾IRIS Level Control (For Vari-Focal Lens Model)

Brightness Level can be adjusted from the IRIS level VR while using the direct drive lens.

•Turn counterclockwise to L to get darker picture.

•Turn clockwise to H to get brighter picture.¾Electronic Shutter (For Fixed Lens Model)

ES ON: The camera continuously adjusts the shutter speed from 1/60 (NTSC), 1/50 (PAL) second

to 1/100,000 second according to the luminance conditions of the scene.

ES OFF: The shutter speed is fixed at 1/60 (NTSC),1/50 (PAL) second.

Set ES OFF, when auto iris lens is used or flicker is observed under a very bright fluorescent lamp.

Otherwise, turn ES on for optimum performance.

SIMPLE INSTRUCTIONS FOR THE DESICCANT PACK

Due to the camera lens blurred from the humidity inside the camera.

The desiccant pack absorbs the humidity; please refer to the easy instruction as follows:

1. Adjust all settings first and place the desiccant pack on the horizontal rod, then bend the

horizontal rod and fix it.

2. Install the outer cover and tighten the screws.

Installation steps for the camera:

Step 1

Step 2

Step 3

Desiccant pack

Horizontal rod

Bend the horizontal rod and fix the desiccant pack

Install the outer cover and tighten the screws

SPECIFICATIONS

Pickup Device 1/3'' SONY Super HAD CCD

Video Format NTSC or PAL

Scanning System NTSC: 525 TV lines, 60 fields/sec.

PAL: 625 TV lines, 50 fields/sec.

Picture Elements 768 x 494(NTSC) ; 752 x 582(PAL)

Horizontal Resolution 520TVL

Sensitivity 0.4Lux/F=1.2

S/N Ratio Over 48dB (AGC off)

Electronic Shutter 1/50(1/60)~1/100,000

Lens Type

Vari-focal lens, Auto Iris

f=2.9~10mm, F=1.2

f=9~22mm, F=1.6

*Lens models and availability vary in different regions

Auto Gain Control ON/OFF Switch

Flickerless ON/OFF Switch

Back Light Comp. ON/OFF Switch

Auto White Balance Yes

Gamma Correction 0.45

Video Output

2 video outputs

BNC 1.0Vp-p, 75ohm

Additional testing video output 1.0Vp-p, 75ohm

Sync. Mode Internal sync

Weatherproof IP66

Vandal Resistant Yes

Power Source 12VDC/24VAC

Power Consumption 24VAC: 4VA max.

12VDC: 2W max.

Dimensions 130mm(W) x 98.8mm(H) x 130mm(D);

5.1"(W) x 3.87"(H) x 5.1"(D)

Weight 0.8kg ; 1.8lbs

Operating Temperature -10°C~50°C ; 14°F~122°F (20%~80% Humidity)

Certifications FCC/CE
