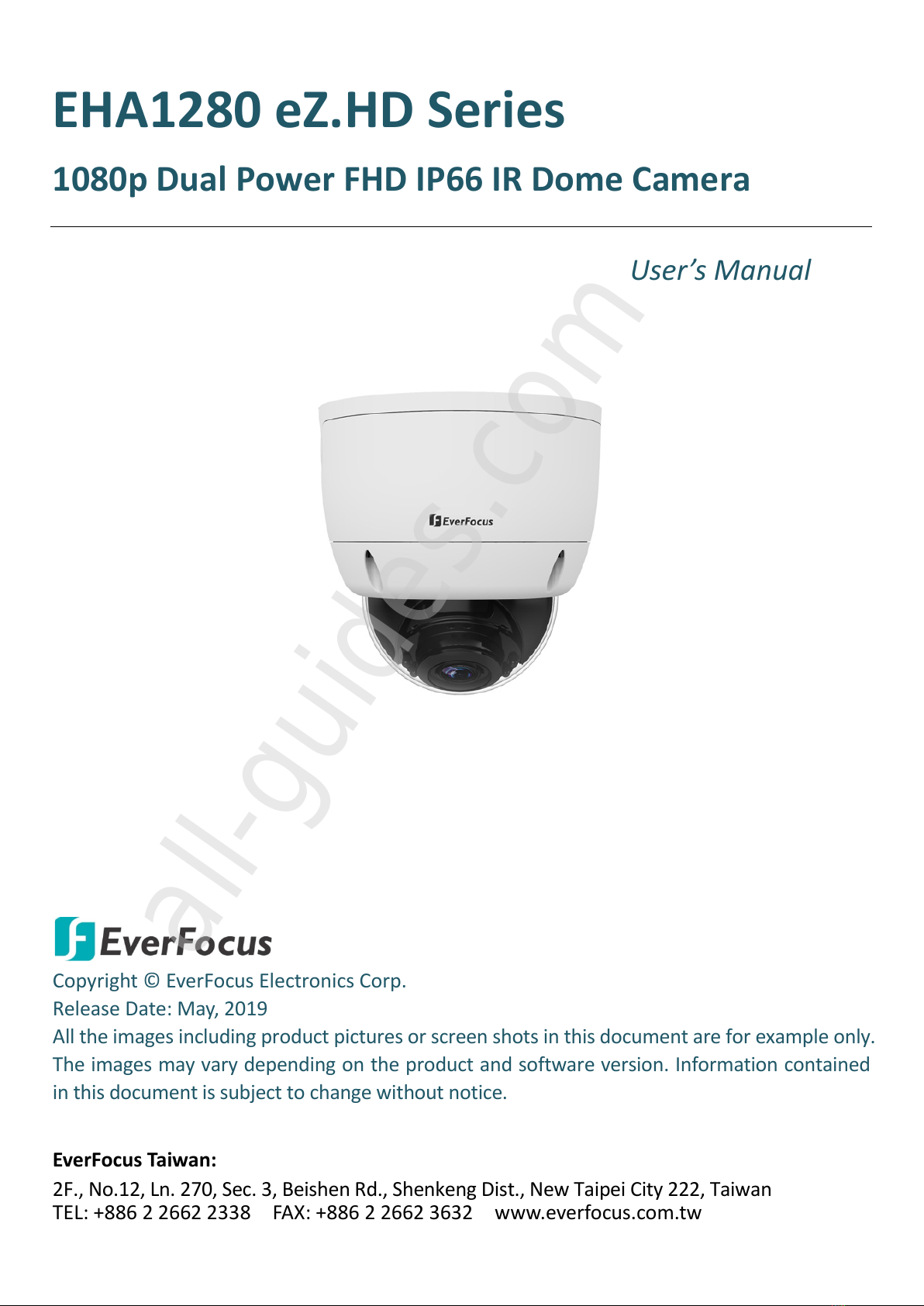

EHA1280 eZ.HD Series

1080p Dual Power FHD IP66 IR Dome Camera

User’s Manual

Release Date: May, 2019

All the images including product pictures or screen shots in this document are for example only.

The images may vary depending on the product and software version. Information contained

in this document is subject to change without notice.

EverFocus Taiwan:

2F., No.12, Ln. 270, Sec. 3, Beishen Rd., Shenkeng Dist., New Taipei City 222, Taiwan

TEL: +886 2 2662 2338 FAX: +886 2 2662 3632 www.everfocus.com.tw

All manuals and user guides at all-guides.com

all-guides.com

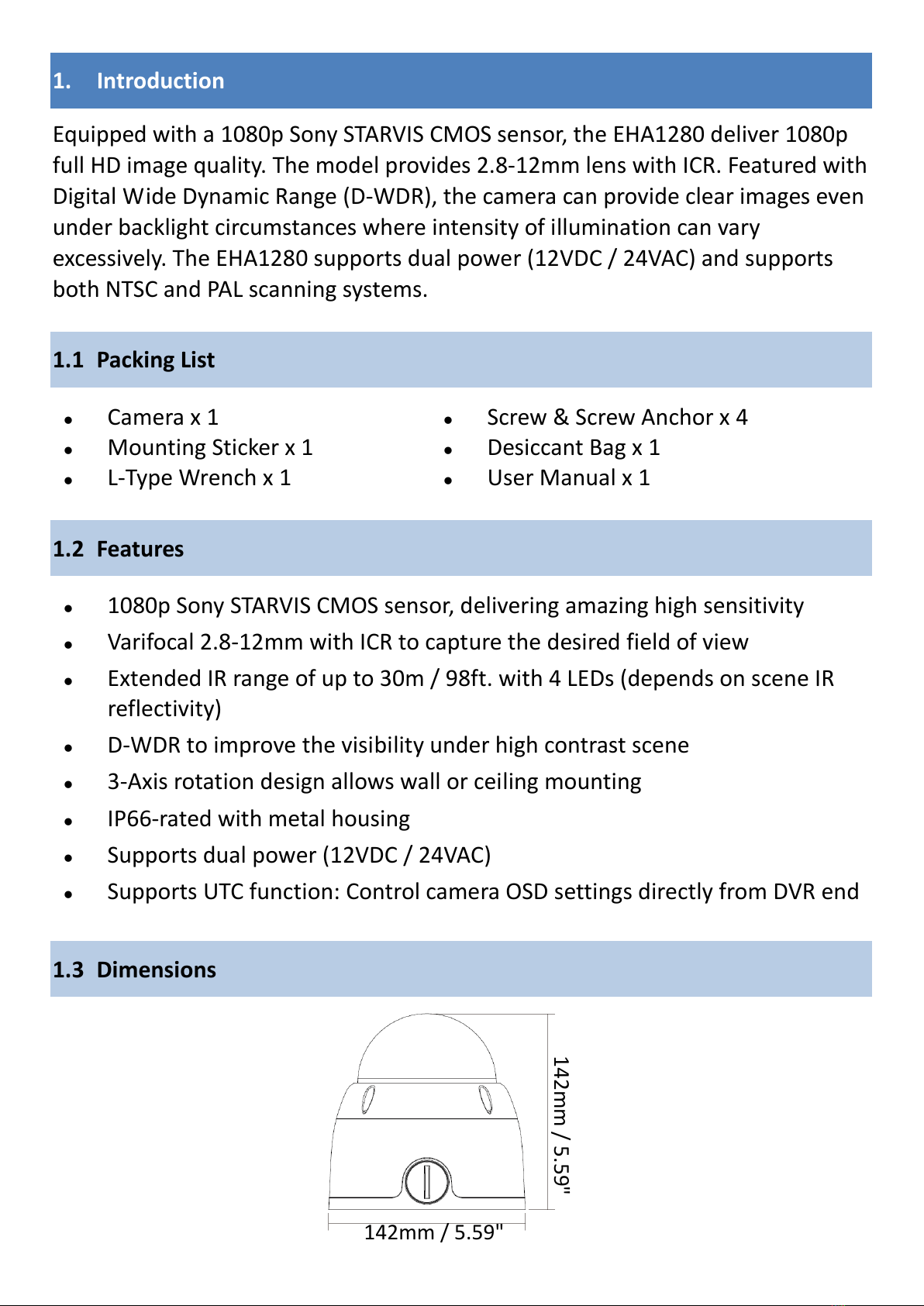

1. Introduction

Equipped with a 1080p Sony STARVIS CMOS sensor, the EHA1280 deliver 1080p

full HD image quality. The model provides 2.8-12mm lens with ICR. Featured with

Digital Wide Dynamic Range (D-WDR), the camera can provide clear images even

under backlight circumstances where intensity of illumination can vary

excessively. The EHA1280 supports dual power (12VDC / 24VAC) and supports

both NTSC and PAL scanning systems.

1.1 Packing List



Camera x 1

Mounting Sticker x 1

L-Type Wrench x 1



Screw & Screw Anchor x 4

Desiccant Bag x 1

User Manual x 1

1.2 Features

1080p Sony STARVIS CMOS sensor, delivering amazing high sensitivity

Varifocal 2.8-12mm with ICR to capture the desired field of view

Extended IR range of up to 30m / 98ft. with 4 LEDs (depends on scene IR

reflectivity)

D-WDR to improve the visibility under high contrast scene

3-Axis rotation design allows wall or ceiling mounting

IP66-rated with metal housing

Supports dual power (12VDC / 24VAC)

Supports UTC function: Control camera OSD settings directly from DVR end

1.3 Dimensions

142mm / 5.59"

All manuals and user guides at all-guides.com

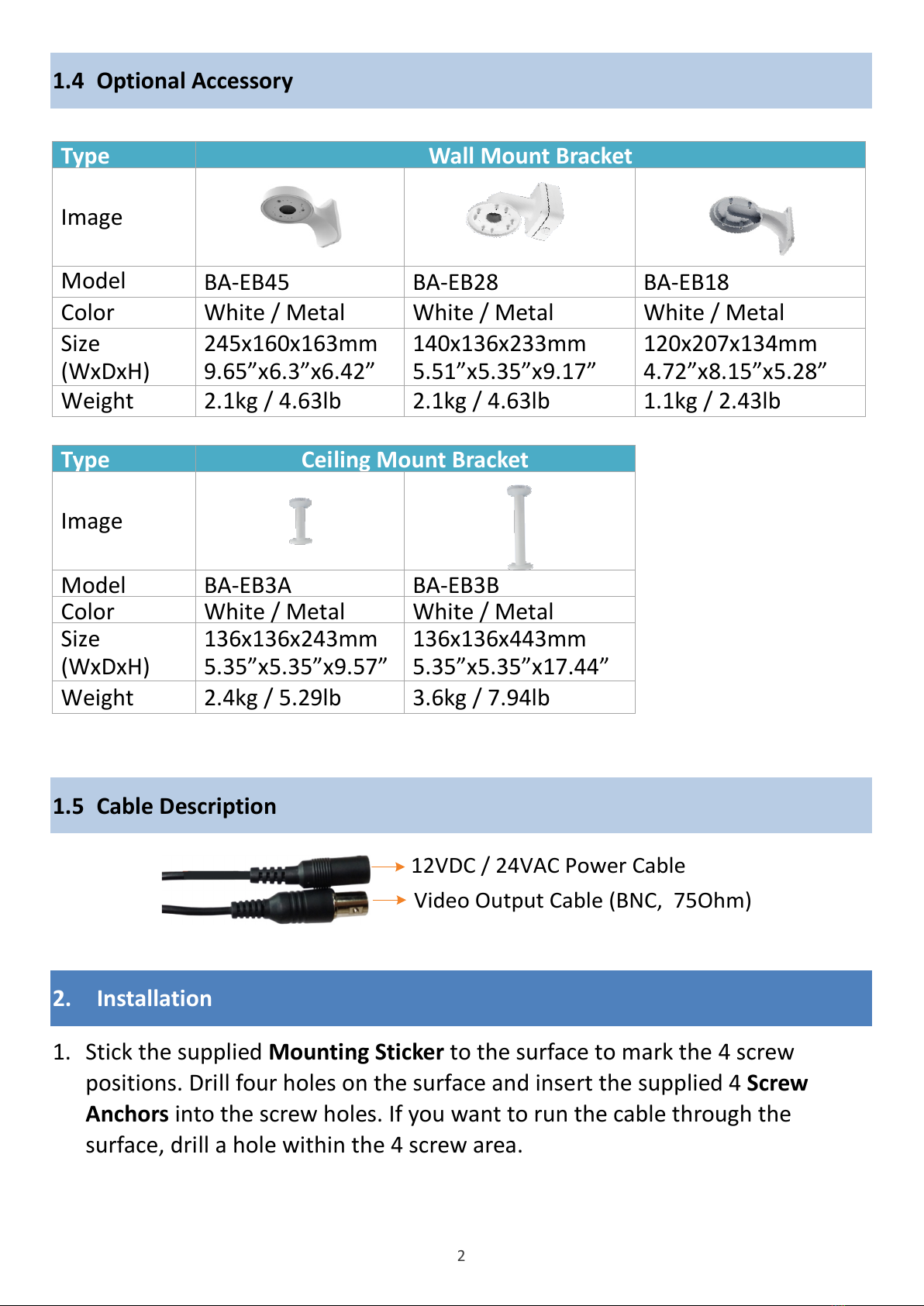

1.4 Optional Accessory

Type

Wall Mount Bracket


Model

BA-EB45

BA-EB28

BA-EB18

Color

White / Metal

Size

(WxDxH)

245x160x163mm

9.65”x6.3”x6.42”

140x136x233mm

5.51”x5.35”x9.17”

120x207x134mm

4.72”x8.15”x5.28”

Weight

2.1kg / 4.63lb

1.1kg / 2.43lb

Type

Ceiling Mount Bracket


Model

BA-EB3A

BA-EB3B

Color

White / Metal

Size

(WxDxH)

136x136x243mm

5.35”x5.35”x9.57”

136x136x443mm

5.35”x5.35”x17.44”

Weight 2.4kg / 5.29lb 3.6kg / 7.94lb

1.5 Cable Description

12VDC / 24VAC Power Cable

Video Output Cable (BNC, 75Ohm)

2. Installation

1. Stick the supplied Mounting Sticker to the surface to mark the 4 screw

positions. Drill four holes on the surface and insert the supplied 4 Screw

Anchors into the screw holes. If you want to run the cable through the

surface, drill a hole within the 4 screw area.

All manuals and user guides at all-guides.com

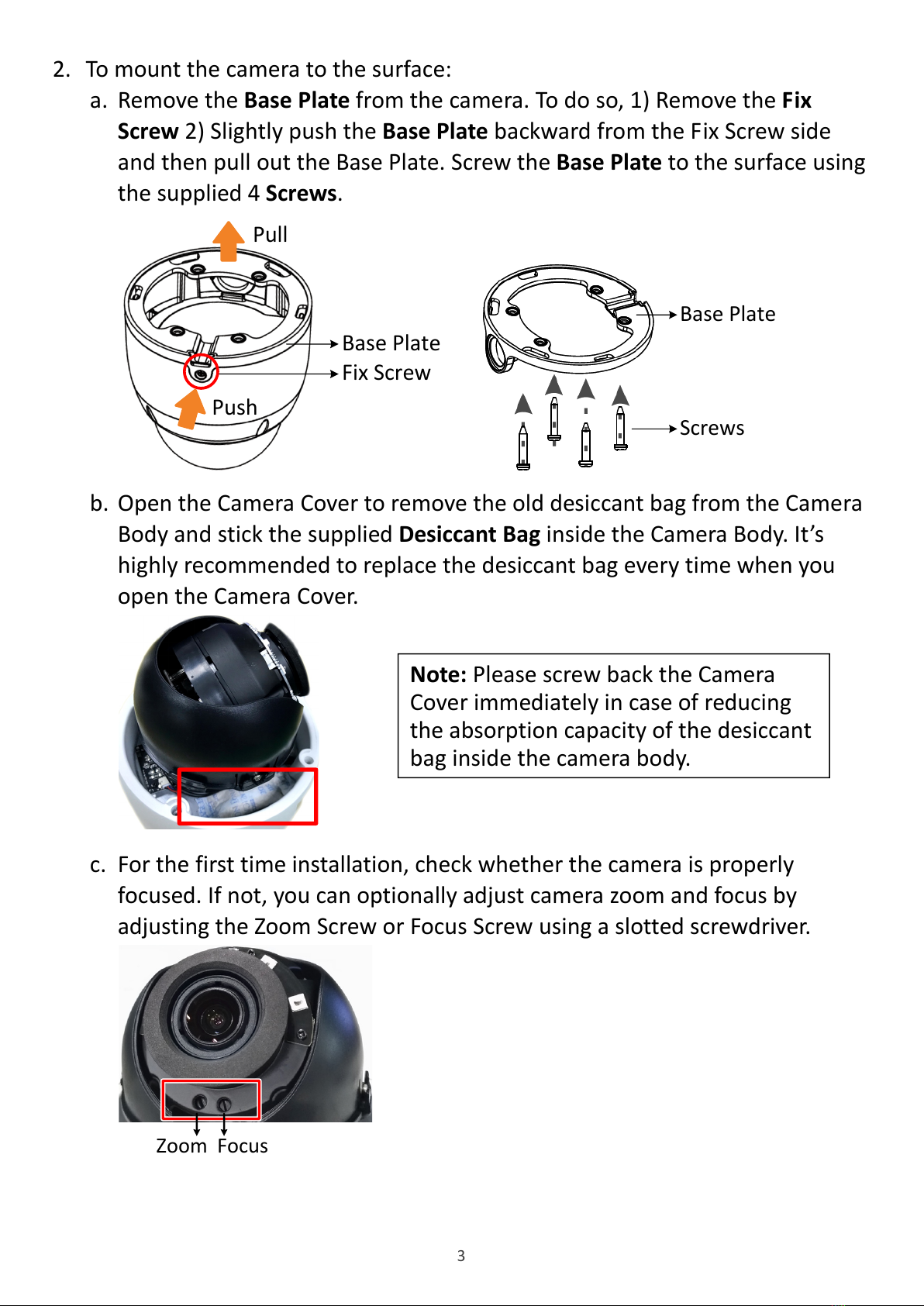

2. To mount the camera to the surface:

a. Remove the Base Plate from the camera. To do so, 1) Remove the Fix

Screw 2) Slightly push the Base Plate backward from the Fix Screw side

and then pull out the Base Plate. Screw the Base Plate to the surface using

the supplied 4 Screws.

Fix Screw

Base Plate

Push

Pull

Screws

Base Plate

b. Open the Camera Cover to remove the old desiccant bag from the Camera

Body and stick the supplied Desiccant Bag inside the Camera Body. It’s

highly recommended to replace the desiccant bag every time when you

open the Camera Cover.

c. For the first time installation, check whether the camera is properly

focused. If not, you can optionally adjust camera zoom and focus by

adjusting the Zoom Screw or Focus Screw using a slotted screwdriver.

Zoom Focus

Note: Please screw back the Camera

Cover immediately in case of reducing

the absorption capacity of the desiccant

bag inside the camera body.

All manuals and user guides at all-guides.com

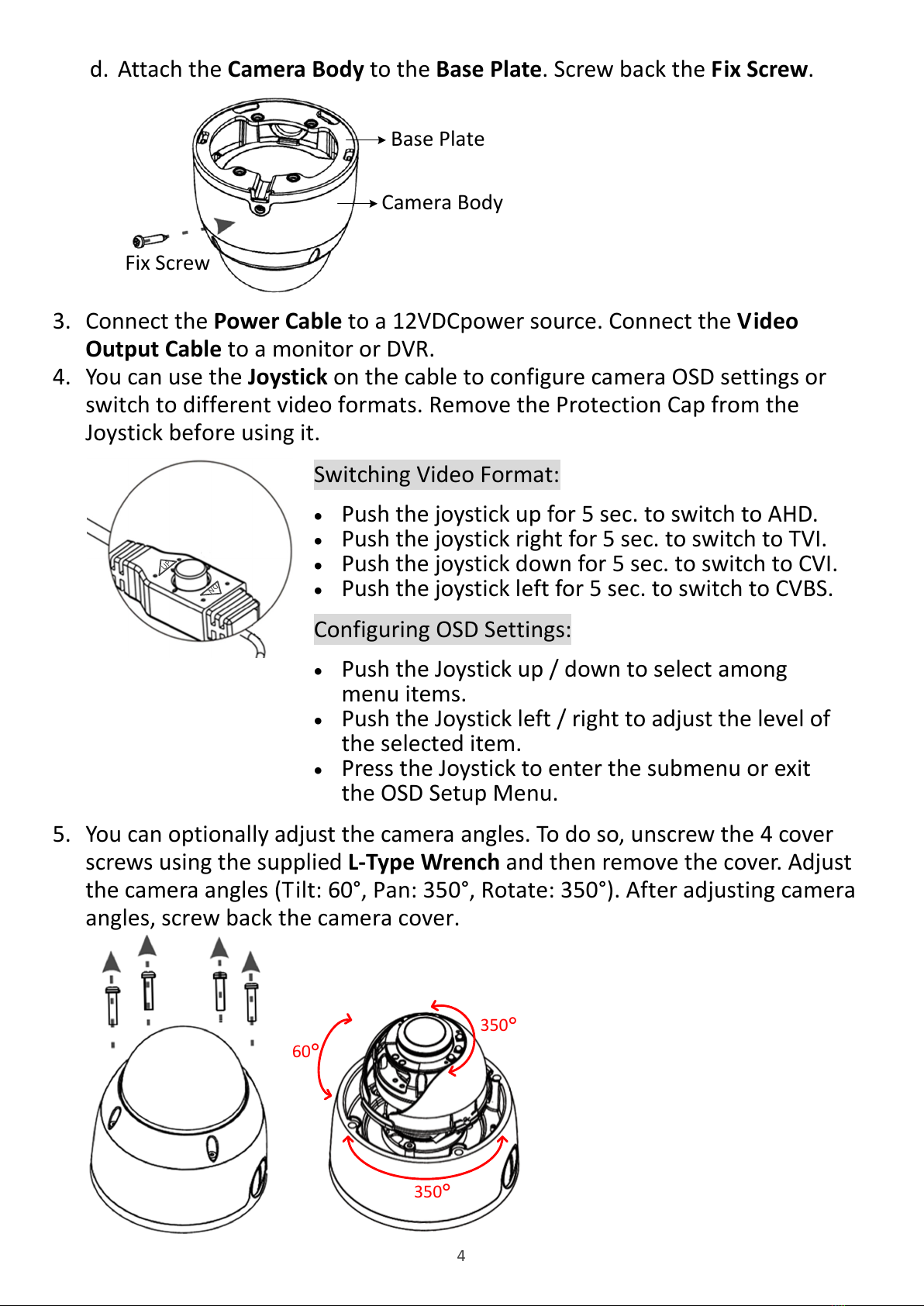

d. Attach the Camera Body to the Base Plate. Screw back the Fix Screw.

Base Plate

Camera Body

Fix Screw

3. Connect the Power Cable to a 12VDCpower source. Connect the Video

Output Cable to a monitor or DVR.

4. You can use the Joystick on the cable to configure camera OSD settings or

switch to different video formats. Remove the Protection Cap from the

Joystick before using it.

Switching Video Format:

•Push the joystick up for 5 sec. to switch to AHD.

•Push the joystick right for 5 sec. to switch to TVI.

•Push the joystick down for 5 sec. to switch to CVI.

•Push the joystick left for 5 sec. to switch to CVBS.

Configuring OSD Settings:

•Push the Joystick up / down to select among

menu items.

•Push the Joystick left / right to adjust the level of

the selected item.

•Press the Joystick to enter the submenu or exit

the OSD Setup Menu.

5. You can optionally adjust the camera angles. To do so, unscrew the 4 cover

screws using the supplied L-Type Wrench and then remove the cover. Adjust

the camera angles (Tilt: 60°, Pan: 350°, Rotate: 350°). After adjusting camera

angles, screw back the camera cover.

350°

60°

All manuals and user guides at all-guides.com

3. Configuration in the OSD Menu

You can configure camera settings in the OSD menu from DVR end.

No Main

Sub

Sub Menu / Function

Iris

ELC

2 Focus Adj.

Off

Focus Area

Wide / Narrow / Middle

DISP Tone

0-2

DISP H_POS

0-60

DISP V_POS

0-34

DISP H_Size

0-60

DISP V_ Size

0-34

3 Exposure

Brightness

0-20

Shutter

Auto

Normal / Deblur

Manual Speed

1/30, 1/60, 1/1 20, 1/2 40, 1/4 80,

1/1000, 1/2000, 1/4000, 1/8000,

1/1 5000, 1/30000

Flicker

Sens-Up

Off, x2, x4, x8, x16, x32

AGC

0-10

4 Backlight

Off

HLC

Mode

Night Only / All Day

Level

0-20

Color

BLK / CUSTOMIZE / WHT / YEL / CYN / GRN /

MAG / RED / BLU

BLC

H-POS

0-20

V-POS

0-20

H-Size

0-20

V-Size

0-20

WDR Mode

Normal

ROI

Window Zone

0-3

Window Use

On / Off

H-POS

0-1920

V-POS

0-1080

H-Size

0-1920

V-Size

0-1080

Weight

Middle / High / Low

5 Day&Night Auto Mode

Auto

IR LED

On / Off

Anti-Sat.

0-20

LED Power

Dimming

AGC Thres

0-20

AGC Margin

0-20

Delay

Middle / High / Low

Color

White LED

On / Off

Anti-Sat.

0-20

LED Power

Dimming

AGC Thres

0-20

AGC Margin

0-20

Delay

Middle / High / Low

B&W

IR LED

On / Off

All manuals and user guides at all-guides.com

all-guides.com

Anti-Sat.

0-20

LED Power

Dimming

AGC Thres

0-20

AGC Margin

0-20

Delay

Middle / High / Low

Extern

IR LED

On / Off

Anti-Sat.

0-20

LED Power

Dimming

Extern SW

High / Low

D > N Thres

0-20

N > D Thres

0-20

Delay

Middle / High / Low

6 Color AWB

Auto

Autoext

Preset

Manual

C-Temp

3000K / 5000K / 8000K

R-Gain

0-20

B-Gain

0-20

Color Gain

0-20

DNR

Middle / High / Off / Low

8 Image

Sharpness

CVBS

0-10

CVI

0-10

TVI

0-10

AHD

0-10

Gamma

0.45 / 0.55 / 0.65 / 0.75

Mirror

On / Off

Flip

On / Off

ACE

Off / Low / Middle / High

Defog

Off

Mode

Manual / Auto

Level

Low / Middle / High

Privacy

Off

Zone Num

0-15

Zone DISP

On / Off

H-POS

0-60

V-POS

0-34

H-Size

0-60

V-Size

0-34

Y-Level

0-20

CB Level

0-20

CR Level

0-20

Trans

0 / 1 / 2 / 3

9 Motion

Off

Det

Window

Zone

0 / 1 / 2 / 3

Window

Use

On / Off

Det H-POS

0-60

Det V-POS

0-34

Det H-Size

0-60

Det V-Size

0-34

Det Tone

0 / 1 / 2 / 3 / 4

All manuals and user guides at all-guides.com

Mdrect Fill

On / Off

Sensitivity

0-10

Motion

OSD On / Off

Text Alarm

On / Off

Signal Out

On / Off

10 System

Output

Mode

HD Output

Off / CVBS / CVI / TVI / AHD

Frame Rate

1080 25P(30P) / 720 25P(30P) / 720 50P(60P)

Freq.

50HZ / 60HZ

Confirm

YES


Range

Full

Comp

User

Offset

0-32

Color

Space

HD-CbCr / YUV / SD-CbCr

Color Bar

On / Off

Language

ENG / CHN / CHN(S) / JPN / KOR / POR

Cam Title

Off

Right Up

Left Down

Reset
