EverFocus EPA6220 Manuale utente

EPA6220 / EPA6236

AHD 1080p IR / IP66 Outdoor Speed Dome

True Day/Night and WDR (20x / 36x Optical Zoom)

Quick Installation Guide

Release Date: May, 2020

Disclaimer

All the images including product pictures or screen shots in this document are for example only. The

images may vary depending on the product and software version. Information contained in this document

is subject to change without notice.

or by any means without written permission of the EverFocus Electronics Corporation.

1. Introduction

The EPA6220 / EPA6236 1080p speed dome cameras come with 20x / 36x optical zoom lens respectively.

Equipped with a weather-resistant (IP66) housing, the models meet a wide variety of needs for outdoor

surveillance. The speed dome cameras support AHD, TVI, CVI and CVBS video formats, which are

switchable via shortcut commends (please refer to Appendix A Shortcut Commands in the User’s Manual).

EPA6220 / EPA6236 provides variable pan / tilt speeds for fast and accurate monitoring. A maximum of 220

preset points can be configured for precise location of target areas. Features like A-B scan, 4 patterns, 8

tours are all provided. The speed dome cameras also feature IR-Cut Filter, which can be removed or

attached manually or automatically switched based on the detected light levels. A built-in fan and heater

are also equipped in the speed dome camera.

1.1 Features

AHD 1080p Sony CMOS sensor

20x optical zoom lens (for EPA6220) / 36x optical zoom lens (for EPA6236)

Supports UTC & RS-485 communication

True Day and Night (IR-cut filter removable)

Supports D-WDR

Supports 220 preset positions

Supports 8 tours (16 positions each tour)

IP66-rated with metal housing

Supports OSD menu

1.2 Dimensions

100mm / 3.9"

155mm / 6.1"

350mm / 13.8"

227mm / 8.94"

177mm / 6.97"

215mm / 8.46"

122mm / 4.8"

1.3 Packing List

1. Speed Dome Camera x 1

2. Wall Mount Bracket x 1

3. Power Supply (12VDC, 4A) x 1

4. Screw Kit x 1

5. Quick Installation Guide x 1

Note:

1. Equipment configurations

and supplied accessories vary by country. Please consult your local

EverFocus office or agents for more information. Please also keep the shipping carton for possible

future use.

2. Contact the shipper if any items appear to have been damaged in the shipping process.

1.4 Optional Accessories

•Pole Mount Bracket

•Corner Mount Bracket

•Pendant Mount Bracket

•EKB700 Keyboard (RS-485)

2. Installation

2.1 Wall Mounting

You can use the supplied Wall Mount Bracket to install the speed dome camera to the concrete wall.

Note that the wall should be withstood at least 4 times the weight of the speed dome camera.

Wall Mount Bracket

1. Mark the 4 screw holes on the wall based on the Wall Mount Bracket and then drill 4 screw-depth

holes on the wall.

2. Run the cables through the Wall Mount Bracket and then screw the Wall Mount Bracket to the wall

with M8 screws.

3. Screw the speed dome camera to the Wall Mount Bracket.

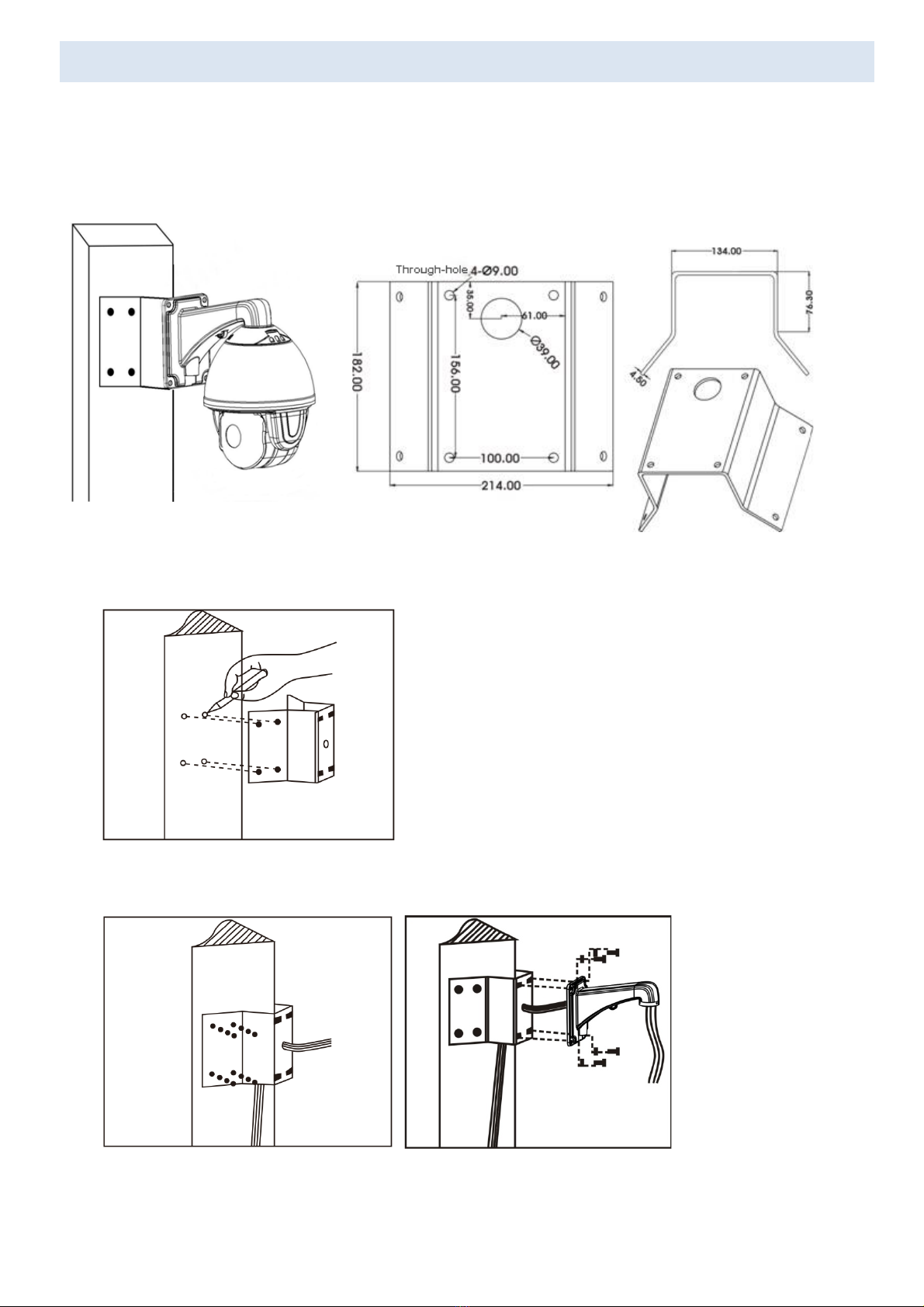

2.2 Corner Mounting

You can purchase the Corner Mount Bracket (please refer to 1.4 Optional Accessories) to install the speed

dome camera to the concrete corner wall with 90°angle. Note that the wall should be withstood at least 4

times the weight of the speed dome camera.

Corner Mount Bracket

1. Mark the screw holes on the wall based on the Corner Mount Bracket, drill the screw-depth holes

and then screw the Corner Mount Bracket to the wall with M8 screws and screw nuts.

2. Run the cables through the Wall Mount Bracket and Corner Mount Bracket, and then screw the Wall

Mount Bracket to the Corner Mount Bracket.

3. Screw the speed dome camera to the Wall Mount Bracket.

2.3 Pole Mounting

You can purchase the Pole Mount Bracket (please refer to 1.4 Optional Accessories) to install the speed

dome camera to a pole structure with diameter between 130-152mm (max. 6 inches). Note that the pole

structure should be withstood at least 4 times the weight of the speed dome camera.

Pole Mount Bracket

1. Fix the Pole Mount Bracket to the pole structure using the Stainless Hose Clamps (φ130-152mm).

2. Run the cables through the Wall Mount Bracket and Pole Mount Bracket, and then screw the Wall

Mount Bracket to the Pole Mount Bracket.

3. Screw the speed dome camera to the Wall Mount Bracket.

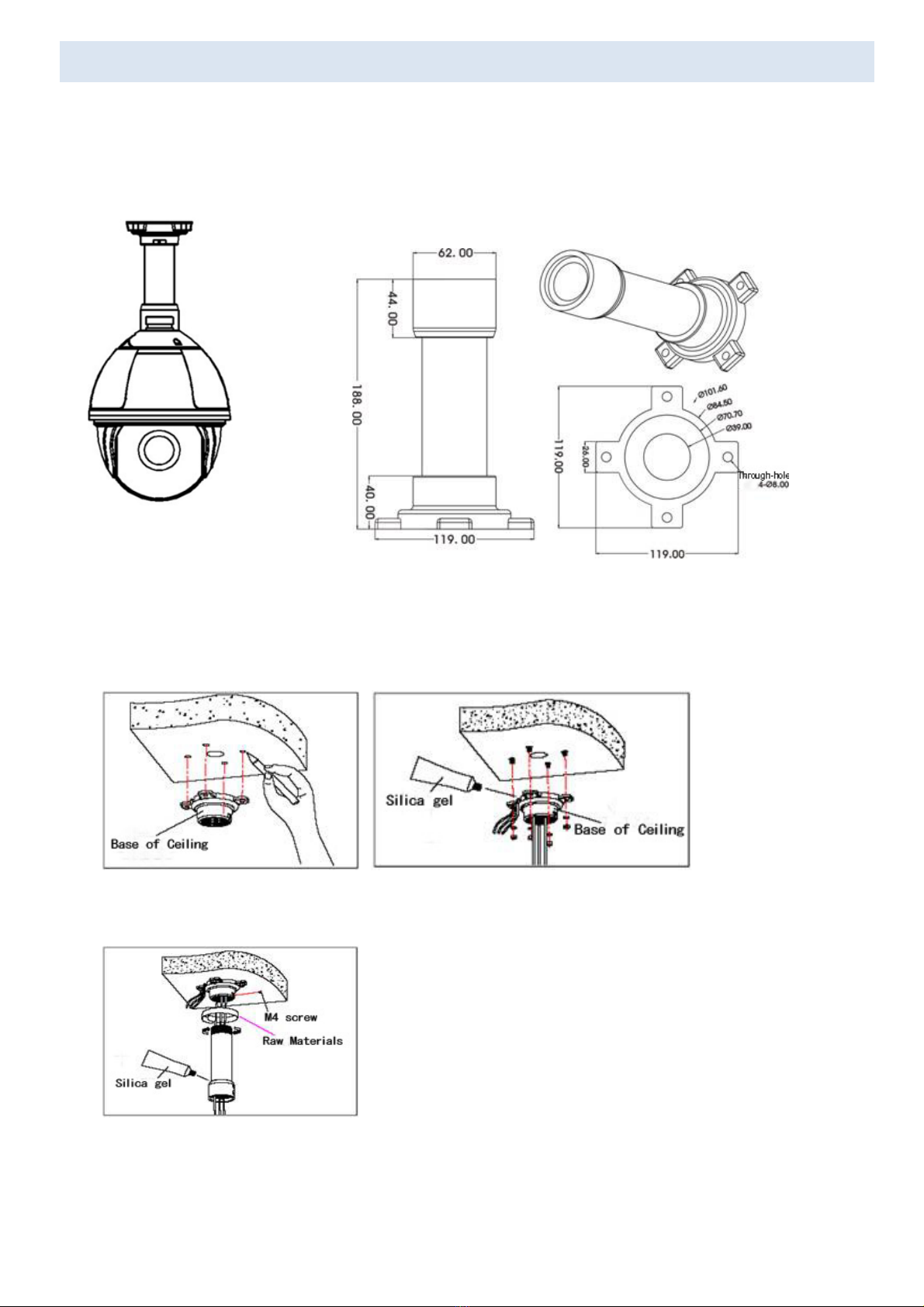

2.4 Ceiling Mounting

You can purchase the Ceiling Mount Bracket (please refer to 1.4 Optional Accessories) to install the speed

dome camera to the ceiling. Note that the ceiling should be withstood at least 4 times the weight of the

speed dome camera.

Ceiling Mount Bracket

1. Unscrew the M4 screws to remove the Bracket Base from the Ceiling Mount Bracket. Mark the

screw holes on the ceiling based on the Bracket Base, drill the screw-depth holes and then screw the

Bracket Base to the ceiling with M6 screws. You can optionally apply the silica gel to the faying

surface between the Bracket Base and ceiling for water proofing.

2. Run the cables through the Ceiling Mount Bracket, and then screw the Ceiling Mount Bracket to the

Bracket Base. You can optionally apply the silica gel to the joint sleeve for water proofing.

3. Screw the speed dome camera to the Ceiling Mount Bracket.

EverFocus Electronics Corp.

EverFocus Taiwan:

2F., No.12, Ln. 270, Sec. 3, Beishen Rd.,

Shenkeng Dist., New Taipei City 222, Taiwan

TEL: +886 2 2662 2338

FAX: +886 2 2662 3632

www.everfocus.com.tw

[email protected]m.tw

EverFocus China - Shenzhen:

4F, No. 2, D4 Building, Wan Yelong

Industrial Park, Tangtou Road, Shiyan,

Baoan, Shenzhen, Guangdong 518101, China

TEL: +86 755 2765 1313

FAX: +86 755 2765 0337

www.everfocus.com.cn

[email protected]m.cn

EverFocus USA - California:

1801 Highland Avenue, Unit A, Duarte,

CA 91010, USA

TEL: +1 626 844 8888

FAX: +1 626 844 8838

www.everfocus.com

sales@everfocus.com

EverFocus Japan:

3F, Kuramochi, Building II

2-2-3 Koto-Bashi, Sumida-Ku,

Tokyo, 130-0022, Japan

TEL: +81-3-5625-8188

FAX: +81 3 5625 8189

www.everfocus.co.jp

[email protected]

Your EverFocus product is designed

and manufactured with high quality

materials and components which can

be recycled and reused.

This symbol means that electrical and

electronic equipment, at their

end-of-life, should be disposed of

separately from your household

waste.

Please, dispose of this equipment at

your local community waste

collection/recycling centre.

In the European Union there are

separate collection systems for used

electrical and electronic product.

Please, help us to conserve the

environment we live in!

Ihr EverFocus Produkt wurde entwickelt

und hergestellt mit qualitativ

hochwertigen Materialien und

Komponenten, die recycelt und wieder

verwendet werden können.

Dieses Symbol bedeutet, dass

elektrische und elektronische Geräte am

Ende ihrer Nutzungsdauer vom

Hausmüll getrennt entsorgt werden

sollen.

Bitte entsorgen Sie dieses Gerät bei

Ihrer örtlichen kommunalen

Sammelstelle oder im Recycling Centre.

Helfen Sie uns bitte, die Umwelt zu

erhalten, in der wir leben!
