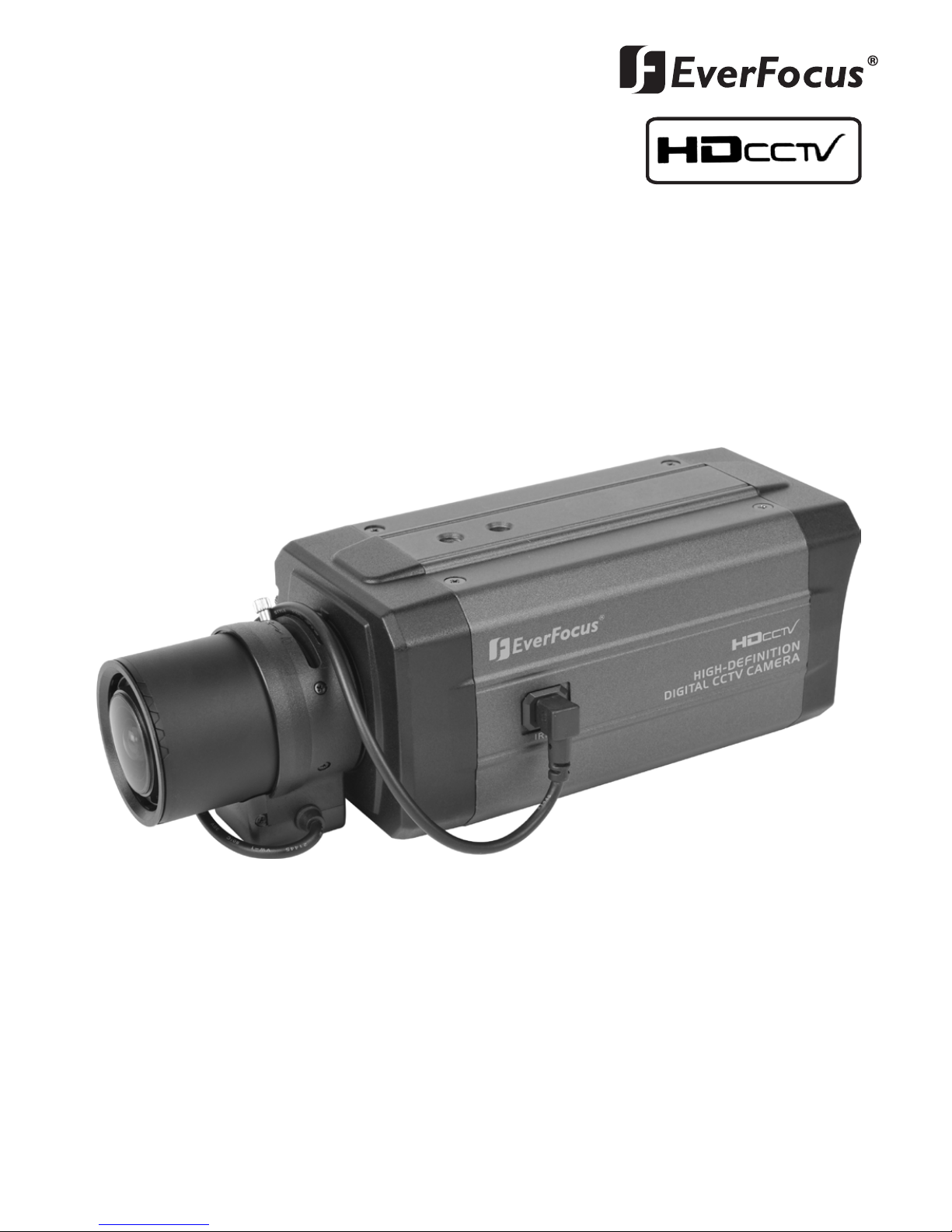

EverFocus EQH5000 Manuale utente

HD CCTV

Digital Video Camera

OPERATION MANUAL

EQH5000

Before attempting to connect or operate, please read and follow these instructions.

CONTENTS

1. CAUTIONS

2. FEATURES

3. EQUIPMENT AND ACCESSORIES

4. CAMERA COMPONENT DESCRIPTION

5. INSTALLATION

6. DIMENSIONS

7. SPECIFICATIONS

8. DIGITAL INPUT/OUTPUT CIRCUIT (Future use)

9. OSD MANUAL

1. CAUTIONS

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions;

1. This device may not cause harmful interference.

2. This device must accept any interference received,

including interference that may cause undesired operation.

Note

This equipment has been tested and found to comply with the limits for a Class A digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference when the equipment is operated

in a commercial environment. This equipment generates, uses, and can radiate radio

frequency energy and, if not installed and used in accordance with the instruction

manual, may cause harmful interference to radio communications. Operation of this

equipment in a residential area is likely to cause harmful interference in which case the

user will be required to correct the interference at his own expense.”

WARNING

This is a class A product. In a domestic environment this product may cause radio

interference in which case the user may be required to take adequate measures.

Caution

Any changes or modications in construction of this device which are not expressly

approved by the party responsible for compliance could void the user’s authority to

operate the equipment.

1. A regulated DC12V 1A power supply is recommended for use with this camera

for the best picture and the most stable operation.

An unregulated power supply can cause damage to the camera.

If an unregulated power supply is used, product warranty will be Void.

2. It is recommended that the camera is used with a system that has an HDCCTV quality

75 video impedance level.

3. Do not attempt to disassemble the camera to gain access to the internal components.

Refer servicing to your dealer.

4. Never face the camera towards the sun or any bright or reective light, which may

cause smear on the picture and possible damage to the CCD.

5. Do not remove the serial number sticker.

6. Do not expose the camera to rain or other type of liquid.

1. CAUTIONS

Correct Disposal of This Product

(Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with

separate collection systems)

This marking shown on the product or its literature, indicate that it should not

be disposed with other household wastes at the end of its working life. To

prevent possible harm to the environment or human health from uncontrolled

waste disposal, please separate this from other types of wastes and recycle it

responsibly to promote the sustainable reuse of material resources.

This product should not be mixed with other commercial wastes purchased this

product, or their local government ofce, for details of where and how they can

take item for environmentally safe recycling.

Business users should contact their supplier and check the terms and

conditions of the purchase contract.

Household users should contact either the retailer where they for disposal.

2. FEATURES

•High Resolution

1/3˝SONY Progressive Color CMOS Sensor,

1280x720 30fps

• Supports Various Digital Video Output

720p 30, 720p 60

720p 25, 720p 50

• Video Outputs

Primary HD-SDI (BNC)

Test/Setup TV Out (BNC), NTSC /PAL selectable

• S/N Ratio : Max 50dB

• OSD menu for setup and configuration

• Lens Control

Manual Iris

DC Iris

• Provides True Day/Night Capability with Motorized IR Cut Filter

• Accepts CS Mount Lenses : Adapter included for C-Mount Lens

• Power Source : DC 12V

3. EQUIPMENT AND ACCESSORIES

HD CCTV

Digital Video Camera

C-MOUNT ADAPTOR RING

OPERATION MANUAL

TERMINAL BLOCK

* NOTE

PLEASE REMOVE PROTECTION FILM

4. CAMERA COMPONENT DESCRIPTIONS

• FRONT

MOUNTING HOLE(1/4"-20 UNC)

AUTO IRIS JACK

C-MOUNT

ADAPTOR RING

(Optional - use for C-Mount lens only)

MOUNTING HOLE(1/4"-20 UNC)

BACK FOCUS CONTROL LEVER

4. CAMERA COMPONENT DESCRIPTIONS

• BACK

①. MENU SET BUTTON

MENU NAVIGATION BUTTONS

②. UP BUTTON

③. DOWN BUTTON

④. LEFT BUTTON

⑤. RIGHT BUTTON

⑥. POWER LED

⑦. SDI OUT BNC

⑧. VIDEO OUT BNC

⑨. MIC IN JACK(Future Feature)

⑩. AUDIO OUT JACK(Future Feature)

⑪. TERMINAL (POWER, Digital Input/Output) “Note : Digital input and Output for Future use”

① ②

③

④

⑤

⑥

⑦

⑧

⑨⑩

⑪

5. INSTALLATION

• LENS CONNECTION

Mega Pixel Lenses are sold separately. Lenses such as a DC auto iris lens,

CS-Mount lens and C-Mount lens can be used ( adapter included for C-Mount Lens).

NOTE

• Please keep the lens clean.

• Any foreign objects and Finger marks on the lens can cause

inferior image quality in low light level conditions.

After attaching the lens to the camera please insert the connection plug from the DC

auto iris lens cable into the auto lens connector, which is located on the side of the

camera

C-mount lens : 10mm or less

CS-mount lens : 5mm or less

*NOTE

When using a CS Mount Lens, you can attach it directly to camera,

If useing a C Mount lens, you must attach the ring spacer provided,

otherwise it will crack the image sensor.

5. INSTALLATION

Installation of C-Mount Lens

Installation of CS-Mount Lens

C to CS-MOUNT ADAPTOR RING

Lens
