EverFocus 380TVL, 520TVL Manuale utente

1/3” 520TVL High-Res. Color Camera(350HQ/550)

1/3” 380TVL High-Res. Color Camera(250)

Notice

This manual is presented to users of the EQ series by EverFocus Electronics

Corporation. With years of engineering research, EverFocus has spared no

effort in manufacturing high quality products to users worldwide, and maintains

a policy for continual product improvement. Therefore, EverFocus reserves the

right to revise and improve products, their specifications and documentation

without notice. All product materials: including accessories and components

are provided for your convenience. To keep your EQ Series working at its

optimal level, strictly follow the instructions within this manual. EverFocus is

not responsible for any damages resulting from inappropriate operation.

Table of Contents

Safety Warning ……...……………………………………3

Introduction……………………………………………….4

Specification……………………………………………….5

Major Parts and Their Functions………………….…….6

Installation Instructions……………………………..…. 11

Safety Warning

1. Handle camera with care.

Be careful when handling the camera, do not drop it or subject it

to strong shock or vibration to prevent any damages to it. Do not

disassemble it or place it on an unstable base.

2. Do not install camera near electric or magnetic fields.

Install the camera away from any television, radio transmitter,

magnet, electric motor, transformer, or audio speakers since the

magnetic fields generated from the above named devices will

distort the video image.

3. Do not install camera in a high temperature environment.

Install the camera away from space heaters, stoves, or other heat

generating devices because the high temperatures generated

around these devices can cause deformation, discoloration or

other damages to the camera. Install the camera in an area where

the temperature range remains between 0oto 50 o C (32oto 122o

F).

4. Never aim camera toward the sun whether the unit is in use or

not.

The severe rays of direct sunlight or objects that emit extremely

intense rays may cause fatal damage to the sensor and internal

circuit.

5. Cleaning

Do not touch the surface of the CCD sensor directly. Use a soft

cloth to remove any dirt from the camera body. Use a lens

tissue or cotton tipped applicator and ethanol to clean the CCD

sensor and/or the camera lens. Always replace the cover cap on

the lens mount, when the camera is not in use.

Introduction

The new 350 HQ series is a solid-state color video camera

specifically designed for high quality surveillance applications. It

incorporates break through DSP technology that provides the most

reliable and accurate color picture in the security industry. The

camera is convenient to use with C-mount or CS-mount lenses and

an easy back-focus adjustment helps efficient installation.

Main Features:

•1/3” color CCD pickup device for more than 380/520 TV lines of

horizontal resolution.

•Sophisticated DSP (Digital Signal Processing) circuitry design that

delivers excellent picture quality and performance.

•Wide range automatic electronic shutter: up to 1/100,000.

•Auto line lock with external phase adjustment.

•Use with either C-mount or CS-mount lenses and easy back-focus

adjustment

•System available in NTSC or PAL.

Specifications

Model 250 350HQ 550EX

Pickup Device: 1/3” interline transfer color CCD

Video Format: NTSC / PAL

Picture Element: NTSC: 510(H) x 492(V)

PAL: 500(H) x 580(V) NTSC: 768(H) x 494(V)

PAL: 752(H) x 582(V)

Horizontal

Resolution: 380TV lines 520TV lines

Sensitivity: 0.5lux/F=1.2 0.5lux/F=1.2 1.0lux color, 0.15lux

monochrome/F=1.2

Video Output: BNC VBS 1.0Vp-p, 75ohm

S/N Ration: Over 48dB

Electronic

Shutter: Up to 1/100,000

Back Light

comp.: ON/OFF switch

Auto Gain

Control: ON/OFF switch

Auto White

Balance: Digital auto tracing

Fluorescent: ON/OFF switch

Auto IRIS: Switch-able Video Drive or Direct Drive

Sync. Mode: 1. Line-Locked with LL on

2. Internal Sync. With LL off

Gamma

Correction: >0.45

Power Source: 12VDC/24VAC; 90~265VAC

Dimension 51(W) x 57(H) x 140.2(D)mm;2(W)x 2.25(H)x5.52(D)inch

Operating

Temperature: 0°~50°,20%~80%

Power

Consumption: 5W max.

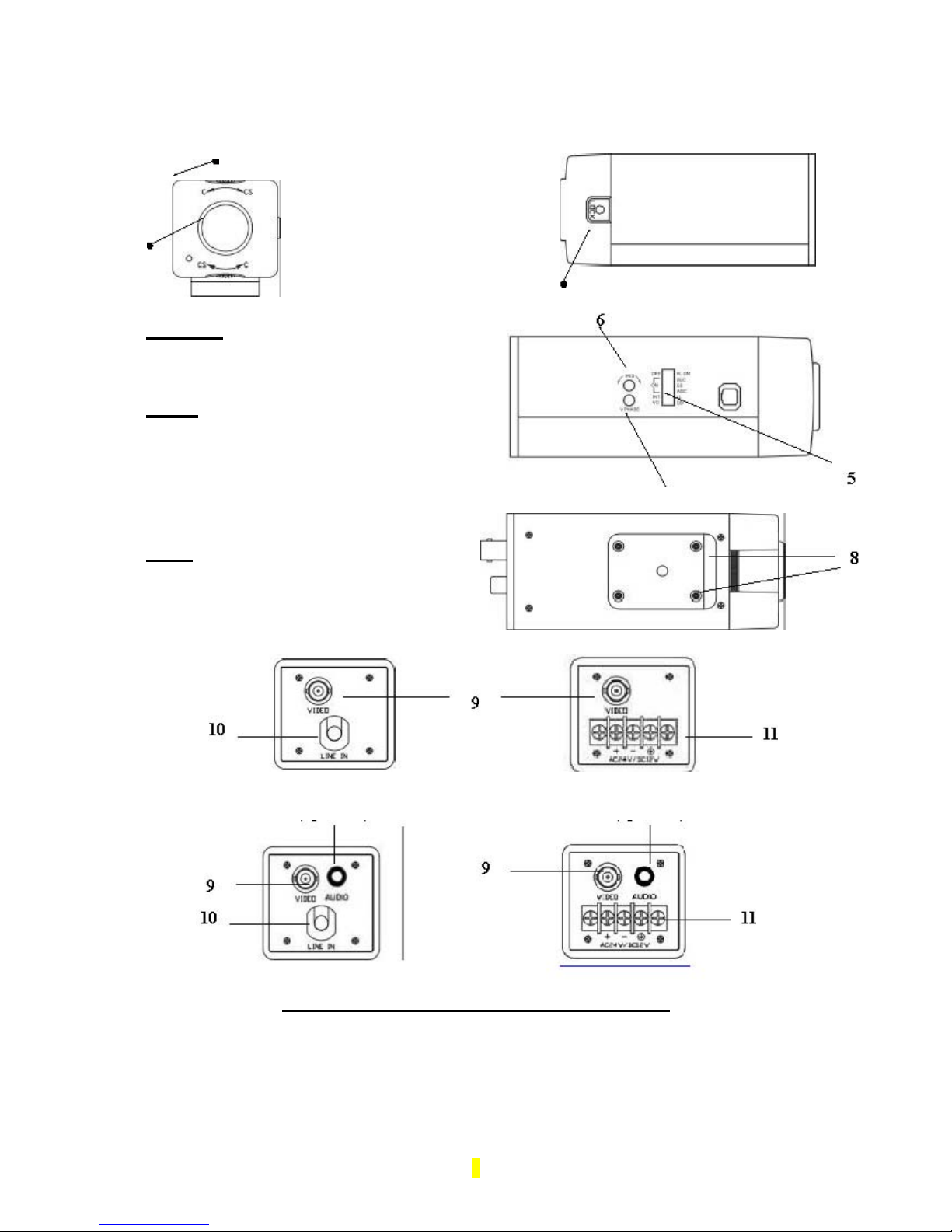

Major Parts Names and Their Functions

Front

Side

Top

12(optional)

Rear (EQ series) Rear(EQ series” A”)

1. Focal Length Adjustment Ring

Use this ring to adjust the appropriate focal length according to

the lens type. Rotate the ring clockwise for a CS-mount lens;

rotate the ring counterclockwise for a C-mount lens. The

factory setting is C-mount.

2. Lens Mount

Used to mount an appropriate C-mount or CS-mount lens.

3. Locking Screw

Use the locking screw to set the focal length.

4. Lens Connector (4 pin socket)

Connect to the lens plug of the auto iris lens.

5. Control Switches

There are six (6) control switches located on the sideboard.

These are used to set the special features. The switches in order

are for Flicker less, Back Light Compensation, Electronic

Shutter, Automatic Gain Control, Line-Lock and Auto Iris Lens

type.

Fluorescent On/OFF

This is a function compensates for the flickering images that can

occur in fluorescent light conditions. When filming images in

fluorescent lighting, turn on the Fluorescent function; the default

setting is off.

BLC (Back Light Compensation) On/Normal

When BLC is turned on, the AGC, ES and IRIS operating point is

determined by averaging over the center area instead of entire field-

of-view, so that a dimly-lit foreground object in the center area can

be clearly distinguished from brightly-lit backgrounds. BLC should

not be used unless it is needed to compensate for back-lighting.

The default setting is Normal.

ES (Electronic Shutter) Off/On

ES ON: The camera continuously adjusts the shutter speed from 1/60

(NTSC),1/50 (PAL) second to 1/100,000 second according to the

luminance conditions of the scene.

ES OFF: The shutter speed is fixed at 1/60 (NTSC), 1/50 (PAL)

second. Place ES in the off position, when auto iris lens are used or

flicker is observed under extremely bright fluorescent lighting. In all

other lighting, keep ES in the on position for optimum performance.

The default setting is ON.

AGC (Automatic Gain Control) Off/On

AGC ON: The sensitivity increases automatically when light is low.

AGC OFF: A low-noise picture is obtained under a low light

condition. The default setting is ON.

LL (Line-Lock) Off/On

Use this switch to select the sync mode between Internal Sync.(LL

off) and Line-Lock (LL on). To synchronize the camera to the

internal time base, set the line-lock in the off position. By setting the

line-lock on, the camera’s vertical synchronization can be driven by

the AC signal in the power lines.

Note: The cameras feature AC line lock for external

synchronization. Using the AC power frequency (60Hz) is

possible but not available when using DC or other

operation power such as NTSC in 50Hz or PAL in 60Hz

power system.

VD/DD (Auto Iris lens Type)

For video drive auto iris lens, please set the switch to VD. For direct

drive iris lens, set the switch to DD. The default setting is DD. Wire

the lens cable to the lens connector according to the following table.

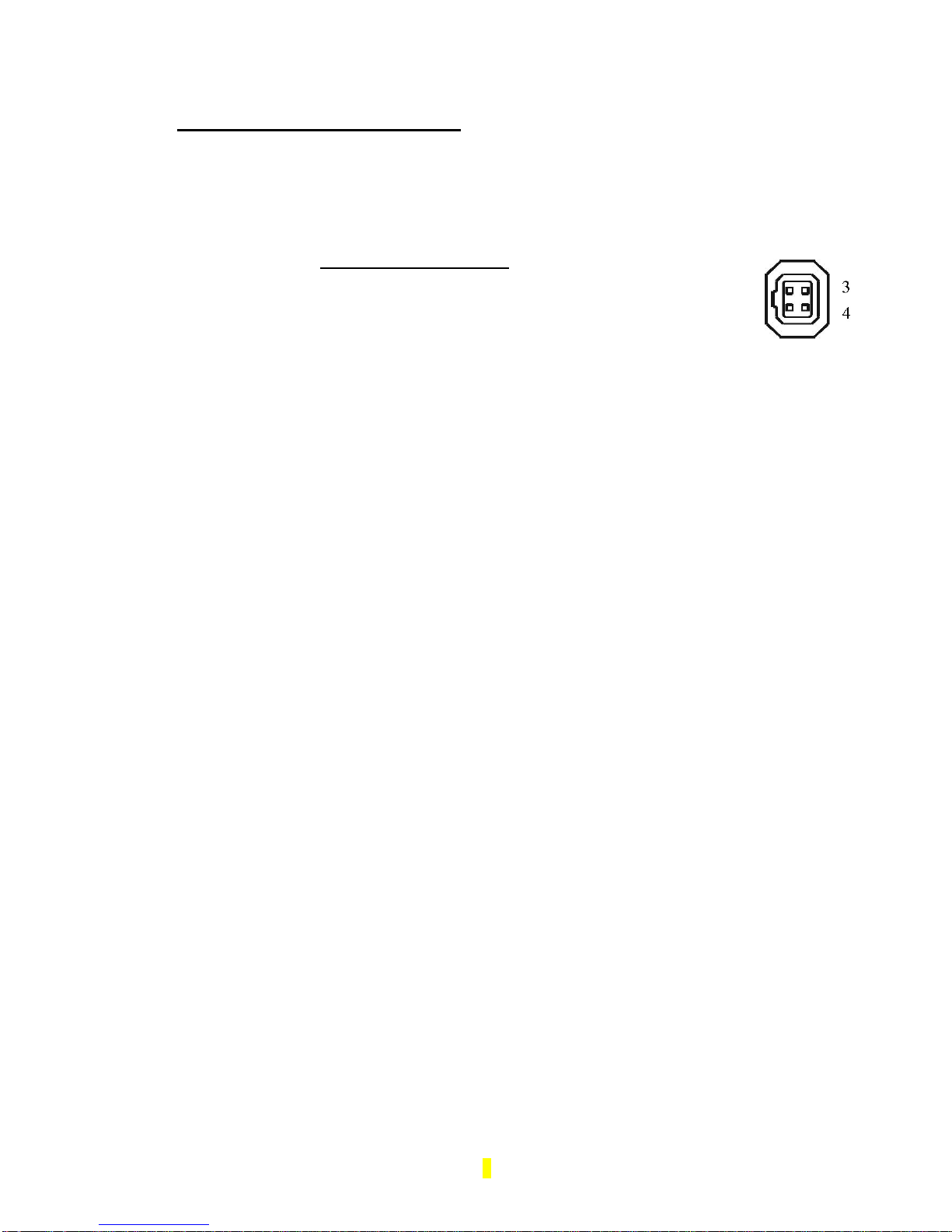

Pin1 Pin2 Pin3 Pin4 Lens Connector

Video Drive +12V GND VD-IRIS GND 12

Direct Drive Cnt-Cnt+ Drv+ Drv-

6. IRIS Level Control

Brightness Level can be adjusted from the IRIS level VR while

using the direct drive lens.

2• Turn counterclockwise to L for a darker picture.

1• Turn clockwise to H for a brighter picture.

7. V-Phase Adjustment Screw

The vertical phase may require adjustment to synchronize the

vertical phase of the camera with other camera in the system when

it is to be used in the line-lock sync mode. Make the adjustment

when the vertical phase of the camera does not match with other

cameras.

8. Mounting Base and Fixing Screws

To use when the mounting bracket is required while mounting the

camera. The mounting base can be attached to either the top or the

bottom of the camera; fix the mounting base onto the camera by

using the 4 supplied fixing screws.
