EverFocus H.265 VANGUARD II Series Manuale utente

Value IP Series Network Camera

5MP, H265, IR & WDR

Quick Installation Guide

EHN1550-S

EBN1540-S

Release Date: August, 2020

All the images including product pictures or screen shots in this document are for example only.

The images may vary depending on the product and software version. Information contained in

this document is subject to change without notice.

EverFocus Taiwan:

2F., No.12, Ln. 270, Sec. 3, Beishen Rd., Shenkeng Dist., New Taipei City 222, Taiwan

TEL: +886 2 2662 2338 FAX: +886 2 2662 3632 www.everfocus.com.tw

1. Physical Description

EHN1550-S

EBN1540-S

SD Card Slot on

EHN1550-S

No.

Item Name

Descriptions

Light Sensor

Detects lights.

IR LEDs

IR LEDs for infrared illumination in night vision

applications.

Lens

Camera lens.

Micro SD Card Slot

Insert a micro SD card.

Dimensions

EHN1550-S

117.3mm / 4.62"

Ø 147.1mm / 5.79"

EBN1540-S

90.3mm / 3.56"

Ø 100mm / 3.94"

Packing List

Please check that there is no missing items in the package before installing.

EHN1550-S

EBN1540-S

1. Camera x 1

2. MAC Address Sticker x 2

3. Cable Gland Kit x 1

4. Screw x 4

5. Screw Anchor x 4

6. Desiccant Bag x 1

7. Torx Wrench x 1

8. Mounting Sticker x 1

9. Quick Installation Guide x 1

1. Camera x 1

2. MAC Address Sticker x 2

3. Cable Gland Kit x 1

4. Screw x 3

5. Screw Anchor x 3

6. Quick Installation Guide x 1

7. Mounting Sticker x 1

Note:

1. Equipment configurations and supplied accessories vary by country. Please

consult your local EverFocus office or agents for more information. Please

also keep the shipping carton for possible future use.

2. Contact the shipper if any items appear to have been damaged in the

shipping process.

Optional Accessory

You can go to the product page on EverFocus’website to check the related

optional accessories. www.everfocus.com.tw

2. Cables

The cables provide connections for network, power, audio input / output and

alarm input / output. A Reset Button Cable is also provided. Please be noted that

microphones / speakers with a (built-in) amplifier and external power supply are

required.

Note: To activate Audio function, the Audio function must be enabled. Please

refer to 2.5.2 Video Streaming in the User’s Manual.

EHN1550-S

Alarm Input / Output

LAN / PoE Cable

12VDC Power Input

Reset Button

Audio Output

Audio Input

EBN1540-S

LAN / PoE Cable

Power Cable (12VDC)

Alarm IO PIN Assignment

Note that this function is only available for EHN1550-S.

Alarm In

GND

COM

Alarm Out

Reset Button

Note that this function is only available for EHN1550-S.

The Reset Button can be used to restore the camera to factory default. When

the camera is powered up, press the Reset Button about 8 seconds to reboot the

camera.

3. Installation

3.1 EHN1550-S

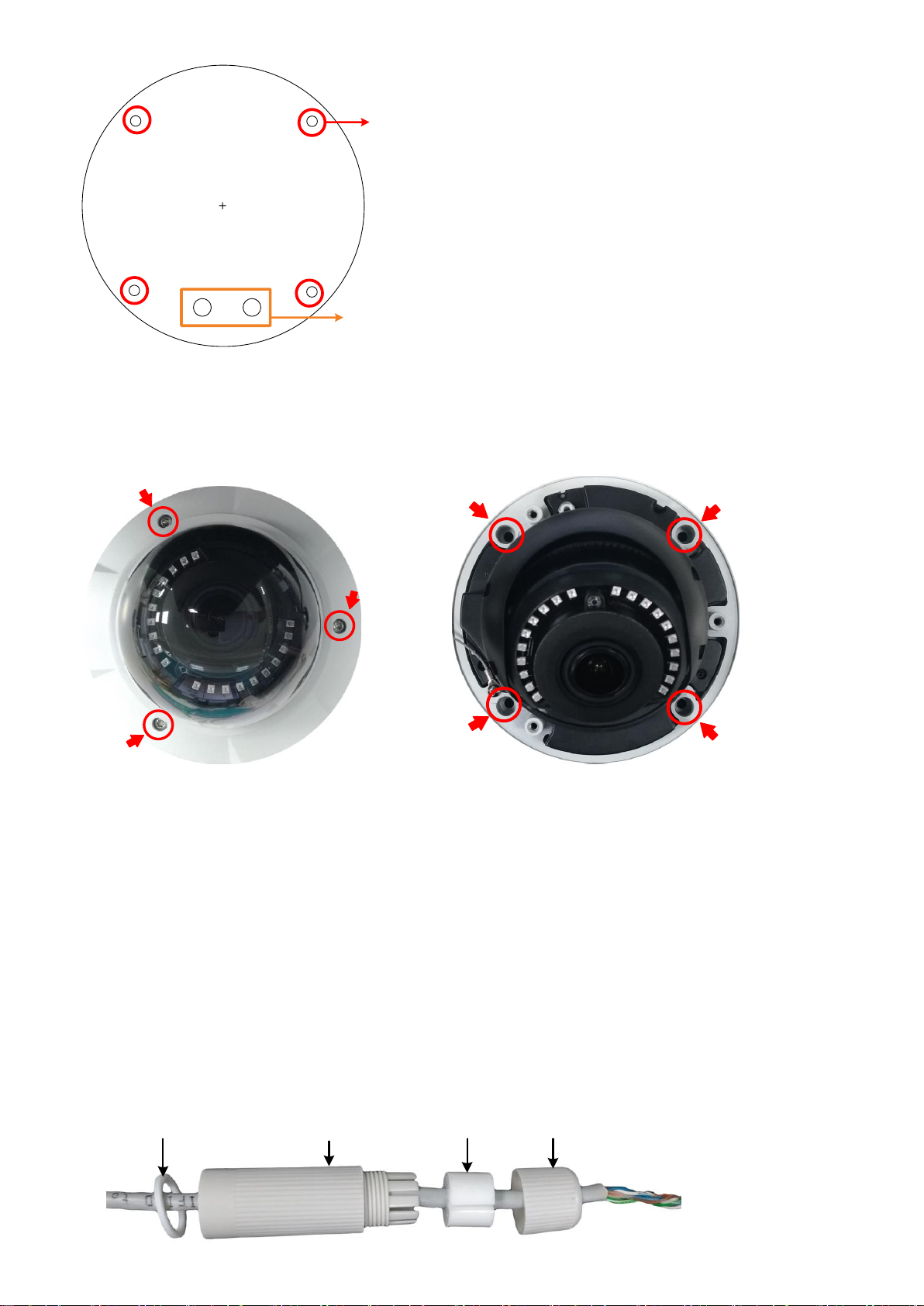

1. Stick the supplied Mounting Sticker on the surface to mark the 4 screw

positions. Drill the 4 screw-depth holes on the surface and then push the

supplied 4 Screw Anchors into the screw holes. Optionally drill the bottom 2

Cable Holes if you want to run the cables through the surface.

+ +

+Screw Position x 4

Optionally drill the 2 Cable Holes if

you want to run the cables through

the surface.

2. Remove the camera cover by unscrewing the 3 cover screws using the

supplied Torx Wrench (Left Image). Screw the camera base to the surface

using the supplied 4 Screws (Right Image).

3. Optionally insert a micro SD card into the card slot (please refer to 1. Physical

Description).

4. Adjust the pan / tilt / rotate angles of the camera.

5. Connect the camera to power. You can either connect the camera to a 12VDC

power source or to a PoE switch using the PoE cable.

6. Connect the camera to the network using the supplied Cable Gland Kit.

a. Insert a RJ-45 network cable (without the RJ-45 connector on the one end)

through the supplied Waterproof Ring, Cable Gland, Stopper and Screw

Cap accordingly.

Waterproof Ring Cable Gland Stopper Screw Cap

b. Connect the RJ-45 cable to the LAN/PoE Cable of the camera.

RJ-45 Cable

LAN/PoE Cable

c. Tightly screw the Cable Gland and Screw Cap to the Rugged RJ-45

Connector Cable.

Screw Cap

Cable Gland

d. Crimp the RJ-45 connector onto the RJ-45 network cable. Note that the

wires should be placed into the RJ-45 connector based on the following

order (from left to right).

Orange with white stripe

Orange

Green with white stripe

Blue

Blue with white stripe

Green

Brown with white stripe

Brown

7. Before screwing back the camera cover, remove the 3 old desiccant bags from

the inside of Camera Cover and replace them with the supplied Desiccant Bag.

Screw the camera cover back to the camera.

Stick the supplied desiccant bag

Remove the 3 desiccant bags

Note: Please screw back the

Camera Cover immediately

in case of reducing the

absorption capacity of the

desiccant bag inside the

camera body.

8. Now you can access the camera live view. See 4. Accessing the Camera.

3.2 EBN1540-S

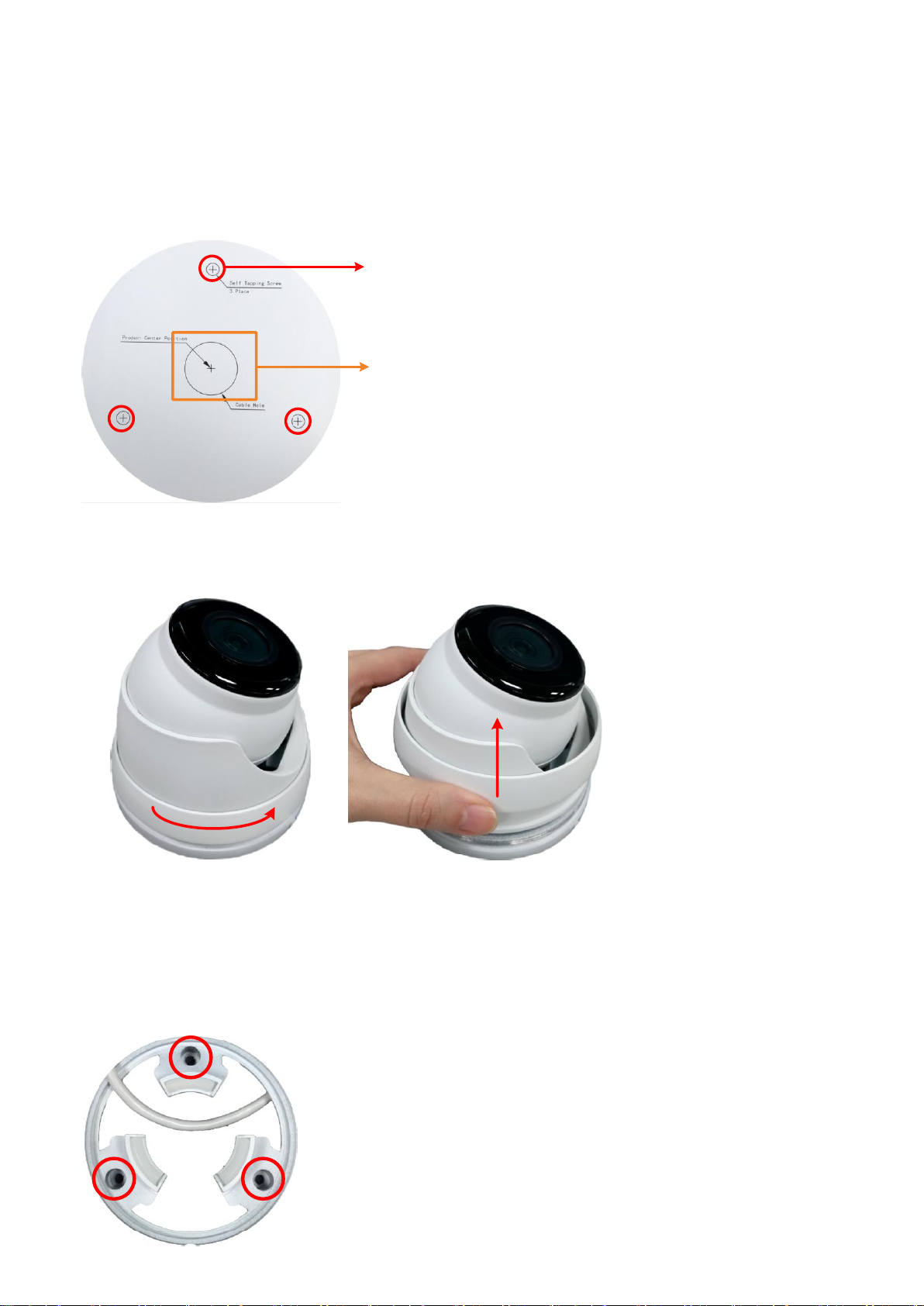

1. Stick the Mounting Sticker on the surface to mark the 3 screw positions. Drill

3 screw-depth holes on the surface and then push the supplied 3 Screw

Anchors into the holes. Optionally drill a Cable Hole on the center if you want

to run the cables through the surface.

Screw Position x 3

Optionally drill a Cable Hole if

you want to run the cables

through the surface.

2. Twist the Outer Housing counterclockwise and then remove the Outer

Housing.

Twist Outer Housing counterclockwise Remove the Outer Housing

3. Before screwing the Camera Base to the surface, thread the cables either

from the side-cut of the Camera Base or through the surface.

4. Screw the Camera Base to the surface using the supplied 3 Screws.

5. Place the camera body back to the Camera Base and twist back the Outer

Housing. Do not twist the Outer Housing too tight as you will have to adjust

camera angles while viewing camera live view.

6. Connect the camera to the network using the supplied Cable Gland Kit. Please

refer to Step 6 in 3.1 EHN1550-S.

7. Connect the camera to power. You can either connect the camera to a 12VDC

power source or to a PoE switch using the PoE cable.

8. Access the camera live view. See 4. Accessing the Camera.

9. Adjust camera angles and then tightly twist back the Outer Housing.

4. Accessing the Camera

You can look up the IP address of the IP camera using the IP Utility (IPU)

program. Please download the IP Utility from EverFocus website (key word

search: "IP Utility").

The default IP mode of the IP camera is DHCP. However, if there is no dynamic IP

address assigned to the device, its IP will switch to 192.168.0.10. By default, the

ID is admin and there is no password. Please input a password for the first-time

5. Important Note for Motorized Lens Models

For motorized lens models (EHN1550-S), if you find the live

image out of focus, please try the instructions below:

1. Go to the Live page and open the Lens Control panel

(see image on the right).

2. Click the Restore button for the lens to restore to the

default position, and then click the Auto Focus button.

3. If the image is still out of focus, adjust the focus by

clicking the Focus “+”or “-“buttons.
