EverFocus EZA1840 eZ.HD Series Manuale utente

EZA1840 eZ.HD Series

8MP IP66 IR Bullet Camera

User’s Manual

Release Date: September, 2019

All the images including product pictures or screen shots in this document are for example

only. The images may vary depending on the product and software version. Information

contained in this document is subject to change without notice.

EverFocus Taiwan:

2F., No.12, Ln. 270, Sec. 3, Beishen Rd., Shenkeng Dist., New Taipei City 222, Taiwan

TEL: +886 2 2662 2338 FAX: +886 2 2662 3632 www.everfocus.com.tw

All manuals and user guides at all-guides.com

all-guides.com

1. Introduction

EverFocus eZ.HD series cameras – EZA1840 is equipped with a 8MP CMOS sensor.

The model provides 4mm fixed lens with ICR. Featured with True Wide Dynamic

Range (T-WDR), the camera can provide clear images even under backlight

circumstances where intensity of illumination can vary excessively. The EZA1840

supports both NTSC and PAL scanning systems (auto detection) and is IP66

certified.

1.1 Packing List

Camera x 1

Mounting Sticker x 1

L-Type Wrench x 1

Screw & Screw Anchor x 3

User Manual x 1

1.2 Features

Equipped with 8MP CMOS sensor

4mm fixed lens with ICR to capture the desired field of view

Extended IR range of up to 40m / 131ft. with 4 LEDs (depends on scene IR

reflectivity)

T-WDR to improve the visibility under high contrast scene

The flexible angle viewing with its 3-Axis rotation design allows wall or

ceiling mounting

IP66-rated with metal housing

Supports UTC function: Control camera OSD settings from DVR end

1.3 Dimensions

70mm / 2.76"

157mm / 6.18" 66mm / 2.6"

All manuals and user guides at all-guides.com

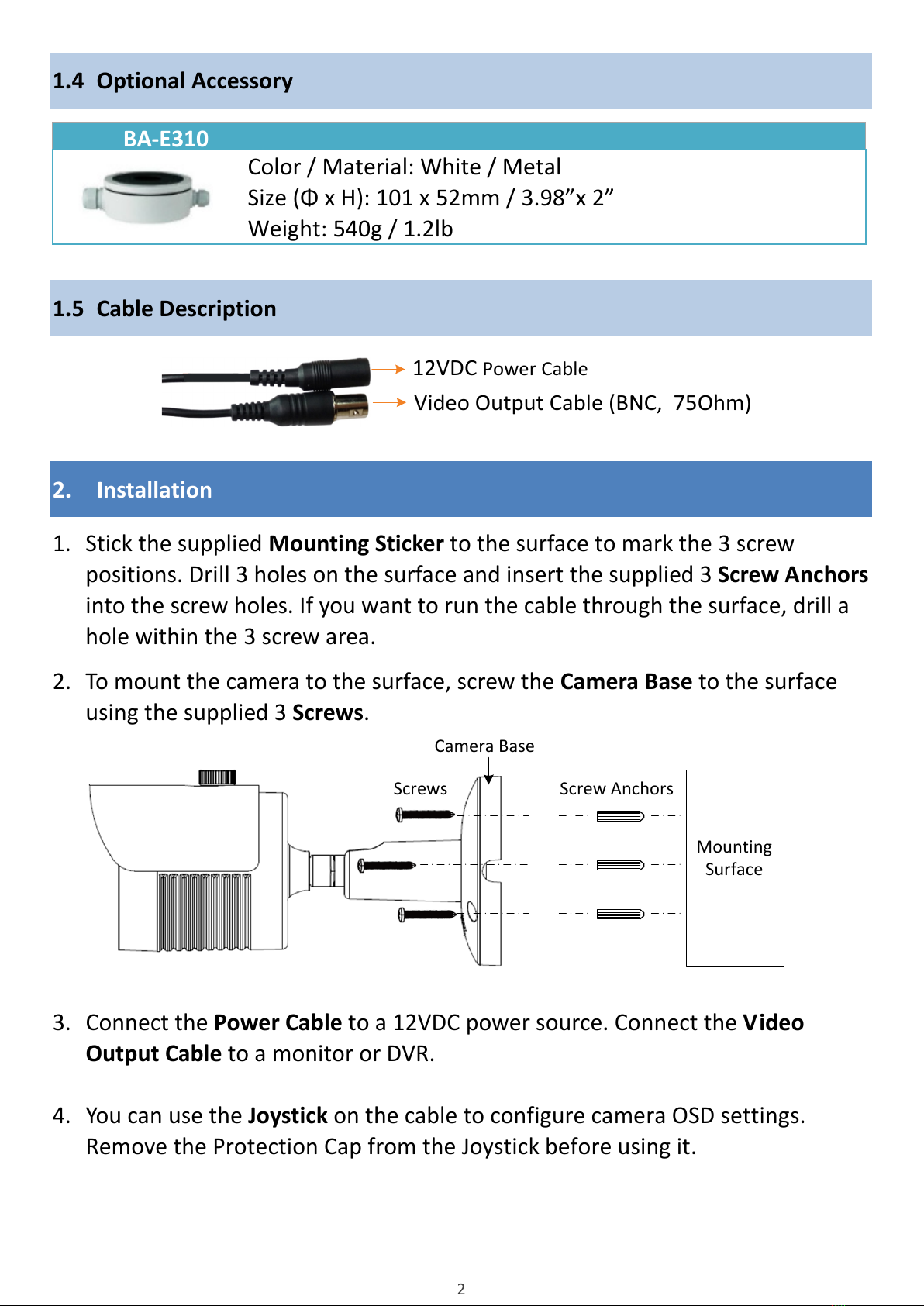

1.4 Optional Accessory

BA-E310

Color / Material: White / Metal

Size (Φ x H): 101 x 52mm / 3.98”x 2”

Weight: 540g / 1.2lb

1.5 Cable Description

12VDC Power Cable

Video Output Cable (BNC, 75Ohm)

2. Installation

1. Stick the supplied Mounting Sticker to the surface to mark the 3 screw

positions. Drill 3 holes on the surface and insert the supplied 3 Screw Anchors

into the screw holes. If you want to run the cable through the surface, drill a

hole within the 3 screw area.

2. To mount the camera to the surface, screw the Camera Base to the surface

using the supplied 3 Screws.

Mounting

Surface

Screws Screw Anchors

Camera Base

3. Connect the Power Cable to a 12VDC power source. Connect the Video

Output Cable to a monitor or DVR.

4. You can use the Joystick on the cable to configure camera OSD settings.

Remove the Protection Cap from the Joystick before using it.

All manuals and user guides at all-guides.com

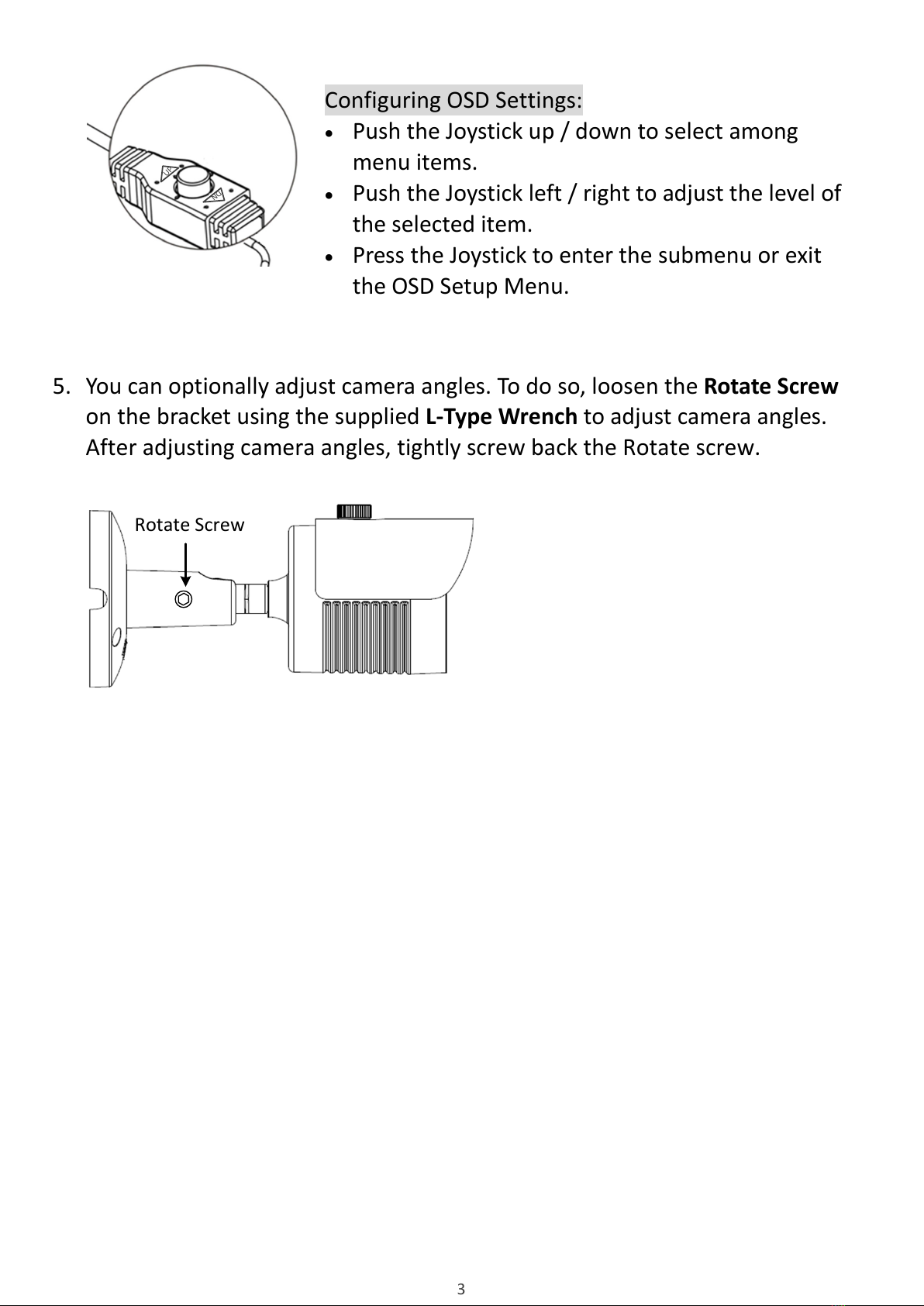

Configuring OSD Settings:

•Push the Joystick up / down to select among

menu items.

•Push the Joystick left / right to adjust the level of

the selected item.

•Press the Joystick to enter the submenu or exit

the OSD Setup Menu.

5. You can optionally adjust camera angles. To do so, loosen the Rotate Screw

on the bracket using the supplied L-Type Wrench to adjust camera angles.

After adjusting camera angles, tightly screw back the Rotate screw.

Rotate Screw

All manuals and user guides at all-guides.com

3. Configuration in the OSD Menu

Main

Sub Menu

Sub Menu / Function

1 Edge Det On

Level

0-10

Color

YEL, CYN, GRN, MAG, RED, BLU, BLK,

WHT

Off

2 Exposure

Brightness

0-20

Shutter

Auto

Mode

Normal / Deblur

Manual Speed

1/30, 1/60, 1/120, 1/250,

1/500, 1/1000, 1/2000,

1/4000, 1/8000, 1/15000,

1/30000

Flicker

Sens-Up

Not supported

AGC

0-10

3 Backlight

HLC

Level

0-20

Color

YEL, CYN, GRN, MAG, RED, BLU, BLK,

WHT

BLC

H-POS

0-38

V-POS

0-35

H-SIZE

0-38

V-SIZE

0-35

WDR

WDR Mode

Line

ROI Mode

Box

Window Zone

0-3

Window Use

On, Off

H-POS

0-3856

V-POS

0-2176

H-SIZE

0-3856

V-SIZE

0-2176

Polygon

Window Zone

0-3

Window Use

On, Off

POS0-X

0-935

POS0-Y

0-360

POS1-X

0-935

POS1-Y

0-360

POS2-X

0-935

POS2-Y

0-360

POS3-X

0-935

POS3-Y

0-360

Off

Weight

High, Middle, Low

Off

4 Day/Night Mode

Auto

IR LED

Adaptive, Off

Anti-Sat.

0-20

D>N Thres

0-20

N>D Thres

0-20

Delay

High, Middle, Low

Color

B/W

IR LED

Adaptive, Off

Anti-Sat.

0-20

D>N Thres

0-20

All manuals and user guides at all-guides.com

N>D Thres

0-20

Delay

High, Middle, Low

Extern

IR LED

Adaptive, Off

Anti-Sat.

0-20

Extern SW

High, Low

D>N Thres

0-20

N>D Thres

0-20

Delay

High, Middle, Low

5 Color AWB

Auto

Autoext

Preset

Manual

C-Temp

3000K, 5000K, 8000K

R-Gain

0-20

B-Gain

0-20

Color Gain

0-20

DNR

High, Middle, Low, Off

7 Image

Sharpness

0-10

Gamma

0.45, 0.55, 0.65, 0.75

Mirror

On, Off

Flip

On, Off

D-Zoom

Not supported

ACE

High, Middle, Low, Off

Defog On

Mode

Auto, Manual

Level

High, Middle, Low

Off

Shading

Weight

0%-100%

Off

Privacy

Box On

Zone Num

0-15

Zone Disp

On, Off

H-POS

0-120

V-POS

0-68

H-Size

0-120

V-Size

0-68

Y Level

0-120

CB Level

0-68

CR Level

0-120

Trans

0-68

Off

Polygon On

Zone Num

0-7

Zone Disp

On, Off

POS0-X

0-240

POS0-Y

0-136

POS1-X

0-240

POS1-Y

0-136

POS2-X

0-240

POS2-Y

0-136

POS3-X

0-240

POS3-Y

0-136

Y Level

0-20

CB Level

0-20

CR Level

0-20

Trans

0-3

All manuals and user guides at all-guides.com

all-guides.com

Off

8 Motion On

Det Window

Window Use

0-3

Window Zone

On, Off

Det H-POS

0-96

Det V-POS

0-56

Det H-Size

0-96

Det V-Size

0-56

Sensitivity

0-10

Motion OSD

On, Off

Text Alarm

On, Off

Signal Out

On, Off

Off

9 System

Output

Frame Rate

4K/15fps, 4MP/30fps, 1080p/30fps

Freq

60Hz (auto detection)

Analog Mode

AHD, TVI, CVI, CVBS

Confirm

Yes

Return

Exit

Image Range

Full

Comp

User

Offset

0-32

Color Space

HD-CbCr, SD-CbCr, YUV

Audio Mic

Not supported

Color Bar

On, Off

Language

ENG, CHN, CHN(S), JPN, KOR, POR, ESP

Cam Title

Left-Down

Right-Up

Off

Reset

Exit

All manuals and user guides at all-guides.com
