EVGA 100-EV-EB01 Manuale utente
Tables of Contents
1. Overview..................................................................................2
a. Introduction ............................................................................................................................................................... 2
b. Function Keys............................................................................................................................................................. 3
c. Connections ............................................................................................................................................................... 4
2. Updating Firmware ................................................................10
a. Updating in DOS....................................................................................................................................................... 10
b. Updating in Windows...............................................................................................................................................10
3. Using the EVBot .....................................................................12
1. Overview
a. Introduction

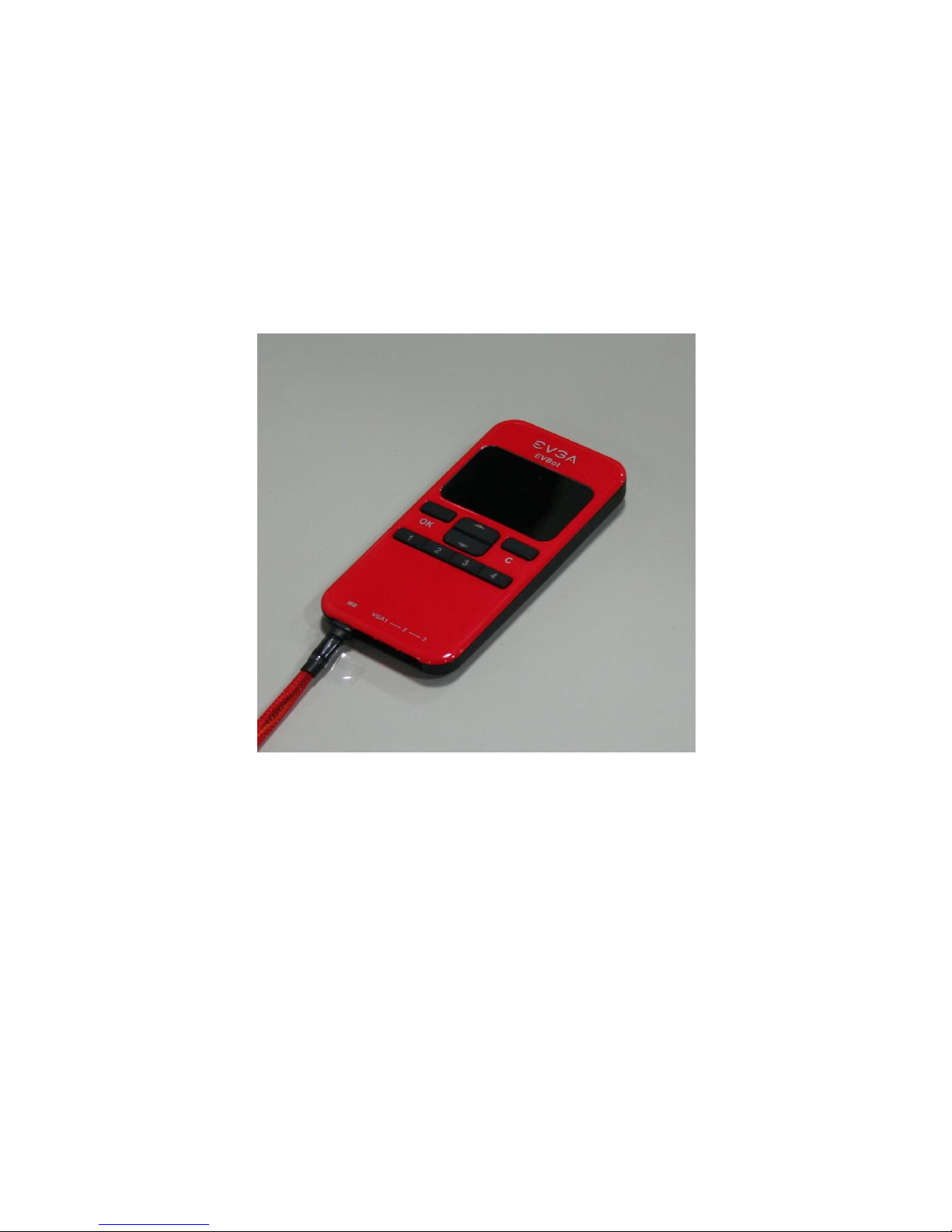

The EVGA EVBot is a fun and useful tool for tweakers and overclockers to have fun tweaking their EVGA products for
benchmarking World Records and overclocking fun.
It’s use is very simple and straightforward much like your mobile hand-phone. The beauty of it is that you do not need
any software nor does it eat any system resources.

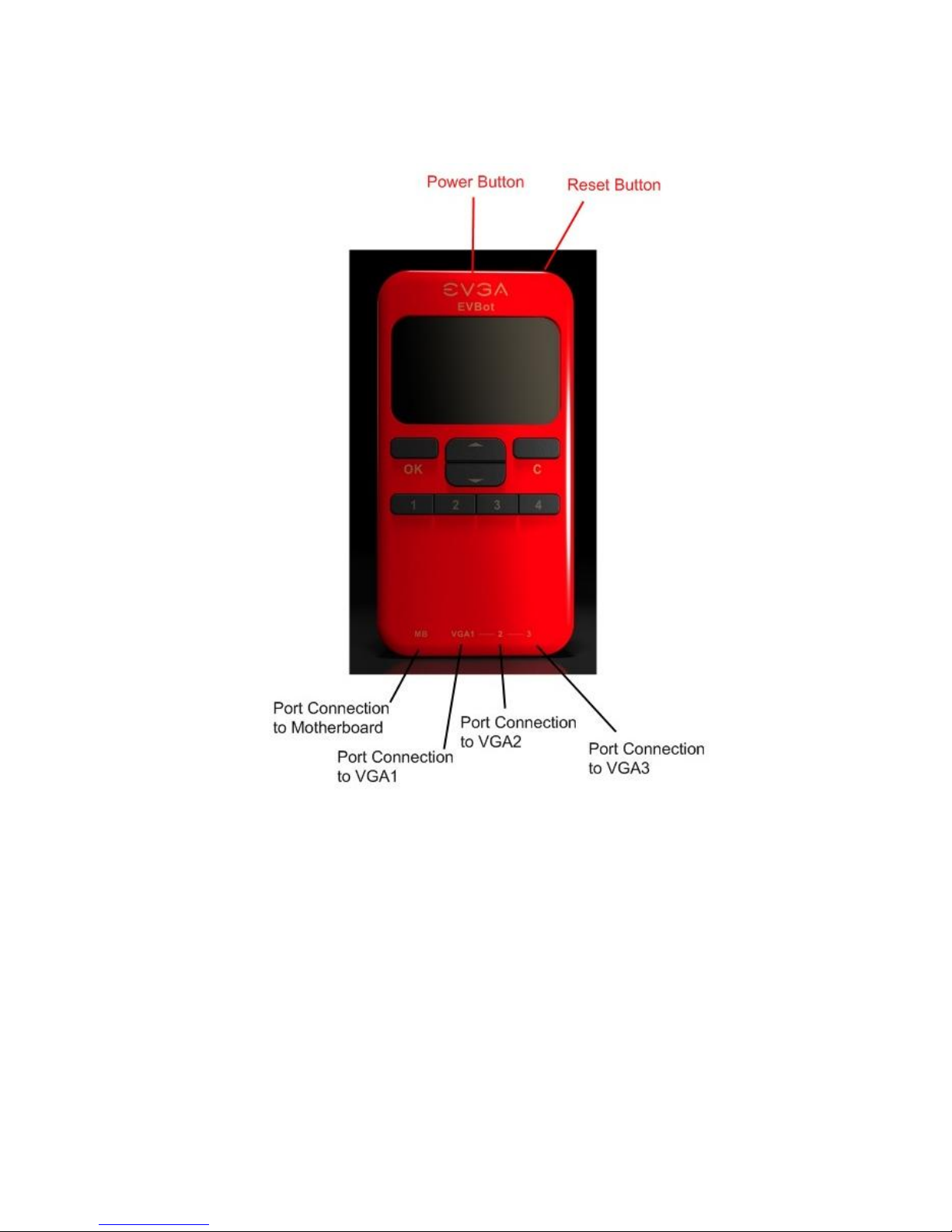

b. Function Keys
OK: Enter
C: Cancel/Backspace
Up: Scroll Upwards/Increase one notch
Down: Scroll downwards/decrease one notch
1,2,3,4: Profile Hotkeys
Power Button: Press once to turn power off/on for EVBot, Hold down to enter Flash Mode (Explained in the Firmware
Flashing section)
Reset Button: Press once to reset EVBot
c. Connections
First Hook up the EVGA EVBot Enabled products to their respective ports on the EVBot. As illustrated, MB Port is for
connecting Motherboard, VGA1, VGA2, VGA3 is for connecting to 3 individual EVGA Video Cards.
You do not need to have all 4 items but any one of those. For example you can just hook up to an EVGA Motherboard if
that is all you have that supports this feature. Or just a Video Card supporting this feature.
Connect the EVBot to the ports on the Motherboard or Video Card. Highlighted in Green is where it is located on below
EVBot enabled models:
EVGA X58 Classified (E759, 760, 761, 769)Motherboard:
EVGA X58 Classified E762 Motherboard
EVGA P55 FTW E657
EVGA P55 FTW 200 E658
EVGA P55 Classified 200 E659
EVGA GTX285 Classified
You will see that the Port Connector is a 5 pin connector arranged in 2 rows, with 3 pins on 1 row and 2 pins on another.
The Connector Cable has 5 holes with a 6th blocked so there will be no mistakes when connecting it.
2. Updating Firmware
When the System starts up, EVBot will light up and start to be operable. The Default Firmware on the EVBot
when you receive it is for EVGA X58 Motherboards and Classified Video Cards. If you are
using EVGA P55 Motherboards, please follow the next set of instructions to update the
firmware for P55 Motherboards.
There are 2 ways to update firmware of EVBot, you can either do it in a DOS Environment or Windows Environment.
a. Updating in DOS
1. Insert your EVBot CD into your ROM Drive and choose to boot up with the CD.
2. Once booted up in DOS, key in this command ‘Flash’
3. Flash Tool will ask you to hold down the power button on your EVBot for 7 seconds to enter Flash Mode. Flash
Tool will ask you if you want to flash the firmware for X58 or P55, key in ‘1’ for X58 or ‘2’ for P55.
4. Flash process will begin –Do Not Switch off the power or Reset the PC During this time!
5. After the Flash is completed you will see this screen:
6. Unplug EVBot Connector and plug it back in and it’s ready!
b. Updating in Windows
You can update in Windows XP, Vista or 7, 32bit or 64bit Environment by following this set of instructions.

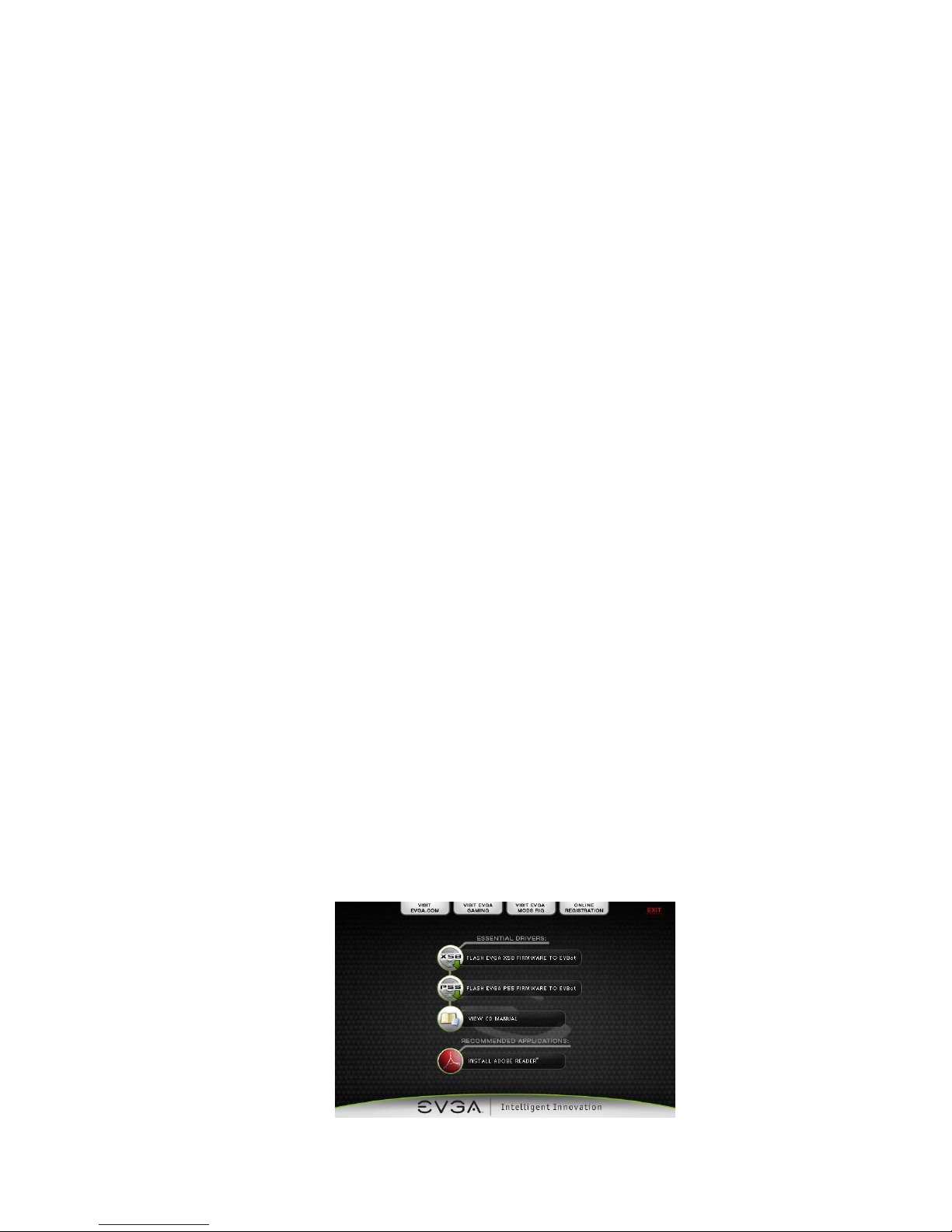

1. Insert your EVBot CD into your ROM Drive and choose to flash to P55 Firmware or back to X58 Firmware by
clicking the relevant button.
