EVGA Graphics card Manuale utente

Table of contents

Overview

Introduction........................................................................... 3

Hardware Installation

Preparing Your Computer .................................................... 4

Quick Start ............................................................................ 4

Hardware Installation Details

Graphics Cards Requiring Additional Power ...................... 5

Preparing Your Operating System ...................................... 5

Software Installation

Software Installation............................................................ 6

nView Features

nView Features ................................................................... 7

Troubleshooting

Quick Fixes........................................................................... 9

Default BIOS Settings......................................................... 12

Contacting Customer Service

Information To Keep Handy Before Calling ....................... 13

Compliance Information

FCC ..................................................................................... 15

CE ........................................................................................ 15

Macrovision ........................................................................ 15

Legal Information

SoftwareLicenseAgreement ............................................... 15

TrademarkInformation ........................................................ 15

Overview

Thank you for purchasing a genuine EVGA graphics accelerator. EVGA is an NVIDIA® Select

Solution Provider that builds high performance 3D accelerators based on reference designs by

the NVIDIA Corporation. Our graphics accelerator cards are fully compatible with the latest 2D

and 3D graphical requirements with full support for Microsoft® DirectX®, DirectDraw®,

DirectShow®, Direct3D®, and OpenGL®.

Your EVGA graphics accelerator card is fully capable of supporting DPMS (energy savings) and

DDC-2B (plug and play) functions.

Hardware Installation

Preparing Your Computer

WARNING: Turn off the power to your system and discharge your body’s static electric charge

by touching a grounded surface – for example, the metal surface of the power supply – before

performing any hardware procedure. EVGA assumes no liability for any damage, caused

directly or indirectly, by improper installation of any components. If you do not feel

comfortable performing the installation, consult a qualified computer technician. Damage

to system components, the graphics card, and injury to yourself may result if power is

applied during installation. Now that you have prepared your computer, you are ready to

install your graphics card.

Quick Start

1. Power off the computer and all attached devices such as monitors, printers, and

external components.

2. Disconnect the display cable from your current display adapter from the back of

your computer.

3. Remove the cover of your computer case. In most cases this is held in place by

several screws or clips – you may need to consult your system manual or case

manual for additional information.

4. Remove your existing graphic adapter (if you have one) from your computer.

You will do this by removing the retaining screw and gently rocking the card

back and forth, applying upwards pressure. (Please note: if your motherboard

has integrated video, you may need to disable it on the motherboard. Please

contact your system or motherboard manufacturer for additional information).

5. Align your new card with the PCI-Express slot, the brown AGP™ slot or the white

PCI slot, as appropriate, and press it in firmly until the card is fully seated. Make

sure that the metal contacts of the card are completely pushed into the

expansion slot.

6. Replace the retaining screw to fasten the card into place and then replace the

computer cover.

7. Reconnect any devices that you detached during installation and then connect

the monitor’s video cable to your new video card.

8. Apply power to your system and reboot.

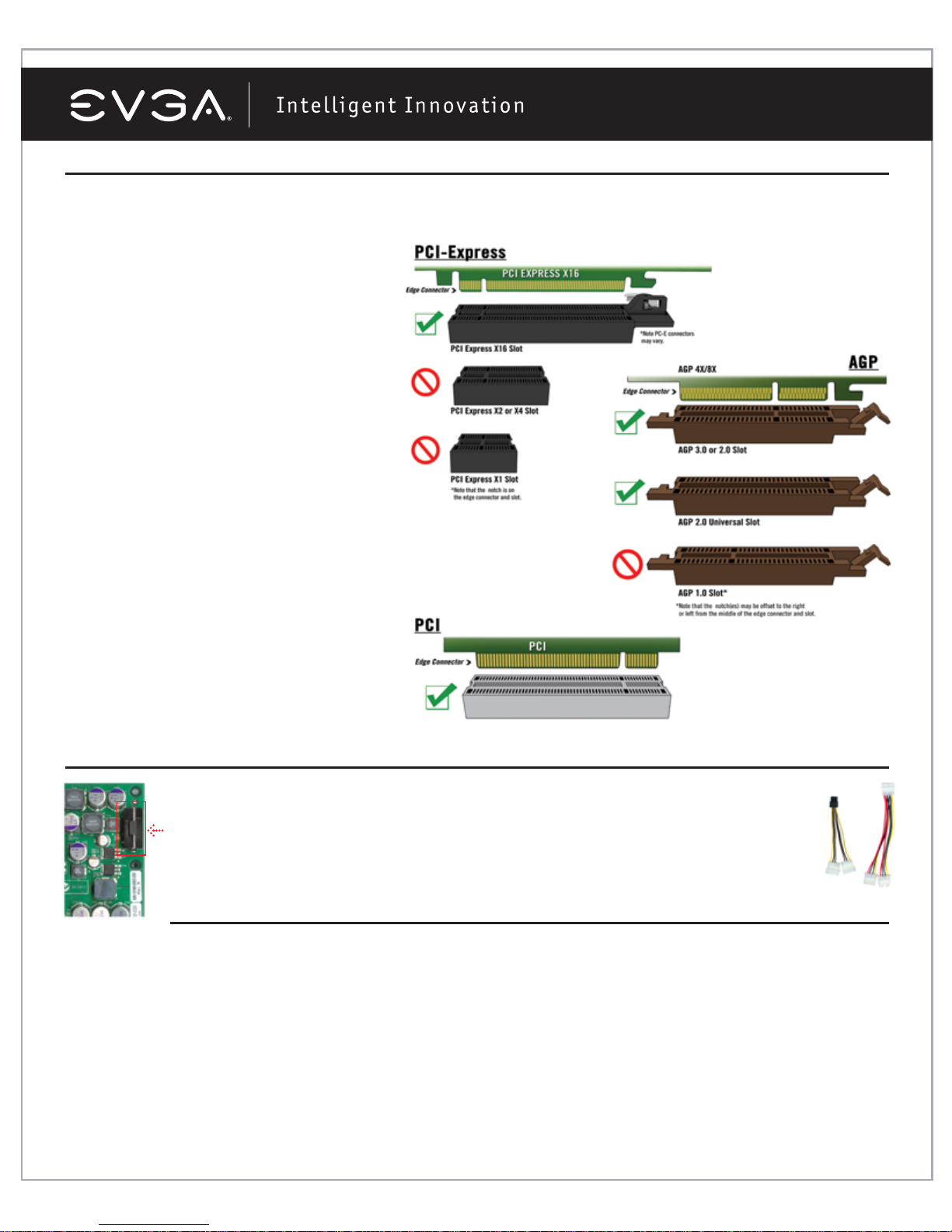

Hardware Installation Details

Power off the computer – disconnect the display cable

Remove your existing graphics adapter (if applicable)

Important Information

PCI and PCI-Express slots are different,

so prior to installing any video card in to

your system, make sure the video card

bus type and available slot are the same.

PCI-Express Video Cards: (Single

Card Solution): Insert the graphics card

into the available PCI-Express slot

closest the power supply.

AGP Video Cards: Insert the graphics

card into the brown AGP 2.0 or above

compliant slot.

PCI Video Cards: Insert the graphics

card into an available white PCI 2.1 or

above compliant slot.

Graphics Cards Requiring Additional Power

If your card is equipped with a supplemental power adapter, we strongly

advise that it be connected at the time of installation. This supplemental

power adapter ensures that your video card receives a clean and strong

power signal that will allow it to function at optimal performance levels.

Preparing Your Operating System

Although EVGA’s ADM™ software provides an automated solution for most installation

situations, we still advise you to correctly prepare your system before installing any display

drivers. Before installing any of our drivers, please make sure that you have installed the latest

AGP driver for your motherboard if you are installing an AGP graphics card. These drivers can

be obtained from your motherboard manufacturer. (Disable anti-virus software during installa-

tion).

1.5v

3.3v

.8v

Software Installation

When you boot up your computer for the first time after installing your new graphics adapter,

Windows will detect a new display device and attempt to search for the drivers. Please click

cancel.

Installing the drivers for your new graphics card is made fast and simple through the use of

EVGA’s patented ADM™ (Automated Driver Management) software. Insert the EVGA

Installation CD and allow the autorun driver installation menu to start.

Note: If the autorun driver installation menu does not appear, it can be launched manually by

choosing the Run command from the Windows Start Menu and entering: D:\autorun.exe (where

D is the letter of your CD-ROM drive).

Once the autorun installation menu appears, select the “Install Video Drivers” button from the

menu. This will start the driver installation process and ADM will go to work.

If you are prompted by the Microsoft WHQL (Windows Hardware Quality Labs) warning, please

select the Continue Anyway button, as it is safe to do so. See the example below.

nView™ Features:

The nView functionality allows for a multi-display environment, whether it is through multiple

computer monitors (either digital or analog) or by using a monitor in conjunction with a

television set. The ability to use multiple displays within Windows can simplify many everyday

tasks by spreading out the Windows Desktop area or by allowing you to watch your favorite DVD

movie on your television.

Please visit http://evga.com/support/guides for our web site tutorial.

Single Mode

The Single Mode option in the nView control panel disables the nView feature, allowing

viewing in only one display.

DualView

Feature available across all operating systems except Windows 95 and Windows NT. A multi-

display capable graphics card will be able to have two independent resolutions that can be

configured differently from each other. Unlike nView span mode, where the desktop stretches

across two screens, DualView can control different resolutions, color depth and refresh rates

settings for each display.

Horizontal and Vertical Span Modes

In these modes, the desktop area is spread across both displays. This mode can be set for either

horizontal or vertical orientation.

Note: Due to operating system differences between Windows 98/ME/XP and Windows NT/

2000, the latter does not currently offer true multi-monitor support for Span mode under a

single dual-head graphics card such as the dual-head GeForce. As a result, the size of the

actual desktop is limited to twice the smaller size of the two displays. The desktop can be

extended either horizontally or vertically, but cannot be extended at other angles as under

Windows 98/ME.

Clone Mode

In Clone Mode, two monitors display identical images, which is useful for presentations. A

presenter may use the smaller monitor on the podium, while a projector monitor reflects the

presentation to the audience.

Video Mirror

Video Mirror works in conjunction with nView that allows a video or DVD application to mirror

its playback in full-screen on any one of the connected display devices. In other words, Video

Mirror allows video data that is displayed on a hardware overlay to be displayed at full-screen

size on a secondary display.

nView™ Features:

nView Desktop Manager

The added features of the NVIDIA nView technology can simplify much of today’s tasks and

improve upon the existing multi-monitor functionality. Access to these controls are made by

either the NVIDIAnView QuickTweak™ icon located in the system tray or by assigning

preprogrammed Hot Keys to change certain viewing modes or setup different profiles.

Setup Individual User Profiles

The Windows desktop environment can now be customized based on a user level rather

than a global level meaning profiles can be saved for each individual user that logs into a

computer. There is a maximum of 32 separate profiles or individually named desktops that

can be modified and saved. These profiles take advantage of the added functionality with

many applications and programs already present within the Windows operating system.

Enhanced Application Support

Improvements to these Windows applications such as Internet Explorer® include viewing a

SearchEngine site,opening asecondary browseron aseparatedisplay whilestill maintainingthe

master “search results” window. Another example includes the ability to change viewing proper-

tiesbased on work environment, adjusting monitor displayfor presentationsorto ease every day

tasks in a multi-window environment on differentdisplays.

Zoom and Transparency Tools

Someother valuable tools added within NVIDIAnViewinclude the Zoomand Transparency

features. Auser can now zoom into any display within a program such as a photo editing

application and make detailed changes to an existing picture. The Transparency feature can

show the contents of a folder window without minimizing your current working window.

This achieves an almost opaque effect of the other window. These features combine to

make NVIDIA nView one of the most versatile multi-display technologies in existence. For

detailed information on NVIDIA nView, please consult the on-line documentation.

An optional DVI to DB-15 converter may be used to allow 2 standard analog

monitors to be attached. NVIDIA nView allows the simultaneous use of two display

devices at one time. This means that even though you might have three output

connectors, only two of them may be in use at any given time.

Quick Fixes

Problem: The display drivers install successfully, but when Windows reboots it tells you

that the display device is not functioning correctly.

Cause: The display adapter requires certain hardware resources in order to function

correctly – if these resources are not available, then Windows cannot properly start the

device.

Solution: The most common resource that is missing is called an IRQ (interrupt

ReQuest). Most motherboards, but not all, have a BIOS setting called ASSIGN IRQ TO

VGA (or some variation of this name). This setting needs to be changed to ENABLED.

Then save the BIOS settings and reboot into Windows. If you need assistance locating or

configuring your motherboard BIOS, please consult your motherboard manual or contact

your motherboard manufacturer for specific information.

Problem: The computer will only display a black screen after it boots into Windows.

Cause: Quite often this problem is caused by the integrated video adapter not being

disabled prior to installing the new PCI based video card.

Solution: Ensure that the integrated video adapter has been disabled prior to installing

the new video card. After the new card has been installed, connect the monitor cable and

if required, any supplemental power adapters to the new video card and reboot the

system.

Quick Fixes (continued)

Problem: At boot-up, all you hear is a series of beeps from the computer but see no

screen at all.

Cause: The beep sounds are a warning sound from the motherboard BIOS that says that

it cannot initialize the video card. This can mean one of three things:

1) The card is not seated correctly.

2) There is a problem with the motherboard’s video card slot.

3) There is a problem with the video card.

Solution: Remove the card from the computer and reinsert it, making sure that the card is

seated properly in the slot. Then try to boot the computer again. If this does not work then

the problem is either with the motherboard or the video card and you should contact your

hardware manufacturer

Problem: On systems with an integrated graphics chip, you get error messages and

conflicts after you install your new video card.

Cause: Many systems with an integrated graphics chip need to have these adapters

disabled before you can correctly use an add-in graphics adapter. If they are not properly

disabled, they will cause conflicts with the adapter that you are trying to install.

Solution: Disable any built-in graphics adapters prior to installing your new graphics card.

For additional information relating to this issue, please consult your motherboard or

system manual, or contact your system vendor or motherboard manufacturer to get

detailed information on how to accomplish this for your particular system.

Altri manuali per Graphics card

Indice

Altri manuali EVGA Scheda video

EVGA

EVGA GeForce RTX 2080 Ti XC Gaming 11GB Manuale utente

EVGA

EVGA GeForce GTS 250 HDMI Manuale utente

EVGA

EVGA GeForce GTX 580 DS Superclocked Manuale utente

EVGA

EVGA 8800GTS - e-GeForce 640 MB PCIe Video Card Manuale utente

EVGA

EVGA GeForce 9400 GT Istruzioni per l'installazione

EVGA

EVGA 9400GT - E-geforce 512MB Manuale utente

EVGA

EVGA GeForce GTX 690 Manuale utente

EVGA

EVGA GeForce GTX 680 SC Signature w/Backplate Manuale utente

EVGA

EVGA GeForce GT 610 2GB Manuale utente

EVGA

EVGA GeForce GTX 580 3072MB Manuale utente

EVGA

EVGA GeForce GTX 570 Manuale utente

EVGA

EVGA GeForce GTS 450 FPB Free Performance Boost Manuale utente

EVGA

EVGA GeForce GTX 570 Classified Manuale utente

EVGA

EVGA GeForce 8400 GS DDR3 Manuale utente

EVGA

EVGA GeForce GTX 680 4GB w/Backplate Manuale utente

EVGA

EVGA GeForce GTX 660 Manuale di installazione e funzionamento

EVGA

EVGA GeForce GTX 680 Manuale utente

EVGA

EVGA GEFORCE GTX 1070 FTW HYBRID Manuale utente

EVGA

EVGA GeForce GTX 680 FTW LE Manuale utente

EVGA

EVGA GeForce GT 240 SuperClocked Istruzioni per l'installazione

EVGA

EVGA GeForce GTX 550 Ti FPB Manuale utente

EVGA

EVGA VGA GT520 DDR3 2GB MINI HDDD Manuale utente

EVGA

EVGA GeForce GTX 560 Ti DS Superclocked Manuale utente

EVGA

EVGA GeForce GTX 480 SuperClocked w/ High Flow Bracket and... Manuale utente

Manuali Scheda video popolari di altre marche

Gainward

Gainward GeForce GTX 690 4GB Manuale utente

ATI Technologies

ATI Technologies RADEON 137-40225-20 Manuale utente

MSI

MSI N220GT series Manuale utente

ATI Technologies

ATI Technologies RADEON 7000 MAC EDITION Manuale utente

SIIG

SIIG aurora Manuale utente

ClearSpeed

ClearSpeed ClearSpeed Advance e720 Manuale utente

MSI

MSI R7850 series Manuale utente

DVS

DVS Atomix HDMI Manuale utente

Aztech

Aztech VGS3D-AGP Manuale utente

Advoli

Advoli TB4 Standard Manuale utente

ELSA

ELSA ERAZOR III LT Manuale utente

Gigabyte

Gigabyte GV-R7500L Manuale utente

Themis

Themis TGA-7000 PMC Manuale utente

EMS

EMS XtremeRGB-Ex1 Manuale utente

Nvidia

Nvidia Quadro Workstation Manuale utente

Pioneer

Pioneer PDA-5003 Manuale utente

QDI

QDI N2 Manuale utente

NEC

NEC N8116-48 Manuale utente
