Evonicfires COLORADO Manuale
1
Inset Instrucon Guide
Models – COLORADO – IOWA – DETROIT
– MEMPHIS - KANSAS – KEPLER 22
Important Safety Informaon
Always read this manual rst before aempng to install or use this
replace. For your safety, always comply with all warnings and safety
Instrucons contained in this manual to prevent personal injury or property
damage.
Please Note: This product is for well insulated spaces or
occasional use.
English
2
welcome to evonicres
evonicres is an award-winning brand of CK Fires Ltd, situated just outside Straord-
upon-Avon, we manufacture a range of Brish built electric res and are considered as
one of the most technically advanced manufacturers in the world, with oponal
controllers such as e-touch and a fully integrated APP available to download on both
or .
This guide is designed to aid in the installaon and connued performance of this
product. This product conforms with all health, safety, and environmental protecon
standards as indicated by a CE mark. For opmum performance this product requires
a well insulated locaon or occasional use.
Contents
1. Introducon 2
2. Electrical Safety 3/4
3. Important Instrucons 5/6
4. Installaon Requirements 7
5. Operang Instrucons 8
6. Seng Thermostat 9
7. Aaching & Removing Detroit Fascia 10
8. Colorado Front Glass Removal 11
9. Memphis Inll Plate Installaon 12
10. Memphis-Kansas Tie back Installaon 13
11. Memphis-Kansas Cast Frame 14
12. Technical Specicaon 15
13. Problem Solving Chart 16/19
14. Warranty 20
3
When using electrical appliances, basic precauons should always be
followed to reduce the risk of re, electric shock, and injury to persons,
including the following:
① Read all instrucons before using this electric replace.
② This replace is hot when in use. To avoid burns, do not let bare skin
touch hot surfaces. The trim around the heater outlet becomes hot during
heater operaon. DANGER: High temperatures may be generated under
certain abnormal condions. Do not parally or fully cover or obstruct the
front of this heater.
③ Extreme cauon is necessary when any heater is used by or near
children or people of reduced mobility and whenever the unit is le
operang and unaended.
④ Young children should be supervised to ensure that they do not play
with the appliance.
⑤ The appliance is not intended for use by young children or inrmed
persons without supervision.
⑥ In the event of a malfuncon, disconnect power at the service panel
and have the unit inspected by a reputable electrician before reusing.
⑦ If the supply cord is damaged, it must be replaced by the
manufacturer, or its service agent, or a qualied person in order to avoid a
hazard.
⑧ Do not use outdoors.
⑨ Never locate replace where it may fall into a bathtub or other water
container.
⑩ To disconnect the replace, turn the controls o, and turn o power to
heater circuit at main disconnect panel.
⑪ Do not run the cord under carpeng. Do not cover cord with throw
rugs, runners, or the like. Arrange cord away from trac area and where it
will not be tripped over.
⑫ Do not locate the heater immediately below a xed socket-outlet.
ELECTRICAL SAFETY:
4
㉑ Always use properly grounded, fused and polarized outlets.
㉒ Disconnect all power supply before performing any cleaning, maintenance or
relocaon of the unit.
㉓ When transporng or storing the unit and cord, keep in a dry place, free from
excessive vibraon and store so as to avoid damage.
NOTE: Changes or modicaons not expressly approved by the party responsi-
ble for compliance could void user's authority to operate the equipment.
⑬ Do not insert or allow foreign objects to enter any venlaon or exhaust
opening as this may cause an electric shock or re, or damage to the heater.
⑭ To prevent a possible re, do not block air intakes or exhaust in any manner.
⑮ All electrical heaters have hot and arcing or sparking parts inside. Do not use
in areas where gasoline, paint, or ammable liquids are used or stored.
⑯ Use this replace only as described in this manual. Any other use not
recommended by the manufacturer may cause re, electric shock or injury to
persons.
⑰ Do not change the plug in any way. Always plug heaters directly into a wall
outlet/receptacle. Never use with an extension cord or relocatable power tap
(outlet/power strip).
⑱ Do not burn wood or other materials in the electric replace.
⑲ Do not strike the replace glass.
⑳ Always use a cered electrician should new circuits or outlets be required.
5
Important electrical safety:
This appliance must never be installed above or in front of a fixed electric socket.
The electrical socket must be easily accessible to isolate the supply during maintenance and
cleaning.
This appliance is supplied with a two meter power lead, which has a 13Amp moulded three pin plug
to connect to a standard 230/240V plug socket.
This appliance must always be earthed. If in any doubt consult a suitably competent person.
Replacement plug: (Please note that it may invalidate your warranty is the moulded plug is
removed)
This appliance must only be connected to a 230/240 Volts AC 50Hz supply. Before connecting the
fire, check that the supply voltage is the same as stated on the fire. This appliance must only be used
on a AC supply, fuse rating 13Amp.

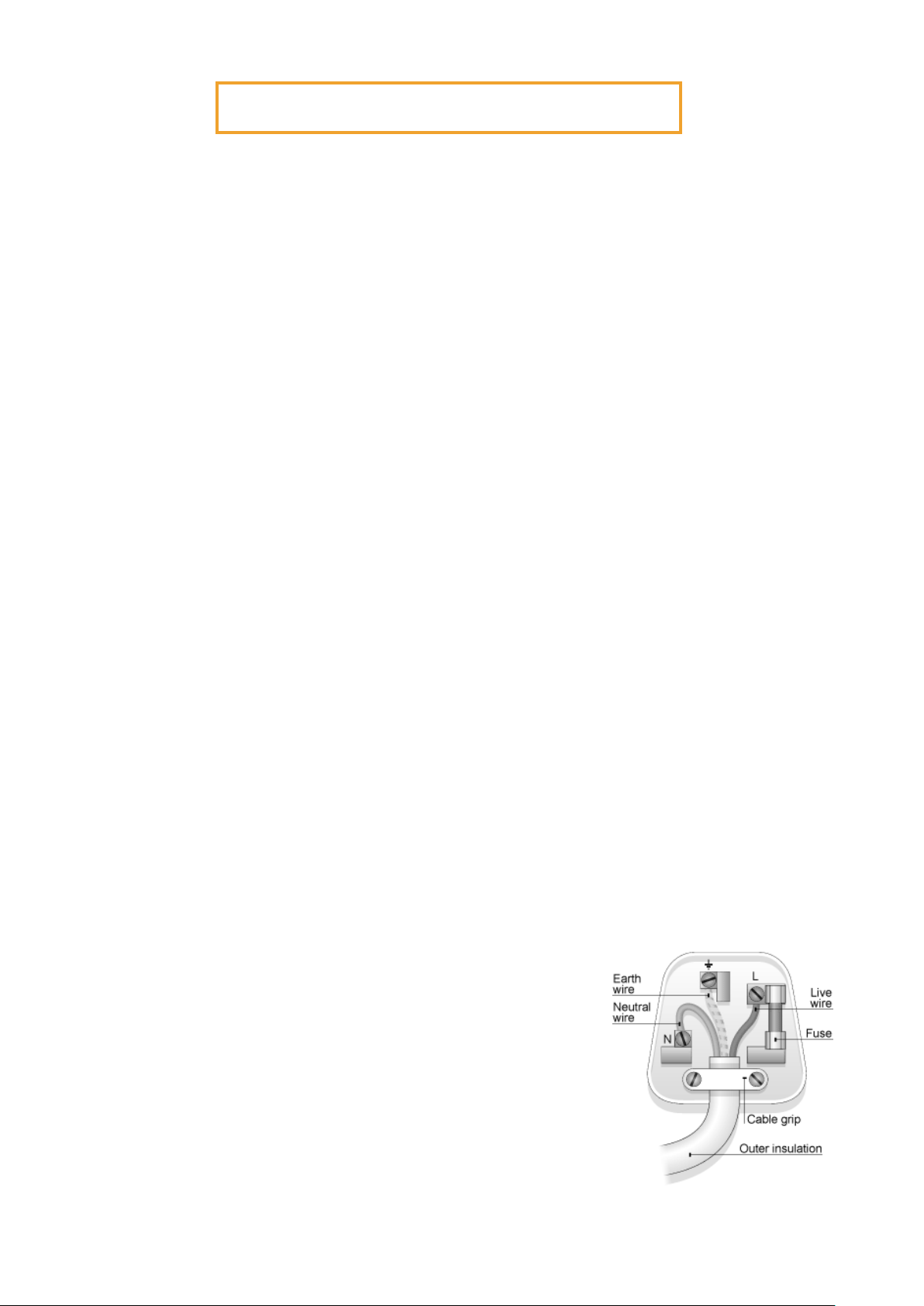

The wires in the mains lead are coloured in accordance with a standard UK supply, these being:
GREEN/YELLOW –EARTH
BLUE –NEUTRAL
BROWN –LIVE
As the colours of the mains lead of this appliance may not match the coloured markings used to
identify the terminals in a plug, please observe the following:
•The green and yellow wire must be connected to the terminal in the plug which is marked with the
letter E or the earth symbol.
•The blue wire must be connected to the terminal in the plug marked with the letter N.
•The brown wire must be connected to the terminal in the plug marked with the letter L.
•If the plug is damaged, replace or consult a qualified electrician.
•Replace fuses only with fuses of the correct size and rating.
Servicing:
Only a competent person should service this appliance.
We recommend that this appliance is serviced every 12 months.
Warning: Before carrying out any repairs or servicing, ensure that the power
supply cord is removed from the mains supply.
IMPORTANT INSTRUCTIONS:
6
Safety:
This appliance is not intended for use by persons (including children) with reduced physical, sensory
or mental capabilities,orlack of experience and knowledge, unless they have been given supervision
or instruction concerning the use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
General Warnings:
Neverleave children unsupervised with an unguarded heater.
Never obstruct or cover the heater outlet.
Neverinstall or use this product where it may come in contact with water i.e. a bathroom or wet room.
Neveruse aerosols or steam cleaners near this product.
Never route the electric cable near the heater outlet.
Never route the electric cable under carpets or floor coverings.
Neverinstall this product close to curtains or combustible materials.
NeverUse the heater to dry clothes or other objects.
Neverremove the fireplace surrounding without isolating the electric supply.
Important electrical safety:
This appliance must never be installed above or in front of a fixed electric socket.
The electrical socket must be easily accessible to isolate the supply during maintenance and clean-
ing.
This appliance is supplied with a two meter power lead, which has a 13Amp moulded three pin plug
to connect to a standard 230/240V plug socket.
This appliance must always be earthed. If in any doubt consult a suitably competent person.
All Evonic fires products meet the requirements of the EC Directives 2004/108/EC and 2006/95/EC.
All Evonic fires products meet the requirements of the EC Directives
2004/108/EC and 2006/95/EC.
These directives have been met by compliance with the following
standards:
EU 2011-65/EU 2015/863
BS EN 60335-1:2002
BS EN 60335-2-30:2003
BS EN 6100-6-3:2001
Please read these instructions before installation or use and keep this
booklet handy for future reference.
7
INSTALLATION REQUIREMENTS:
INSTALLATION REQUIREMENTS:
INSET MODELS:
This product has been designed to be installed into a standard 420mm(W)
x 570mm(H) x 80m(D)
If the products is to be installed into a open chimney or flue, it is important that
the chimney/flue is blocked off to prevent any up/down draughts and falling de-
bris which could restrict and alter the airflow to the product.
It is also important to ensure that the product has a minimum clearance around
it of 15mm, this is to ensure that the productcan circulate the required airflow for
the heater unit.
The product should never be sealed into a opening with the use of silicones or
adhesives as this can also alter the airflow and hinder any further servicing of
the product.
Please refer to technical specification table for further information, with refer-
ence to measurements.
(Heater unit cut-out) (This is a safety feature, to safe guard against further
damage to the product).
If the airflow is restricted the heater will automatically turn off. This is can occur
due to incorrect installation or obstruction.
To reset the heater function:
•isolate from the mains power supply.
•Leave product to cool.
•After a suitable cooling down period, remove the obstruction if obstructed, and
check installation.
•After 10 minutes the thermo switch (cut-out) in the heater will reset.
Please note that both the effect fan and heater fan omit a low decibel
noise, both of which are normal operating characteristics.
8

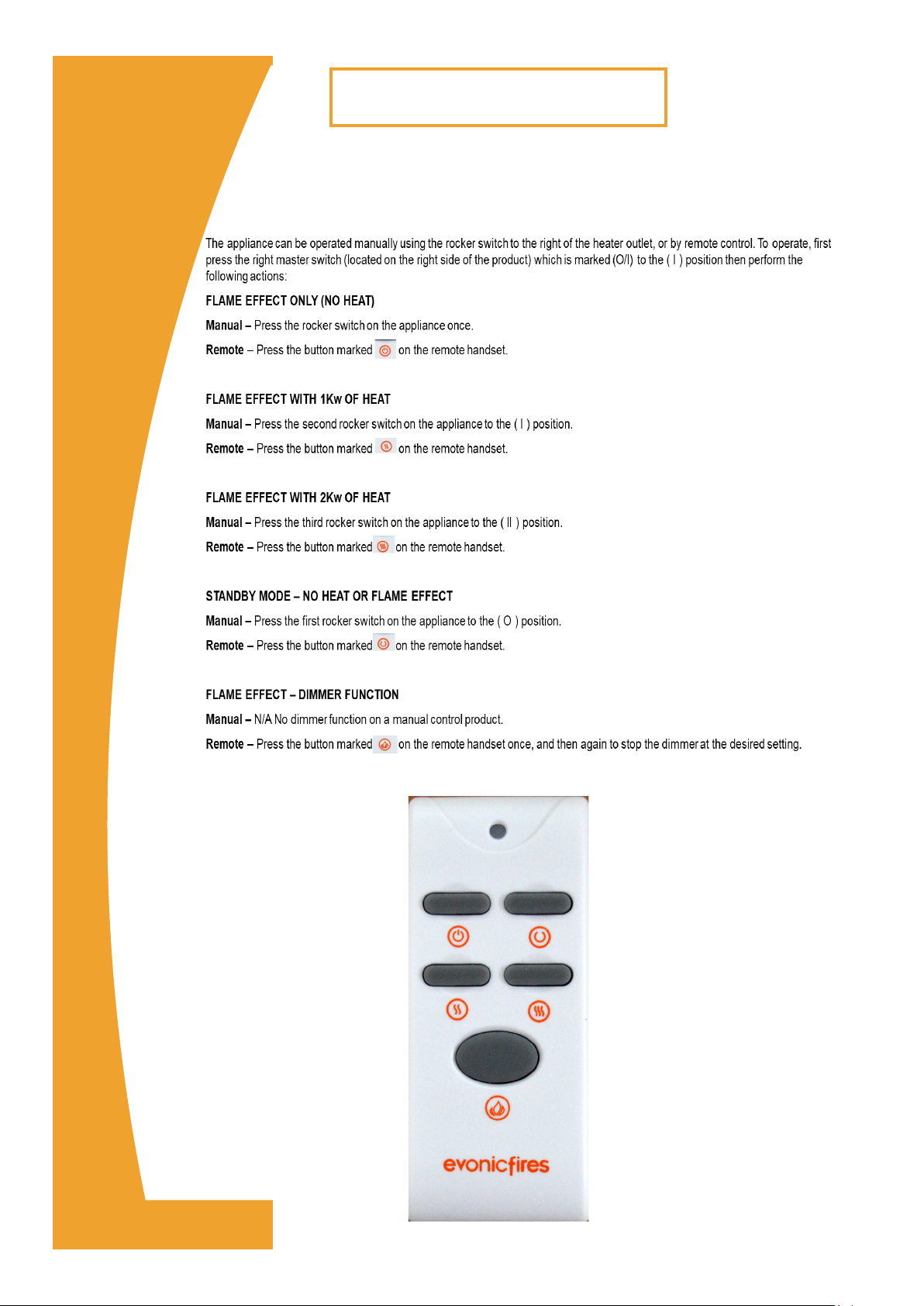

Operang Instrucons
Note: This applies to REMOTE res only.
9

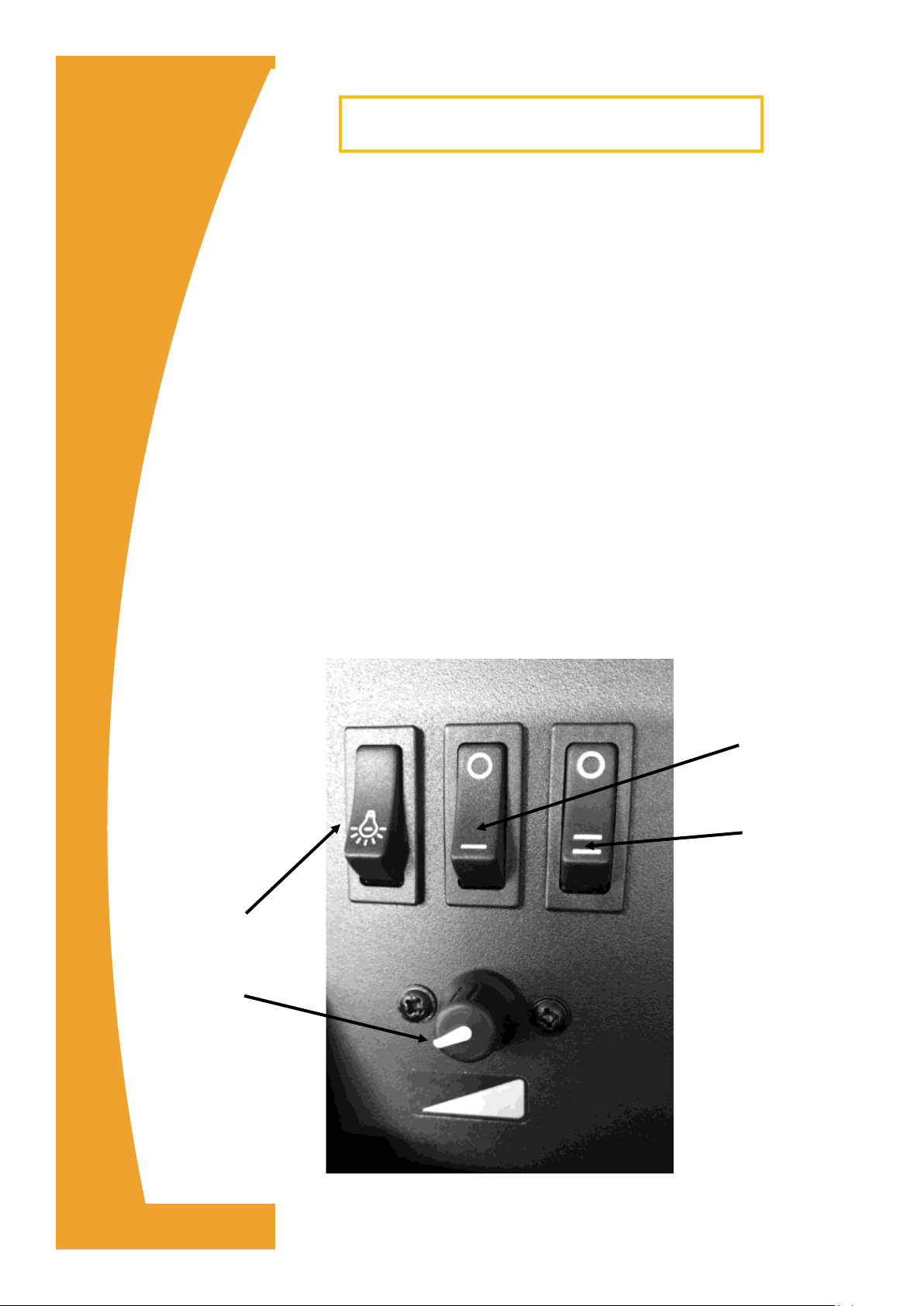

Seng the Thermostat
Ensure the re is plugged in.
Start by pressing the ‘light’ buon on the le. This will acvate
your LED’s and boom blower.
For heat seng, ensure the thermostat knob is turned fully to the
right (max temperature).
Once this has been completed, you can choose to have either
1kw or 2kw of heat given from your re.
For 1kw, simply press the middle buon with the single line at the
boom (heat 1).
For 2kw, repeat this process but also turn the right switch on
marked with 2 lines at the boom (heat 2).
Note: This only applies to MANUAL res
Light switch
Thermostat
Heat 1
Heat 2
10

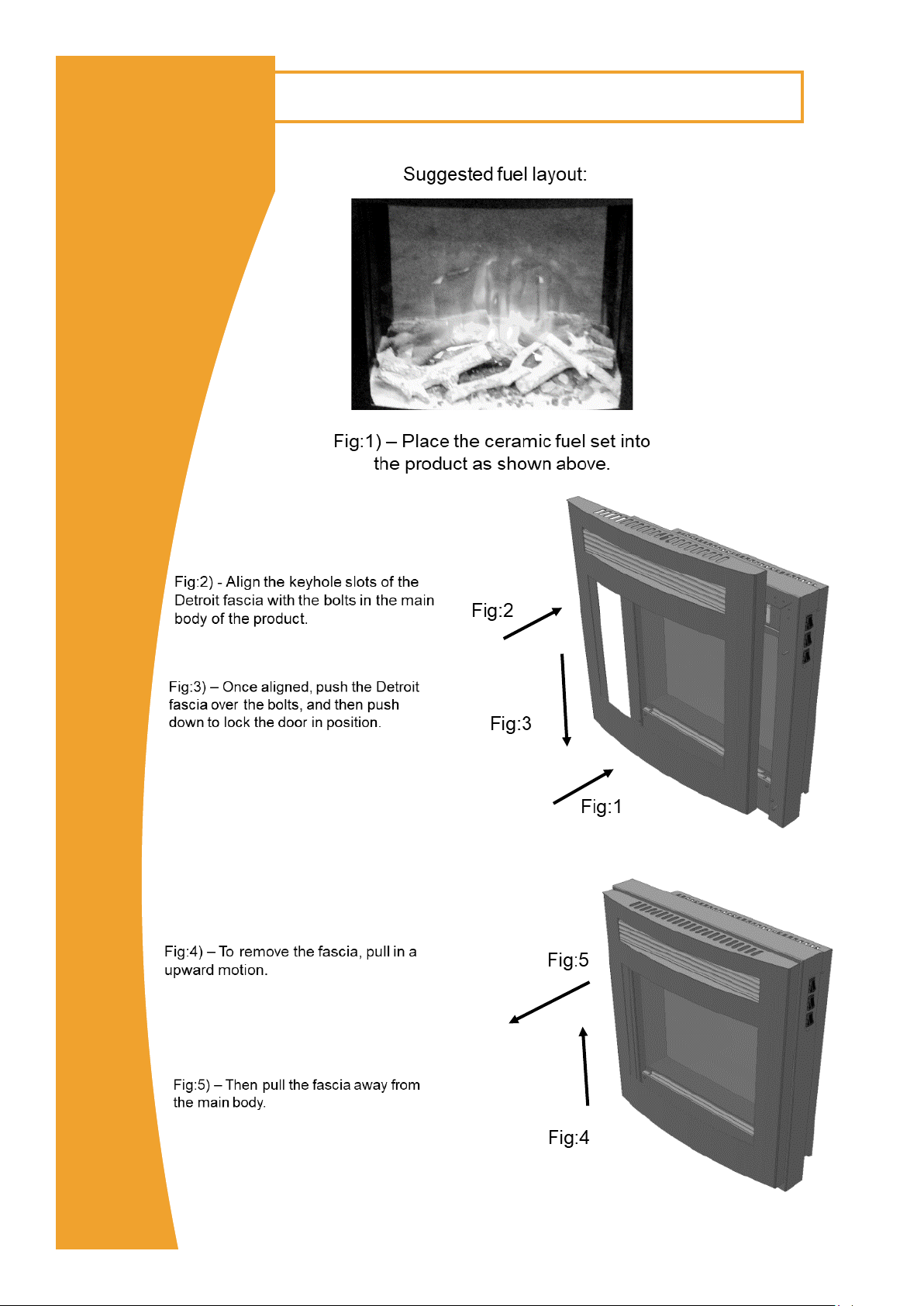

Aaching & Removing Detroit Fascia
This is applicable to models; Detroit
