In order for your fire to connect to the app, your internet router and smart device should

meet the following minimum requirements;

Wi-Fi Router

• Compatible with IEEE 802.11n/g/b

• WPA2 encryption

• Radio frequency: 2.4GHz band

• Wireless auto channel: auto search for wireless LAN radio channel free of interference

• Support for the User Datagram Protocol (UDP)

• The minimum distance from your internet router to the fire should be 70cm

Smart Device

• IOS 8.0 or Android 4.4

MINIMUM REQUIREMENTS

E-Smart App on

the Apple Store

E-Smart App on

the Google Play

Store

2EVONIC - 104 INSTRUCTION MANUAL ISS. 2EVONIC - 104 INSTRUCTION MANUAL ISS. 2

CONTENTS

What is Evoflame?................................................................................................3

Minimum Requirements........................................................................................ 3

Step-by-Step Guide.............................................................................................. 4

Using the E-Smart Cloud App............................................................................... 6

Updating your fire................................................................................................ 9

Troubleshooting................................................................................................... 9

EVONIC - 104 INSTRUCTION MANUAL ISS. 2EVONIC - 104 INSTRUCTION MANUAL ISS. 2

WHAT IS EVOFLAME?

Evoflame is a range of fires developed by Evonic Fires which allows you to operate your

fire using the E-Smart Cloud app on a smart phone or any internet connected device. This

enables you to change the flame effect, operate the heater, and change the temperature

all through the app.

4EVONIC - 104 INSTRUCTION MANUAL ISS. 2EVONIC - 104 INSTRUCTION MANUAL ISS. 2

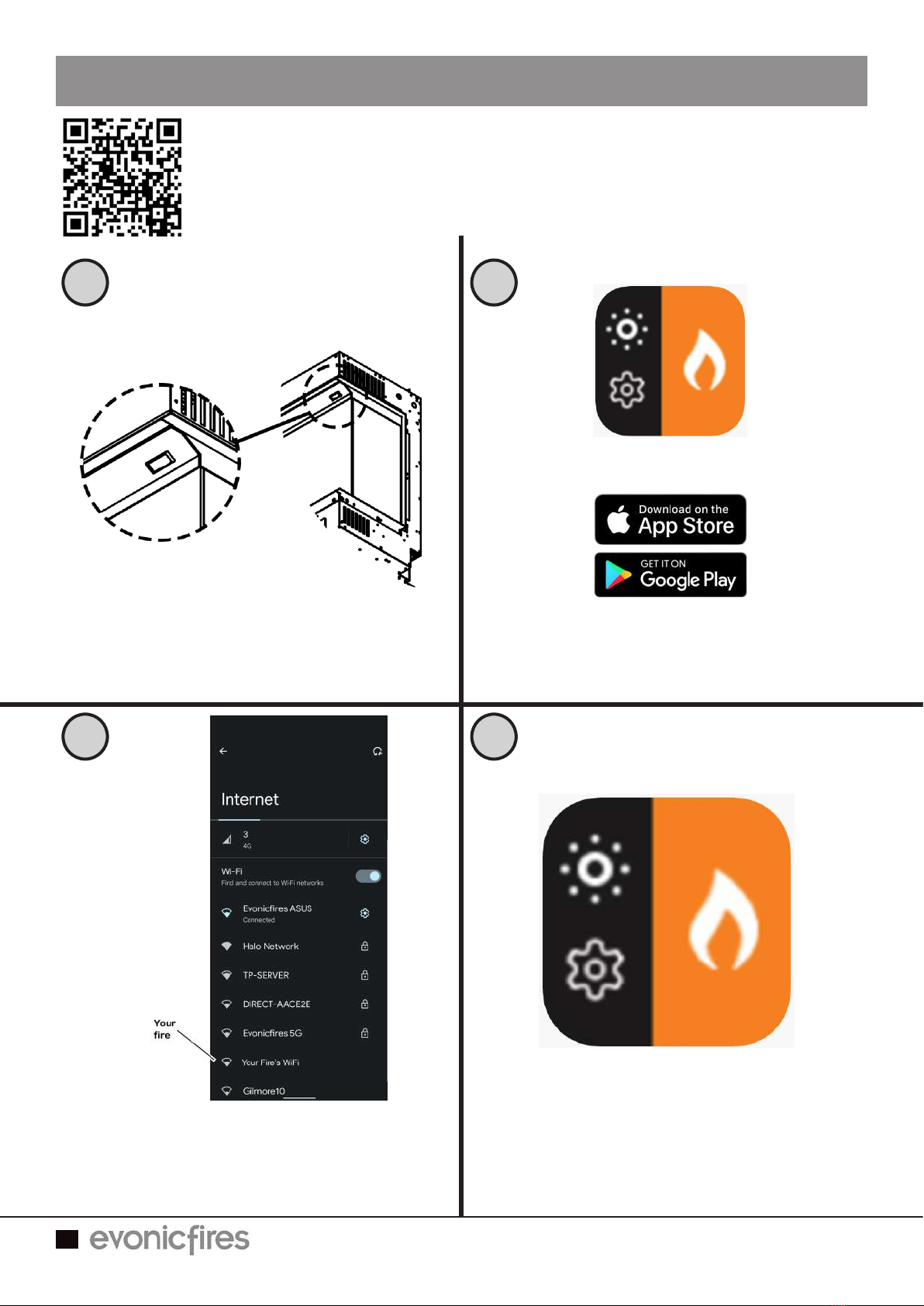

STEP-BY-STEP GUIDE

Make sure that your fire is plugged in and

the switch is on. Then turn on your fire

by pressing the rocker switch to the ‘ON’

position.

Download the E-Smart Cloud app from the

Apple Store, or Google Play Store.

1 2

3 4

Open the Settings panel on your device

and connect to the fire’s wireless

connection. The name of the fire’s WiFi will

vary depending on the model.

Open the E-Smart app.

To begin using the app you first need to pair your appliance to the app,To begin using the app you first need to pair your appliance to the app,

we have created a video on our Youtube channel to guide you through thewe have created a video on our Youtube channel to guide you through the

process of pairing your appliance to your smart phone or tablet. Scan theprocess of pairing your appliance to your smart phone or tablet. Scan the

QR code to be taken to the video and get started. Alternatively follow theQR code to be taken to the video and get started. Alternatively follow the

step-by-step guide below.step-by-step guide below.

EVONIC - 104 INSTRUCTION MANUAL ISS. 2EVONIC - 104 INSTRUCTION MANUAL ISS. 2

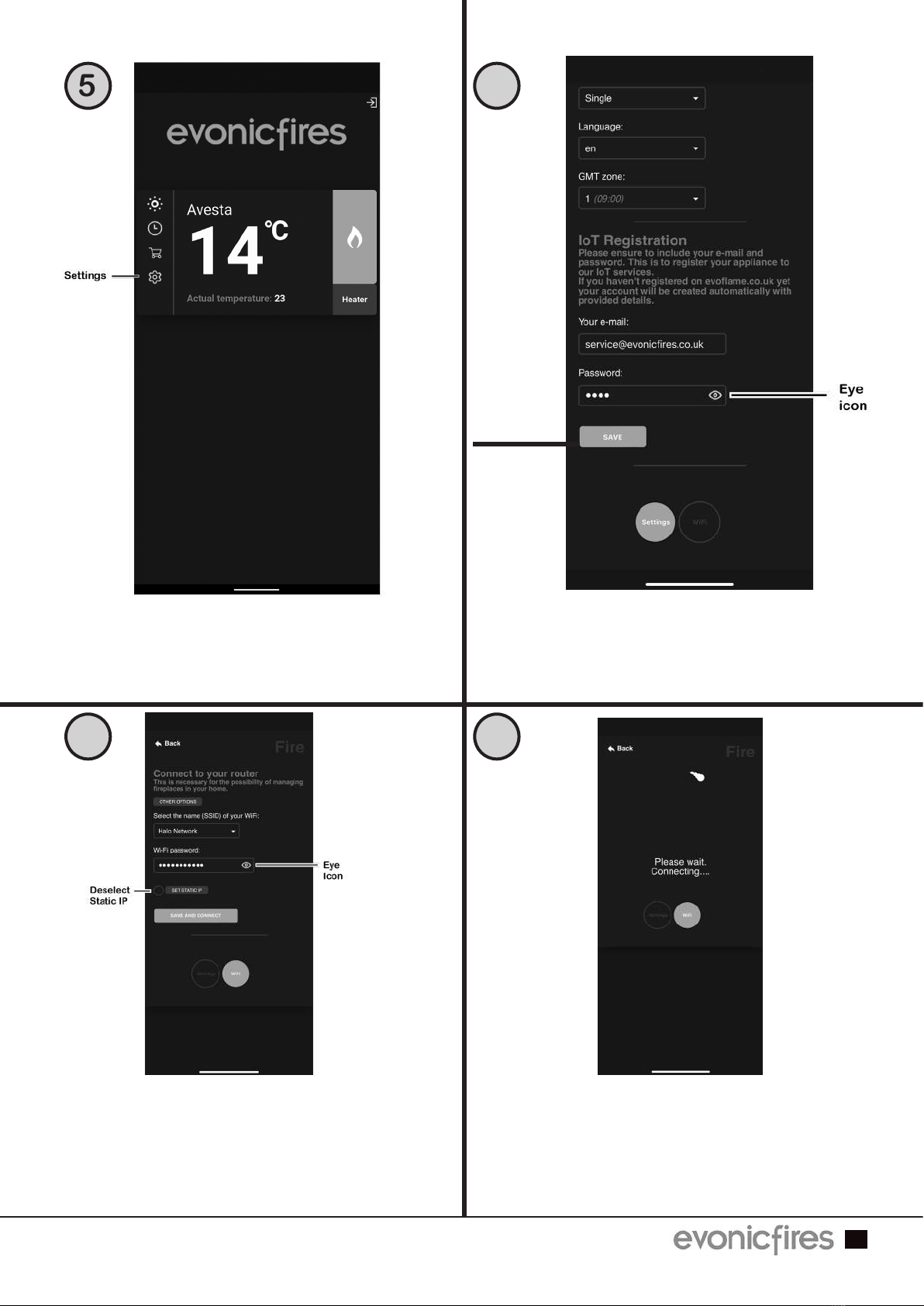

Open the settings panel on the app’s Home

Screen.

Scroll down to the ‘IoT Registration’

section and fill in your email address and

create a password. Press ‘Save’.

Then select the grey WiFi button.

5 6

7 8

Select your router from the drop down box,

and enter your router’s password. Press

the eye icon to double check for mistakes.

Press ‘Save and Connect’.

Only select Static IP if advised by an IT

professional.

The pairing process between your device,

the fire, and your router will now take

place. This may take a few minutes, and

when the app shows ‘Redirect’ you may

see the lighting on your fire change colour.

This is completely normal.

Save

6EVONIC - 104 INSTRUCTION MANUAL ISS. 2EVONIC - 104 INSTRUCTION MANUAL ISS. 2

USING THE E-SMART CLOUD APP

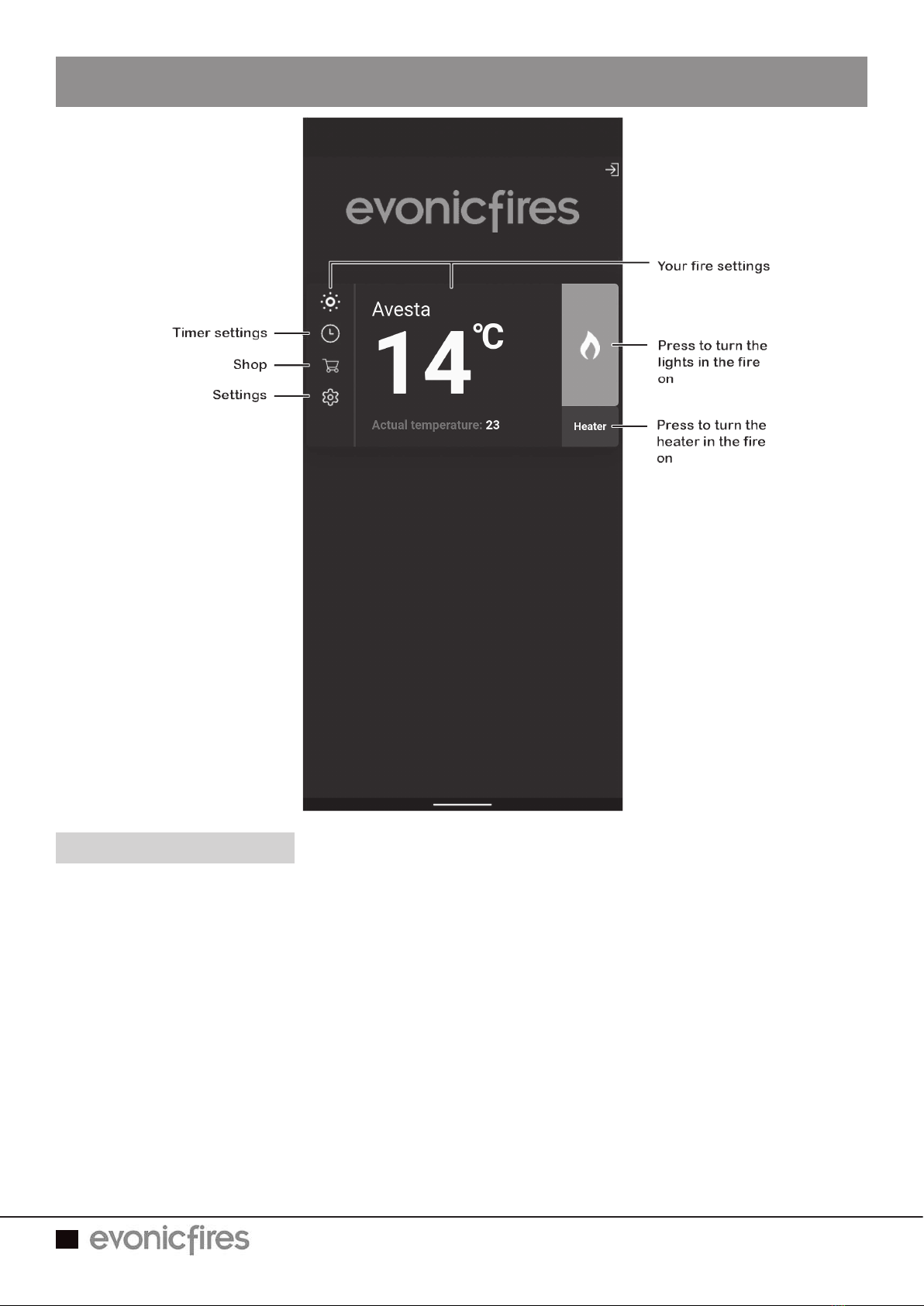

HOME PAGE

On the Home Page of the E-Smart App you can see the name of your fire, the chosen

temperature, and the actual temperature.

On the left hand side you can select the timer, shop, and app settings. On the right hand

side you can turn the lights in the fire on and off, and also turn the heater on and off.

To enter the Control Overview either select the light bulb icon on the top left or the central

temperature box.

EVONIC - 104 INSTRUCTION MANUAL ISS. 2EVONIC - 104 INSTRUCTION MANUAL ISS. 2

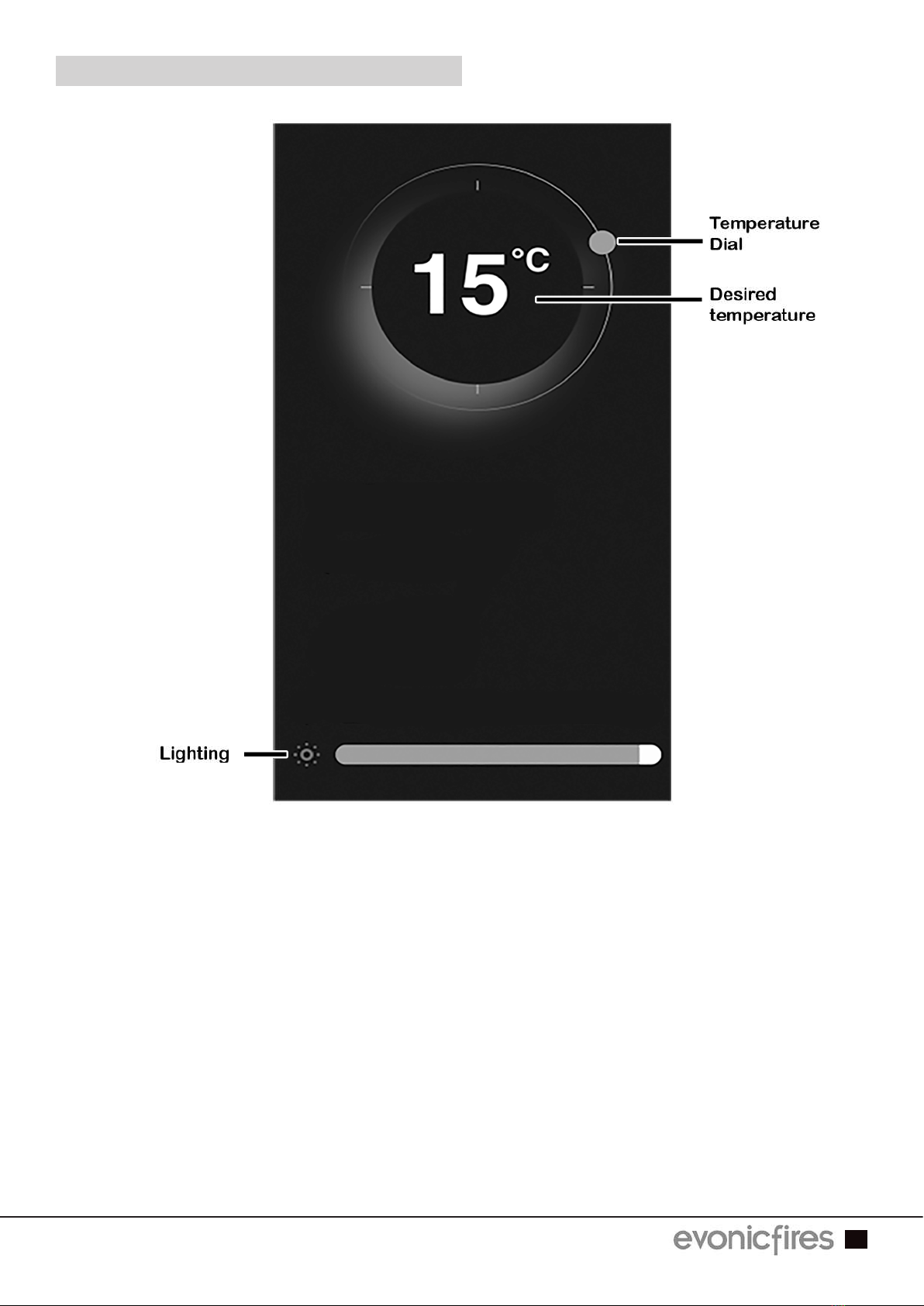

CONTROL OVERVIEW

To adjust the desired temperature of your fire ensure that the heater is selected on theTo adjust the desired temperature of your fire ensure that the heater is selected on the

Home Page in the previous step. Then press, hold, and rotate the temperature dial to setHome Page in the previous step. Then press, hold, and rotate the temperature dial to set

the temperature.the temperature.

By clicking on the lighting icon you can adjust the flame brightness by pressing, holding,By clicking on the lighting icon you can adjust the flame brightness by pressing, holding,

and sliding the tab at the bottom of the screen. Slide left to lower the brightness, and rightand sliding the tab at the bottom of the screen. Slide left to lower the brightness, and right

to increase the brightness.to increase the brightness.

8EVONIC - 104 INSTRUCTION MANUAL ISS. 2EVONIC - 104 INSTRUCTION MANUAL ISS. 2

PROGRAMMING THE TIMER

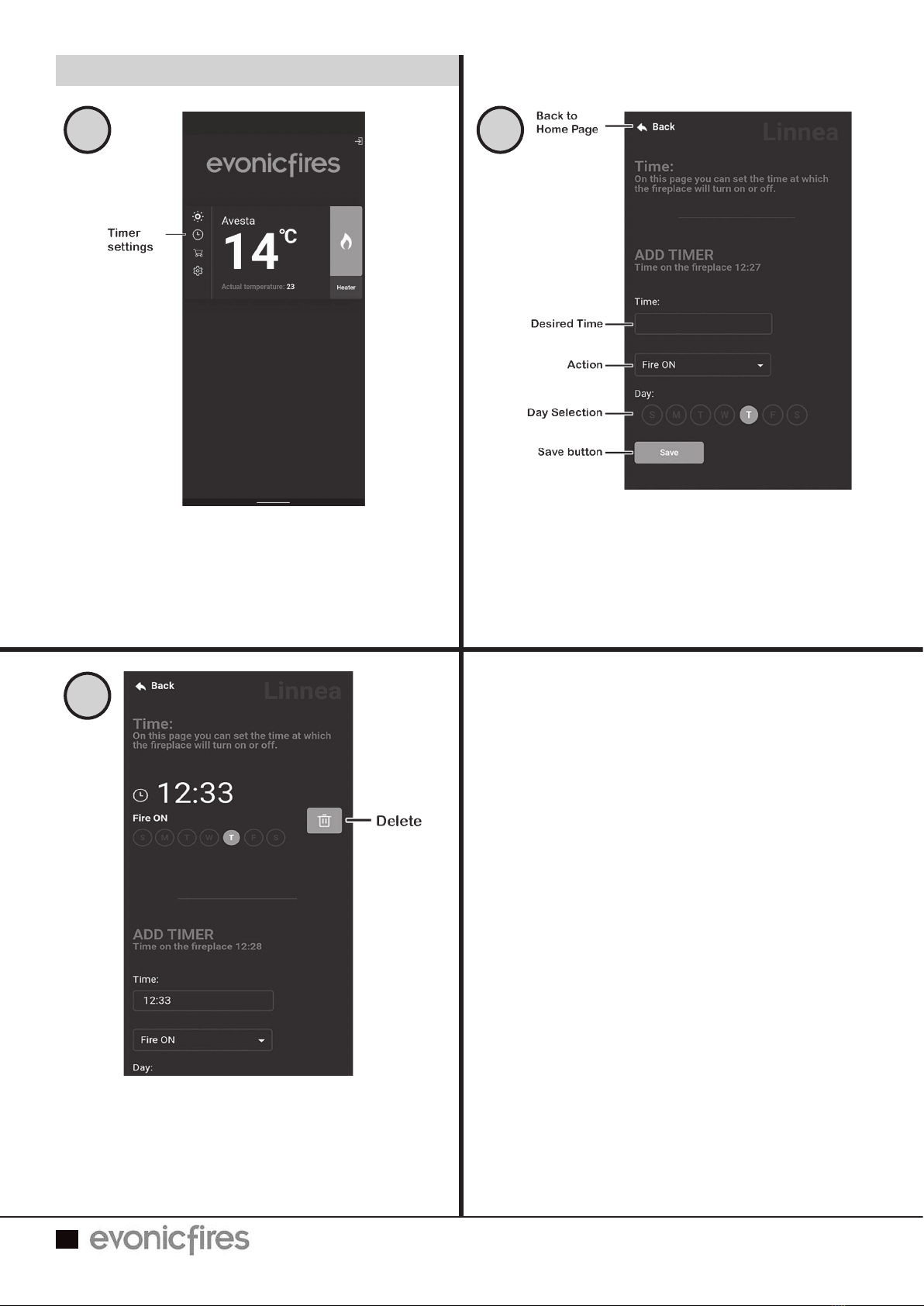

Single press the clock icon on the HomeSingle press the clock icon on the Home

Page to begin programming the Timer.Page to begin programming the Timer.

Input your desired time in the Time box,Input your desired time in the Time box,

select the action (Fire On/Off/, Heaterselect the action (Fire On/Off/, Heater

On/Off) you want. Deselect the day/sOn/Off) you want. Deselect the day/s

you don’t want it to apply to, and pressyou don’t want it to apply to, and press

the Save button.the Save button.

1 2

The above screen will now show yourThe above screen will now show your

set timer. To delete the timer press theset timer. To delete the timer press the

bin icon. To add an additional timerbin icon. To add an additional timer

scroll down and repeat the process.scroll down and repeat the process.

Press the Back button to return to thePress the Back button to return to the

Home Page.Home Page.

EVONIC - 104 INSTRUCTION MANUAL ISS. 2EVONIC - 104 INSTRUCTION MANUAL ISS. 2

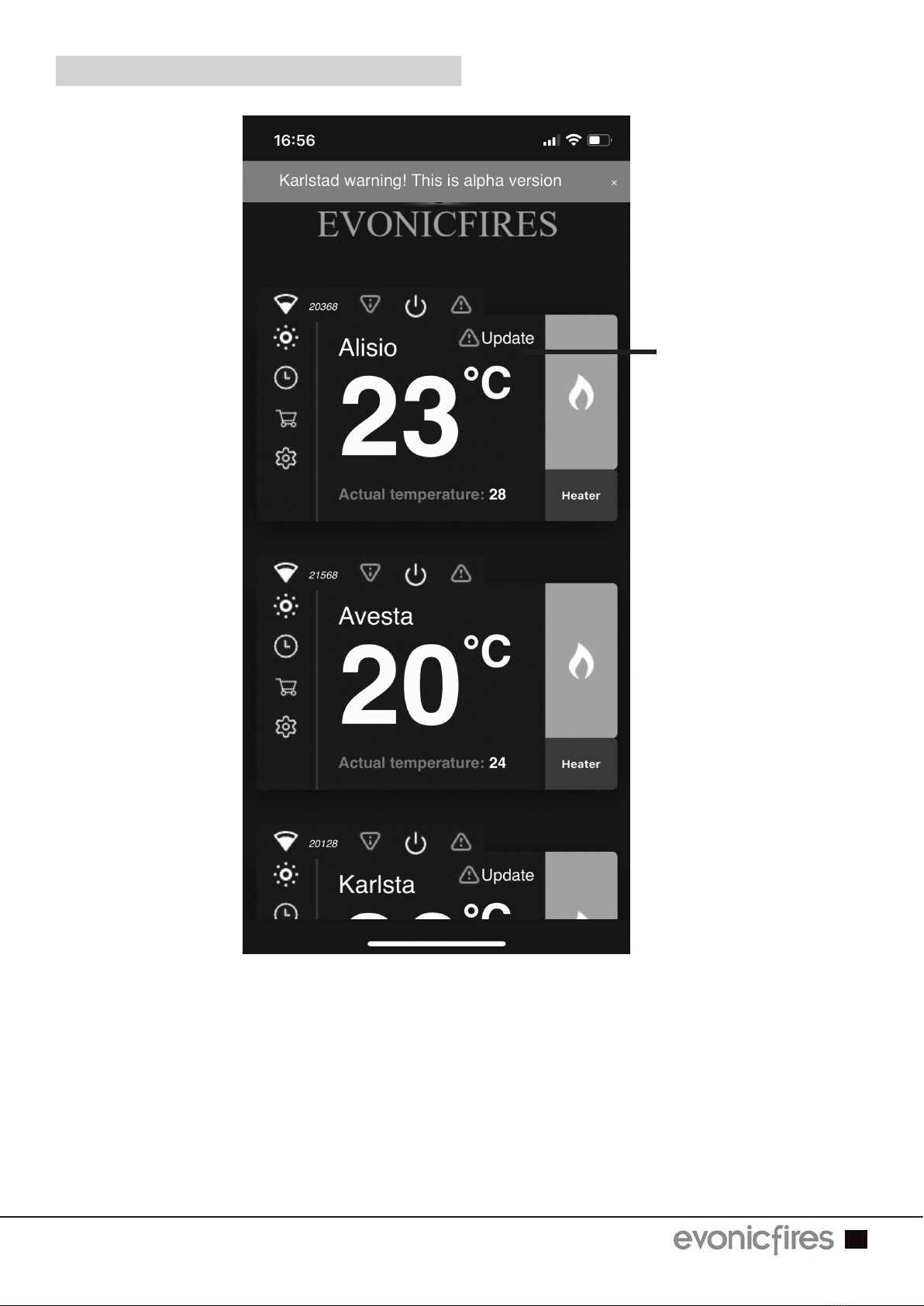

UPDATING YOUR FIRE

Update

Update your fire by clicking on the triangular icon.

Do not turn your fire off until it is complete

It may take up to 10 minutes to update.

10 EVONIC - 104 INSTRUCTION MANUAL ISS. 2EVONIC - 104 INSTRUCTION MANUAL ISS. 2

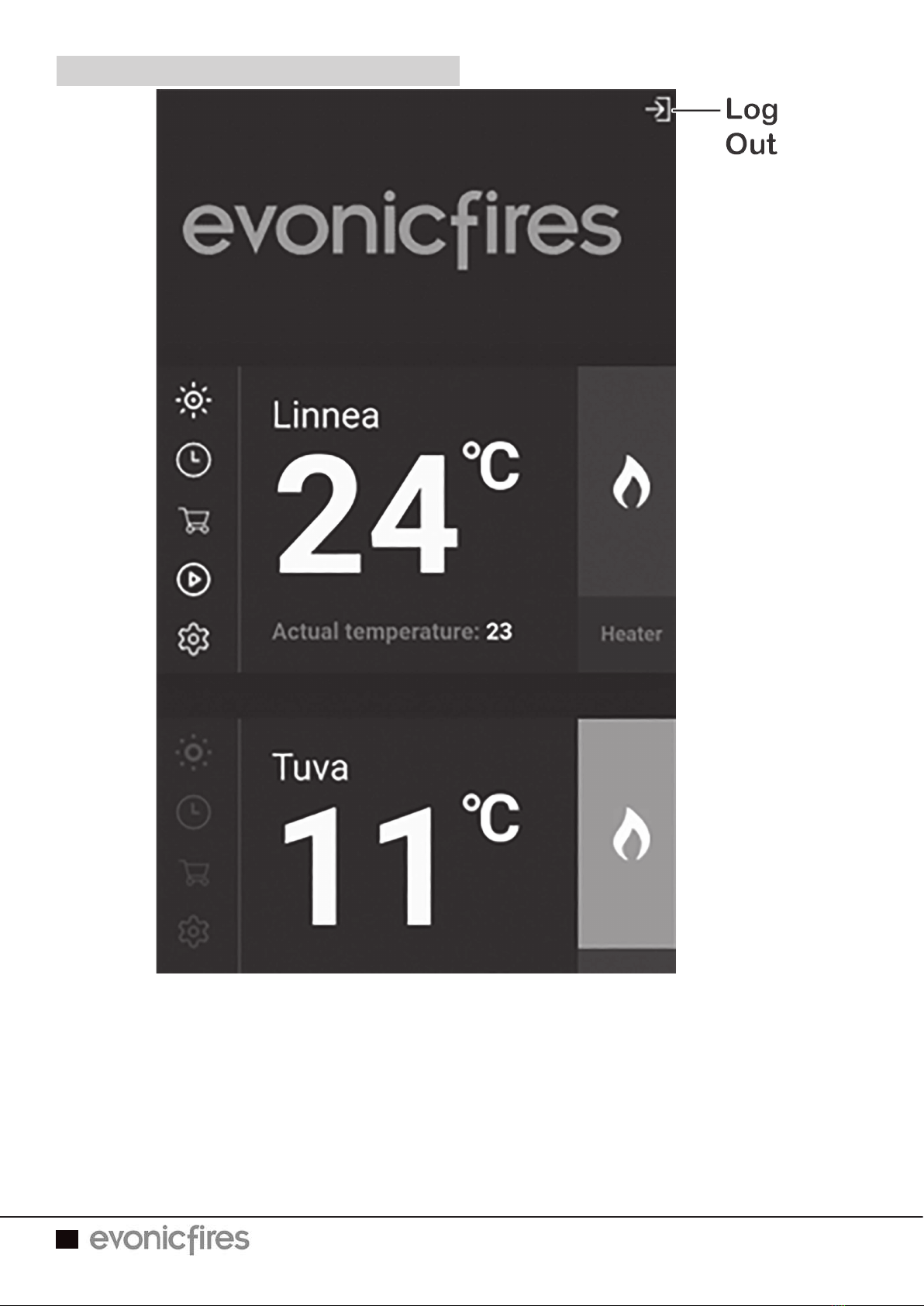

LOGGING OUT

To log out of your account, single press the exit icon in the top right hand corner of theTo log out of your account, single press the exit icon in the top right hand corner of the

Home Page.Home Page.

Please note that you should not need to log out of the app; once logged in you can stayPlease note that you should not need to log out of the app; once logged in you can stay
