COSINACOSINA
ASSEMBLY MANUALASSEMBLY MANUAL
COSINA 3
COSINA 4
COSINA 5
1
EVONIC - 104 INSTRUCTION MANUAL TEMPLATE ISS. 1EVONIC - 104 INSTRUCTION MANUAL TEMPLATE ISS. 1 COSINA ISS. 1COSINA ISS. 1
2EVONIC - 104 INSTRUCTION MANUAL TEMPLATE ISS. 1EVONIC - 104 INSTRUCTION MANUAL TEMPLATE ISS. 1 COSINA ISS. 1COSINA ISS. 1
CONTENTS
TOOLS REQUIRED
• Screwdriver
• Drill
• Phillips drill bit
• Jigsaw
• 40 X 4x30 Screws
Component list...................................................................3
Constructing the end cupboards........................................4
Constructing the middle cupboards...................................5
Attaching the cupboard doors...........................................6
Securing the cupboards.....................................................7
Plinth attachment................................................................8
Fire cut-out.........................................................................9
Attaching the hearth.........................................................10
Attaching the side panels..................................................11
Baton installation..............................................................12
Levelling the cupboard doors............................................13
3
EVONIC - 104 INSTRUCTION MANUAL TEMPLATE ISS. 1EVONIC - 104 INSTRUCTION MANUAL TEMPLATE ISS. 1 COSINA ISS. 1COSINA ISS. 1
COMPONENT LIST
COSINA 3
COSINA 4
COSINA 5
1 X Right Hand Cupboard
1 X Left Hand Cupboard
3 X Doors
1 X Central cupboard
1 X Plinth
1 X Hearth top and sides
6 X Hinges
6 X Hinge attachments
40 X 4x30 screws (in LH cupboard)
1 X Right Hand Cupboard
1 X Left Hand Cupboard
4 X Doors
2 X Central cupboard
1 X Plinth
1 X Hearth top and sides
8 X Hinges
8 X Hinge Attachments
40 X 4x30 screws (in LH cupboard)
1 X Right Hand Cupboard
1 X Left Hand Cupboard
5 X Doors
3 X Central cupboard
1 X Plinth
1 X Hearth top and sides
10 X Hinges
10 X Hinge Attachments
40 X 4x30 screws (in LH cupboard)
4EVONIC - 104 INSTRUCTION MANUAL TEMPLATE ISS. 1EVONIC - 104 INSTRUCTION MANUAL TEMPLATE ISS. 1 COSINA ISS. 1COSINA ISS. 1
CONSTRUCTING THE END CUPBOARDS
1
2
Lay section A face down, then insert
E and D by slotting the joining tongue
into the joining groove at a 45 degree
angle, then pushing up to a 90 degree
angle to secure in place.
Slide section B into place
ABCDE
3
Finally, fit section C into place. You may
need to push this section in place to
secure firmly.
5
EVONIC - 104 INSTRUCTION MANUAL TEMPLATE ISS. 1EVONIC - 104 INSTRUCTION MANUAL TEMPLATE ISS. 1 COSINA ISS. 1COSINA ISS. 1
A B C D E
1
2
Lay section A face down, then insert
E and C by slotting the joining tongue
into the joining groove at a 45 degree
angle, then pushing up to a 90 degree
angle to secure in place.
CONSTRUCTING THE MIDDLE CUPBOARDS
Slide section B into place
Finally, fit section D into place. You may
need to push this section in place to
secure firmly. Ensure the coated edge
faces outwards.
ATTACHING THE CUPBOARD DOORS
1
2
3
Attach the hinges to the doors using
the screws provided.
There are two hinges per door.
Then attach the hinge base into the
inside of the cupboards. You can
decide whether you want them situated
on the left or right - there are holes on
either side.
Attach the door to the cupboards by
clicking the hinge in place.
6EVONIC - 104 INSTRUCTION MANUAL TEMPLATE ISS. 1EVONIC - 104 INSTRUCTION MANUAL TEMPLATE ISS. 1 COSINA ISS. 1COSINA ISS. 1
PLEASE NOTE: The doors can be attached at any point during assembly. You
may wish to do this stage at the end to reduce the risk of damage.
7
EVONIC - 104 INSTRUCTION MANUAL TEMPLATE ISS. 1EVONIC - 104 INSTRUCTION MANUAL TEMPLATE ISS. 1 COSINA ISS. 1COSINA ISS. 1
SECURING THE CUPBOARDS IN PLACE
1
Carefully tilt the unit back onto its base. You can now begin to
secure the cupboards to one another. We recommend this step is
done by two people to ensure the unit is evenly supported at either
end.
You can find the counter-sunk screw holes
above and below the hinge attachments.
8EVONIC - 104 INSTRUCTION MANUAL TEMPLATE ISS. 1EVONIC - 104 INSTRUCTION MANUAL TEMPLATE ISS. 1 COSINA ISS. 1COSINA ISS. 1
PLINTH INSTALLATION
1
Carefully turn the unit over, you can then screw the plinth in place
using the screws provided. Set the plinth back 25mm from the front of
the unit (not the doors). Once completed, carefully turn the unit back
over.
25MM
9
EVONIC - 104 INSTRUCTION MANUAL TEMPLATE ISS. 1EVONIC - 104 INSTRUCTION MANUAL TEMPLATE ISS. 1 COSINA ISS. 1COSINA ISS. 1
HEARTH SECTION - FIRE CUT-OUT
Check the width of the model you are installing below by scanning
the QR code, and use a depth of 305mm. Your cut-out depth will now
line up with the top section of the unit, giving you approximately a
30mm overhang from the unit.
Using an appropriate saw, carefully cut these dimensions out of the
top hearth ready for the fire to be slotted into place.
On Electra 1250 and 1500 models, which have a narrower case,
a baton is required to provide extra support to the fire. The baton
needs to be fixed to the back of the unit.
305MM
We recommend measuring the width of the case, taking into account the
fixings on the metalwork which could result in a slight increase in size.
MODEL CUT-OUT SIZES
E1030 / KIRUNA 1010mm X 305mm
E1250 / MOTALA / EXOR 1265mm X 305mm
E1500 / LINNEA / LITA 1510mm X 305mm
E1800 / AVESTA / ASTA 1765mm X 305mm
ELECTRA 1250 1265mm X 305mm
ELECTRA 1500 1510mm X 305mm
ELECTRA 1800 1765mm X 305mm
ALISIO 850 864mm X 305mm
ALISIO 1150 1164mm X 305mm
ALISIO 1550 1564mm X 305mm
ALISIO 1850 1864mm X 305mm
10 EVONIC - 104 INSTRUCTION MANUAL TEMPLATE ISS. 1EVONIC - 104 INSTRUCTION MANUAL TEMPLATE ISS. 1 COSINA ISS. 1COSINA ISS. 1

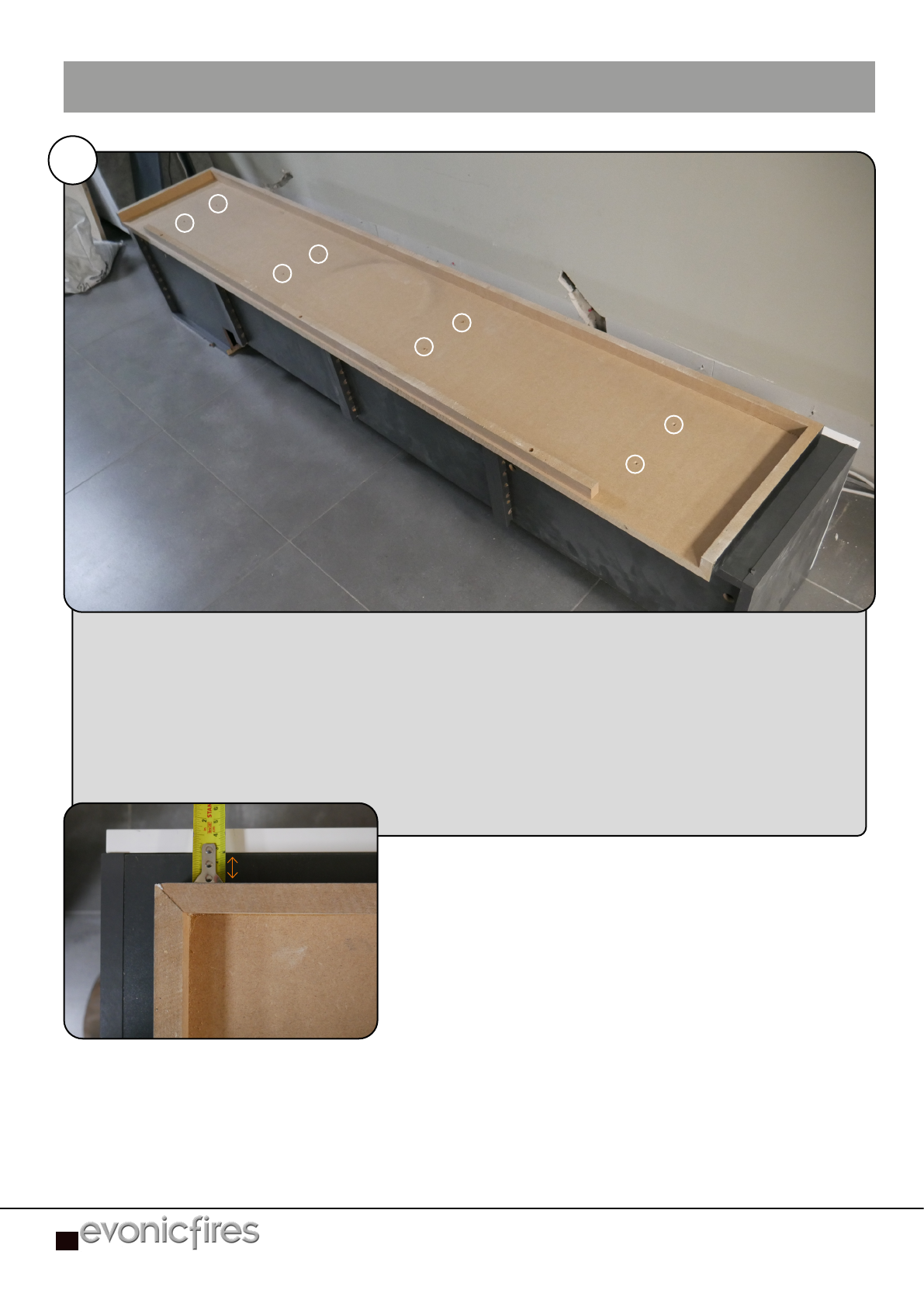

ATTACHING THE HEARTH
1
Place the top hearth accurately in place. Using the counter-sunk
holes, screw into place. When screwing the hearth into place,
ensure you do not push too firmly as this could result in the screws
breaching the hearth.
Once fitted, the hearth should overhang on the front by around
30mm from the unit (not the doors), and once the side panels are
fitted will overhang by around 5mm either side.
