Evonicfires E1030ds Manuale
Important Safety Informaon
Always read this manual rst before aempng to install or use this
replace. For your safety, always comply with all warnings and safety
Instrucons contained in this manual to prevent personal injury or property
damage.
Please Note: This product is for well insulated spaces or
occasional use.
E1030ds -
Instrucon Guide
welcome to evonicres
evonicres is an award-winning brand of CK Fires Ltd, situated just outside Straord-
upon-Avon, we manufacture a range of Brish built electric res and are considered as
one of the most technically advanced manufacturers in the world, with oponal
controllers such as e-touch and a fully integrated APP available to download on both
or .
This guide is designed to aid in the installaon and connued performance of this
product. This product conforms with all health, safety, and environmental protecon
standards as indicated by a CE mark. For opmum performance this product requires
a well insulated locaon or occasional use.
Contents
1. Introducon 2
2. Important Instrucons 3/4
3. Installaon Requirements &
Product operaon 5/6
4. Installaon Method 7/8
6. E-Touch & App Template 9
7. Glass Removal 10
8. Troubleshoong & Specicaon 11
9. Warranty 12
2.
IMPORTANT INSTRUCTIONS:
When using electrical appliances, basic precauons should always be fol-
lowed to reduce the risk of re, electric shock, and injury to persons,
including the following:
① Read all instrucons before using this electric replace.
② This replace is hot when in use. To avoid burns, do not let bare skin
touch hot surfaces. The trim around the heater outlet becomes hot dur-
ing heater operaon. DANGER: High temperatures may be generated
under certain abnormal condions. Do not parally or fully cover or ob-
struct the front of this heater.
③ Extreme cauon is necessary when any heater is used by or near chil-
dren or people of reduced mobility and whenever the unit is le operang
and unaended.
④ Young children should be supervised to ensure that they do not play
with the appliance.
⑤ The appliance is not intended for use by young children or inrmed
persons without supervision.
⑥ In the event of a malfuncon, disconnect power at the service panel
and have the unit inspected by a reputable electrician before reusing.
⑦ If the supply cord is damaged, it must be replaced by the manufactur-
er, or its service agent, or a qualied person in order to avoid a hazard.
⑧ Do not use outdoors.
⑨ Never locate replace where it may fall into a bathtub or other water
container.
⑩ To disconnect the replace, turn the controls o, and turn o power to
heater circuit at main disconnect panel.
⑪ Do not run the cord under carpeng. Do not cover cord with throw
rugs, runners, or the like. Arrange cord away from trac area and where it
will not be tripped over.
⑫ Do not locate the heater immediately below a xed socket-outlet.
3.
㉑ Always use properly grounded, fused and polarized outlets.
㉒ Disconnect all power supply before performing any cleaning,
maintenance or relocaon of the unit.
㉓ When transporng or storing the unit and cord, keep in a dry
place, free from excessive vibraon and store so as to avoid
damage.
NOTE: Changes or modicaons not expressly approved by the
party responsible for compliance could void user's authority to
operate the equipment.
4.
⑬ Do not insert or allow foreign objects to enter any venlaon
or exhaust opening as this may cause an electric shock or re, or
damage to the heater.
⑭ To prevent a possible re, do not block air intakes or exhaust
in any manner.
⑮ All electrical heaters have hot and arcing or sparking parts
inside. Do not use in areas where gasoline, paint, or ammable
liquids are used or stored.
⑯ Use this replace only as described in this manual. Any other
use not recommended by the manufacturer may cause re, elec-
tric shock or injury to persons.
⑰ Do not change the plug in any way. Always plug heaters di-
rectly into a wall outlet/receptacle. Never use with an extension
cord or relocatable power tap (outlet/power strip).
⑱ Do not burn wood or other materials in the electric replace.
⑲ Do not strike the replace glass.
⑳ Always use a cered electrician should new circuits or out-
lets be required.
INSTALLATION REQUIREMENTS:
Review and consider all of the following condions before installaon:
This appliance must only be connected to a 230/240 Volts AC 50Hz supply. Before connecng
the re, check that the supply voltage is the same as stated on the re. This appliance must
only be used on a AC supply, fuse rang 13Amp.
The wires in the mains lead are coloured in accordance with a standard UK supply, these
being:
GREEN/YELLOW – EARTH
BLUE – NEUTRAL
BROWN – LIVE
Ensure the power cord is not installed so that it is pinched or against a sharp edge and ensure
that the power cord is stored or secured to avoid tripping or snagging to reduce the risk of
re, electric shock or injury to persons. Construcon and electrical outlet wiring must comply
with local building codes and other applicable regulaons to reduce the risk of re, electric
shock and injury to persons.
WARNING: To reduce the risk of re, do not store or use gasoline or other ammable vapours
or liquids in the vicinity of the heater.
1. Select a locaon that is not suscepble to moisture and is away from drapes, furniture
and high trac.
2. For ease of electrical hook up you may wish to locate the replace near an exisng
outlet (for plug-in convenience).
3. Remove electric replace, front glass and hardware from the box and remove all
packaging materials before installaon.
4. Store the replace in a safe, dry and dust free locaon unl you are ready to install the
replace.
5.
Grounding Instrucons:
This product must be grounded. If it should malfuncon or breakdown,
grounding provides a path of least resistance for electric current to reduce the
risk of electric shock.
This product is equipped with a cord having an equipment-grounding conduc-
tor and a grounding plug. The plug must be plugged into an appropriate outlet
that is properly installed and grounded in accordance with all local codes and
ordinances.
DANGER: Improper connecon of the equipment-grounding conductor can
result in a risk of electric shock. Check with a qualied electrician or service-
man if you are in doubt as to whether the product is properly grounded. Do
not modify the plug provided with the product – if it will not t the outlet,
have a proper outlet installed by a qualied electrician.
WARNING: Do not aempt to wire your own new outlets or circuits. To reduce
the risk of re, electric shock or injury to persons, always use a licensed electri-
cian.
6.
HEATER UNIT CUT OUT—This is a safety feature to safe guard against further
damage to the product.
If the airow is restricted the heater will automacally turn o. This can occur
due to incorrect installaon or obstrucon. To reset the heater funcon;
• Isolate from main power supply
• Leave product to cool
• Aer suitable cooling down period, remove the obstrucon if obstructed
and check installaon
• Aer 10 minutes the thermo switch (cut-out) in the heater will reset.
Please note that both the eect fan and heater fan omit a low decibel noise,
both of which are normal operang characteriscs.
The appliance is operated by the e-touch App, the main standby power switch
to the e-series product is located to the right of the heater outlet, which is
marked with a light bulb image, to acvate the product, this switch must be
switch to the “ON” posion.
The rst me the e-series product is acvated both the illuminaon and heater
will funcon, to switch the heater “O” simply reduce the Room Temperature
down to 10 degrees on the App control.
Installaon Method
This product is designed to be assembled into our E-mod installaon
units or an exisng ue or suitable wall space.
Please seek advice from a professional, with reference to the
structural integrity of the installaon site.
if the products is to be installed into a open chimney or ue, it is
important that the chimney/ue is blocked o to prevent any up/
down draughts and falling debris which could restrict and alter the
airow to the product.
It is also important to ensure that the product has a minimum internal
clearance directly above and below the product of 100mm, this is to
ensure that the product can circulate the required airow for the
heater unit.
The product should never be sealed into a opening with the use of
silicones or adhesives as this can also alter the airow and hinder any
further servicing of the product.
If being installed into an E-mod, it is important to follow the E-mod
instrucons prior to installing the replace. This is to ensure the
replace is being ed into the correct secon of the E-mod.
The replace is also available in GF3 or GF4 models. You will need to
idenfy which model you are installing to ensure successful ng of
the appliance.
7.
1. In order to successfully install
this appliance, you must rst
make sure the plaster kit is
properly assembled onto the
re . This is to ensure the main
body of the re can rest
suitably onto a ledge and hold
the weight of the re.
Fig 1 shows the locaon of both the
side plaster kits and the front plaster
kit.
Fig 1.
Fig 2 shows the re
ed into an E-mod as-
sembly. Idened are
the plaster kit sides, and
how they are used to
support the body of the
re in place.
Fig 2.
Fig 3.
Fig 3 indicates the top
secon of the plaster
kit. Once the re has
been ed into place,
the top plaster kit is
used to support the E-
mod case that sits
above the re.
8.
E-Touch & App Template
The Appliance is operated using the E-Touch App Control.
The App Control can be used on either OS or Android operang systems.
To obtain the App please visit either the OS App Store Or Google Play and follow
the on screen instrucons.

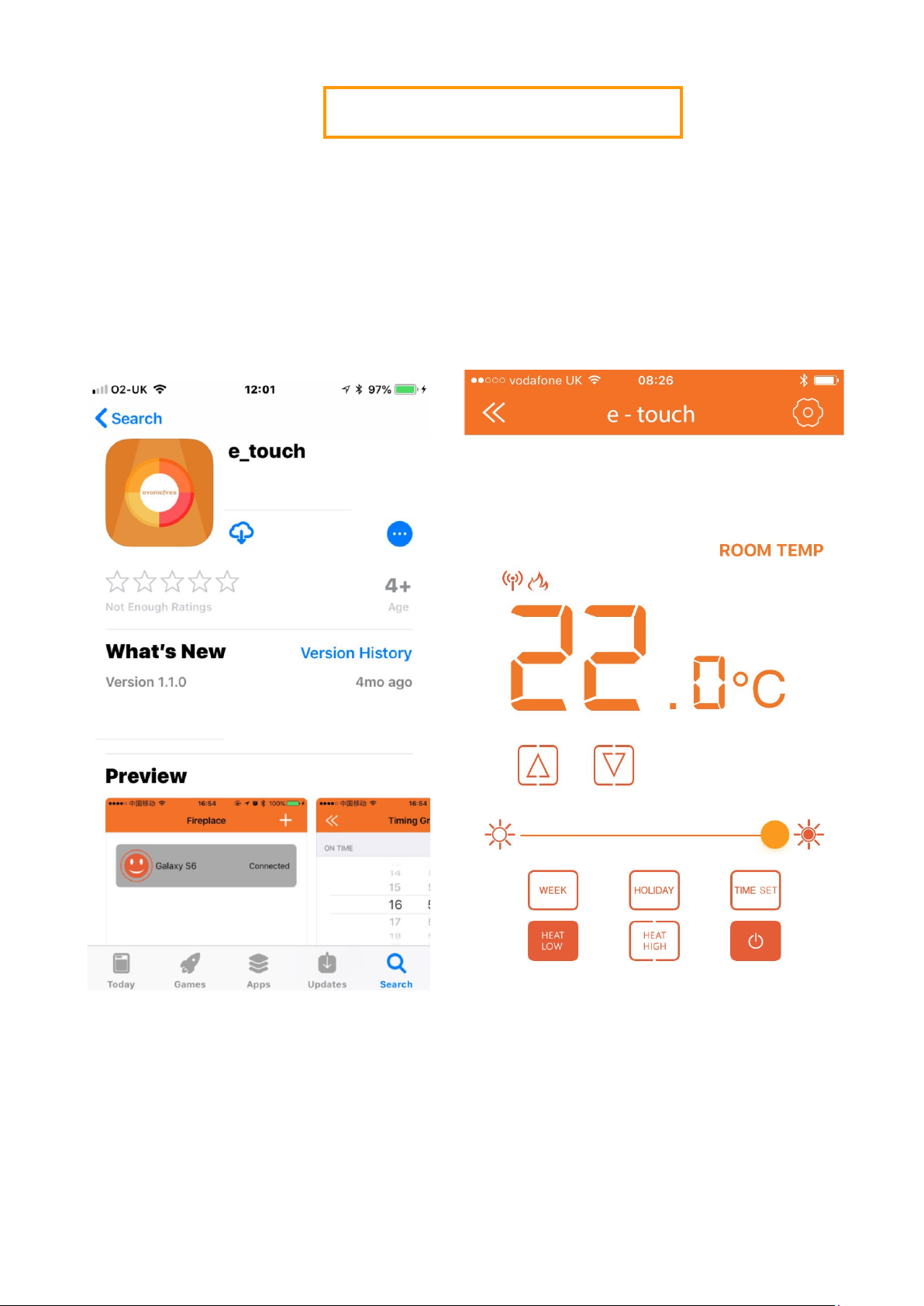

Screen shot taken from Apple App Store. Home Screen shot taken from E-Touch App
13.
Glass Removal:
1. Remove the 2 screws
located in the boom glass
retaining bar. Repeat this
process on either side of
the re.
2. Remove the boom glass
retaining bar. Again, repeat
this on both sides of the re.
3. Remove the glass by pulling
the second retaining bar away
from the body of the re.
Ensure that the glass is
supported at all mes. A
sucon cup has been provided
to aid with this step.
Please note: The sucon cup is
provided for support only, not
to hold the full weight of the
glass.
Please note: It is
recommended that this step is
carried out by 2 persons.
4. Once the front glass
is removed
successfully, slide the 4
side glass panels
downward to remove .
14.
Indice
Altri manuali Evonicfires Camino da interno
Evonicfires
Evonicfires Amathus Manuale utente
Evonicfires
Evonicfires Evoflame E500 Manuale utente
Evonicfires
Evonicfires E-Smart Newton 6 Manuale utente
Evonicfires
Evonicfires ELECTRA Series Manuale utente
Evonicfires
Evonicfires Kepler 22 Manuale utente
Evonicfires
Evonicfires E-LLUSION Sirus EVONIC - 104 Manuale utente
Evonicfires
Evonicfires Topaz Manuale
Evonicfires
Evonicfires EVOFLAME Manuale utente
Evonicfires
Evonicfires E800T Manuale utente
Evonicfires
Evonicfires E800T Manuale utente
Evonicfires
Evonicfires Arizona Istruzioni di montaggio
Evonicfires
Evonicfires EVOFLAME E810 DS Manuale utente
Evonicfires
Evonicfires SUITES 180 Manuale utente
Evonicfires
Evonicfires COLORADO Manuale
Evonicfires
Evonicfires E1030DS Manuale
Evonicfires
Evonicfires Cubbington 1350 Manuale utente
Evonicfires
Evonicfires AAREN Manuale
Evonicfires
Evonicfires Asta Manuale utente
Evonicfires
Evonicfires SIGMA Guida alla configurazione
Evonicfires
Evonicfires Aaren Manuale utente
