ewheels EW-26 Manuale utente
1
Table of Contents
Page 2 - Feature Guide
Page 3 - Technical Specifications
Page 4 –Turning on Your Scooter
Page 5-6 - Operation of Scooter
Page 7-8 - Charging and Battery Information
Page 8 - Ramps and Curbs
Page 9 - General
Page 9 - Use While Under Influence
Page 10-11 - Safety Requirements
Page 12-14 –Warranty
Page 15-19 –Safety Manual
2

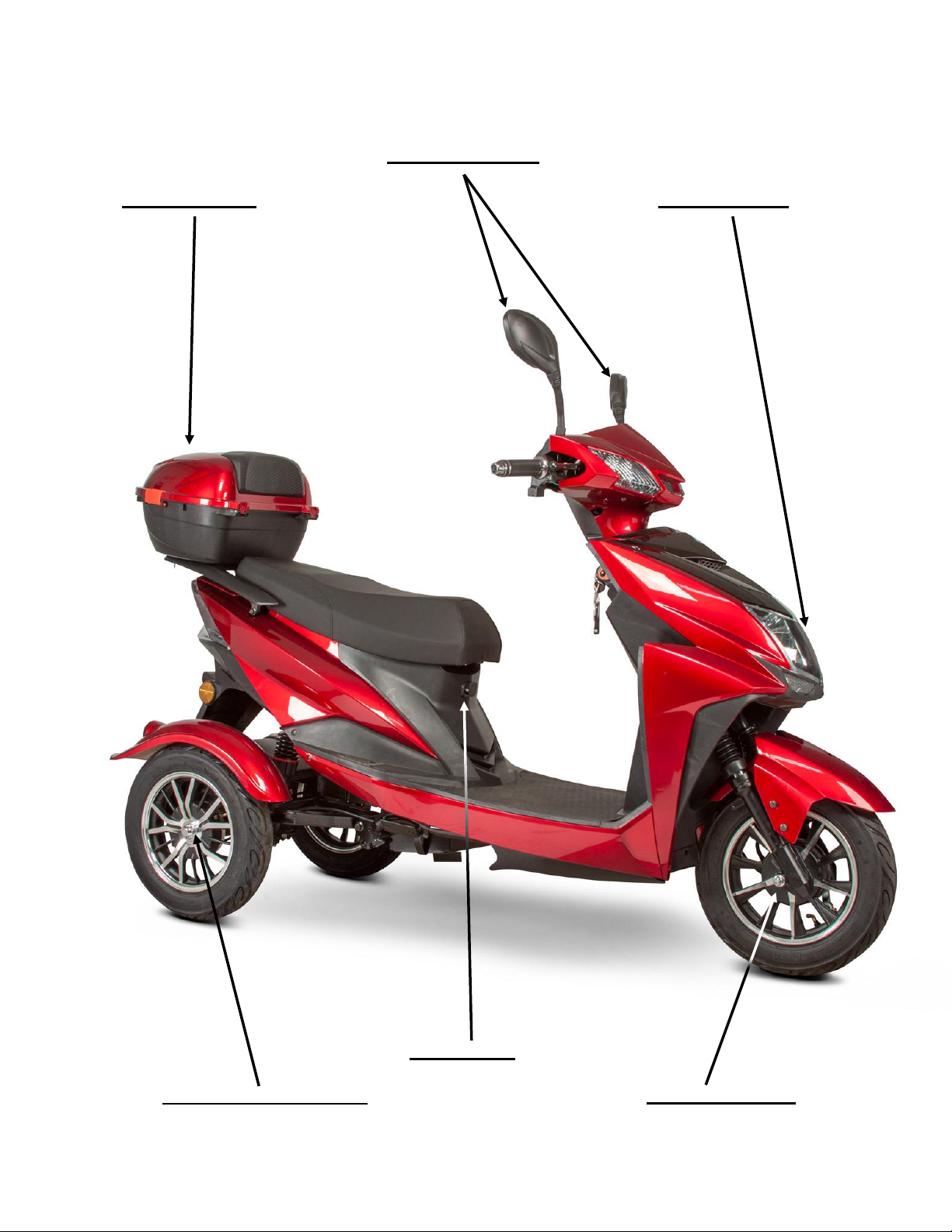

Charger Port
Large Aluminum Wheels Front Drum Brake
Rear View Mirrors
Large Cargo Box Front Headlight
3
Technical Specifications
Model:
EW-26
Weight Capacity:
400 LBS
Speed:
Up to 15 MPH
Distance:
Up to 40 miles per charge (distance varies on terrain, riders
weight, road surface, etc.)
Front Seat: Type:
Two Passenger Saddle Seat
Front seat: Size:
14” Wide, 26” Deep
Controller Type:
BLDC Controller
Swivel Seat:
N/A
Recommended Tire PSI:
32 –40 PSI
Power:
Electric 48 volts
Motor Wattage:
500 Watts
Motor Type:
Brushless Motor
Amps:
20 AH Batteries
Volts:
48 Volts
Dimensions:
70” x 28” x 43” (LxWxH)
Floor Clearance:
6.5”
Wheel Base:
52”
Batteries:
(4) 12 Volt, 20 AH, Deep Cycle, Maintenance Free, SLA
Forward/Reverse switch:
Yes
Lighting Package:
Headlight with High/Low Beam, Rear Running Lights, Rear
Brake Light, Turn Signals
Front Tire Size:
15” x 3”
Rear Tire Size:
15” x 3”
Charger:
48 Volt Smart Charger
Throttle Type:
Variable Twist Throttle
Climbing Angle:
Up to 12 Degrees
Braking System:
Left (Rear) and Right (Front) Hand Brakes
Folded Height:
N/A
Headlight:
Headlight with High and Low Beam
Rear lights:
Yes, Running Lights
Electric Horn:
Yes
Scooter Weight:
209 LBS
Battery Indicator:
Yes
Front Suspension:
Two Front Suspension Springs
Rear Suspension:
Two Rear Suspension Springs
Reflectors:
Rear Reflectors
Warranty:
3 Year Limited Warranty
4
**TURNING ON YOUR SCOOTER FOR THE 1ST TIME**
Before using your scooter for the first time, you must turn on the circuit
breaker switch which is located underneath the seat. To access the
circuit breaker, insert the key into the ignition, and without pushing in
further, turn the key counterclockwise (left). You will hear the seat latch
release, and you can now lift up the back of the seat to access the circuit
breaker.
(If you’re having trouble getting the seat latch to release, please double
check that you are not pushing the key inwards while trying to turn left)
Insert Key into Ignition
Flip the Blue Circuit
Breaker Switch
5
Operation of Scooter
1. Battery Power Indicator Lights
The battery power indicator bars
will light up when turned on. The
battery indicator bars will only be
displayed when the scooter is
turned on. The bars represent the
scooter’s current charge level.
*
1. Emergency Brake Tab
The emergency brake is located under
the left side of the tiller. The tab holds
tension in the brake lines to keep the
unit stationary while not in use.
Activate by pushing the pin upwards
while squeezing the left brake handle.
The bar will travel upwards when the
brake handle is approximately
halfway. Squeeze the left brake handle
to deactivate.
*
6
2. Tiller Controls
See below for all tiller functions labeled below. Status lights on the top of
the tiller will illuminate or flash when the feature is activated.
Horn Button #1
Lights Switch
High/Low Headlight Button
Forward/Reverse Button
Turn Signal Switch
Horn Button #2
Speed Selector Switch
7
Charging Instructions:
The smart charger included with your scooter will shut off its high current
mode when the scooter is fully charged. When the light on the charger is red,
the scooter is still charging. When the light turns green, this means the scooter
is fully charged. Once fully charged, unplug within two hours to avoid
overcharging.
The charging time varies depending on how charged the batteries are. If almost
empty, the charge time may take up to 8 hours. If the red light stays on for
more than 8 hours, unplug the charger. Do not exceed 8 hours charge time.
Batteries and Battery Maintenance:
Only use the recommend batteries for your scooter. Do not use lithium ion
batteries. The batteries can be charged as needed without causing damage.
You can wait until low, or charge right after a short ride. Avoid leaving on the
charger for an extended period to avoid potential damage.
Specification of the battery that we recommend:
Type: (4) 12 volt, 20 AH, Deep Cycle, Maintenance Free, Sealed Lead Acid
8
Note:
-Do not use automotive starter batteries. They are not designed to handle
long deep discharge and are unsafe for use in your scooter.
-The useful life of a battery is quite often a reflection of the care it
receives.
-Always charge the batteries in a well-ventilated area.
-The charger is intended for indoor use only.
-Replace all batteries at the same time if weak.
-Recharge the scooter at least once every month when not in use to avoid
deterioration of the batteries.
Ramps and Curbs:
1. Check that the ramp surface is roughened to prevent slipping. Never drive
across a slope or turn sharply on a slope.
2. When driving up curbs, always check the height of the curb to ensure that
it does not exceed 4” height.
3. Always go forward up ramps and curbs.
4. Avoid stopping completely when going over small objects or obstructions.
9
General:
1. Always keep your feet on the scooter while riding.
2. Do not exceed the weight capacity of 400 LBS.
3. Do not attempt to lift or move the scooter by any of its removable parts.
Personal injury and damage to the scooter may result.
4. Never try to use your scooter beyond its limitations as described in the
manual.
5. Do not connect any electrical or mechanical device to the scooter. Failure
to obey this instruction may result in injury and will void the warranty.
6. Always comply with local laws and regulations.
Use While Under the Influence of Medication or Alcohol:
1. Check with your physician if you are taking any medication that may
affect your ability to operate your scooter safely.
2. Do not operate your scooter while you are under the influence of alcohol
as this may impair your ability to operate your scooter in a safe manner.
