SERVICE ------------------------------------------------------------------------ 2

LABEL PLACEMENT --------------------------------------------------------- 3

PRODUCT SAFETY ---------------------------------------------------------- 4

OVERVIEW DRAWING ------------------------------------------------------ 5

PARTS LIST --------------------------------------------------------------------- 6

HARDWARE & TOOLS PACK ---------------------------------------------- 8

ASSEMBLY ---------------------------------------------------------------------- 9

COMPUTER ---------------------------------------------------------------------20

ADJUSTMENTS ----------------------------------------------------------------28

TROUBLE SHOOTING & MAINTENANCE ----------------------------- 29

WARRANTY -------------------------------------------------------------------- 30

PARTS REQUEST FORM --------------------------------------------------- 31

TABLEOFCONTENTS

IMPORTANT: FOR NORTH AMERICA ONLY

For damage or defective product, questions, replacement parts

or any other service support, please contact our customer

service department (8:00 AM - 5:00 PM Pacific Standard Time,

Daily) by below methods:

For Best Service Email:

Service@paradigmhw.com

Website:

www.paradigmhw.com

Toll-Free:

1-844-641-7921

Please have the following information ready when requesting for service:

Your name

Phone number

Model number

Serial number

Part number

Proof of Purchase

For damaged or defective product please contact our customer

service before returning to the store.

* Emailing us with the information above will be the best method

to receive a response during peak business hours.

**Response time may vary.

Paradigm Health & Wellness, Inc.

1189 Jellick Ave.

City of Industry, CA 91748, USA

SERVICE

1115

For customer assistance call:

1-844-641-7921

8 am - 5 pm PST

Daily

Pour le service a la clientèle

composer le:

1-844-641-7921

Tous les jours

8:00 h - 17 h (HNP)

AVERTISSEMENT

Maximum weight capacity is 325 lbs.

Le poids maximum pout ce produit

est 148 kgs.

ALL NEW MATERIAL

CONSISTING OF

POLYURETHANE FOAM PAD_100%

manufacturer that the materials

in this article are described in

accordance with law.

Paradigm Health and Wellness, Inc.

1189 Jellick Ave.

City of Industry, CA 91748 USA

REGISTRY NO.

VA25302 (CN)

Under Penalty of law this tag not to

be removed except by the consumer

NOTICE

This article does not meet

ments of California Bureau of

Home Furnishings technical

bulletin. 117 Care should be

with burning cigarettes.

SOUS PEINE DE SANCTION LÉGALE,

CETTE ÉTIQUETTE NE PEUT ÊTRE

ENLEVÉE PAR UNE PERSONNE AUTRE

QUE LE CONSOMMATEUR

ENTIÈREMENT FABRIQUÉ DE

MATÉRIAUX NEUFS

REMBOURRAGE DE MOUSSE DE

POLYURÉTHANE 100%

NO D’ENREGISTREMENT

VA25302 (CN)

Cette étiquette est apposée

Conformément aux lois Canadiennes.

Paradigm Health and Wellness, Inc.

1189 Jellick Ave.

City of Industry, CA 91748 USA

Ce produit ne satisfait pas

devis technique duCalifor-

nia Bureau of Home

Furnishings. Ne pas utiliser

près d’une source de

nue (cigarettes, etc.)

AVIS

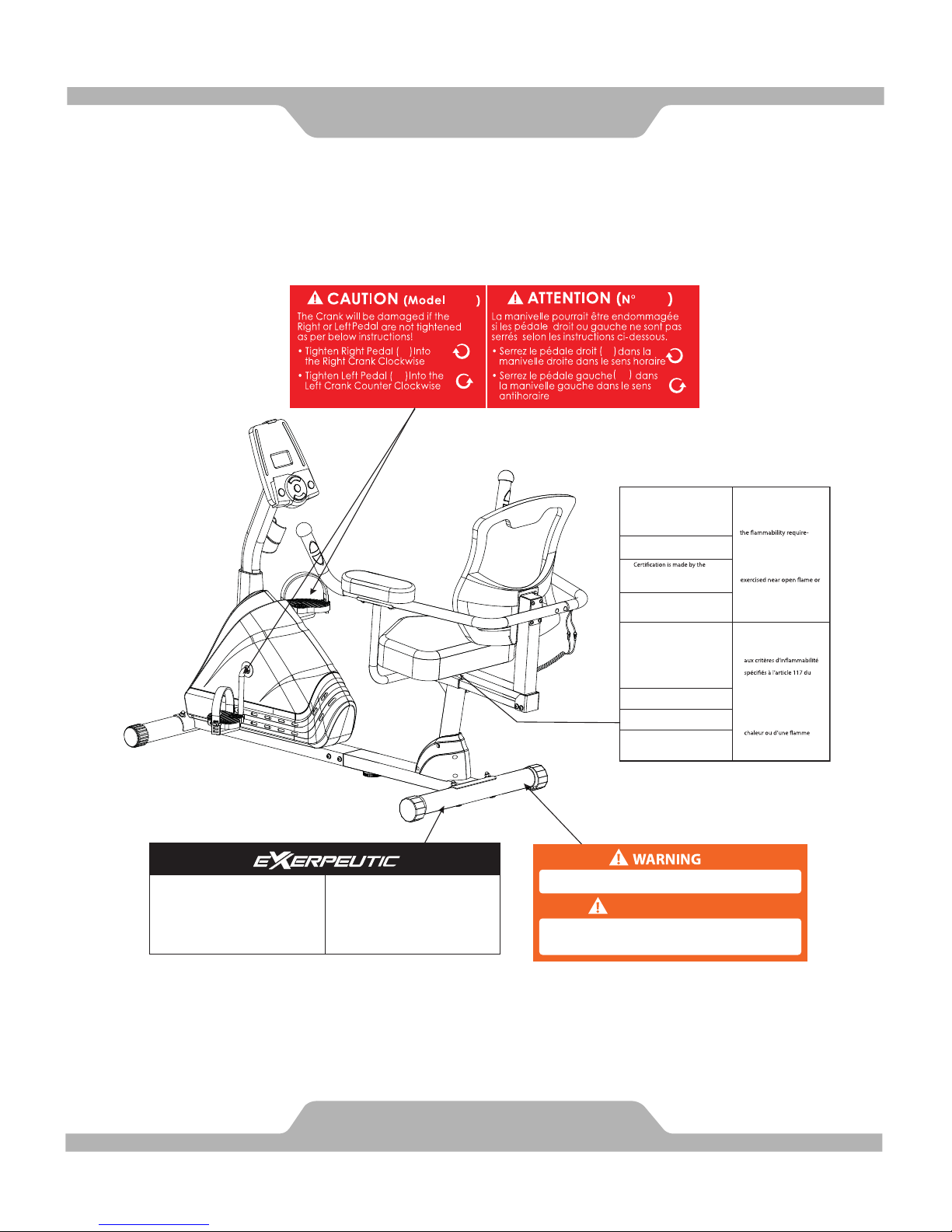

LABELPLACEMENT

Basic precautions should always be followed when using this equipment.

Read all instructions before using this equipment which include the

following safety instructions:

1. Read all the instructions in this manual and do warm up exercises

before using this equipment.

2. Before exercising, and in order to avoid injuring your muscles, it is

recommended that you perform warm-up exercises for every muscle

group.

3. Make sure all the components are not damaged and tightened well

before use. This equipment should be placed on a flat surface when

using. Using a mat or other covering material on the ground is

recommended.

4. Wear proper clothes and shoes when using this equipment; do not

wear clothes that might get caught by any part of the equipment;

remember to tighten the pedaling straps.

5. Do not attempt any maintenance or adjustments other than those

described in this manual. Should any problems arise, discontinue use

and consult customer service.

6. Do not use or leave the equipment outdoors.

7. This equipment is for household use only.

8. Only one person should be on the equipment while in use.

9. Keep children and pets away from the equipment while in use. This

machine is designed for adults only. This product requires a minimum

of 6 square feet of space for safe operation.

10. If you feel any chest pains, nausea, dizziness, or shortness of breath,

you should stop exercising immediately and consult your physician

before continuing.

11. The maximum weight capacity for this product is 325 lbs/148 kgs.

WARNING:Before beginning any exercise program consult

your physician. This is especially important for the people who are over

35 years old or who have pre-existing health problems. Read all

instructions before using any fitness equipment.

CAUTION:Read all instructions carefully before operating this product.

Retain this Owner’s Manual for future reference.

PRODUCTSAFETY

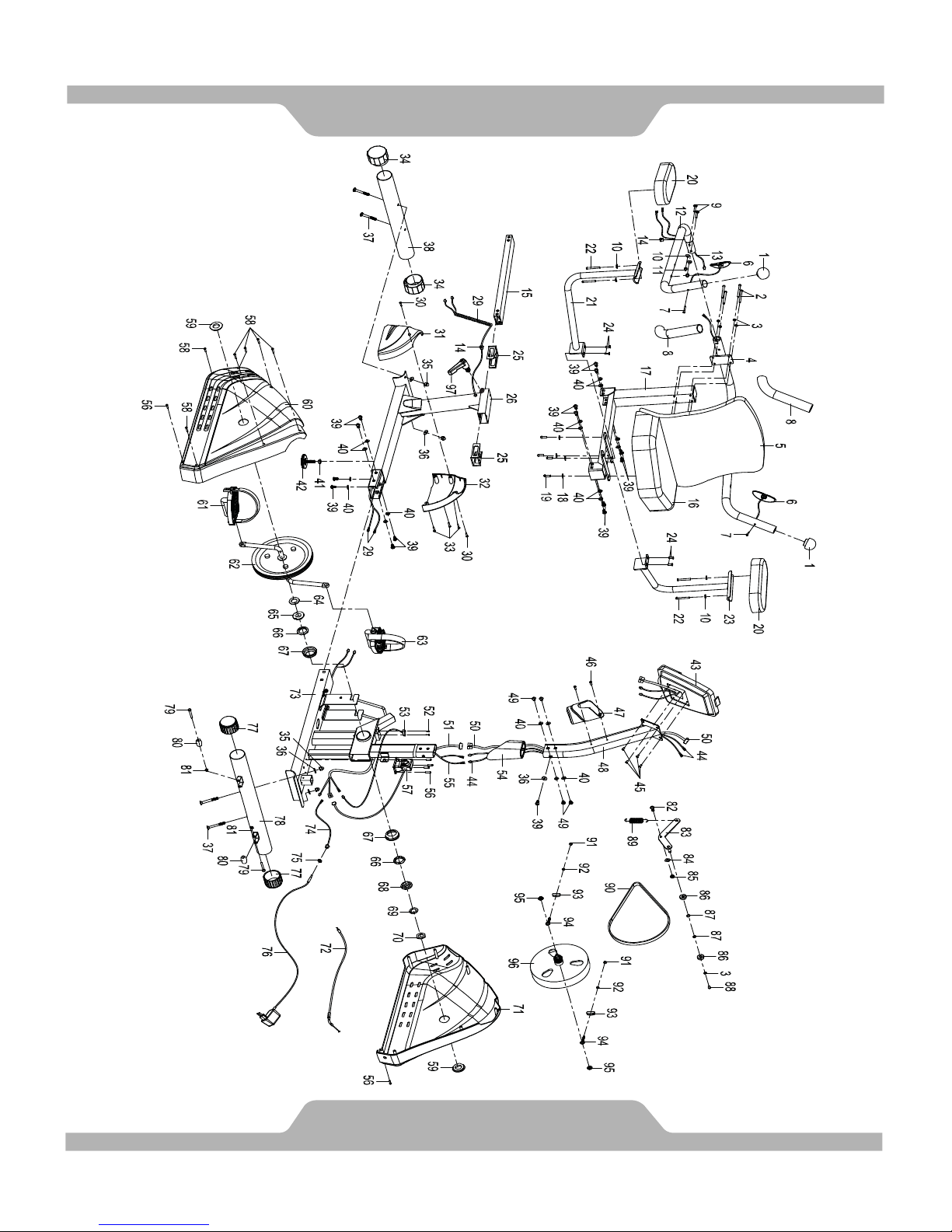

OVERVIEWDRAWING

No. Description Qty No. Description Qty

001 Handrail End Cap Ø32x1.5 2 025 Bushing 2

002 Bolt M6x70 4 026 Rear Main Frame 1

003 Washer Ø6xØ12x1.0 5 029

Extension Hand Pulse Sensor

Wire I L=1300 mm 1

004 Left Handrail Ø32x1.5x1085 1 030 Phillips Self Tapping Screw

ST4.8x20 2

005 Backrest 465x465x135 1 031 Right Decorate Cover Ø60 1

006 Hand Pulse Sensor with Wire

L=1150 mm 2 032 Left Decorate Cover Ø60 1

007 Screw ST4.2x30 2 033 Screw ST4.8x25 3

008 Handrail Foam Grip Ø31xØ37x230 2 034 Rear Stabilizer End Cap Ø60 2

009 Bolt M6x35 2 035 Cap Nut M8 4

010 Big Curve Washer Ø6xØ16x1.5 6 036 Big Curve Washer Ø8xØ20x2.0 5

011 Cap Nut M6 2 037 Bolt M8x70 4

012 Right Handrail Ø32x1.5x929 1 038 Rear Stabilizer Ø60x1.5x580 1

013 Extension Hand Pulse Sensor Wire

L=200 mm 1 039 Bolt M8x15 15

014 Wire Grommet Ø12.1 2 040 Washer Ø8xØ16x1.5 18

015 Seat Sliding Tube 53x23x2 1 041 Hexagon Nut M10xH5 1

016 Seat 430x330x90 1 042 Adjustable Leveler M10 1

017 Back and Seat Support Bracket

53x23x2 1 043 Computer M7-570 1

018 Big Washer Ø6xØ18x1.5 4 044 Extension Hand Pulse Sensor

Wire III L=650 mm 2

019 Bolt M6x20 4 045 Bolt M5x10 4

020 Armrest 250x110x45 2 046 Bolt M5x15 2

021 Right Handrail Support Tube

Ø25x1.5 1 047 Bottle Holder 1

022 Bolt M6x50 4 048 Front Post 70x30x1.5 1

023 Left Handrail Support Tube

Ø25x1.5 1 049 Bolt M8x10 4

024 Bolt M6x15 4 050 Extension Sensor Wire I

L=600 mm 1

PARTSLIST

No. Description Qty No. Description Qty

051 Extension Sensor Wire L=600 mm 1 075 Hexagon Nut 1/2” 1

052 Screw ST2.9x12 2 076 Adapter L=2000 mm 1

053 Sensor with Wire L=300 mm 1 077 Front Stabilizer End Cap Ø60 2

054 Front Post Cover 1 078 Front Stabilizer Ø60x1.5x580 1

055 Extension Hand Pulse Sensor

Wire II L=1200 mm 1 079 Bolt M6x45 2

056 Phillips Self Tapping Screw

ST4.2x20 6 080 Transport Wheel Ø23xØ6x32 2

057 DC Motor with Wire L=300 mm 1 081 Nylon Nut M6 2

058 Screw ST4.2x25 6 082 Bolt M8x20 1

059 Cover Cap Ø40xØ25x10 2 083 Idler Arm 1

060 Right Cover 672x79x448 1 084 Big Washer Ø8xØ20x2 1

061 Right Foot Pedal (YH-63X) 1 085 Nylon Nut M8 1

062 Crank with Belt Pulley Ø240 1 086 Bearing 6000-2Z 2

063 Left Foot Pedal (YH-63X) 1 087 Washer Ø10xØ14x1.0 2

064 Washer Ø24xØ40x3.0 1 088 Bolt M6x10 1

065 Bearing Nut I 15/16" 1 089 Spring Ø17x80xØ2.5 1

066 Ball Bearing 2 090 Belt PJ360 J6 1

067 Bearing Cup 2 091 Nut M6 2

068 Bearing Nut II 7/8" 1 092 Spring Washer Ø6 2

069 Washer Ø23xØ34.5x2.5 1 093 Tension Bracket 2

070 Hexagon Nut 7/8” 1 094 Adjustable Bolt M6x36 2

071 Left Cover 672x83x448 1 095 Nut M10x1.0x6 2

072 Magnetic Brake Cable L=280 mm 1 096 Flywheel Ø230 1

073 Front Main Frame 80x40x2 1 097 L Shape Knob M6x1.5 1

074 Power Supply Cable L=300 mm 1

PARTSLIST

HARDWARE&TOOLSPACK
