LAZERZ®PROPANE

SetupInstructions

ForSerialNos.314,000,000&Higher

WARNING

CALIFORNIA

Proposition65Warning

ThisproductcontainsachemicalorchemicalsknowntotheStateofCaliforniato

causecancer,birthdefects,orreproductiveharm.

TheengineexhaustfromthisproductcontainschemicalsknowntotheStateofCalifornia

tocausecancer,birthdefects,orotherreproductiveharm.

LooseParts

Usethechartbelowtoverifythatallpartshavebeenshipped.Partnumbersnotshownareavailableonthedealer

extranet.

DealerPack

Part#DescriptionQty.Use

325-13Screw,HH1/2-13x31/41

99-5107Nut,Lock1/2-131

RaisetheRolloverProtectionSystem

(ROPS)

103-2106Key,ExmarkLogo1

1-603511Key,Standard1

Fillouttheonlinewarrantyregistration

formandplacekeysintoliterature

pack.

LiteraturePack

Manual,Operator's

Manual,EngineOperator's

P .O.Box808

Beatrice,NE68310

PartNo.4501-812Rev.A

PrintedintheUSA.

AllRightsReserved*4501-812*A

RaisetheRolloverProtection

System(ROPS)

1.Pulltheknobandrotate90°totheunlatched

position(seeFigure1).

Figure1

1.Rollbarupperhoop

2.Knobin“latched”position

3.Pullknobtounlatch

4.Rotate90°toholdunlatched

5.Knobin“unlatched”position

2.Raiseandholdtheupperhoopoftherollbarinthe

uprightposition.

3.Tolocktherollbarintheraised,operateposition,

rotatetheknobs90°sothatthetabsinterlock

partially.Applyforwardpressuretotherollbarhoop

andobservethattheknobsreturntothecompletely

latchedpositionasshowninFigure1.

4.TopreventtheROPSbarfromdamagingtheLPG

fueltank,insertthe1/2–13x31/4inchscrew

throughthebracketholebelowandbehindtheRH

ROPSpivot.Installthelocknutandtightensecurely.

InstallingLPGFuelTank

1.RemoveLPGfueltankfromthefrontofthemower.

2.Havethetanklledbytrainedandqualied

personnel.

CAUTION

Undernocircumstancesshouldpropanetanks

lledbeyond80%capacitybeusedinservice.

Theuseofoverlledtanksmayresultinthe

releaseofhighlyconcentratedandextremely

ammableliquidpropane.RefertotheSafety

section.

3.Cutthetiessecuringthetankbrackets,andmove

themoutoftheway.

4.Alignthecenterholeoverthemountingpinthat

pointsstraightuponthemowerasshowninFigure2.

Figure2

1.Tankcollar3.Centerhole

2.Mountingpin

Important:Valvesandgaugesmaynotfunction

properlyiftheLPGtankisnotinstalledcorrectly.

5.Latchthebracketsandmakesurethetankissecurely

fastenedtothemower.

6.Carefullyconnectthefuelhose.Makesurethehose

isnotkinked.

7.Slowlyopenthefuelvalvetoequalizethepressurein

thetank.Ifthefuelvalveisopenedtooquickly,the

pressurereliefvalveisequippedwithabackpressure

checkvalvethatwillshutoffthefuelsupply.Ifthis

happens,closethefuelvalvecompletelyandwaitve

seconds.Slowlyopenthefuelvalve.

8.CheckforleaksasdescribedintheSafetysection

oftheOperator'smanual.

CheckingTirePressure

1.Checkthetirepressureinthedrivetires.Proper

inationfordrivetiresis13psi(90kPa).

2.Adjustifnecessary.

ServicingtheBattery

WARNING

CALIFORNIA

Proposition65Warning

Batteryposts,terminals,andrelated

accessoriescontainleadandleadcompounds,

chemicalsknowntotheStateofCalifornia

tocausecancerandreproductiveharm.

Washhandsafterhandling.

Note:Themachineisshippedwithalledleadacid

battery.

DANGER

Chargingorjumpstartingthebatterymayproduce

explosivegases.Batterygasescanexplodecausing

seriousinjury.

•Keepsparks,ames,orcigarettesawayfrom

battery.

•Ventilatewhenchargingorusingbatteryinan

enclosedspace.

•Makesureventingpathofbatteryisalwaysopen

oncebatteryislledwithacid.

•Alwaysshieldeyesandfacefrombattery.

DANGER

Batteryelectrolytecontainssulfuricacid,whichis

poisonousandcancausesevereburns.Swallowing

electrolytecanbefatalorifittouchesskincan

causesevereburns.

•Wearsafetyglassestoshieldeyes,andrubber

glovestoprotectskinandclothingwhen

handlingelectrolyte.

•DoNotswallowelectrolyte.

•Intheeventofanaccident,ushwithwaterand

calladoctorimmediately.

1.Checkthevoltageofthebatterywithadigital

voltmeter.Locatethevoltagereadingofthebattery

inthetablebelowandchargethebatteryforthe

recommendedtimeintervaltobringthechargeup

toafullchargeof12.6voltsorgreater.

Important:Makesurethenegativebattery

cableisdisconnectedandthebatterycharger

usedforchargingthebatteryhasanoutputof

16voltsand7ampsorlesstoavoiddamaging

thebattery(seechartforrecommendedcharger

settings).

Voltage

Reading

Percent

Charge

Maximum

Charger

Settings

Charging

Interval

12.6or

greater

100%16volts/7

amps

NoCharging

Required

12.4–12.675–100%16volts/7

amps

30Minutes

12.2–12.450–75%16volts/7

amps

1Hour

12.0–12.225–50%14.4volts/4

amps

2Hours

11.7–12.00–25%14.4volts/4

amps

3Hours

11.7orless0%14.4volts/2

amps

6Hoursor

CAUTION

Iftheignitionisinthe“ON”positionthere

ispotentialforsparksandengagementof

components.Sparkscouldcauseanexplosionor

movingpartscouldaccidentallyengagecausing

personalinjury.

Besureignitionswitchisinthe“OFF”position

beforechargingthebattery.

2.Connectthenegativebatterycable.

Note:Ifthepositivecableisalsodisconnected,

connectthepositive(red)cabletothepositive

batteryterminalrst,thenthenegative(black)cable

tothenegativebatteryterminal.Slipinsulatorboot

overthepositiveterminal.

Note:Iftimedoesnotpermitchargingthebattery,

orifchargingequipmentisnotavailable,connect

thenegativebatterycablesandrunthevehicle

continuouslyfor20to30minutestosufciently

chargethebattery.

PositioningtheDischargeChute

Loosenthetwo3/8inchnylocnutsattachingthe

dischargechute.Lowerthedischargechuteinto

position.Retightenthenylocnutsuntilthechuteissnug

butcanpivotfreely.

ServicingtheEngine

Theengineisshippedwithoil;checkoillevelandif

necessarylltotheappropriatelevel.Exmark4-Cycle

PremiumEngineOilisrecommended.Refertothe

EngineOwner’sManualforanacceptablealternative.

ServicingtheHydraulicOil

Themachineisshippedlledwithhydraulicoilinthe

reservoirs.

1.Checkhydraulicreservoirsandifnecessarylltothe

appropriatelevelwithExmarkPremiumHydroOil.

2.Adjusttheseattothemostforwardpositionto

accessthecapsontheLHandRHhydrodrives.

3.Removethecap,wipethedipstickclean,andre-insert

thecapbackintothehydro.Looselytightenthecap.

4.Removethecapagainandchecktheleveloftheoil

onthedipstick.SeeFigure3foroillevels.

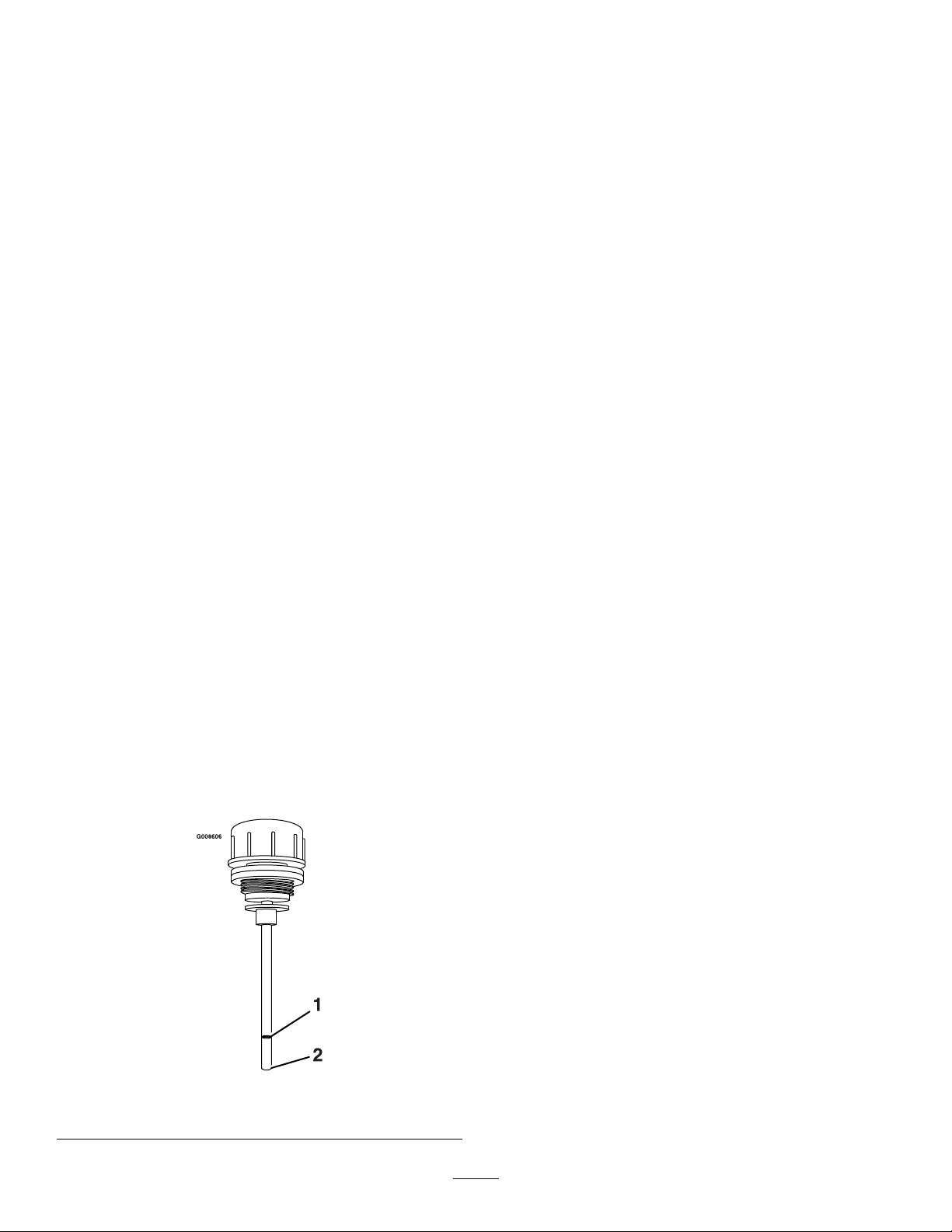

Figure3

1.Full2.Add

Note:Theoillevelonthedipstickwillbeincorrect

iftheoilischeckedwhentheunitishot.

5.Ifthedipstickoillevelisatthe“add”markadd

ExmarkPremiumHydrooil.

6.Replacehydraulicreservoircapandtightenuntil

snug.DoNotovertighten.

FillingOuttheProduct

Registration

Fillouttheonlinewarrantyregistrationformandplace

keysintoliteraturepack.
