Extech Instruments EX320 Manuale utente

User's Guide

Mini Multimeter

with Non-Contact Voltage Detector (NCV)

Model EX320

Model EX320 - Version 4.0 –05/20062

Introduction

Congratulations on your purchase of the Extech 320 MultiMeter. The EX320 offers AC/DC

Voltage, AC/DC Current, Resistance, Diode, and Continuity testing plus a built-in non-contact

Voltage Detector. Proper use and care of this meter will provide many years of reliable

service.

Safety

This symbol adjacent to another symbol, terminal or operating device

indicates that the operator must refer to an explanation in the Operating

Instructions to avoid personal injury or damage to the meter.

This WARNING symbol indicates a potentially hazardous situation, which

if not avoided, could result in death or serious injury.

This CAUTION symbol indicates a potentially hazardous situation, which

if not avoided, may result damage to the product.

This symbol advises the user that the terminal(s) so marked must not be

connected to a circuit point at which the voltage with respect to earth

ground exceeds 600V.

This symbol adjacent to one or more terminals identifies them as being

associated with ranges that may, in normal use, be subjected to

particularly hazardous voltages. For maximum safety, the meter and its

test leads should not be handled when these terminals are energized.

This symbol indicates that a device is protected throughout by double

insulation or reinforced insulation.

SAFETY INSTRUCTIONS

This meter has been designed for safe use, but must be operated with caution. The rules

listed below must be carefully followed for safe operation.

1. NEVER apply voltage or current to the meter that exceeds the specified maximum:

Input Protection Limits

Function Maximum Input

V DC or V AC 600V AC and DC

mA AC/DC 200mA DC/AC

A AC/DC 10A DC/AC (for 30 seconds max. every 15 minutes

Resistance, Diode Test, Continuity 250V DC/AC

2. USE EXTREME CAUTION when working with high voltages.

3. DO NOT measure voltage if the voltage on the "COM" input jack exceeds 600V above earth ground.

4. NEVER connect the meter leads across a voltage source while the function switch is in the current,

resistance, or diode mode. Doing so can damage the meter.

5. ALWAYS discharge filter capacitors in power supplies and disconnect the power when making resistance

or diode tests.

6. ALWAYS turn off power and disconnect test leads before opening the covers to replace the fuse or battery.

7. NEVER operate the meter unless the back cover and the battery and fuse covers are in place and fastened

securely.

8. If the equipment is used in a manner not specified by the manufacturer, the protection provided by the

equipment may be impaired.

WARNING

CAUTION

MAX

600V

Model EX320 - Version 4.0 –05/20063

Controls and Jacks

1. AC Voltage Detector Sensor

2. AC Voltage Detector indicator light

3. LCD display

4. MAX push-button

5. MODE button

6. Non-contact AC Voltage Detector test

button

7. Rotary function dial

8. 10 ampere test lead jack

9. COM test lead jack

10. Test lead jack for voltage, milli-amp, micro-

amp, & resistance functions

11. RANGE button

12. HOLD button

13. Protective rubber holster (must be

removed to access the rear battery

compartment)

Display Symbols and Annunciators

•))) Continuity

Diode test

Battery status

µ micro (10-6) (amps)

m milli (10-3) (volts, amps)

k kilo (103) (ohms)

M mega (106) (ohms)

V Volts

A Amps

Ω Ohms

AC Alternating current

DC Direct current

HOLD Display hold

AUTO Autoranging

MAX Highest reading

C, F Temperature units

10A

for

30 sec.

MAX

every

15 min.

FUSED

Model EX320 - Version 4.0 –05/20064

Operating Instructions

WARNING: Risk of electrocution. High-voltage circuits, both AC and DC, are very

dangerous and should be measured with great care.

1. ALWAYS turn the function switch to the OFF position when the meter is not in use.

2. Press the HOLD button to freeze a displayed reading

NOTE: On some low AC and DC voltage ranges, with the test leads not connected to a

device, the display may show a random, changing reading. This is normal and is caused

by the high-input sensitivity. The reading will stabilize and give a proper measurement

when connected to a circuit.

NON-CONTACT AC VOLTAGE DETECTOR

The EX320 can detect the presence of AC voltage (from 100 to 600VAC) simply by being

held very near to a voltage source.

WARNING: Test the AC voltage detector on a known live circuit before each use.

WARNING: Before using the meter in the AC Voltage Detector mode, verify that the battery

is fresh by confirming characters appear on the LCD when the function dial is turned to any

position. Do not attempt to use the meter as an AC Voltage Detector if the battery is weak

or bad.

NON-CONTACT VOLTAGE (NCV)

The NCV function works on any rotary switch position.

1. Test the detector on a known live circuit before use.

2. Press and hold the NCV button for the duration of the test.

The meter will beep once when the button is pushed.

3. Hold the top of the meter very close to the voltage source

as shown.

4. If voltage is present, the rim of the LCD display will flash a

bright orange and an audible warning will sound.

Model EX320 - Version 4.0 –05/20065

AC VOLTAGE MEASUREMENTS

WARNING: Risk of Electrocution. The probe tips may

not be long enough to contact the live parts inside

some 240V outlets for appliances because the contacts

are recessed deep in the outlets. As a result, the

reading may show 0 volts when the outlet actually has

voltage on it. Make sure the probe tips are touching the

metal contacts inside the outlet before assuming that

no voltage is present.

CAUTION: Do not measure AC voltages if a motor on

the circuit is being switched ON or OFF. Large voltage

surges may occur that can damage the meter.

1. Set the function switch to the VAC position.

2. Insert the black test lead banana plug into the

negative COM jack. Insert the red test lead

banana plug into the positive Vjack.

3. Touch the black test probe tip to the neutral

side of the circuit.

4. Touch the red test probe tip to the “hot” side of

circuit.

5. Read the voltage in the display.

DC VOLTAGE MEASUREMENTS

CAUTION: Do not measure DC voltages if a motor on the circuit is being switched ON or

OFF. Large voltage surges may occur that can damage the meter.

1. Set the function switch to the VDC position.

2. Insert the black test lead banana plug into the

negative COM jack. Insert the red test lead

banana plug into the positive Vjack.

3. Touch the black test probe tip to the negative

side of the circuit. Touch the red test probe tip to

the positive side of the circuit.

4. Read the voltage in the display.

Model EX320 - Version 4.0 –05/20066

AC / DC CURRENT MEASUREMENTS

CAUTION: Do not make current measurements at 10 Amps for longer than 30 seconds.

Exceeding 30 seconds may cause damage to the meter and/or the test leads.

1. Insert the black test lead banana plug into the negative COM jack.

2. For current measurements up to 2000µA, set the function switch to the µA position

and insert the red test lead banana plug into the mA/µA jack

3. For current measurements up to 200mA, set the function switch to the mA position

and insert the red test lead banana plug into the mA/µA jack.

4. For current measurements up to 10A, set the function switch to the 10A range and

insert the red test lead banana plug into the 10A jack.

5. Use the MODE button to select AC or DC current.

6. Remove power from the circuit under test, then open up the circuit at the point

where you wish to measure current.

7. Touch the black test probe tip to the negative side of the circuit. Touch the red test

probe tip to the positive side of the circuit.

8. Apply power to the circuit.

9. Read the current in the display.

Model EX320 - Version 4.0 –05/20067

RESISTANCE MEASUREMENTS

WARNING: To avoid electric shock, disconnect power

to the unit under test and discharge all capacitors

before taking any resistance measurements. Remove

the batteries and unplug the line cords.

1. Set the function switch to the Ω position.

2. Insert the black test lead banana plug into the

negative COM jack. Insert the red test lead

banana plug into the positive Ωjack.

3. Touch the test probe tips across the circuit or

component under test. It is best to disconnect

one side of the circuit under test so the rest of

the circuit will not interfere with the resistance

reading.

4. Read the resistance in the display.

CONTINUITY CHECK

WARNING: To avoid electric shock, never measure continuity on circuits or wires that

have voltage on them.

1. Set the function switch to the

position.

2. Insert the black lead banana plug into the

negative COM jack.

3. Insert the red test lead banana plug into

the positive jack.

4. Use the MODE button to view the icon

on the display.

5. Touch the test probe tips to the circuit or

wire under test.

6. If the resistance is less than

approximately 100Ω, the audible signal

will sound. If the circuit is ‘open’ (bad), the

display will indicate “OL”.

Model EX320 - Version 4.0 –05/20068

DIODE TEST

1. Set the function switch to the position.

2. Insert the black test lead banana plug into the

negative COM jack and the red test lead

banana plug into the positive jack.

3. Use the MODE button to view the icon on

the display.

4. Touch the test probes to the diode under test.

Forward voltage will typically indicate 0.400 to

0.700V. Reverse voltage will indicate “OL”.

Shorted devices will indicate near 0V and an

open device will indicate “OL” in both polarities.

AUTO-MANUAL RANGE SELECTION

When the meter is first turned on, it automatically goes into the Auto Range mode. This

automatically selects the best range for the measurements being made and is generally

the best mode for most measurements. For measurement situations requiring that a range

be manually selected, perform the following:

1. Press the RANGE key. The AUTO display indicator will turn off.

2. Press RANGE to step through the available ranges until the desired range is

selected.

3. To exit the Manual Ranging mode and return to Auto Range mode, press and hold

the RANGE key for 2 seconds.

MAX MODE

Press the MAX button (the MAX icon will appear on the LCD). The meter will now only

display the highest reading during a test. Each time a higher reading is encountered, the

display will update. Press the MAX button again to exit this mode.

Model EX320 - Version 4.0 –05/20069

Maintenance

WARNING: To avoid electric shock, disconnect the test leads from any source of voltage

before removing the back cover or the battery or fuse covers.

WARNING: To avoid electric shock, do not operate your meter until the battery and fuse

covers are in place and fastened securely.

This MultiMeter is designed to provide years of dependable service, if the following care

instructions are performed:

1. KEEP THE METER DRY. If it gets wet, dry it immediately.

2. USE AND STORE THE METER IN NORMAL TEMPERATURES. Temperature

extremes can shorten the life of the electronic parts and distort or melt plastic parts.

3. HANDLE THE METER GENTLY AND CAREFULLY. Dropping it can damage the

electronic parts or the case.

4. KEEP THE METER CLEAN. Wipe the case occasionally with a damp cloth. DO

NOT use chemicals, cleaning solvents, or detergents.

5. USE ONLY FRESH BATTERIES OF THE RECOMMENDED SIZE AND TYPE.

Remove old or weak batteries so they do not leak and damage the unit.

6. IF THE METER IS TO BE STORED FOR A LONG PERIOD OF TIME, the battery

should be removed to prevent damage to the unit.

UL LISTED

The UL mark does not indicate that this product has been evaluated for its accuracy.

AUTO POWER OFF

The meter will automatically turn off after 15 minutes of inactivity. This will conserve battery

energy. To turn the meter on after an Auto Power OFF, simply turn the rotary switch to OFF

and then back to the desired setting.

Model EX320 - Version 4.0 –05/200610

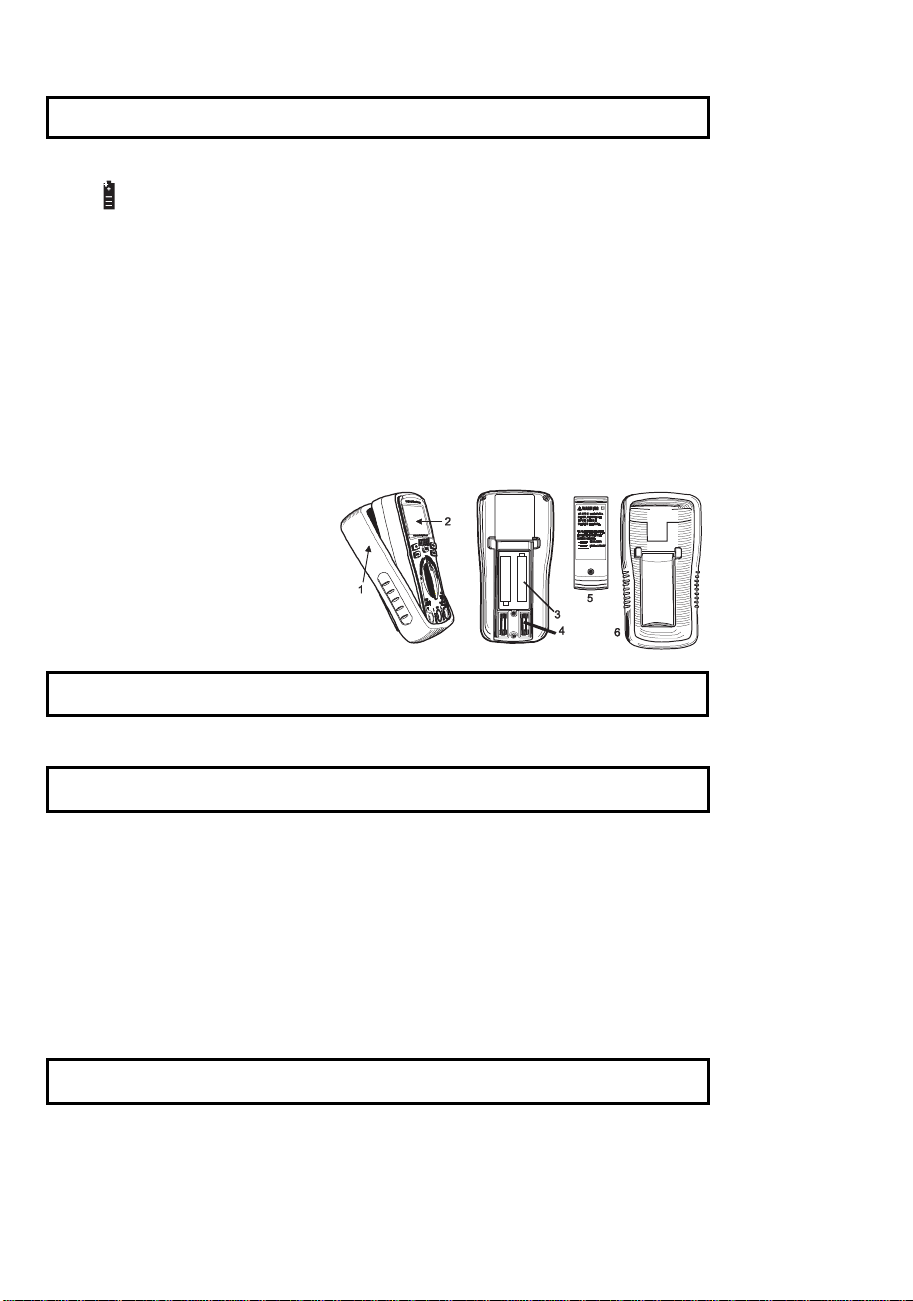

BATTERY INSTALLATION and LOW BATTERY INDICATION

WARNING: To avoid electric shock, disconnect the test leads from any source of voltage

before removing the battery cover.

LOW BATTERY INDICATION

The icon will appear in the lower left-hand corner of the display when the battery

voltage becomes low. Replace the batteries when this appears.

BATTERY REPLACEMENT

1. Disconnect the test leads from the meter.

2. Remove the protective rubber holster. See diagram.

3. Remove the Phillips head screw located on the lower back of the instrument.

4. Flip up the fuse/battery compartment cover to access the batteries. See diagram.

5. Gently remove batteries and install two new 1.5V ‘AAA’ batteries observing polarity.

6. Secure the fuse/battery compartment cover.

7. Place the protective rubber holster on the meter.

1. Removable Rubber Holster

2. Meter

3. Battery

4. Fuses

5. Compartment Cover

6. Rubber Holster

WARNING: To avoid electric shock, do not operate the meter until the battery is in place

and fastened securely.

REPLACING THE FUSES

WARNING: To avoid electric shock, disconnect the test leads from any source of voltage

before removing the fuse cover.

1. Disconnect the test leads from the meter.

2. Remove the protective rubber holster.

3. Remove the Phillips head screw located on the lower back of the instrument.

4. Flip up the fuse/battery compartment cover to access the fuses.

5. Gently remove the fuse(s) and install new fuse(s) into the holder(s).

6. Always use fuses of the proper size and value (200mA/250V fast blow for the mA /

µA ranges, 10A/250V fast blow for the A range).

7. Secure the fuse/battery compartment cover.

8. Place the protective rubber holster on the meter.

WARNING: To avoid electric shock, do not operate your meter until the fuse cover is in

place and fastened securely.

Altri manuali per EX320

Indice

Altri manuali Extech Instruments Multimetro

Extech Instruments

Extech Instruments SD750 Manuale utente

Extech Instruments

Extech Instruments MiniTec Series Manuale utente

Extech Instruments

Extech Instruments EX205T Manuale utente

Extech Instruments

Extech Instruments EX503 Manuale utente

Extech Instruments

Extech Instruments 45170 Manuale utente

Extech Instruments

Extech Instruments MultiTec MT310 Manuale utente

Extech Instruments

Extech Instruments MultiMaster MM560 Manuale utente

Extech Instruments

Extech Instruments 450 Manuale utente

Extech Instruments

Extech Instruments Extech 470 Manuale utente

Extech Instruments

Extech Instruments EX420A Manuale utente

Extech Instruments

Extech Instruments 38387 Manuale utente

Extech Instruments

Extech Instruments 380947 Manuale utente

Extech Instruments

Extech Instruments 381676 Manuale utente

Extech Instruments

Extech Instruments 38390 Manuale utente

Extech Instruments

Extech Instruments 407910 Manuale utente

Extech Instruments

Extech Instruments EX411A Manuale utente

Extech Instruments

Extech Instruments EX520-S Manuale utente

Extech Instruments

Extech Instruments MiniAmp Series Manuale utente

Extech Instruments

Extech Instruments EX430-NIST Manuale utente

Extech Instruments

Extech Instruments MA220 Manuale utente

Extech Instruments

Extech Instruments EX503 Manuale utente

Extech Instruments

Extech Instruments 430 Manuale utente

Extech Instruments

Extech Instruments MP510A Manuale utente

Extech Instruments

Extech Instruments SDL900 Manuale utente

Manuali Multimetro popolari di altre marche

Agilent Technologies

Agilent Technologies 34420A Manuale utente

Fluke

Fluke 83 Manuale utente

Hameg

Hameg HM 8012 Manuale utente

Mastech

Mastech MY70 Manuale utente

Steren

Steren MUL-300 Manuale utente

Somogyi Elektronic

Somogyi Elektronic home SMA 92 Manuale utente

Gossen MetraWatt

Gossen MetraWatt METRAmax 6 Manuale utente

PeakTech

PeakTech 4000 Manuale per l'uso e la cura

YOKOGAWA

YOKOGAWA 90050B Manuale utente

Gossen MetraWatt

Gossen MetraWatt METRALINE DMM16 Manuale utente

Fluke

Fluke 8846A Manuale operativo e di manutenzione

Tempo Communications

Tempo Communications MM200 Manuale utente

Elenco Electronics

Elenco Electronics CM-1555 Manuale utente

Mastech

Mastech MS8238C Manuale utente

SDAR

SDAR 830A, 830B, 830D, 830C Manuale utente

RS PRO

RS PRO RS-9519BT Manuale utente

BGS technic

BGS technic 8890 Manuale utente

Amprobe

Amprobe Hexagon 60 Manuale utente
