Extron electronics AXP 64 C AT Manuale utente

Product Category

IMPORTANT:

Refer to www.extron.com for the

complete user guide and installation

instructions befor

e connecting the

oduct to the power sour

ce.

This guide provides basic instructions for an experienced technician

to install the AXP64 CAT Audio Expansion Processor. For additional

information and specications, see the AXP64 CAT product page at

www.extron.com.

AXP64CAT • Setup Guide

Disconnecting Power and Mounting the AXP64CAT

Before beginning installation, disconnect power to the AXP64CAT and turn off all devices that will be connected to it. The

AXP64CAT is housed in a half rack wide, 9.5 inches deep, 1U high metal enclosure that can be set on a table (with the provided

rubber feet attached), or be mounted underneath a conference table, inside a credenza, or anywhere microphones or other

sources are located. Select a suitable mounting location, then choose an appropriate mounting option.

Make all external device connections before applying power.

Rear Panel Connections

AXP 64 C AT

RESET

IN G

POWER

12V

1.0A MAX

01 02

234

I/OINPUTS

OUTPUT

SAT

IN G0102

2 3 4 5 6 1 2 3 4

A12 VDC power input connector

BDigital I/O connectors

CMic/Line input connectors

DAudio output connectors

EAT port connectors

FReset button, recessed

Figure 1. AXP 64 C AT Rear Panel

A12 VDC power input – Connect the provided 12VDC power supply to the rear panel captive screw connector (see ﬁgure2

on page 2) and plug in the power cord. The front panel power LED blinks while the unit is booting, then lights steadily when

the AXP is powered and operational (see ﬁgure 3, A, on page 3). Verify that the power LED lights.

BDigital I/O connectors — Four 4-pole, 3.5 mm captive screw connectors associated with the

mic/line inputs provide digital input and output ports to connect microphones with logic circuits.

Each has an input (IN), a ground (G), and two output (O1 and O2) ports. The input port can enable

mic mute from a remote source. The two output ports can provide tally back to the mic LEDs to

indicate mic status. To wire these connectors, see the illustration at right.

CMic/Line 1-6 input connectors — Connect up to six balanced or unbalanced microphone or

mono line level devices using the 3-pole, 3.5mm captive screw connectors. Wire as shown below.

Inputs 1 through 4 provide 48 volts phantom power.

Balanced Input

Tip

Sleev

Ring

Tip

Sleeve

Unbalanced Input

NOTE: The first four inputs can access any Dante channel on the network. An input can be analog or digital. Each

channel can select either the associated rear panel analog input or the AT digital channel input assigned by Dante

Controller (see Dante Operation on page 9).

Do not tin the wires!

(5 mm) MAX.

3 "

Digital I/O Wiring

AXP64CAT • Setup Guide (Continued)

DAnalog audio output connectors — Audio outputs 1 through 4 are on two 3.5 mm, 6-pole captive screw connectors.

Connect up to four balanced or unbalanced mono line level or two stereo outputs to these 6-pole 3.5 mm captive screw

connectors. Wire as shown below.

Do not tin the wires! (5 mm) MAX.

3 "

Balanced Output Unbalanced Output

–

Tip

Ring

Tip

Ring

Sle

eves

Tip

No Ground Here

Tip

Sleeves

Sle

eves Sleeves

–

Alternatively, 3-pole or 5-pole

connectors can be used (see the

5-pole wiring example at right).

ATTENTION:

• For unbalanced audio outputs, connect the sleeves to the ground contact. DO NOT connect the sleeves to the

negative (-) contacts.

• Pour l’audio asymétrique, connectez les manchons au contact au sol. Ne PAS connecter les manchons aux

contacts négatifs (–).

EAT port connectors — This four-port Gigabit switch with four RJ-45 Ethernet connectors supports digital audio

transport (AT) and communications. Connect one or more ports to a LAN using standard CAT cable. Connect one or more

AXP64CATs to a device such as a DMP128AT to form a larger matrix system (see Creating a Physical Dante Network on

page8). Up to 56 channels can be connected.

FReset button — Pressing this recessed button returns the AXP64 C AT to its factory default state (see “Resetting” in the

AXP64CAT User Guide).

ATTENTION:

• Always use a power supply provided by or specied by Extron.

Use of an unauthorized power supply voids all regulatory

compliance certication and may cause damage to the supply

and the end product.

• Utilisez toujours une source d’alimentation fournie par Extron.

L’utilisation d’une source d’alimentation non autorisée annule

toute conformité réglementaire et peut endommager la source

d’alimentation ainsi que l’unité.

• Unless otherwise stated, the AC/DC adapters are not suitable for

use in air handling spaces or in wall cavities. The power supply is

to be located within the same vicinity as the Extron AV processing

equipment in an ordinary location, Pollution Degree2, secured to

the equipment rack within the dedicated closet, podium, or desk.

• Sauf mention contraire, les adaptateurs AC/DC ne sont pas

appropriés pour une utilisation dans les espaces d’aération ou

dans les cavités murales. La source d’alimentation doit être

située à proximité de l’équipement de traitement audiovisuel

dans un endroit ordinaire, avec un degré2 de pollution, fixé à un

équipement de rack à l’intérieur d’un placard, d’une estrade, ou

d’un bureau.

• The installation must always be in accordance with the applicable

provisions of National Electrical Code ANSI/NFPA 70, article 725

and the Canadian Electrical Code part 1, section 16. The power

supply shall not be permanently xed to building structure or

similar structure.

• Cette installation doit toujours être en accord avec les mesures

qui s’applique au National Electrical Code ANSI/NFPA70,

article725, et au Canadian Electrical Code, partie1, section16.

La source d’alimentation ne devra pas être fixée de façon

permanente à une structure de bâtiment ou à une structure

similaire.

Connecting Power

Wire the 12 VDC power supply as shown in gure 2.

Rear Panel

Power Receptacle

DC Power Cord

Captive Screw

Connector

Ground

all devices.

External

Power Supply

12 VDC, 1 A max.

Extr

on Part Number 70-775-01 (28-071-57LF)

– Return

+12 VDC input

Ridged

Smooth

1AMAX

100-240V 50-60Hz

Figure 2. External Power Supply Connection

With all connections made, power up the input

devices, then apply power to the AXP64CAT.

ATTENTION:

• Do not connect power to the AXP until you

have read the Attention notices at right.

• Ne branchez pas l’alimentation au AXP avant

d’avoir lu les mises en garde Attention a droit.

DO NOT

Connect Here

AXP 64 C AT

RESET

IN G

POWER

12V

X.XA MAX

01 02

2 3 4

I/O

INPUTS

OUTPUTS AT

IN G 01 02

2 34561234

5-pole CSR

Product Category

Front Panel Indicators

AXP 64 C AT

INPUTS OUTPUTS

CLIP

SIGNAL

AUDIO EXPANSION PROCESSOR

Extron

2 3 4 1 2 3 45 6

CLIP

SIGNAL

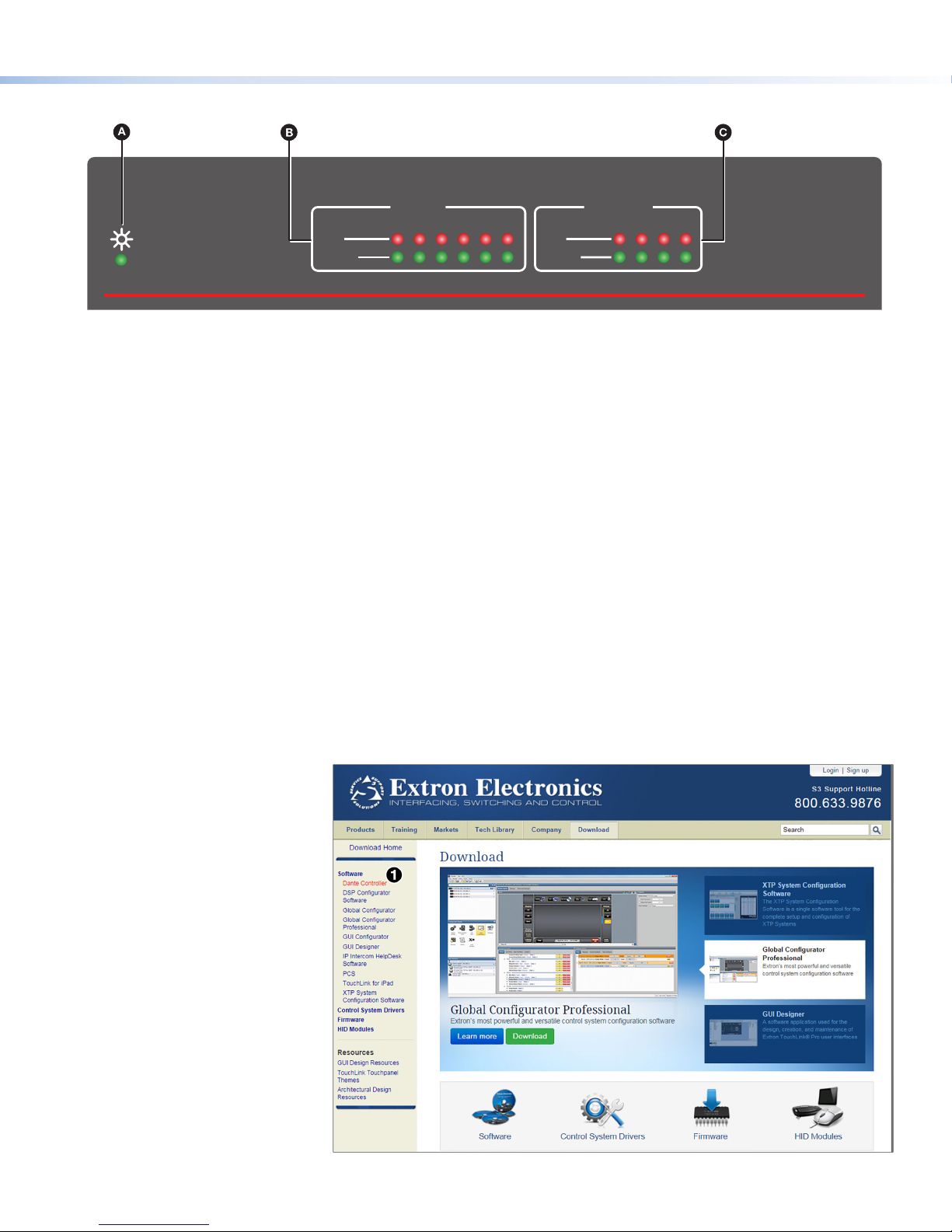

Figure 3. AXP64CAT Front Panel

APower LED —This green LED blinks during boot-up and lights steadily when the AXP64CAT is powered on and ready to

operate.

BInput LEDs — One pair for each of the six inputs:

• Clip indicators — These red LEDs light when the corresponding input signal exceeds -3 dBFS. The clip indicator

remains on for 200ms after the input signal drops below that level.

• Signal indicators — These green LEDs light when there is an active source on the corresponding input.

COutput LEDs — One pair for each of the four analog outputs:

• Clip indicators — These red LEDs light when the corresponding output signal exceeds -3 dBFS. The clip indicator

remains on for 200ms after the output signal drops below that level.

• Signal indicators — These green LEDs light when a signal is detected on the corresponding output.

Connecting the AXP 64 C AT to a Network

The AXP 64 supports 100 and 1000 Mbps halfduplex and full duplex connections. You can use either a straight-through Ethernet

cable or a crossover cable to connect the AXP to a network via one of the four AT ports (see ﬁgure 1, E, on page 1). The control

device must be connected to the same network. Any one of the four AT ports can be dedicated as a control connection. If you do

not know the IP address of the control device, use Dante Controller to obtain it (see Finding a Dante Device Address on page 6).

When all connections are made and power is applied, the green (activity) LED of the connected AT port blinks to indicate data

activity on the connection.

Downloading and Installing Dante Controller and DSP Conﬁgurator Software

There are no hardware controls for

the AXP64CAT. Dante Controller

from Audinate is required to select

and route digital inputs and outputs

to connected Dante-compatible

devices. DSP Congurator is used for

conguration.

Install DSP Congurator and Dante

Controller on a PC running Microsoft®

Windows®7 or newer. For full details

about computer requirements, see

the product page on the Extron

website. Dante Controller must be

installed to rename the connected

AXP64CAT to assist identication

on the network.

Both software applications are

available at www.extron.com.

1. On the Extron Electronics web

page at www.extron.com,

click the Download tab. The

Download screen opens.

2. On Download screen, click the Dante Controller link (1) on the left sidebar.

AXP64CAT • Setup Guide (Continued)

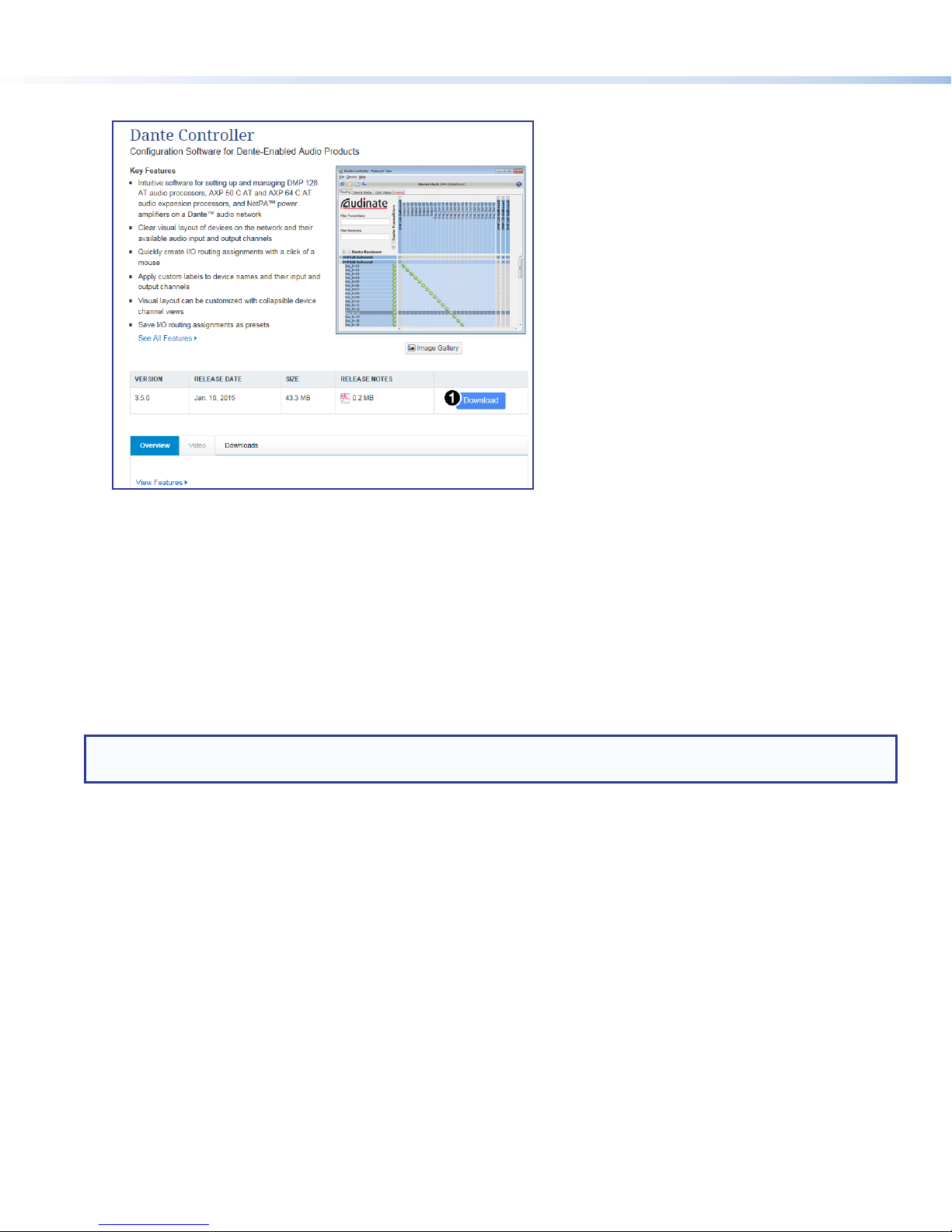

3. On the Dante Controller web page, click Download (1).

4. On the Download Center page, follow the prompts to download the Dante Controller installer le.

5. If the Download Center page has closed, click the Download tab again to access the left sidebar.

6. On the left sidebar, click DSP Congurator Software.

7. On the DSP Congurator web page, click the Download button.

The Download Center page is displayed again.

8. Follow the prompts to download DSP Congurator.

9. If you have saved either or both software les, install them when ready.

The installed Dante Controller program les are saved in

C:\Program Files (x86)\Audinate\Dante Controller\DanteController.exe.

The installed DSP Congurator program les are saved in C:\Program Files (x86)\Extron\DSP Congurator.

NOTE: On the first installation of DSP Configurator, a USB driver automatically loads.

Follow the on-screen instructions. After the USB driver loads, installation continues.

Product Category

Setting Up the Dante Network

Communication between the AXP64CAT and a controlling device or a computer running software such as Extron DataViewer via

a TCP socket using port 4333. Use a standard Ethernet cable to connect the AXP to a network via one of the four RJ-45 AT ports

(see ﬁgure 1,E, on page 1).

Renaming an AXP64CAT

Dante Controller auto-discovers all Dante devices on the network and advertises itself to allow other Dante-enabled devices to

communicate with it.

NOTE: The default device name is the model number followed by the last six digits of the MAC address of the device (located

on a sticker on the rear panel).

Multiple devices on the same network can present difculty

identifying inputs and outputs. To avoid confusion, rename

each device to a unique identier.

NOTE: To simplify renaming, connect only one Dante

device to the network at a time. As each device is

renamed, it can remain connected.

1. Ensure that the control computer and a single unnamed

AXP64CAT are connected to the same network.

2. From the start menu select:

All Programs >Audinate >Dante Controller >

Dante Controller.

The Dante Controller -Network View screen

opens. All Dante devices on the network are discovered

and listed.

3. From the Device menu, select Device View.

4. The Dante Controller -Device View dialog

opens. Select your device from the (Select aDante

Device...) drop-down list.

NOTE: If there are multiple AXP64s connected to the network that have not been renamed, to identify an individual

device you must obtain the media access code (MAC) address of the desired device from the label on the rear panel.

The Device View dialog populates with the selected AXP64CAT information.

AXP64CAT • Setup Guide (Continued)

5. Click the Device Cong tab (1) to open the device conguration page.

6. In the Rename Device panel, enter the new name of the device in the text eld. No spaces are allowed in the name.

7. Click Apply. A conrmation prompt opens.

8. Click Yes to enter the new name, then close the Device Conguration dialog box.

The new name is written to the AXP64CAT. Repeat as necessary for all AXP64CAT devices.

NOTE: After the AXP64CAT is renamed, it can remain connected to the network. However, subsequent devices must be

connected one at a time and renamed before the next device is connected.

Finding a Dante Device IP Address

To nd the IP address of a Dante device, you need the name of the device (see Renaming an AXP64CAT on the previous

page).

NOTE: If the AXP 64 has not been renamed, its default name consists of the product name followed by a hyphen (AXP64-)

plus the last 6 digits of the unit MAC address (for example, AXP64-040C06).

1. Open Dante Controller for Windows (see Renaming an AXP 64 C AT).

2. On the Dante Controller main screen, click the Device Info tab (1).

3. On the Device Info screen, locate the name of your AXP. The IP address is in the Primary Address column (1).

4. Connect the AXP to a computer (using a host communication utility such as Extron DataViewer) or to a control system.

5. Select a TCP/IP connection and enter the IP address of the AXP 64 where indicated. Enter 4333 for the port number.

Product Category

Conﬁguring the AXP64CAT

After the device is named, use the DSP Congurator to congure the AXP64CAT as desired.

1. Ensure the control computer and AXP64CAT are connected to the same network and that the AXP64CAT is renamed for

identication (see Renaming an AXP64CAT on page5).

2. Start the DSPCongurator software. From the drop-down list on the opening page, select AXP64CAT and press OK.

The main screen opens. The main screen provides access to all the features of the AXP64CAT. Full details about using the

software are found in the AXP64CAT User Guide on the Extron website or in the DSP Congurator help les.

3. The program starts in Emulate mode. Select the appropriate operating mode as follows:

• To create a conguration ofine to upload (push) to the AXP64CAT at a

later time, keep the AXP in emulate mode.

• To push a conguration to the AXP, pull a conguration from the device, or to

make immediate changes to the conguration or operation, click the Live

button to place the AXP in Live mode.

NOTE: Changing from emulate to live mode opens the Connect to

device... dialog box (shown at right). Select the device in the

Dante Devices panel.

On the next dialog box that appears, select the appropriate radio

button to pull data from the selected device to update your

conguration, or to push data from the current conguration to the

selected device, overwriting any existing data.

AXP64CAT • Setup Guide (Continued)

Loading Building Blocks

The discrete signal paths can be individually loaded with pre-congured, modular templates called building blocks. These blocks

are designed for specic microphones, source devices, analog and digital inputs, and can streamline initial conguration. The

building blocks contain conguration parameters tailored to a selected input device.

Loading a building block congures each block in the signal path with pre-determined parameters to match the selected device

characteristics. Although tailored for the specic device, the processing blocks can still be customized, if necessary.

To load a building block:

1. Click the input number. The Building Blocks dialog opens.

2. Choose a building block that best describes the connected input device. As the pointer moves over the selection, the text is

underlined. Click the selection to load the block.

The building block loads pre-congured processor and gain block parameters. Processor blocks are initially bypassed.

3. If necessary, further customize the processor blocks according to the requirements of the system (see the AXP64CAT User

Guide on the Extron website).

Creating a Physical Dante Network

A physical network is required to share Dante audio channels between AXP64CAT and devices such as the DMP128 AT. The

AXP64CAT and the DMP128AT each have a four-port switch with four RJ-45 connectors located on the back panel that accept

standard network cables. A DMP128-based Dante network can be congured in a daisy-chain or star network topology using the

four-port switch and the Dante Controller in switched mode.

Star Network

Star network topology places one DMP128AT as the central unit, which connects directly to up to three AXP units (see gure 4).

Alternatively, a larger network switch in place of the central DMP128AT allows more than four AXP64CATs to connect in the

star conguration.

100-240V ~ --A MAX

50/60 Hz LAN

EXP

RS-232

Tx Rx G

RESET

MIC +48V

5678

1234 8

4 1

12345G6

1234

78910 G

11 12 13 14 15 G1617181920G

234

56 78

910

11 127

MIC/LINE INPUT

OUTPUTS

DIGITAL I/O

REMOTE AT

DMP 128 C AT

AXP 64 C AT

RESET

IN G

POWER

12V

X.XA MAX

01 02

234

I/OINPUTS

OUTPUTS AT

IN G0102

2 3 4 5 6 1 2 3 4

AXP 64 C AT

RESET

IN G

POWER

12V

X.XA MAX

01 02

234

I/OINPUTS

OUTPUTS AT

IN G0102

2 3 4 5 6 1 2 3 4

DMP 128 C AT

AXP 64 C AT

RESET

IN G

POWER

12V

X.XA MAX

01 02

234

I/OINPUTS

OUTPUTS AT

IN G0102

2 3 4 5 6 1 2 3 4

Figure 4. Star Network Topology

Product Category

Daisy Chain Conﬁguration

A daisy chain conguration can also be used. Each unit is connected to both the previous unit and the next unit in the chain.

DMP 128 AT

100-240V ~ --A MAX

50/60 Hz LAN

EXP

RS-232

Tx Rx G

RESET

MIC +48V

5678

1234 8

4 1

12345G6

1234

78910G

11 12 13 14 15 G1617181920G

234

56 78

910

11 127

MIC/LINE INPUTS

OUTPUTS

DIGITAL I/O

REMOTE AT

DMP 128 C AT

AXP 64 C AT #1 AXP 64 C AT #2 AXP 64 C AT #3

AXP 64 C AT

RESET

IN G

POWER

12V

X.XA MAX

01 02

234

I/OINPUTS

OUTPUTS AT

IN G0102

2 3 4 5 6 1 2 3 4

AXP 64 C AT

RESET

IN G

POWER

12V

X.XA MAX

01 02

234

I/OINPUTS

OUTPUTS AT

IN G0102

2 3 4 5 6 1 2 3 4

AXP 64 C AT

RESET

IN G

POWER

12V

X.XA MAX

01 02

234

I/OINPUTS

OUTPUTS AT

IN G0102

2 3 4 5 6 1 2 3 4

Figure 5. Daisy Chain Topology

Hybrid versions combining the star and daisy chain topologies can be built, but a ring topology, or any topology that creates a

duplicate connection causes a connection failure in Dante Controller.

NOTE: Connections between ports in either a star or daisy chain network do not need to be sequential (1 to 2, 2 to 3, 3 to 4),

nor do they need to be made between the same port numbers (1 to 1, 2 to 2, 3 to 3, 4 to 4).

Dante Operation

Selecting Devices

After the inputs of the AXP64CAT are congured, they must be routed to the other Dante devices on the audio network. To do

this, use Dante Controller.

1. Ensure the control computer and AXP64CAT are

connected to the same network.

2. From the start menu select:

All Programs >Audinate >Dante Controller >

Dante Controller.

The Dante Controller -Network View screen opens.

Dante Controller auto-discovers Dante devices on the

network and advertises itself to allow other Dante-enabled

devices to communicate with it. Device inputs are Dante

receivers (listed vertically on the left) and device outputs

are Dante transmitters (listed horizontally across the top).

Transmitters (outputs) connect to receivers (inputs) using

the connection matrix.

3. Click the +box next to any Dante device in the Dante

Receivers panel, (such as the DMP128 (1in the

example at right) to show all device inputs.

4. Click the +box next to the AXP64CAT (2) in the Dante

Transmitters panel to show all device outputs.

Extron Headquarters

+800.633.9876 Inside USA/Canada Only

Extron USA - West Extron USA - East

+1.714.491.1640 +1.919.864.1000

+1.714.491.1517 FAX +1.919.864.1001 FAX

Extron Europe

+800.3987.6673

Inside Europe Only

+31.33.453.4040

+31.33.453.4064 FAX

Extron Asia

+65.6383.4400

+65.6383.4664 FAX

Extron Japan

+81.3.3511.7655

+81.3.3511.7656 FAX

Extron China

+86.21.3760.1568

+86.21.3760.1566 FAX

Extron Middle East

+971.4.299.1800

+971.4.299.1880 FAX

Extron Korea

+82.2.3444.1571

+82.2.3444.1575 FAX

Extron India

1800.3070.3777

(Inside India Only)

+91.80.3055.3777

+91.80.3055.3737 FAX

68-2721-50 A

03 15

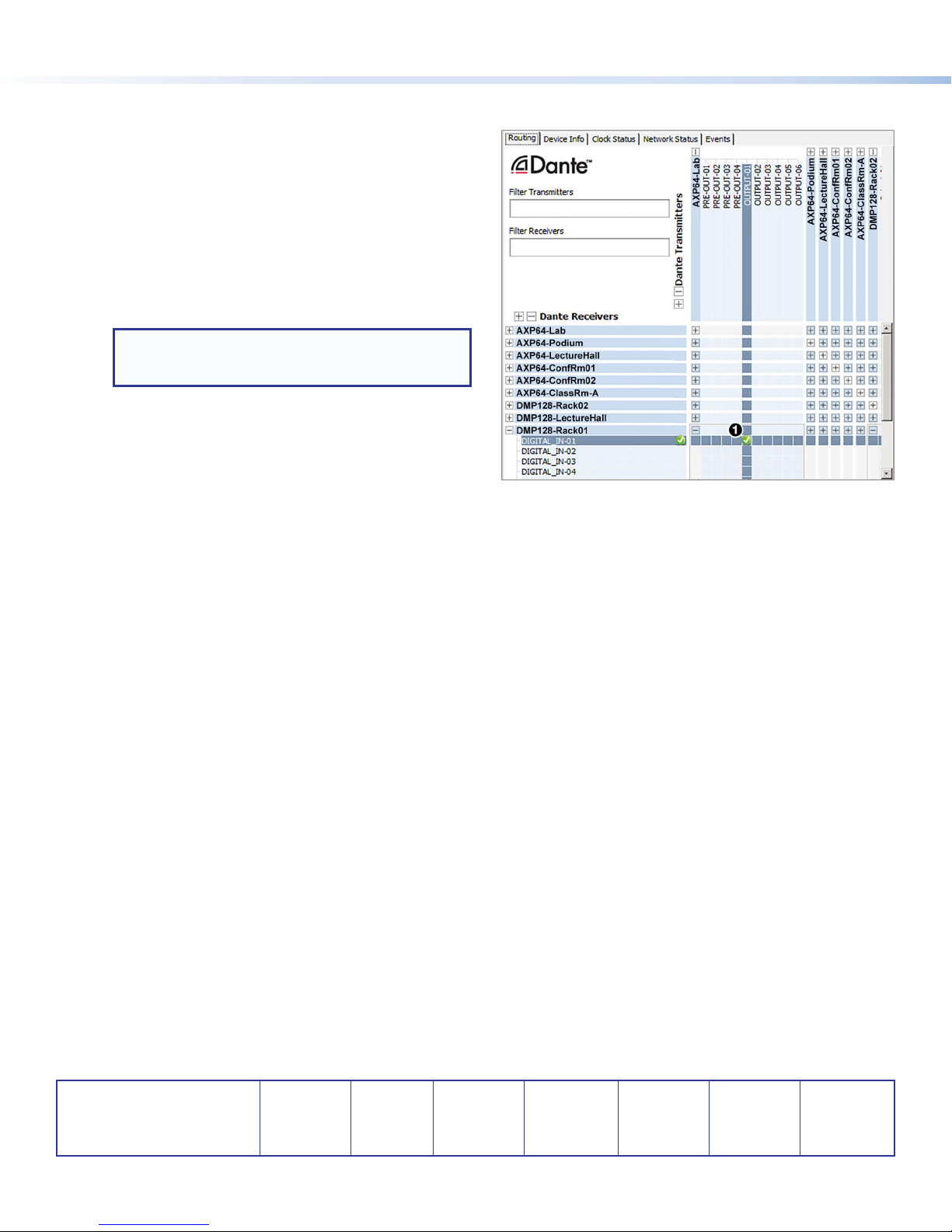

Routing Inputs and Outputs

1. Click the +box next to the input channels (receivers) on

another Dante device (DMP128-Rack01 DIGITAL_IN-01

in the example at right).

All device outputs (transmitters) display horizontally.

2. Click the junction of the desired connection (1).

Example: AXP64-Lab OUTPUT-01 to

DMP128-Rack01 DIGITAL_IN-01 (shown at right).

A check mark at the junction indicates the connection is

made. A check mark is also placed next to the receiver

channel.

NOTE: An input (receiver) can connect to only one

output (transmitter). An output (transmitter) can

connect to multiple inputs (receivers).

3. Click the junction again to disconnect the input from the

output.

Additional AXP64CAT outputs (Dante transmitters) can

be connected to or disconnected from other Dante device

inputs (Dante receivers) using the same method (see the

“Dante Controller” section of the AXP64 C AT User Guide for

information on Dante Controller operation).

Altri manuali per AXP 64 C AT

Indice

Altri manuali Extron electronics Hardware per computer

Extron electronics

Extron electronics PIP 422 Manuale utente

Extron electronics

Extron electronics Multi-Graphic Processor MGP 464 Manuale utente

Extron electronics

Extron electronics MTP 15HD RS Series Manuale utente

Extron electronics

Extron electronics DVI Output Card Manuale utente

Extron electronics

Extron electronics StudioStation 100 Manuale utente

Extron electronics

Extron electronics IPL Pro Series Manuale utente

Extron electronics

Extron electronics EDID 101D Manuale utente

Extron electronics

Extron electronics DMP 64 Manuale utente

Extron electronics

Extron electronics EDID 101H 4K PLUS Manuale utente

Extron electronics

Extron electronics EDID 101H 4K PLUS Manuale utente

Extron electronics

Extron electronics AXP 64 C AT Manuale utente

Extron electronics

Extron electronics Quantum Ultra Series Manuale utente

Extron electronics

Extron electronics DTP3 T 202 Manuale utente

Extron electronics

Extron electronics Dual Window Multi-Graphic Processor MGP 462D Manuale utente

Extron electronics

Extron electronics DMP 44 LC Manuale utente

Extron electronics

Extron electronics DMP 64 Plus Manuale utente

Extron electronics

Extron electronics Annotator 300 Manuale utente

Extron electronics

Extron electronics AXP 50 C AT Manuale utente

Extron electronics

Extron electronics IPCP Pro PCS1 xi Manuale utente

Extron electronics

Extron electronics Annotator 401 Manuale utente

Extron electronics

Extron electronics UCS FT 901 Manuale utente

Extron electronics

Extron electronics Instruction Card Video DC Block Manuale tecnico

Extron electronics

Extron electronics DMP 44 LC Manuale utente

Extron electronics

Extron electronics IPCP Pro PCS1 Manuale utente

Manuali Hardware per computer popolari di altre marche

EMC2

EMC2 VNX Series Manuale del proprietario

Panasonic

Panasonic DV0PM20105 Manuale utente

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Manuale utente

Gigabyte

Gigabyte B660M DS3H AX DDR4 Manuale utente

Raidon

Raidon iT2300 Manuale utente

National Instruments

National Instruments PXI-8186 Manuale utente

Hauppauge

Hauppauge WinTV-HVR-2250 Manuale utente

Kontron

Kontron CP6002 Manuale utente

Manhattan

Manhattan 702843 Manuale utente

Aphex

Aphex 230 Manuale utente

AMD

AMD Phenom II Manuale operativo

Intel

Intel NUC 12 Pro Manuale utente

dbx

dbx Zone Pro 1260 Manuale utente

Galaxy

Galaxy GHDX2-2430S-24F4D Manuale utente

Intel

Intel AXXRMFBU4 Manuale utente

Kontron

Kontron DIMM-PC/MD Manuale utente

ST X-NUCLEO-SAFEA1B Istruzioni operative

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Manuale utente
