FOXBOX SR HDMI • Setup Guide

This guide provides quick start instructions for an experienced installer to set up and operate the

Extron FOXBOX SR HDMI scaling ber optic receiver.

CLASS 1 LASER PRODUCT, see the FOXBOX SR HDMI User Guide at www.extron.com.

CAUTION:

•These units output continuous invisible light, which may be harmful to the eyes; use with caution. For additional safety, plug

the attached dust caps into the optical transceivers when the ber optic cable is unplugged.

•Ces produits émettent une lumière invisible continue, qui peut être dangereuse pour les yeux ; à utiliser avec précaution.

Pour une sécurité renforcée, associez les bouchons anti-poussière à l’ensemble émetteur/récepteur optique lorsque le câble

bre optique est débranché.

Installation

Step 1 — Mounting

Turn off or disconnect all equipment power

sources and mount the receiver as required.

Step 2 — Throughput Connections

NOTES: •See the two ber cable connection drawings below. You can connect the transmitter and one or more

receivers in one of three ways:

•One way (transmitter to receiver) only, perform step 2a.

•Two way (transmitter to receiver and return), perform steps 2a and 2b.

•One way (transmitter to receiver) with daisy chain (receiver to receiver), perform steps 2a and 2c.

•HDCP compliance requires both ber cables.

a. Connect the ber between the Tx port on the transmitter and the Rx port on the receiver.

b. If you want the receiver to send return serial data (such as responses from a controlled device) to the transmitter,

connect a cable between the Tx port on the receiver and Rx port on the transmitter.

c. If you want a receiver to daisy-chain the optical signal to another receiver (up to 10 receivers in a daisy chain):

• Connect the receiver Tx ber cable to Rx on another receiver.

• Set each receiver to daisy chain mode. See “Return Link

and Daisy Chain Modes,” on the next page.

Tx Link and Rx Link LEDs — When lit, the link is active (light

is output [Tx LED] or received [Rx LED]).

NOTE: The Link LEDs indicate transmission of light only, not whether there is data encoded in the optical link.

Step 3 — Output Connections

a. Connect an HDMI video display to the HDMI Output connector.

NOTE: Use a LockIt Lacing Bracket to securely fasten an HDMI cable to the receiver as follows.

1. Plug the HDMI cable into the panel connection

2. Loosen the HDMI connection mounting screw from the panel enough to allow

the LockIt lacing bracket to be placed over it. The screw does not have to be

removed.

3. Place the LockIt lacing bracket on the screw and against the HDMI connector,

then tighten the screw to secure the bracket.

ATTENTION:

• Do not overtighten the HDMI connector mounting screw. The shield it

fastens to is very thin and can easily be stripped.

• Ne serrez pas trop la vis de montage du connecteur HDMI. Le blindage

auquel elle est attachée est très fin et peut facilement être dénudé

4. Loosely place the included tie wrap around the HDMI connector and the LockIt

lacing bracket as shown.

5. While holding the connector securely against the lacing bracket, use pliers or similar tools to tighten the tie wrap, then

remove any excess length.

HDMI

Receiver

ransmitter

Tx Rx

and

From Transmitter

or Daisy-Chained

Receiver

Tx Rx

FOXBOX SR HDMI

LINK

OPTICAL

RxTx

HDMI

AUDIO

OUTPUTS

REMOTE

RS-232

Tx Rx

RS-232

OVER FIBER ALARM

Tx Rx 1 2

POWER

12V

1.0 A MAX LR

OFF

HDMI AUDIO

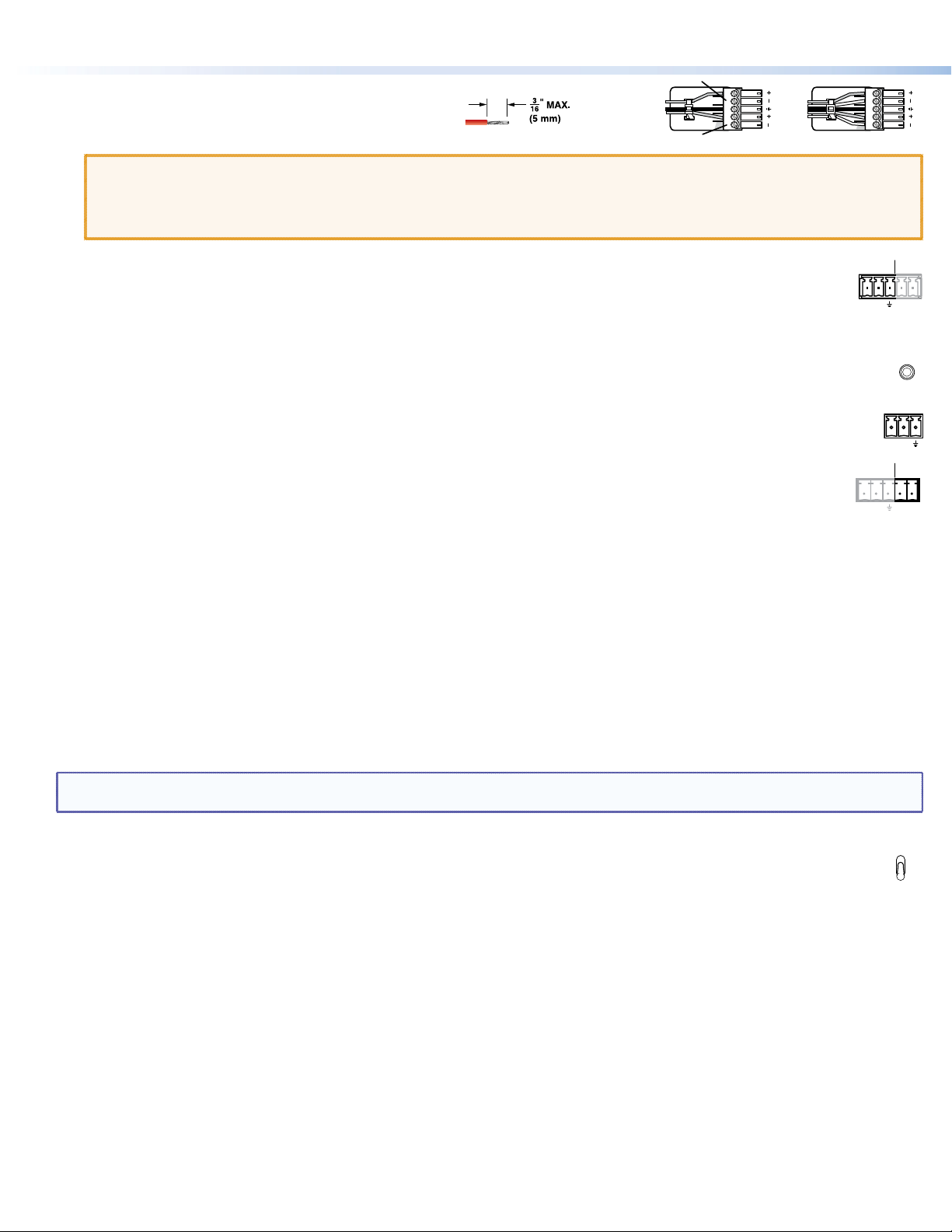

b. Connect a balanced or unbalanced audio device to the

Output Audio captive screw connector, as shown at right.

ATTENTION:

• For unbalanced audio, connect the sleeves to the ground contact. DO NOT connect the sleeves to the negative (-) contacts.

• Pour l’audio asymétrique, connectez les manchons au contact au sol. NE PAS connecter les manchons aux

contacts négatifs (–).

c. If you want the receiver to pass serial data or control signals, such as for serial control of a

ALARM

Tx Rx 1 2

RS-232

OVER FIBER

projector, connect the primary device to the transmitter and the secondary device to the receiver via the left three poles

(Tx, Rx, and _) of the RS-232 Over Fiber/Alarm 5-pole captive screw connectors on both units.

d. For serial control of a unit, connect a host device, such as a computer, to one of the following ports on the unit to be

controlled:

Transmitter or receiver Conﬁguration port — A 2.5 mm mini jack. A TRS RS-232 cable is included with the transmitter.

CONFIG

Receiver Remote RS-232 port — Use the Remote RS-232 3-pole captive screw connector.

The protocol for both of these ports is as follows:

REMOTE

RS-232

Tx Rx

• RS-232 • 9600 baud •no parity

•8 data bits •1 stop bit •no ow control

e. For remote monitoring of the status of the Rx optical link on either the transmitter or receiver, connect a locally

ALARM

Tx Rx 1 2

RS-232

OVER FIBER

constructed or obtained device to the two right Alarm poles of the RS-232 Over Fiber/Alarm 5-pole captive screw

connector on that unit. The unit shorts both poles together when no light is detected.

Operation

After all receivers, the transmitter, and their connected devices are powered up, the system is fully operational. If any problems are

encountered, verify that the cables are routed and connected properly and that all display devices have identical resolutions and refresh

rates. If problems persist, call the Extron S3 Sales and Technical Support Hotline at the number that is closest to you.

Return Link and Daisy Chain Modes

The receiver operates in one of two modes (or both modes can be disabled):

Return link mode — The receiver outputs data on its Tx connector for return to the transmitter.

Daisy chain mode — The receiver daisy-chains its Rx connector input through to its Tx connector output.

Issue the following SIS commands from a PC connected to the receiver Remote RS-232 port to toggle between return link and daisy chain

modes or to disable both modes:

66*0*n#, where n= 0= disable, 1= enable return link (default mode), and 2= daisy chain enable

NOTES: •Up to 10 receivers, each in daisy chain mode, can be connected in a daisy chain to a single transmitter.

•Daisy chain mode works with non-HDCP sources only.

HDMI Audio Switch

HDMI AUDIO

OFF

This switch mutes (Off position) and unmutes (On position) the embedded audio output on the HDMI output connector.

The audio on the captive screw output always remains active regardless of the setting of this switch.

Do not tin the wires!

Unbalanced Stereo OutputBalanced Stereo Output

Tip

NO GROUND HERE

Tip

Sleeves

Tip

Ring

Tip

Ring

FOXBOX SR HDMI • Setup Guide (Continued)

Indications

FOXBOX SR HDMI

AUDIO

HDCP

VIDEO

CONFIG

MENU ENTER

ADJUST

Power LED — This LED lights to indicate that power is applied to

the unit.

Video LED — This LED lights when the receiver detects a signal on

its video input.

HDCP LED — This LED lights when the video signal is HDCP encrypted.

Audio LED — This LED lights when the receiver detects a low level audio signal for a short period of time.

Setup

display

Timeout

AUTO


EXTRON ELECTRONICS FOXBOX SR HDMI

Enter


CONTROLS

Enter

OUTPUT

CONFIGURATION

Enter

USER

PRESETS

Enter

ADVANCED

CONFIGURATION

H POSITION V

+0 +0

BRIGHT CONT

64 64

H SIZE V

1024 768

RESOLUTION

1024X768 @60

HDMI FORMAT

AUTO

RECALL

SAVE

<2>

CLEAR

<2>

DETAIL

TEST PATTERN

CROP

FREEZE

OFF

ASPECT

RATIO

BLANK

OFF

AUTO MEMORY

FACTORY RESET

HOLD ENTER

MENU TIMEOUT

Use the front panel menu controls and the on-screen display,

shown at right, on the connected display to set up the

receiver.

68-1990-50

Rev B 08 12

For information on safety guidelines, regulatory compliances, EMI/EMF compatibility, accessibility, and related topics, see the

Extron Safety and Regulatory Compliance Guide on the Extron website.

All trademarks mentioned are the property of their respective owners.

Worldwide Headquarters: Extron USA West, 1025 E. Ball Road, Anaheim, CA 92805, 800.633.9876

FOXBOX SR HDMI • Setup Guide (Continued)
