PowerCage™ MTP T AV and MTP R AV Board

Setup Guide

Continued on side 2. 1

The Extron® PowerCage MTP T AV and

MTP R AV are twisted pair transmitters and

receivers in a modular board format for the

PowerCage 1600 modular enclosure. They

transmit or receive composite video or

S-video and audio over CAT 5-type cable.

Both boards can be used with any CAT 5, 5e, or 6 cable, or Extron

Enhanced Skew-Free™ A/V UTP cable for cable runs up to 1000 feet

(300 m). The boards mount in any of the 16 expansion slots at the rear of

the PowerCage 1600.

Refer to the PowerCage MTP T AV and MTP R AV User Guide and the

PowerCage 1600 Enclosure User Guide, available at www.extron.com.

NOTE: The hot-swappable, modular design allows for replacing or

upgrading boards in the ﬁeld at any time, without having to

power down the system.

Installation

1. Select an open slot at the rear, or take out a blank plate by loosening the two

screws (top and bottom), and lifting the blank away.

NOTE: If a board is already in the slot, loosen the screws and remove the board.

2. Remove the new board from the box,

holding the board by the frame.

3. Hold the board with the signal connectors

towards you and the MTP AV board name

and LED at the top, and align the top and

bottom grooves of the board with the slide

posts in the selected enclosure slot.

4. Carefully slide the board into the slot,

aligning that the two tabs on the lower

front end of the board with the matching

ports in the enclosure. Push the board

ﬁrmly into place.

5. Tighten the screws to secure the board.

6. If applicable, repeat steps 1 through 5

for any other modular boards.

NOTE: Cover all empty board slots; do not leave them open. Using a tool, securely

fasten the screws for boards and blank panels after initial installation and

subsequent removal and replacement of the boards.

MONO

AUDIO OUTPUT

1 2

SHARP GAIN

Y/VID C

INPUT

PowerCage

MTP R AV

Tx Rx

HD/SDI INPUT HD/SDI OUTPUTS

MODE

PowerCage

FOX 3G HD-SDI

1 2

REMOTE

RS-232

OVER FIBER

Tx Rx

ALARM

OUTPUT

RGB

PowerCage

FOX 4G RX RGB

Tx Rx

L R

AUDIO

5A MAX.

100-240V 50/60Hz

N15778

CUS

LISTED

1T23

I.T.E.

Screws

(2 per board)

1 2

REMOTE

RS-232

OVER FIBER

Tx Rx

ALARM

OUTPUT

RGB

PowerCage

FOX 4G RX RGB

Tx Rx

L R

AUDIO

Align board and

slide into slot.

16 Available Single Board Slots or

8 Double Board Slots

Power

Supply

MTP R AV

MONO

AUDIO OUTPUT

1 2

SHARP GAIN

Y/VID C

INPUT

PowerCage

MTP R AV

OUTPUT

PowerCage

MTP T AV

AUDIO INPUT

L R

Y/VID C

MTP T AV

S-video

Composite

Video

Y/VID C

CY/VID

7. If power has been removed, reconnect and power on the PowerCage. The LED on

the board lights green and the new board is auto-detected.

8. Following the image at right, connect input or output

device cables to the the two BNC connectors for S-video

signals or for composite video signals.

Extron

USA - West

Headquarters

+800.633.9876

Inside USA / Canada Only

+1.714.491.1500

+1.714.491.1517 FAX

Extron

USA - East

+800.633.9876

Inside USA / Canada Only

+1.919.863.1794

+1.919.863.1797 FAX

Extron

Europe

+800.3987.6673

Inside Europe Only

+31.33.453.4040

+31.33.453.4050 FAX

Extron

Asia

+800.7339.8766

Inside Asia Only

+65.6383.4400

+65.6383.4664 FAX

Extron

Japan

+81.3.3511.7655

+81.3.3511.7656 FAX

Extron

China

+400.883.1568

Inside China Only

+86.21.3760.1568

+86.21.3760.1566 FA X

Extron

Middle East

+971.4.2991800

+971.4.2991880 FAX 68-1643-50

Rev A

08 10

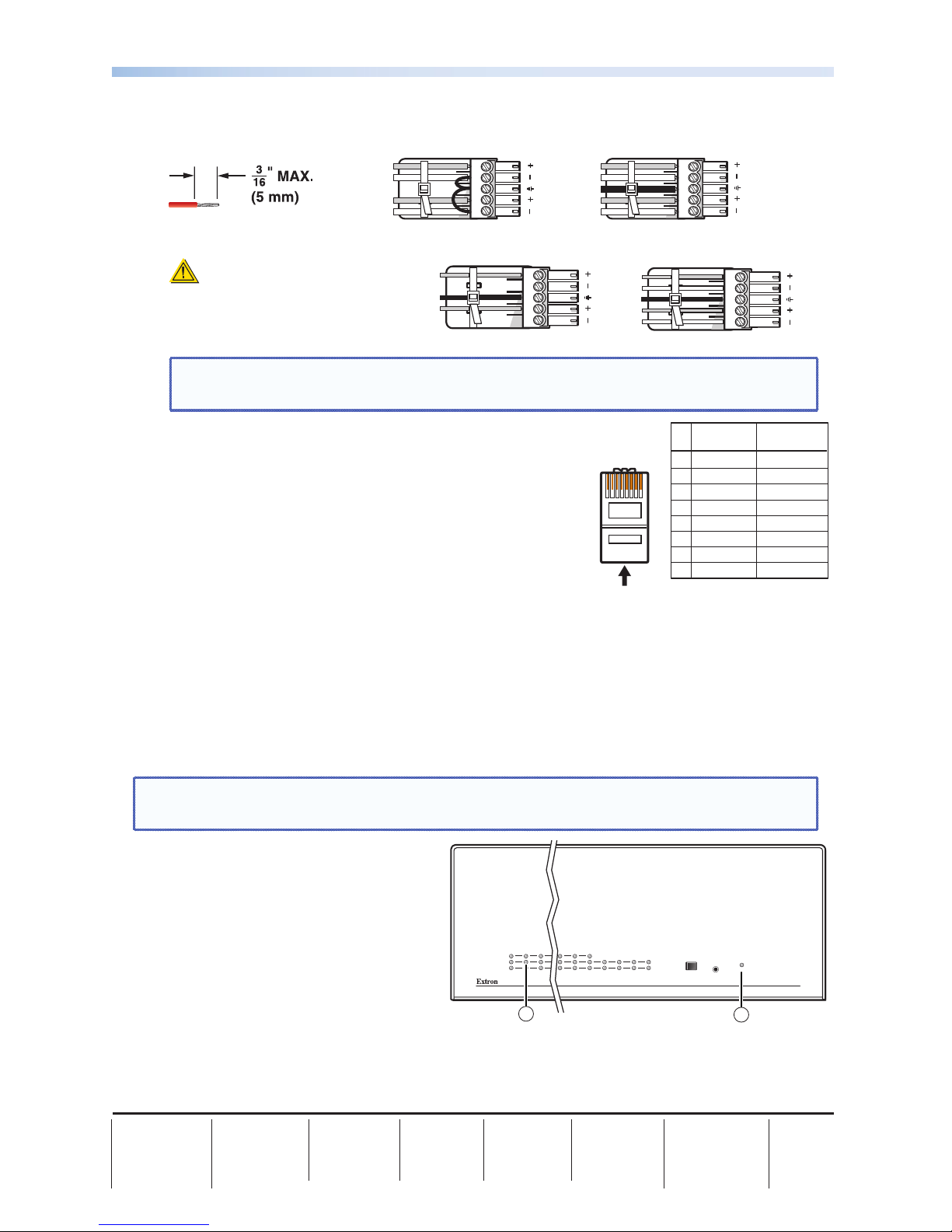

PowerCage MTP T AV and MTP R AV Board Setup Guide, cont’d

Wire color

White-green

Green

White-orange

White-blue

Orange

White-brown

Brown

Wire color

T568A T568B

White-orange

Orange

White-green

White-blue

Green

White-brown

Brown

Blue Blue

Insert Twisted

Pair Wires

Pins:

12345678

RJ-45

Connector

PowerCage 1600

COMM

POWER

ALARM

2 3 14 15 16

PSU

FAN

FAN COMM

SELECT

CONFIG

TEMP

9. Insert a 5-pole captive screw connector into the captive screw audio input or

output connector for balanced or unbalanced stereo audio input, or mono

output. Wire the connector as shown.

L R

Unbalanced Stereo Input Balanced Stereo Input

Ring

Sleeve (s)

Tip

Sleeve

Tip

Sleeve

Tip

Ring

Do not tin the wires!

Tip

Ring

Sleeve

Tip

Ring

Tip

NO Ground Here

Sleeve

Tip

CAUTION

For unbalanced audio, connect

the sleeve(s) to the ground contact.

DO NOT connect the sleeve(s) to

the negative (-) contacts. Unbalanced Mono Output Balanced Mono Output

NOTE: These boards do not have a jumper to set for stereo audio output.

Audio output is always mono.

10. Either connect the output RJ-45 on the

MTP T AV to an MTP receiver using CAT 5, 5e,

or 6 cable; or connect the input RJ-45 on the

MTP R AV board with an output cable to a suitable

MTP transmitter. Terminate the cable as shown on

the right, using the same standard

(T568A or T568B) at both ends.

11. Image sharpness and gain (MTP R AV only) can be

adjusted with the two front panel rotary encoders

for optimizing the image and signal quality.

View the image and adjust the either control for the best image quality.

PowerCage Front Panel

The following PowerCage enclosure front panel features are relevant to the

installation and operation of the MTP T AV and MTP R AV boards.

NOTE: The MTP T AV and MTP R AV boards are not conﬁgurable, and the

PowerCage Comm port feature does not work with the MTP boards.

a Power LED (slots 1-16) —

This LED lights to indicate that power

is applied to the selected board.

b Temperature LED — This LED

lights if the temperature within

the PowerCage enclosure is high

(approximately 167 °F [75 °C]) and

equipment damage is imminent.

For full installation and operating details of the PowerCage, refer to the

PowerCage 1600 Enclosure User Guide available at www.extron.com.
