Extron electronics RGB 440 Manuale utente

Extron Electronics, USA

1230 South Lewis Street

Anaheim, CA 92805

USA

714.491.1500

Fax 714.491.1517

Extron Electronics, Europe

Beeldschermweg 6C

3821 AH Amersfoort

The Netherlands

+31.33.453.4040

Fax +31.33.453.4050

Extron Electronics, Asia

135 Joo Seng Road, #04-01

PM Industrial Building

Singapore 368363

+65.6383.4400

Fax +65.6383.4664

Extron Electronics, Japan

Daisan DMJ Building 6F

3-9-1 Kudan Minami

Chiyoda-ku, Tokyo 102-0074 Japan

+81.3.3511.7655

Fax +81.3.3511.7656

www.extron.com

Specifications

Video Gain... Unity (0.7V), 15% with 3dB peaking (0.9V), 30% with

... 6dB peaking (0.9V)

Bandwidth... 300 MHz (-3dB)

Videoinput Number/signaltype... 1 analog RGBHV, RGBS, RGsB

Connectors... 1 9-pin male for MBC cable or buffer

Nominal level(s)... Analog — 0.3V to 1.45V p-p

Impedance... 75 ohms or Hi Z, switchable

Horizontalfrequency... 15 kHz to 150 kHz (optimum 15 kHz to 62 kHz)

Vertical frequency... 30 Hz to 170 Hz

Videooutput Number/signaltype... 1 analog RGBHV, RGBS, RGsB

Connectors... 6 BNC female

Nominal level... Analog 0.7V p-p, 0.8V p-p, or 0.9V p-p w/ peaking

Impedance... 75 ohms

Return loss... -30dB @ 5 MHz

Sync Input type... Autodetect RGBHV, RGBS, RGsB (accepts RGsB but

... does not strip sync from video)

Output type... RGBHV at all times, RGBS at all times, RGsB only when

... input is RGsB

Input level... 2V p-p to 5.5V p-p with ±0.2VDC offset max.

Output level... 4V to 5V p-p

Inputimpedance... 10 kohms

Outputimpedance... 75 ohms

Max. propagation delay... 50 nS

Max. rise/fall time... 2.5 nS

Polarity... Positive or negative

Audio Gain... Unbalanced 0dB, balanced +6dB

Frequencyresponse... ±0.05dB @ 20 Hz to 20 kHz

THD + Noise... 0.03% @ 1 kHz, 0.3% @ 20 kHz at rated max. output

S/N... >90dB, output 14dBu, balanced

Stereo channel separation... >95dB @ 1 kHz to 20 kHz

Audioinput Number/type... 1 stereo, unbalanced; 1Vrms (+4dBu), 20 Hz to 20 kHz

Connectors... 1 3.5 mm stereo jack (2 channel), unbalanced; tip (R),

... ring (L), sleeve (ground)

Impedance... 10 kohms, DC coupled

Min/max levels... 100mV / +8.5 dBu

Audiooutput Number/type... 1 buffered, stereo (2 channel), balanced or unbalanced

Connectors... 1 3.5 mm captive screw connector, 5 pole

Impedance... 50 ohms unbalanced, 100 ohms balanced

Gain error... ±0.1dB channel to channel

Drive (600 ohm)... > +14dBu, balanced at stated %THD+N

General Power... 12 to 24VAC or VDC, 0.5 A, 5 watts, external (Order

... the power supply separately, part number 70-055-01.)

MBC power jack... 9VDC, 0.15 A

Temperature/humidity(noncondensing)... Storage -40° to +158°F (-40° to +70° C ) / 10% to 90%

... Operating +32° to +122°F (0° to +50° C) / 10% to 90%

Metal enclosure dimensions...

1.0" H x 5.7" W x 4.5" D (7" W with mounting brackets)

... 2.54 cm H x 14.48 cm W x 11.43 cm D (17.7 cm W)

Shipping weight... 2 lbs. (0.9 kg)

Vibration... NSTA 1A in carton (National Safe Transit Association)

Approvals... UL, CE, FCC Class A

MTBF... 30,000 hours

Warranty... 3 years parts and labor

User’s Guide

RGB 440 Interface

Computer Video and Audio

68-378-01 Rev. E

Printed in the USA

01 02

InstallationandOperation

Extron • RGB 440 Interface • User’s Guide

Page 1

The Extron RGB 440 is a 300 MHz universal analog computer-video and audio interface designed to

connect workstations and PCs to large screen display/audio systems. With an Extron MBC (monitor break-

out cable) or an MBC buffer, the computer’s local monitor may be used while the RGB/BNC output goes to a

large screen. Analog input can be from VGA, Mac, XGA, XGA-2, Quadra, Sun, SGI, or another source.

Contact Extron for information regarding specific computer cabling needs.

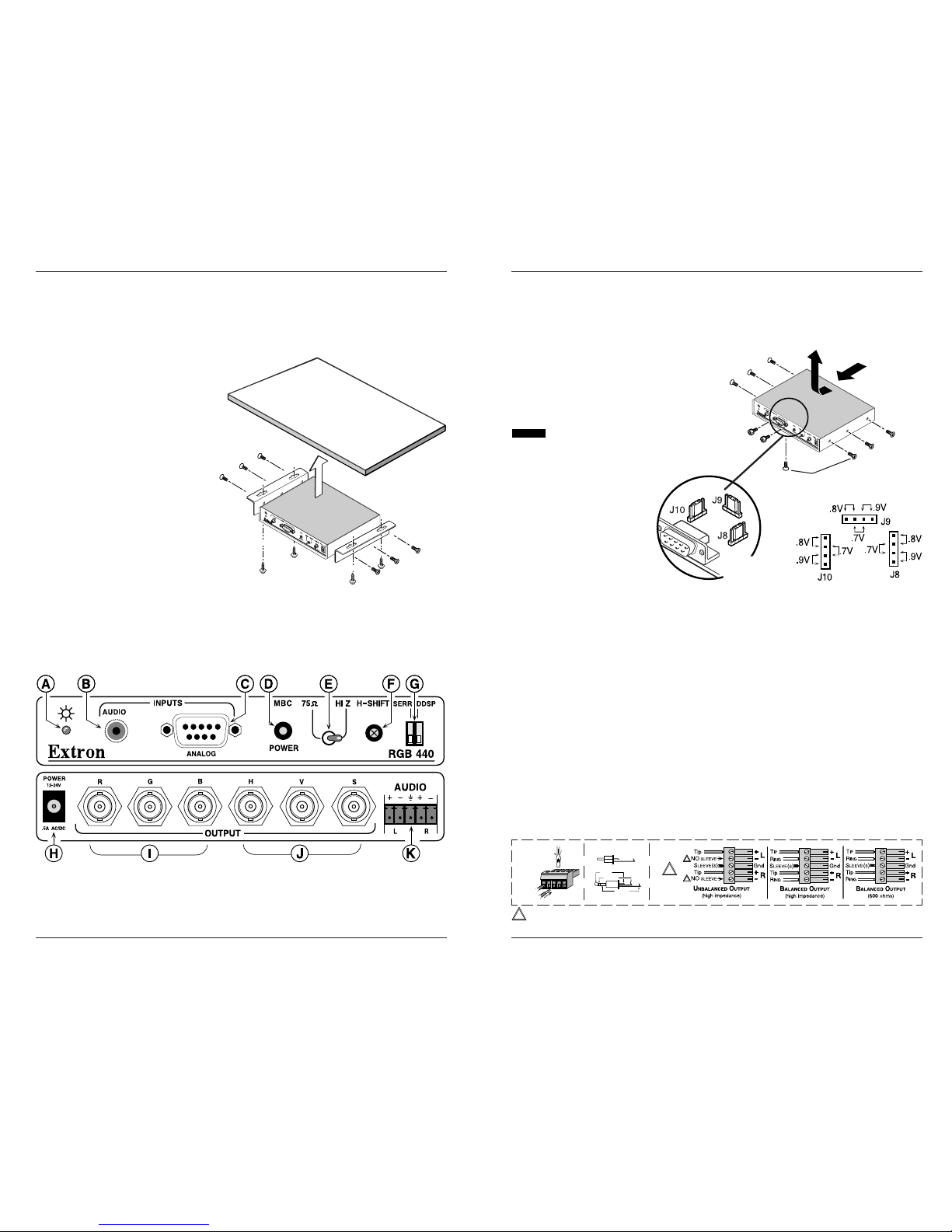

The RGB 440 may be mounted under, or on the side, of a table or desk using the included Under Desk

Mounting Kit, as shown in figure 1 and as detailed in the kit’s

documentation (68-461-01). Drill four pilot holes: front-to-

back, 2.5” apart, and side-to-side, 6.45” apart.

Descriptions of front and rear panel LEDs,

controls and connectors follow. The letters to

the left of the descriptions match the circled

letters in figure 2 below.

A.Power LED - On = power and video sync

pulses are present.

B.Audio input connector - 3.5 mm, stereo

jack (tip = L, ring = R, sleeve = ground).

C.Analog video input connector - Input

connector for MBC buffer, LBC, or MBC

cable from computer.

D.MBC Power output connector - Provides

power for MBC buffer if required.

E.Termination switch - Provides 75 ohms video

input termination if no local monitor is used.

F.H-Shift control - Shifts the image horizontally on

remote display device.

G.Sync processing DIP switches

Serr = Serration pulses enabled when up.

DDSP =Digital Display Sync Processing enabled when up.

H.Power input connector - The input voltage range is 12 to 24 volts AC or DC.

I.RGB BNC output connectors

J.Sync BNC output connectors

K.Audio output connector

Figure 2

Sync processing switches

Video projectors of different types or from different manufacturers may have slightly different sync pulse

requirements. Sync processing DIP switches on the RGB 440 front panel (G) enable the user to modify

output sync by enabling or disabling vertical sync serration pulses and enabling or disabling Digital Display

InstallationandOperation

Extron • RGB 440 Interface • User’s Guide

Page 2

Remove 7

screws

PC board

(inside case)

Remove 2

connector

nuts

Slide cover

forward and

lift

Figure 3

Figure 1

Sync Processing (DDSP). The Sync processing switch module contains two DIP switches labeled SERR

(left switch) and DDSP (right switch). The Serr switch in the up position (enabled) will result in the removal

of serration pulses from the output composite sync signal (does not affect SOG, H or V outputs). The DDSP

switch in the up position (enabled) provides Digital Display Sync Processing, which may be required for

digital display devices which exhibit an unstable display. With DDSP enabled, the H Shift control (F) on the

front panel is defeated.

Jumpers

RGB analog signals passing through coax cables may

experience signal loss depending on the quality and

length of the cable. The signal loss occurs across all

frequencies but primarily higher frequencies. Boost/

peaking jumpers located inside the RGB 440

(figure 3) provide a way to compensate for these

losses.

CAUTION

Disconnect power before opening the

RGB 440.

To open the RGB 440, remove the mounting

brackets (if attached), remove six screws on

the sides (if not removed with the

mounting brackets), one screw on

the bottom, and two connector nuts

as shown in figure 3. There is one

jumper header for each of the RGB

color signals, J8 = red, J9 = green

and J10 = blue. Each header

provides three possible jumper

positions: unity gain (0.7V p-p),

0.8V p-p and 0.9V p-p.

Cable quality/length along

with video signal frequencies will

have a big impact on the jumper settings. Set up the jumpers just prior to securing the RGB 440 in place.

Jumper position guidelines

0.7V - Short cable runs

0.8V - Long cable runs, signal gain & peaking for all frequencies

0.9V - Long cable runs & high frequency video signals

High frequency signal boost and peaking compensates for high frequency signal loss due to cable

capacitance and bandwidth loss.

Using the captive screw audio output connector

The RGB 440 Interface has a single 3.5 mm, captive screw receptacle along the bottom right side of the rear

panel ((K) on figure 2). The audio receptacle has five contacts, and is labeled for left (L), right (R), polarity

(+/–), and ground.

A 3.5 mm captive screw connector (part number 10-319-10) is supplied with the RGB 440. The connector

must be wired to the output audio cables using the captive screws inside the connectors (figure 4A). The

audio connector is then plugged into the output connector on the rear panel. Figure 4C shows three methods

of wiring the output connector.

When making connections for the RGB 440 Interface from existing audio cables, see figure 4B. The round

audio connectors are shown with the top one (tip and sleeve only) for unbalanced audio and the bottom one

(tip, ring, and sleeve) for balanced audio. The ring, tip and sleeve markings are also used on the captive

screw connector diagrams in figure 4C. Use these examples as a guide for making audio cables.

Figure 4B

Tip

Sleeve

Ring (-)

Tip (+)

Sleeve

Figure 4C

Figure 4A

____ NO

SLEEVE

means NO CONNECTION. Wiring errors or plugging the audio connectors incorrectly

may damage the audio output circuits.

CableConnections

Extron • RGB 440 Interface • User’s Guide

Page 3

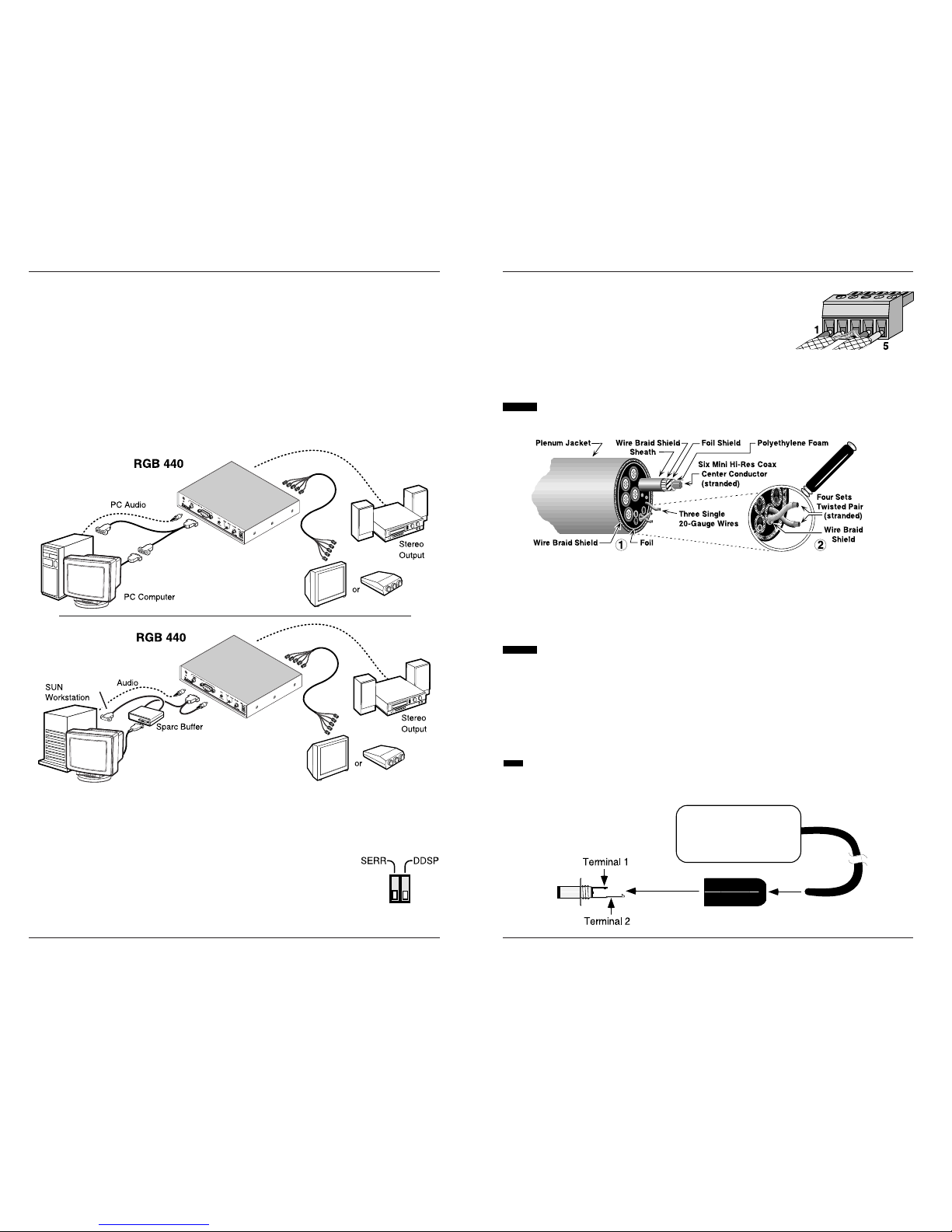

Installation of the RGB 440 using an MBC cable or an MBC buffer

For the following steps, use the diagram in figure 5A or 5B, whichever applies to your installation.

1. Turn off the computer and its monitor.

2. If desired, attach mounting brackets (Extron part #70-077-01, under-desk, or 70-077-02, through-desk).

3. Disconnect the local monitor cable from the computer and connect it to (A).

4. Connect the 9-pin connector from the MBC/MBC buffer to “Analog” on the RGB 440 (B). For an MBC

buffer, connect the small plug at the same end of the cable to "MBC Power" on the RGB 440.

5. Connect the remaining MBC/MBC buffer connector to the computer's video output connector (C).

6. Connect the PC audio output cable to the RGB 440 Audio input connector (D).

7. Connect the RGB 440 video output to the output device (E).

8. Connect the RGB 440 audio output to the audio output device (F).

9. Apply power to the RGB 440, the CPU and its monitor, and the output devices.

(A)

(B)

(F)

Figure 5A

—

Using an MBC cable.

(A)

(B)

(C)

(E)

(D)

(F)

Figure 5B

—

Using an MBC buffer.

Figure 6

DIP switches

Video projectors of different types or from different manufacturers may have slightly different sync pulse

requirements. DIP switches on the RGB 440 front panel enable the user to modify output sync (except SOG)

by enabling or disabling vertical sync serration pulses and enabling or disabling Digital Display Sync

Processing (DDSP).

The front panel slide switches are shown in figure 6. The Serr switch, when on

(up position), will result in the removal of serration pulses from the output

composite sync signal. The DDSP switch, when on (up position), provides Digital

Display Sync Processing, which may be required for digital display devices

which exhibit an unstable display. The H Shift control is disabled when the

DDSP switch is in the on position.

Shields

Extron • RGB 440 Interface • User’s Guide

Page 4

Shield connections

If shielded, twisted pair wire such as that in Extron's Plenum Installation Cable

(figure 8) is being used with the RGB 440 captive screw connector, the shields

should be connected to connector pin 3 (the center pin) as shown in figure 7.

The wires that make up the braid shield (see figure 8) should be separated

and twisted together forming a large multi-strand wire, which is then

inserted into the receptacle side of the connector. Unused shielded,

twisted pair wire must be insulated and secured to prevent short

circuits.

The coax within the Plenum Installation Cable also contains a braid and foil shield which are normally

connected to ground through their individual connectors (BNC, RCA, etc.).

CAUTION

Exposed cable shields (braid, foil, etc.) are potential short circuits. Trim back and/or insulate

shields with electrical tape or heat shrink.

Figure 7

Figure 8

—Extron's Plenum Installation Cable

Power

The RGB 440 requires an external voltage source of 12 to 24 volts AC or DC (500 mA max). Polarity is not

an issue, even if the power source is a DC voltage. Simply insert the power plug into the connector labeled

POWER ((H) on figure 2) on the rear panel of the RGB 440. An optional 12 VDC external power supply is

available from Extron (Part #70-055-01). A power plug (included with RGB 440) must be soldered to the

power source wires. The procedure follows:

CAUTION

DO NOT connect the power plug/RGB 440 to a power source greater than 24 volts AC or

DC. To do so could cause serious damage to Extron equipment and/or User’s equipment.

To connect the power plug to the wires from the power source, see figure 9 and do the following:

1. Unscrew the black plastic cover from the plug.

2. Insert the wires from the power source through the tapered end of the black plastic cover.

3. Solder one wire to terminal 1, and the other wire to terminal 2.

4. Before plugging the power plug into the RGB 440, apply power to the voltage source and, using a

voltmeter, verify that the voltage at the plug is in the range of 12 to 24 volts AC or DC.

5. Reinstall the plastic cover on the plug and insert the plug into the RGB 440 power connector.

NOTE

The front panel POWER LED is on only when power and video sync pulses are present.

12 - 24 volts

AC or DC source

(Extron 12VDC power supply)

part # 70-055-01

Plastic cover

Figure 9

Altri manuali Extron electronics Apparecchiature di registrazione

Extron electronics

Extron electronics CIA111 Manuale utente

Extron electronics

Extron electronics SSP 7.1 Manuale utente

Extron electronics

Extron electronics CIA111 Manuale utente

Extron electronics

Extron electronics MLA-VC10 Manuale utente

Extron electronics

Extron electronics SSP 7.1 Manuale utente

Extron electronics

Extron electronics RGB 109xi Manuale utente

Extron electronics

Extron electronics NetPA AT Series Manuale utente

Extron electronics

Extron electronics RGB 460xi SC Series Manuale utente

Extron electronics

Extron electronics PIP 422 Manuale utente

Extron electronics

Extron electronics RGB 203 Rxi Manuale utente

Extron electronics

Extron electronics RGB 124 Manuale utente

Extron electronics

Extron electronics RGB 500 AKM Manuale utente

Extron electronics

Extron electronics IPL T S1 Manuale utente

Extron electronics

Extron electronics Universal Interfaces RGB 130xi Manuale utente

Extron electronics

Extron electronics RGB 170 Manuale utente

Extron electronics

Extron electronics RGB 118 PLUS Manuale utente

Extron electronics

Extron electronics RGB 202 VS SL2 Manuale utente

Extron electronics

Extron electronics SSP 200 Manuale utente

Extron electronics

Extron electronics P/2 DA1 USB Manuale utente

Extron electronics

Extron electronics Computer-Video Interface RGB 508 AKM Manuale utente

Extron electronics

Extron electronics IPL T S Series Manuale utente

Extron electronics

Extron electronics RGB 109xi Manuale utente

Extron electronics

Extron electronics Wall and Floor Box Mountable Interfaces RGB... Manuale utente

Extron electronics

Extron electronics RGB 580xi AAP Manuale utente

Manuali Apparecchiature di registrazione popolari di altre marche

KV2 Audio

KV2 Audio 500 Series Manuale utente

Robotics Technologies

Robotics Technologies microBus-Cam II Manuale utente

Seca

Seca 460 Manuale utente

Cognex

Cognex MVS-8000 Series Manuale utente

Mect

Mect MPNC006 Series Manuale utente

Bad Caf

Bad Caf THE LEASH Manuale utente

Strymon

Strymon NIGHTSKY Manuale utente

Mitsubishi Electric

Mitsubishi Electric 16CH DIGITAL RECORDER DX-TL5000U Manuale utente

Tews Technologies

Tews Technologies TPMC465 Manuale utente

Honeywell

Honeywell Excel 50 Manuale utente

SeaLevel

SeaLevel COMM+8.LPCI Manuale utente

Arturia

Arturia AUDIOFUSE STUDIO Manuale utente

Rukra

Rukra RK-1240 Manuale utente

Samson

Samson SCOM Manuale utente

Dynacord

Dynacord DPS260 Manuale utente

Nice

Nice Core Manuale utente

Pyle Pro

Pyle Pro PSS8 Manuale utente

RF-System

RF-System TinyGate Manuale per l'uso e la cura
