Extron electronics A/V Receiver MTP 4T 15HD RS Manuale utente

IMPORTANT:

Go to www.extron.com for the complete

user guide, installation instructions, and

specifications before connecting the

product to the power source.

IMPORTANT:

Go to www.extron.com for the complete

user guide, installation instructions, and

specifications before connecting the

product to the power source.

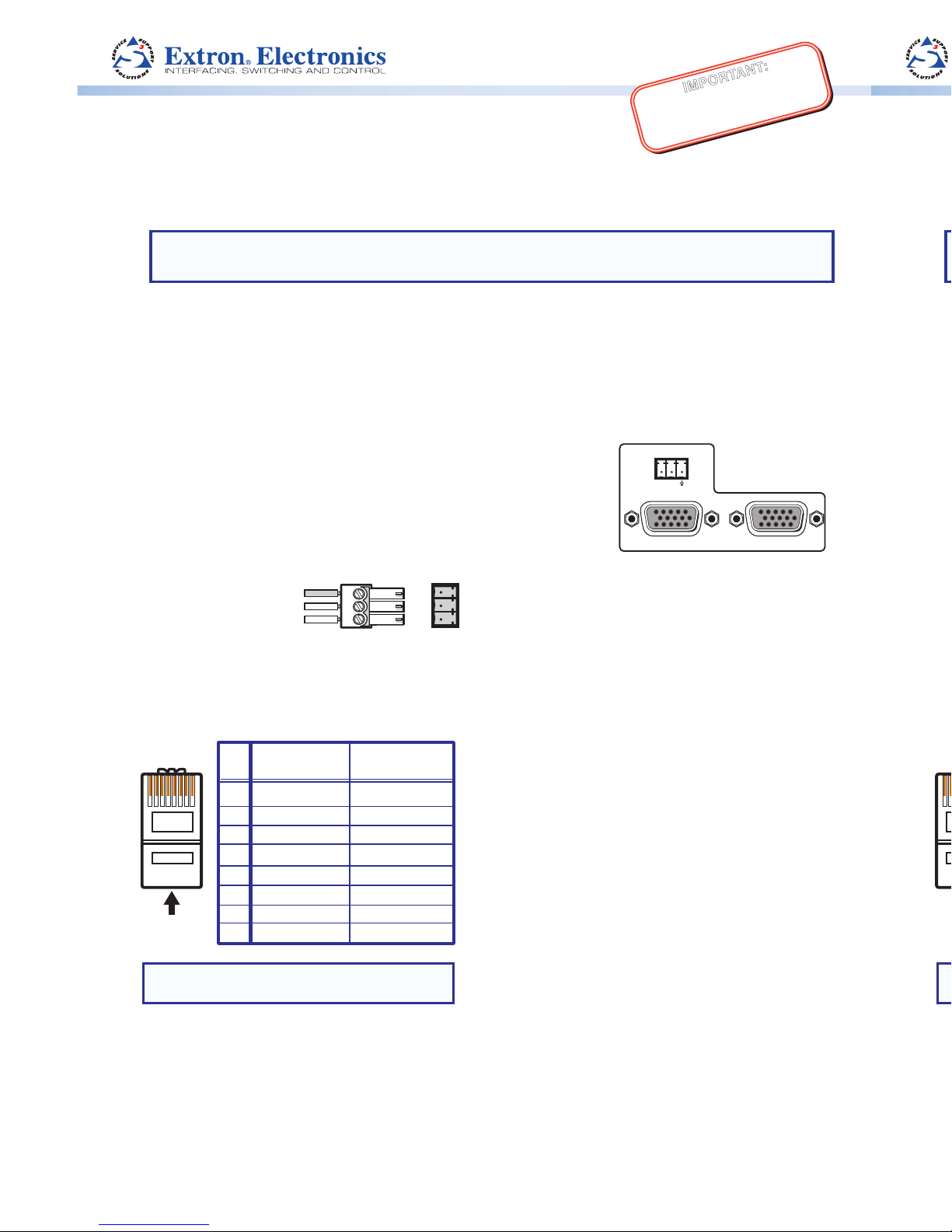

MTP 4T 15HD RS • Setup Guide

This sheet provides quick start instructions for an experienced installer to set up and

operate the MTP 4T 15HD RS multiple VGA video and RS-232 transmitters.

NOTE:Each MTP 4T 15HD RS transmitter requires at least one connected

compatible MTP receiver. Additional receivers can be daisy chained.

Installation

Step 1 — Mounting

Turn off or disconnect all equipment power sources and mount the unit as required.

Step 2 — Transmitter Inputs

INPUT

Tx Rx

RS-232

MONITOR

• Connect a computer (VGA) video source to each Input

connector.

• Connect a VGA monitor to each Monitor connector.

• Plug an RS-232 device into each RS-232 port. Wire the

connectors as shown below.

Ground

Gnd

Receive

Tr ansmit

Connected

RS-232

Device Pins

MTP

Pins

Step 3 — TP Cables

Terminate up to four TP cables as shown below. Connect them between each

transmitter’s Output port and a receiver’s Input port (both ends need to match).

Wire Color

White-green

Green

White-orange

White-blue

Orange

White-brown

Brown

Wire Color

T568A T568B

White-orange

Orange

White-green

White-blue

Green

White-brown

Brown

Blue Blue

Insert

TP Wires

Pins:

12345678 Pin

NOTE: If you are using Enhanced Skew-Free™

AV cable, use the TIA/EIA T568A standard only.

MTP 4T 15HD RS • Setup Guide

This sheet provides quick start instructions for an experienced installer to set up and

operate the MTP 4T 15HD RS multiple VGA video and RS-232 transmitters.

NOTE:Each MTP 4T 15HD RS transmitter requires at least one connected

compatible MTP receiver. Additional receivers can be daisy chained.

Installation

Step 1 — Mounting

Turn off or disconnect all equipment power sources and mount the unit as required.

Step 2 — Transmitter Inputs

INPUT

Tx Rx

RS-232

MONITOR

• Connect a computer (VGA) video source to each Input

connector.

• Connect a VGA monitor to each Monitor connector.

• Plug an RS-232 device into each RS-232 port. Wire the

connectors as shown below.

Ground

Gnd

Receive

Tr ansmit

Connected

RS-232

Device Pins

MTP

Pins

Step 3 — TP Cables

Terminate up to four TP cables as shown below. Connect them between each

transmitter’s Output port and a receiver’s Input port (both ends need to match).

Wire Color

White-green

Green

White-orange

White-blue

Orange

White-brown

Brown

Wire Color

T568A T568B

White-orange

Orange

White-green

White-blue

Green

White-brown

Brown

Blue Blue

Insert

TP Wires

Pins:

12345678 Pin

NOTE: If you are using Enhanced Skew-Free™

AV cable, use the TIA/EIA T568A standard only.

MTP 4T 15HD RS • Setup Guide (Continued) MTP 4T 15HD RS • Setup Guide (Continued)

68-1398-50

Rev. B 01 13

Extron Headquarters

+800.633.9876 Inside USA/Canada Only

Extron USA - West Extron USA -

East

+1.714.491.1500 +1.919.850.1000

FAX:

+1.714.491.1517 +1.919.850.1001

Extron Europe

+800.3987.6673

Inside Europe

Only

+31.33.453.4040

FAX:

+31.33.453.4050

Extron Asia

+800.7339.8766

Inside Asia Only

+65.6383.4400

FAX:

+65.6383.4664

Extron Japan

+81.3.3511.7655

FAX

+81.3.3511.7656

Extron Middle East

+971.4.2991800

FAX:

+971.4.2991880

Extron China

+4000.EXTRON

+4000.398766

Inside China Only

+86.21.3760.1568

FAX:

+86.21.3760.1566

Extron India

1800.3070.3777

Inside India Only

+91-80-3055.3777

+91 80 3055 3737

FAX

Extron Korea

+82.2.3444.1571

+82.2.3444.1575 FAX

Extron Headquarters

+800.633.9876 Inside USA/Canada Only

Extron USA - West Extron USA -

East

+1.714.491.1500 +1.919.850.1000

FAX:

+1.714.491.1517 +1.919.850.1001

Extron Europe

+800.3987.6673

Inside Europe

Only

+31.33.453.4040

FAX:

+31.33.453.4050

Extron Asia

+800.7339.8766

Inside Asia Only

+65.6383.4400

FAX:

+65.6383.4664

Extron Japan

+81.3.3511.7655

FAX

+81.3.3511.7656

Extron Middle East

+971.4.2991800

FAX:

+971.4.2991880

Extron China

+4000.EXTRON

+4000.398766

Inside China Only

+86.21.3760.1568

FAX:

+86.21.3760.1566

Extron India

1800.3070.3777

Inside India Only

+91-80-3055.3777

+91 80 3055 3737

FAX

Extron Korea

+82.2.3444.1571

+82.2.3444.1575 FAX

Rev. B 01 13

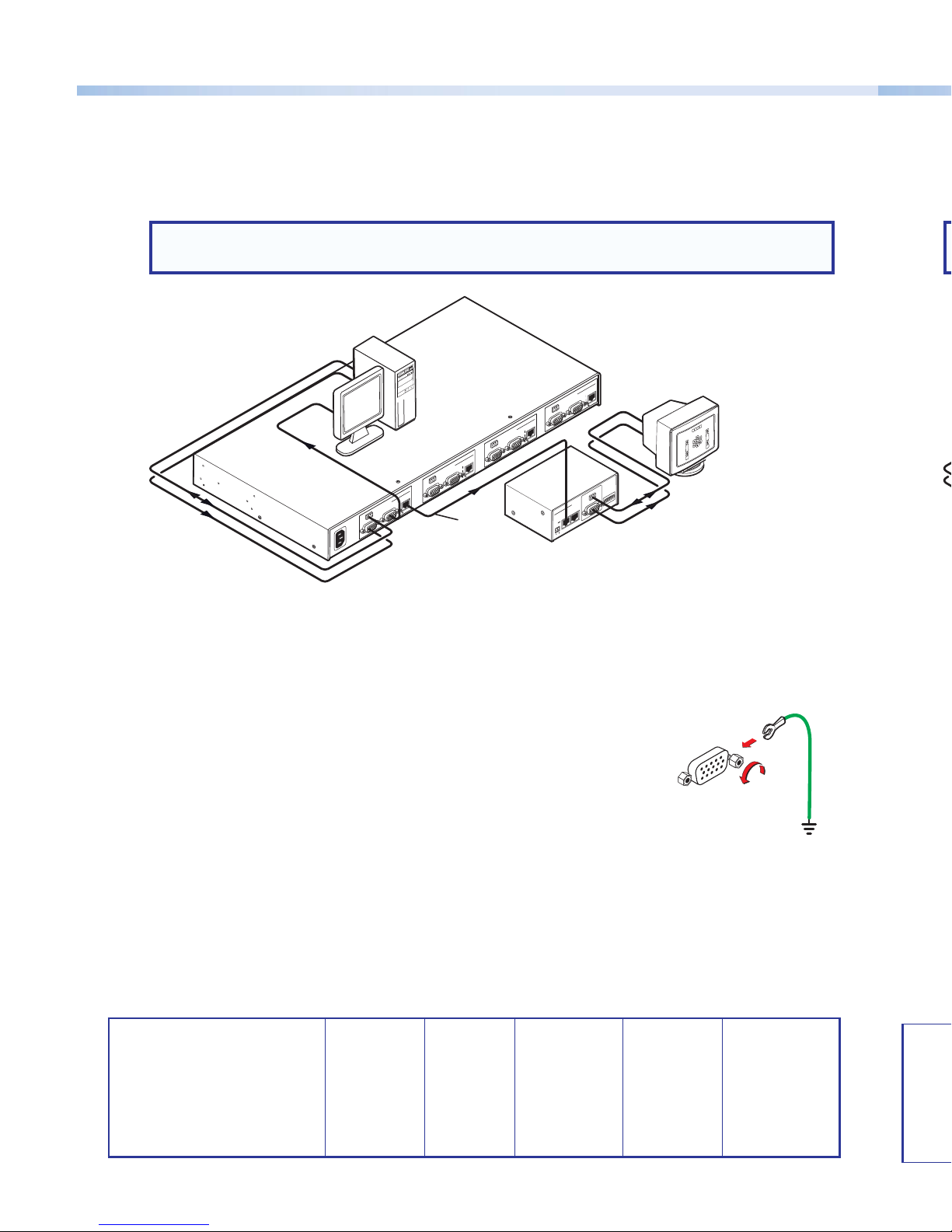

Step 4 — Power

Plug a standard IEC power cord between the unit’s power connector and 100 VAC

to 240 VAC, 50 or 60 Hz power source (see Ground guidelines below to ground an

Extron MTP 4T 15HD RS).

NOTE: See the MTP 15HD RS User’s Guide and the MTP 15HD RS Setup Guide

to setup and operate the receivers.

INPUT

Tx Rx

RS-232

MONITOR

OUTPUT

PRE-PEAK

OFF

INPUT

Tx Rx

RS-232

MONITOR

OUTPUT

PRE-PEAK

OFF

INPUT

Tx Rx

RS-232

MONITOR

OUTPUT

PRE-PEAK

OFF

INPUT

Tx Rx

RS-232

MONITOR

OUTPUT

PRE-PEAK

OFF

MT P T 15H D RS 1 MT P T 15H D RS 2 MT P T 15H D RS 3 MT P T 15H D RS 4

INPUT

BUFFERED

OUTPUT

POWER

12V

.5A MAX

MT P RL 15 HD RS

1 2 3 4 5 6

HSYNC +

VSYNC +

CSYNC

SOG

VIDEO

ENDUNIT

RS-232

Tx Rx

Extron

MTP 4T 15HD RS

4 Mini Twisted Pair

Transmitters

RS-232 RS-232

Touchscreen

with RS-232

Control

Extron

MTP RL 15HD RS

Mini Twisted Pair

Receiver

TP Cable

Up to 500 feet

Grounding guidelines

Extron MTP 4T 15HD RS products can be adversely affected by electrostatic

discharge (ESD) if they are not grounded correctly.

To prevent malfunctions or product damage, an experienced

installer can correctly ground an Extron MTP 4T15HD RS

product by grounding the chassis using a connector hex nut

as shown on the right. Tie the other end of the wire to an earth

ground.

If you have any questions about how to ground a product in a

specic application, contact an Extron technical support

specialist.

Step 4 — Power

Plug a standard IEC power cord between the unit’s power connector and 100 VAC

to 240 VAC, 50 or 60 Hz power source (see Ground guidelines below to ground an

Extron MTP 4T 15HD RS).

NOTE: See the MTP 15HD RS User’s Guide and the MTP 15HD RS Setup Guide

to setup and operate the receivers.

INPUT

Tx Rx

RS-232

MONITOR

OUTPUT

PRE-PEAK

OFF

INPUT

Tx Rx

RS-232

MONITOR

OUTPUT

PRE-PEAK

OFF

INPUT

Tx Rx

RS-232

MONITOR

OUTPUT

PRE-PEAK

OFF

INPUT

Tx Rx

RS-232

MONITOR

OUTPUT

PRE-PEAK

OFF

MT P T 15H D RS 1 MT P T 15H D RS 2 MT P T 15H D RS 3 MT P T 15H D RS 4

INPUT

BUFFERED

OUTPUT

POWER

12V

.5A MAX

MT P RL 15 HD RS

1 2 3 4 5 6

HSYNC +

VSYNC +

CSYNC

SOG

VIDEO

ENDUNIT

RS-232

Tx Rx

Extron

MTP 4T 15HD RS

4 Mini Twisted Pair

Transmitters

RS-232 RS-232

Touchscreen

with RS-232

Control

Extron

MTP RL 15HD RS

Mini Twisted Pair

Receiver

TP Cable

Up to 500 feet

Grounding guidelines

Extron MTP 4T 15HD RS products can be adversely affected by electrostatic

discharge (ESD) if they are not grounded correctly.

To prevent malfunctions or product damage, an experienced

installer can correctly ground an Extron MTP 4T15HD RS

product by grounding the chassis using a connector hex nut

as shown on the right. Tie the other end of the wire to an earth

ground.

If you have any questions about how to ground a product in a

specic application, contact an Extron technical support

specialist.
