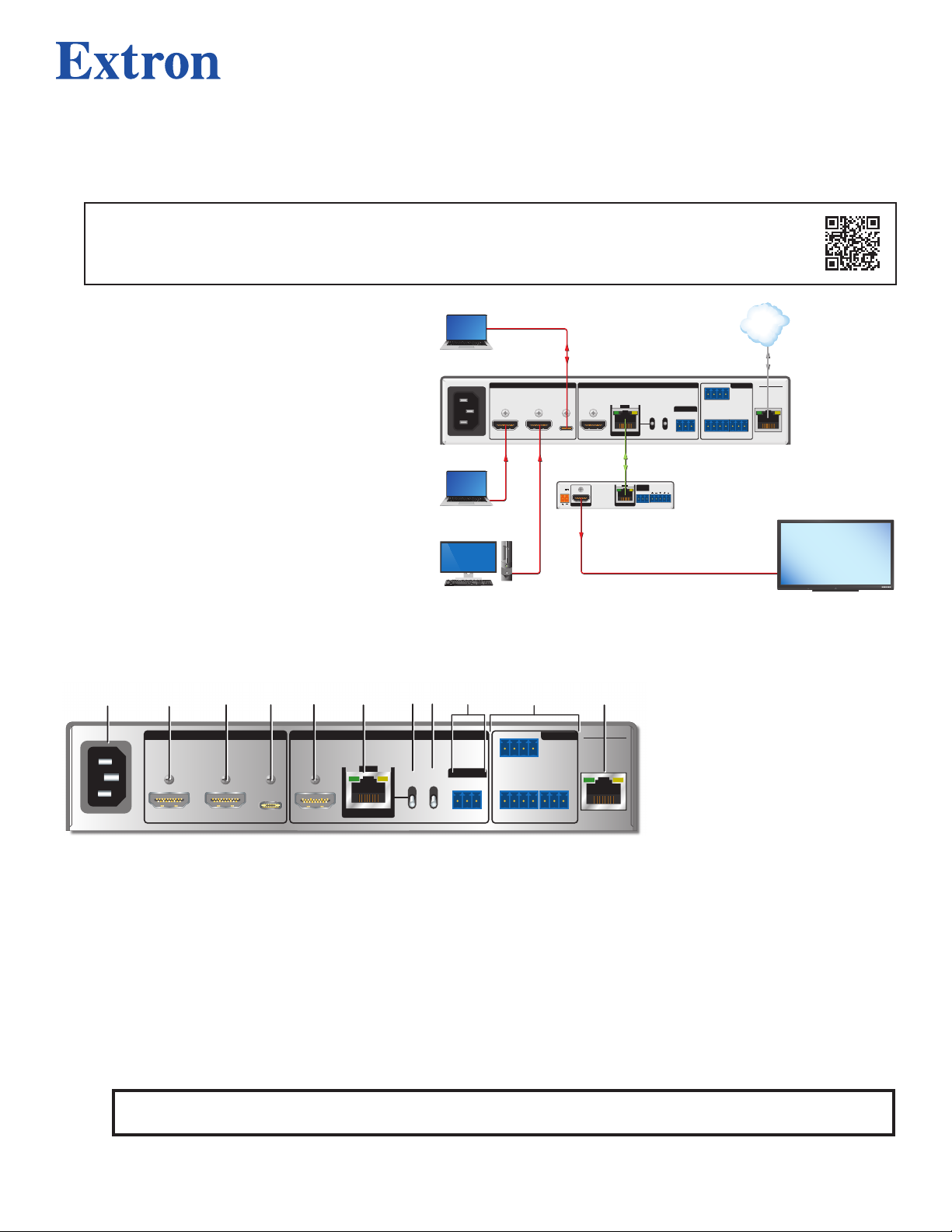

Extron electronics DTP3 T 203 Manuale utente

DTP3 T 203 • Setup Guide

IMPORTANT NOTE:

Go to www.extron.com for the complete user guide, installation instructions, and specications

before connecting the product to the power source.

The Extron DTP3 T 203 is a three-input, multi-format

switching transmitter consisting of a USB-C and two

HDMI inputs with simultaneous DTP3 and HDMI

outputs. The switcher supports resolutions up to 4K @

60 Hz at 4:4:4 chroma sampling and embedded audio.

The DTP3 provides reliable switching and

transmission of HDMI video at data rates up to

18 Gbps, HDR, 12-bit Deep Color, 3D formats, and

HDBT compatibility. Other features include EDID

Minder, HDCP authorization, auto-switching between

inputs, and bidirectional RS-232 control up to 330 feet

(100 meters) using one shielded twisted pair (STP)

cable as the transmission medium.

This guide provides quick start instructions for an

experienced installer to set up and operate the Extron

DTP3 T 203. For full installation, conguration, and

operation details, see the DTP3 T 203 User Guide,

available at www.extron.com.

POWER

1.5A MAX

12V

HDMI

OUTPUTDTP3 IN

SIG LINK

Amphenol

OVER

DTP3

RS-232

Tx Rx G AUDIO OUT

DTP3 T 203

HDMI

HDMI/CEC

HDMI

60W

USB-C OUT

SIG LINK

100-240V

--A MAX

50-60Hz

REMOTE

INPUTS OUTPUTS

OVER TP

RS-232

Tx Rx G

HDBT

SEND

POWER

DTP OFF

RS-232

TALLY

1 2 3 +V

CONTACT

1 2 3 G

Rx G LAN

LAN

MODEL80

FLATPANEL

CAT6A Cable

Up to 330'

(100 m)

USB-C Video

and Power

HDMI

HDMI/CEC

Ethernet

HDMI

Extron

DTP3 T 203

Transmit ter

Extron

DTP3 R 201

Receiver

Laptop

Computer 4K/HDR Display

Laptop

Installation

DTP3 T 203

DTP SWITCHER

AUTO

SWITCH

CONFIG

SIGNAL

INPUTS OUTPUTS USB C

INPUTS

23 AB

HDCP

123

60W

HDMI HDMI HDMI/CECUSB-C

LINK

OUT

DTP

HDBT

OFF

SEND

POWER

SIG OVER TP

REMOTE DTP3 T 203

OUTPUTS

INPUTS

LAN

GRxTx123+V

RS-232TALLY

123G

CONTACT

GRxTx

RS-232

100-240V ~ --A MAX

50-60 Hz

BCEA DF

F GD

Figure 1. DTP3 T 203 Rear Panel

Step 1 — Mounting (optional)

Turn o󰀨 or disconnect all equipment from the power source. The switcher can be securely

mounted in a variety of locations, using optional Extron Mounting Brackets and accessories

(see www.extron.com to determine which optional mounting accessories are compatible).

APower input

BHDMI inputs

CUSB-C input

DHDMI/CEC output

EDTP/HDBT output

FDTP/HDBT toggle switch

GSend Power toggle switch

HOver TP RS-232 port

IRemote RS-232, Contact,

and Tally ports

JLAN/Ethernet port

Step 2 — Connecting Inputs

a. Connect an input source to one or more of the HDMI inputs (see gure 1, B). Secure the cables to the connectors with a

provided LockIt®bracket (see the included LockIt®HDMI Cable Lacing Bracket Installation Guide).

b. Connect a USB-C source to the USB-C input (C).

NOTE: The USB-C input provides up to 60 W of power to a connected source device. If the source is already connected

to an external power supply, the USB-C dock does not send power to the source.

DTP3 T 203 • Setup Guide (Continued)

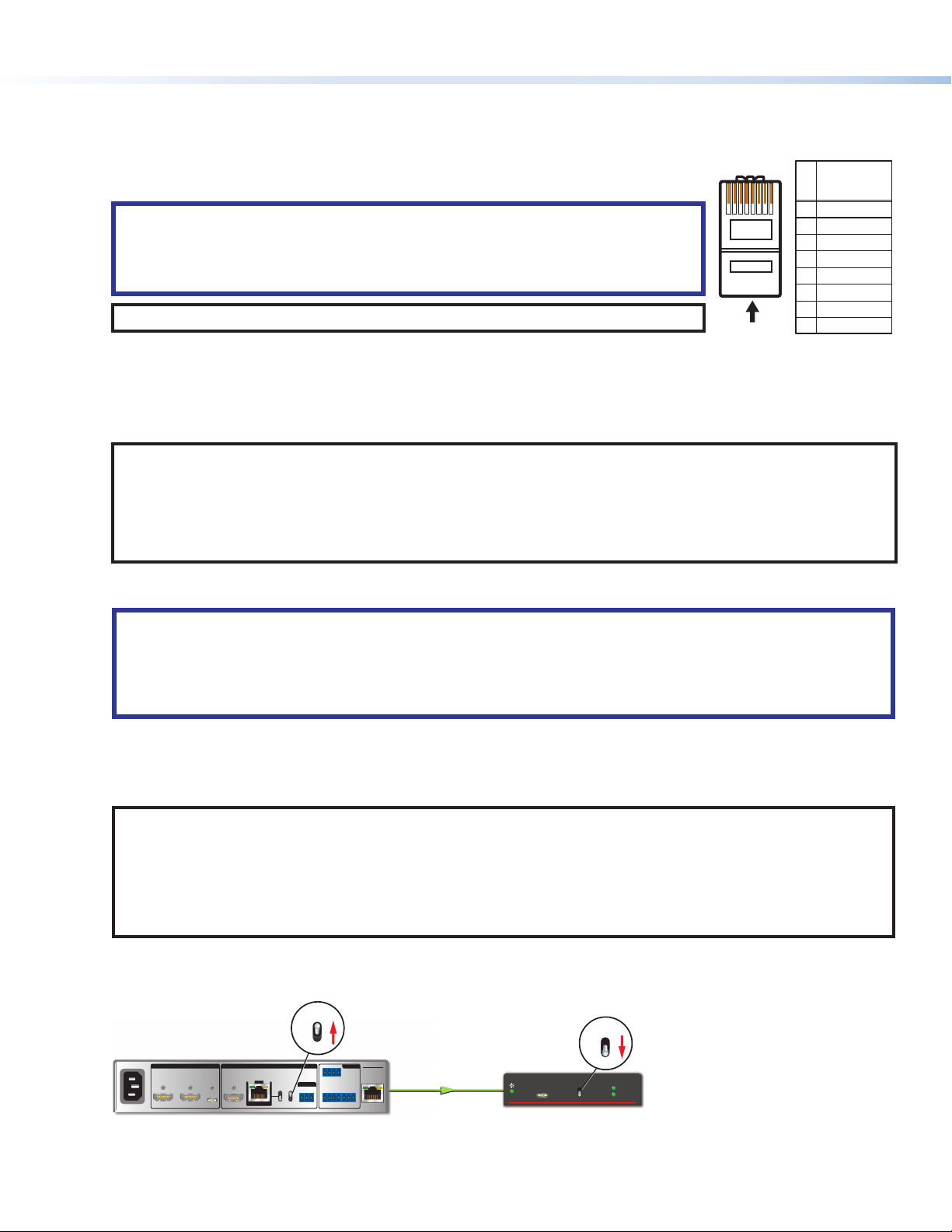

Step 3 — Connecting Outputs

a. Connect an output device to the HDMI output (see gure1, Don page 1).

b. Connect an RJ-45 DTP or HDBT receiving device to the DTP3/HDBT RJ-45 output port (E)

using a twisted pair cable.

ATTENTION:

• Do not connect these devices to a telecommunications or computer data network.

• Ne connectez pas ces appareils à un réseau de télécommunications ou de données

informatiques

NOTE: The DTP3 T 203 is compatible with DTP3 models only.

12345678

TP Wires

Pins:

Wire color

White-green

Green

White-orange

White-blue

Orange

White-brown

Brown

Blue

TIA/EIA T

568 B

Signal LED — Blinks green when the unit is outputting a TMDS clock signal on the DTP output.

Link LED — Lights yellow when a valid link is established between the units on the DTP.

Extron recommends that you terminate both cable ends in accordance with the following specications, at a minimum:

• TIA/EIA T 568B • XTP DTP 22 STP or CAT6A STP • 22 AWG, solid conductor with minimum of 500 MHz

NOTE: When using shielded twisted pair cable in bundles or conduits, consider the following:

• Do not exceed 40% fill capacity in conduits.

• Do not comb the cable for the first 20 meters, where cables are straightened, aligned, and secured in tight bundles.

• Loosely place cables and limit the use of tie wraps or hook-and-loop fasteners.

• Separate twisted pair cables from AC power cables.

c. Set the DTP/HDBT and Send Power toggle switches:

ATTENTION:

• Position these toggle switches BEFORE connecting the appropriate device to the TP connector. Failure to comply

can damage the endpoint.

• Positionnez ces sélecteurs AVANT de connecter l’appareil approprié au connecteur TP. Ne pas respecter cette

procédure pourrait endommager le point de connexion.

1. Set the DTP/HDBT toggle switch (F) to the DTP (down) position and the Send Power toggle switch (G) to the

SEND POWER (up) position on the switcher.

2. Set the Send Power toggle switch to the OFF (down) position on the DTP3 receiver.

NOTES:

• When the output is configured for DTP mode, remote power is available for Extron DTP3 devices only. When the

output is configured for HDBT mode, remote power is disabled and both the switcher and receiver require their own

12 V DC power supply.

• The DTP3 T 203 cannot be powered by a receiver.

• See figure 2 for the send power configuration of the device.

SEND

POWER

OFF

SEND

POWER

OFF

SEND

POWER

OFF

DTP HDMI 330 Rx

OVER DTP

RS-232 IR

Tx Rx Tx RxG

OFF

DTP3 R 201

CONFIG

DTP

SEND

PWR

OFF

SIGNAL

HDCP

WER

123

45W

HDMI HDMI HDMI/CLCUSB-C

LINK

OUT

DTP

HDBT

OFF

SEND

POWER

SIG OVER TP

REMOTE DTP3 T 203

OUTPUTS

INPUTS

LAN

GRxTx123+V

RS-232TALLY

123G

CONTACT

GRxTx

RS-232

100-240V ~ --A MAX

50-60 Hz

WER

123

45W

HDMIHDMI HDMI/CLCUSB-C

LINK

OUT

DTP

HDBT

OFF

SEND

POWER

SIG OVER TP

REMOTEDTP3 T 203

OUTPUTS

INPUTS

LAN

GRxTx123+V

RS-232TALLY

123G

CONTACT

GRxTx

RS-232

100-240V ~ --A MAX

50-60 Hz

Local

Power Supply

CATx Cable

up to 330' (100 m)

No Remote Power

Extron

DTP3 T 203

TransmitterExtron

DTP HDMI 4K 330 Rx

Receiver

DTP3 Endpoint Connected to a DTP Endpoint

CATx Cable

up to 330' (100 m)

Direction of

Remote Power

Ext

ron

P3 T 203

ransmitterExtron

DTP3 R 201

Receiver

DTP3 Endpoint Connected to a DTP3 Endpoint

Figure 2. DTP3 T 203 Send Power Configuration

HDMI/CEC output

DTP/HDBT output

Send Power toggle switchDTP/HDBT toggle switch

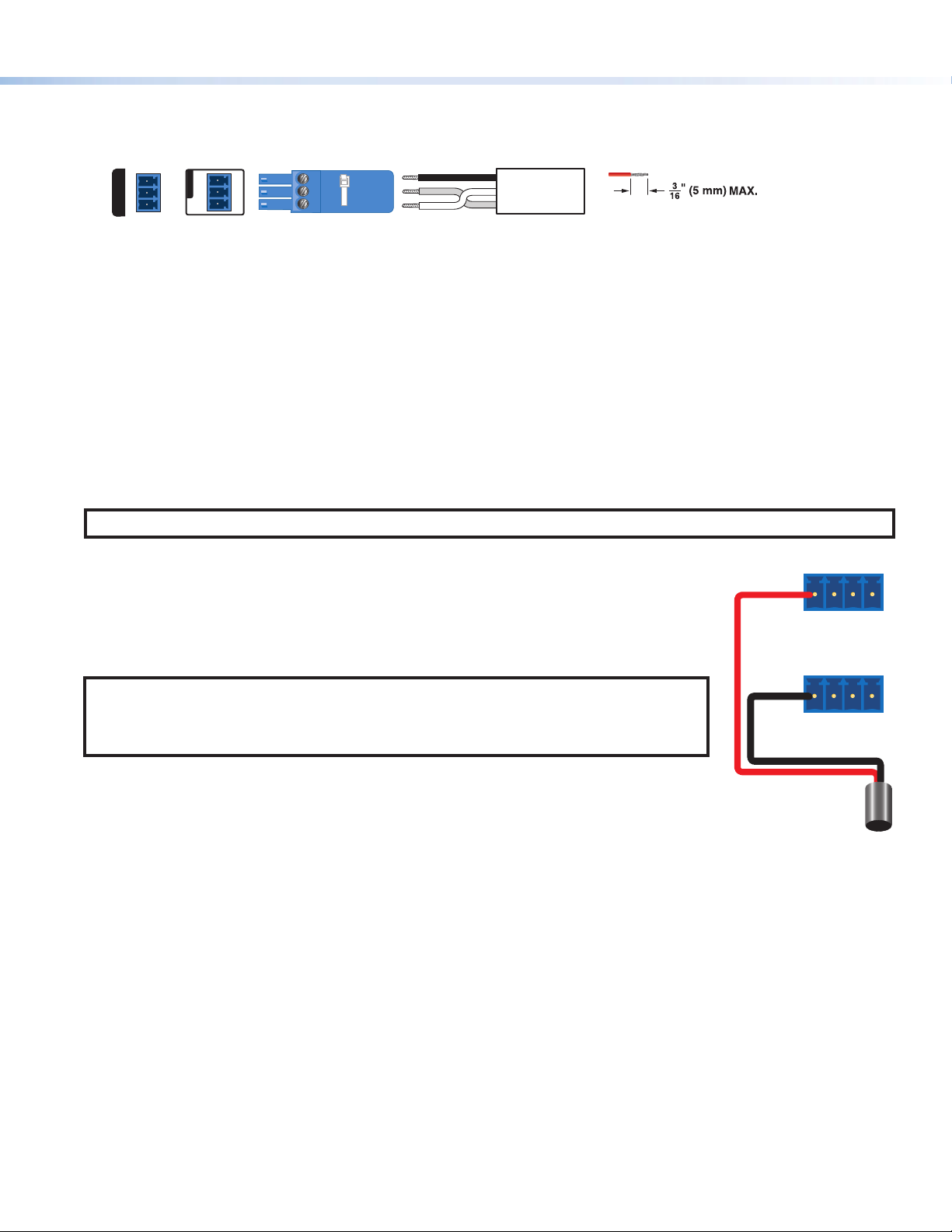

Step 4 — Connecting Control Devices

a. To pass through serial control signal, connect an RS-232 device to the switcher via the 3.5 mm, 3-pole captive screw OVER TP

port (see gure1, Hon page 1 and the image below for wiring).

Tx Rx

RS-232

OVER TP

Tx Rx

RS-232

REMOTE

Do not tin the wires!

Ground (G)

Receive (Rx)

Transmit (Tx)

b. For remote control of a unit and loading firmware (LAN or USB only), connect a host device, such as a computer or control

system, to one of the following ports:

• Remote RS-232 port — Connect a 3-pole captive screw connector to this port (see gure1, Iand the image above for

wiring).

• LAN Ethernet port — Connect an RJ-45 connector to this port (J).

• Signal LED — Lights green to indicate the switcher is properly connected to an Ethernet LAN.

• Link LED — Lights yellow to indicate transmission of data packets on the RJ-45 connector.

• USB-C configuration port — Connect a USB-C connector to this port (see gure3, Don page 4).

Step 5 — Connecting a Contact Closure Device (optional)

If desired, connect a push-button contact closure device to the 3.5 mm, 4-pole captive screw CONTACT port (see gure1, I) to

enable input switching via contact closure. Momentarily short the pin for the desired input (1, 2, or 3) to Gto select that input. To

force an input to be always selected, leave the short in place.

NOTE: Contact closure control overrides front panel input selections.

Step 6 — Connecting an Indicator Device (optional)

If desired, connect a device into the 3.5 mm, 4-pole captive screw TALLY port (I) to remotely

identify the currently selected input. Connect the power wire for the device into the +V pin and

connect the ground wire for each indicator into the corresponding tally output pin: 1, 2, or 3.

When an input is selected, by either contact closure or front panel selection, the corresponding tally

output pin shorts to the ground, closing the circuit and lighting the connected indicator (LED).

NOTE: The CONTACT and TALLY ports can be used with Extron Show me cables. For each

cable, connect the red pigtail to the associated pin of the CONTACT port and the black pigtail

to the associated pin on the TALLY port (see image on the right). The ground or drain wire on

the cable does not need to be wired to the switcher. The wire can be tied back and shielded.

Step 7 — Connecting Power

Connect a standard IEC power cable from a 100 to 240 VAC, 50-60 Hz power source into the power

receptacle (see gure1, A).

CONTACT

G321

TALLY

+V321

Show Me Cable

Black

Red

Over TP RS-232 port

Remote RS-232

LAN/Ethernet port

Contact

Tally ports

Power input

68-3702-50 Rev. A

10 23

For information on safety guidelines, regulatory compliances, EMI/EMF compatibility, accessibility, and related topics, see the Extron

Safety and Regulatory Compliance Guide on the Extron website.

All trademarks mentioned are the property of their respective owners.

Worldwide Headquarters: Extron USA West, 1025 E. Ball Road, Anaheim, CA 92805, 800.633.9876

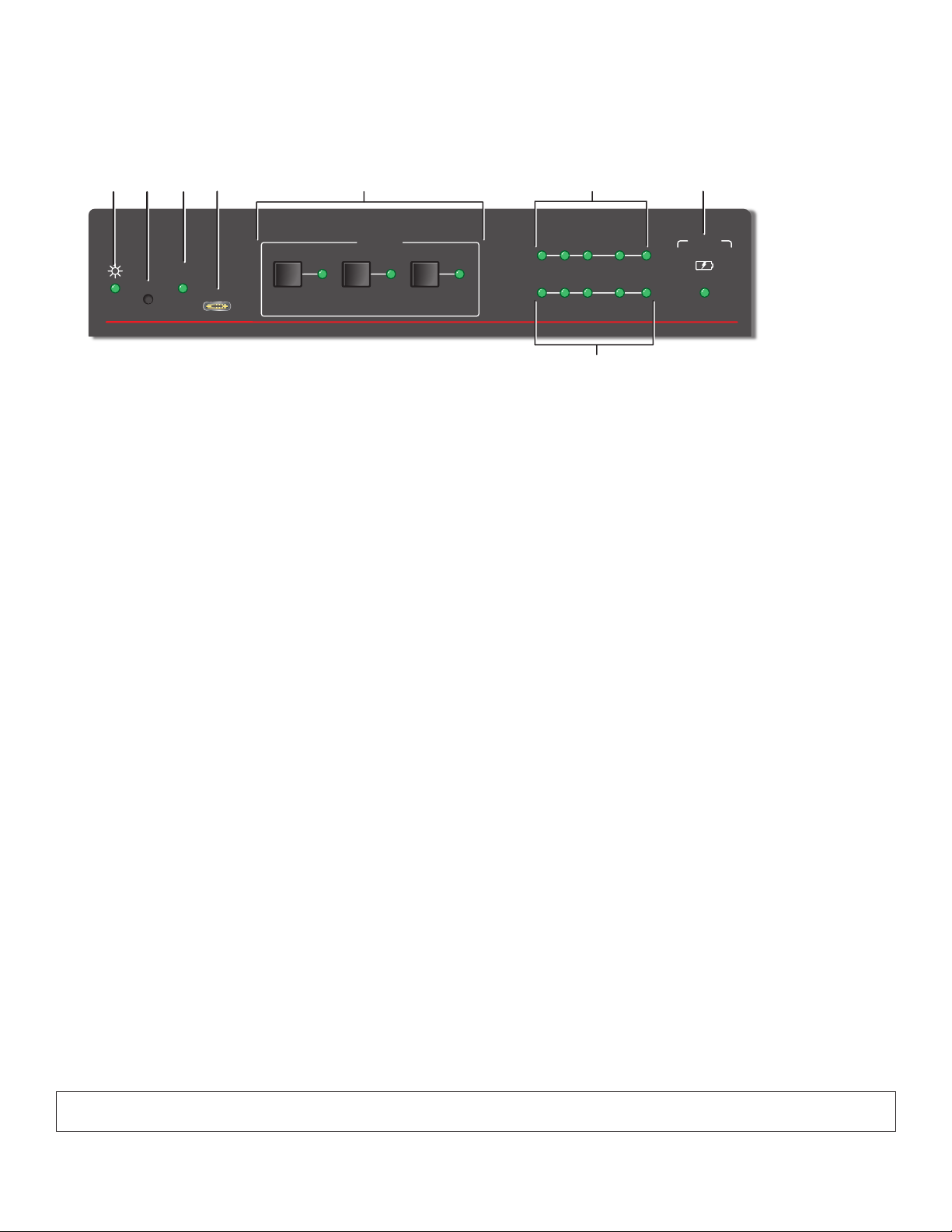

Operation

After the switcher and its devices are powered up, the system is fully operational. If any problems are encountered, verify that

cables are routed and connected properly and the display device has compatible resolution and refresh rate.

DTP3 T 203

DTP SWITCHER

AUTO

SWITCH

CONFIG

SIGNAL

INPUTS OUTPUTS USB C

INPUTS

23 AB

HDCP

123

60W

HDMI HDMI HDMI/CECUSB-C

LINK

OUT

DTP

HDBT

OFF

SEND

POWER

SIG OVER TP

REMOTE DTP3 T 203

OUTPUTS

INPUTS

LAN

GRxTx123+V

RS-232TALLY

123G

CONTACT

GRxTx

RS-232

100-240V ~ --A MAX

50-60 Hz

BCEA DF

F GD

Figure 3. DTP3 T 203 Front Panel

APower LED — Lights green when unit is receiving power and operational.

BReset button — Accesses reset modes when pressed. To initiate the three di󰀨erent reset levels, use a pointed object such as

a small Phillips screwdriver or stylus to press and hold the button while the switcher is running or while it is being powered up.

For more details, refer to the DTP3 T 203 User Guide, available at www.extron.com.

CAuto Switch LED — Lights green when auto-input switching is enabled.

DConfig port — Connect a USB-C cable to a computer to congure the device and update rmware via Product Conguration

Software (PCS), Simple Instruction Set (SIS) commands, or the internal web page. The port uses IP over USB technology. The

IP address is always 203.0.113.22 and the port number is 22023. The IP address cannot be changed.

EInput selection buttons and LEDs — Selects the active input and is used to change switching modes. Each button has an

associated LED which lights green to indicate selection status. If auto-input switching is in e󰀨ect, these buttons are disabled,

but the LEDs continue to light to indicate the selected input.

FSignal status LEDs

• Inputs — Each input has a corresponding numbered Signal LED which lights when a source is connected to the input

portand TMDS clock activity is detected.

• Outputs — Lights when an active sink (output) device is connected to the HDMI output.

GHDCP status LEDs — Lights green when a signal is detected on the associated input and output.

• Inputs — Each input has a corresponding numbered HDCP LED. If the connected source requires HDCP, the

corresponding LED lights when authentication is successful.

• Outputs — Lights if the currently selected input requires HDCP and the connected output device has been successfully

authenticated.

HUSB C power delivery LED — Lights green when the unit is powering a connected USB-C source.

Altri manuali per DTP3 T 203

Altri manuali Extron electronics Trasmettitore

Extron electronics

Extron electronics DTP T DWP 4K D Series Manuale utente

Extron electronics

Extron electronics ExSens Manuale utente

Extron electronics

Extron electronics XTP T HWP 101 4K Manuale utente

Extron electronics

Extron electronics DTP2 T 202 FB Manuale utente

Extron electronics

Extron electronics A/V Receiver MTP 4T 15HD RS Manuale utente

Extron electronics

Extron electronics MTP U T A D Manuale utente

Extron electronics

Extron electronics DTP2 T/R 211 Manuale utente

Extron electronics

Extron electronics XTP T VGA Manuale utente

Extron electronics

Extron electronics DTP2 T 203 Manuale utente

Extron electronics

Extron electronics DTP2 T 201 D Series Manuale utente

Extron electronics

Extron electronics FOX3 T 301 Manuale utente

Extron electronics

Extron electronics A/V Receiver MTP 4T 15HD RS Manuale utente

Extron electronics

Extron electronics FOX3 T 201 Manuale utente

Extron electronics

Extron electronics XTP T VGA Manuale utente

Extron electronics

Extron electronics XTP T VGA Manuale utente

Extron electronics

Extron electronics PowerCage MTP AV Series Manuale utente

Extron electronics

Extron electronics DTP3 T 101 D Manuale utente

Extron electronics

Extron electronics MTP T 15HD A Manuale utente

Extron electronics

Extron electronics DTP2 T 202 FB Manuale utente

Extron electronics

Extron electronics VERSATOOLS MTP Manuale utente

Extron electronics

Extron electronics DVI 201xi TX Manuale utente

Extron electronics

Extron electronics DTP3 T 203 Manuale utente

Extron electronics

Extron electronics TP T 15HD 45 Manuale utente

Extron electronics

Extron electronics FOX II T HD 4K Manuale utente

Manuali Trasmettitore popolari di altre marche

NIVELCO

NIVELCO EasyTREK SCA-300 Series Manuale del proprietario

Honeywell

Honeywell 5816WMBR Manuale utente

Kamstrup

Kamstrup READy MTU Istruzioni operative

Omega

Omega ZW Series Manuale utente

ABB

ABB Field 264H Guida

Alinco

Alinco DJ-V17T Manuale utente

Dejero

Dejero EnGo 3x Manuale utente

Rosemount

Rosemount 4600 Manuale utente

Speaka Professional

Speaka Professional 2342740 Manuale utente

trubomat

trubomat GAB 1000 Manuale utente

Teledyne Analytical Instruments

Teledyne Analytical Instruments LXT-380 Manuale utente

Rondish

Rondish UT-11 Manuale utente

MG 10JRE Manuale utente

Burkert

Burkert 8177 Manuale utente

Firetide

Firetide HotPort 3203 Manuale

Tele Radio

Tele Radio T9-02 Manuale utente

Rotronic

Rotronic HygroFlex HF3 Series Manuale utente

Jamara

Jamara FCX6 Pro Tel Manuale utente
