WASHING MACHINE

INSTALLATION AND ASSEMBLY

1UNPACKING AND UNLOCKING THE WASHING MACHINE

UNPACKING

UNLOCKING

IMPORTANT

aLoosen the

screws that hold

the plastic boards

at the back of the

machine.

bLoosen and remove

the blocking

screws.

cCover the holes

with the previously

removed plastic

boards.

Keep the blocking screws safely for future use IÓN A LA WATER MAINS

a/c

English

2CONNECTION TO THE WATER MAINSLEVELATION

3LEVELLING

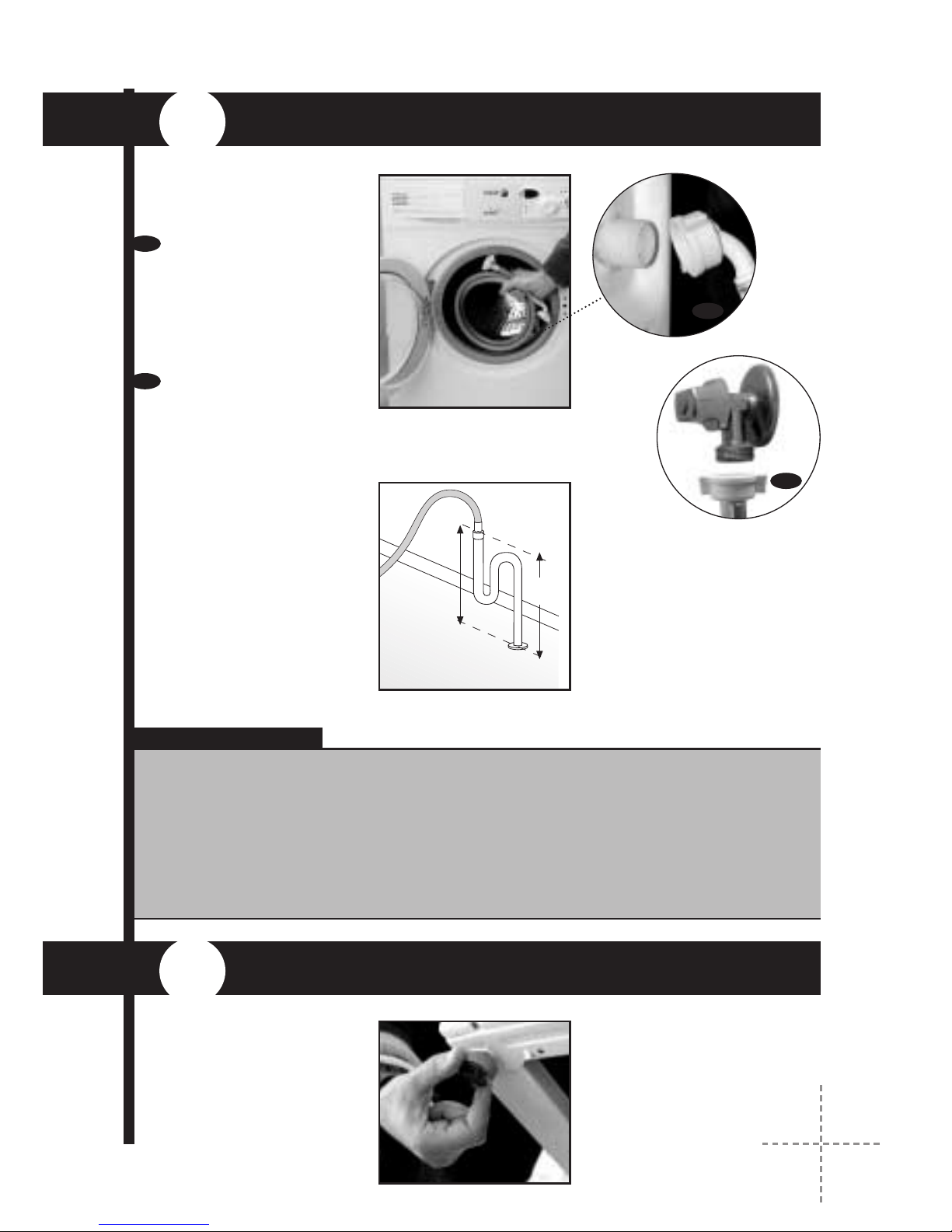

You will find the water-

input pipe inside the

drum:

aConnect the bent

end of the pipe at

the screw entrance

of the electrically

operated valve situa-

ted at the back of

the machine.

bConnect the other

end of the tube to

the water supply.

Tighten the connec-

tion nut well.

We recommend you

have a fixed drainage

exit at a distance of bet-

ween 50 and 70 cm

from the floor.

Ensure that the drainage

pipe is not too tight and

that there are no folds or

bottlenecks.

Level the washing

machine by using the

adjustable feet. This will

reduce the noise level

and ensure that the

machine will not move

when in operation.

max.

70 cm

min.

50 cm

IMPORTANT

It is important that the elbow of the pipe is properly fixed at the exit so that it doesn’t fall,

with the consequent risk of flooding.

If your washing machine has an input for hot water, connect the tube with the red threa-

ding to the hot water tap and to the electrically operated valve with the red filter.

The washing machine is to be connected to the water supply network using the new supply

pipes provided with the appliance. The old water supply pipes are not to be used.

For correct functioning of the washing machine, the water network pressure must be bet-

ween 0.05 and 1 MPa (0.5 - 10 Kgrf/cm2).

Do not remove the

characteristics panel.

It contains important

information.

4ELECTRICAL CONNECTION

5PANELLING

Consult the characteris-

tics panel situated on

the porthole door of the

washing machine before

making the electrical

connections. Ensure that

the voltage available at

the base of the socket is

the same as the voltage

indicated on the panel.

It is easy

to change the coating

of the washing

machine panels

to match your kitchen

furniture. These coa-

ting panels may

not be thicker than 5

mm.

aLoosen the

screws of the hin-

ges and dismantle

the door of

the washing

machine.

bRemove the lower

protection frame,

loosening the

screws.

Extract the panel

that was supplied

with the washing

machine.

IMPORTANT

It is very important to earth the washing machine properly.

The electrical fittings, socket, plug, fuses or automatic

switch and meter must be scaled for the maximum power

indicated on the characteristics panel.

If the power cord is damaged, it must be replaced by one

with the same reference number, only available from an

authorised service centre.

On built-in washing machines, the mains plug must be

accessible after installation.

cIf the new panel is 3

mm. thick or more,

you will not need to

leave the original

panel. If it is less than

3 mm. thick, place it

over the panel origi-

nally supplied with the

washing machine.

In order to assemble the

door with the new decora-

tive panel, repeat the steps

given in points a, b, c.

English

It is also possible to

adjust the height of

the decorative

door in order to align

it with the rest of the

kitchen furniture and

fittings.

aLoosen the screws

of the hinges and

dismantle the door

of the washing

machine.

bRemove the lower

protection frame,

loosening the

screws and extract

the panel that was

supplied with the

washing machine.

cThe lower part of

the door and the

lower protection

frame are divided

into 7x10 mm.

Sections. depen-

ding on your needs,

divide and adapt

the decorative

panel to the new

dimensions.

dReplace the deco-

rative panel and the

lower protection

frame and assem-

ble the door again.

Fagor washing machi-

nes also allow you to

change the direction in

which the door opens.

aLoosen the screws

of the hinges and

dismantle the door

of the washing

machine.

bRemove the lower

protection frame,

loosening the

screws. .

cExtract the panel

that was supplied

with the washing

machine and the

internal panel, loo-

sening the screws

that hold it together.

dExtract the hinges

and insert them on

the other side of the

door.

eLoosen the protecti-

ve cover on the

door and place it

on the opposite

side where the hin-

ges were.

fReplace the plate

again, the door

panel and the lower

protection frame.

Then hang the door

again.

gExtract the fastener

situated at the front

of the washing

machine unit, by loo-

sening the corres-

ponding screw. Now

place the fastener in

the spot where the

upper hinge used to

hRemove the protec-

tive buffer and

place it in the spot

where the lower

hinge used to be.

h i

c d

f g

iHang the door by

lightly pushing and

inserting the hinges

in their new location.

Adjust the screws.

English

6INSTALATION OF THE WASHING MACHINE UNDER THE

KITCHEN WORKTOP

Now that you have satis-

factorily installed your

washing machine, we

recommend that you run

programme 5 at 60ºC,

without inserting any

laundry or detergent.

This is in order to

check the installation,

the connections and

the drainage system,

as well as to fully clean

the inside before run-

ning a wash program-

me in the washing

machine.

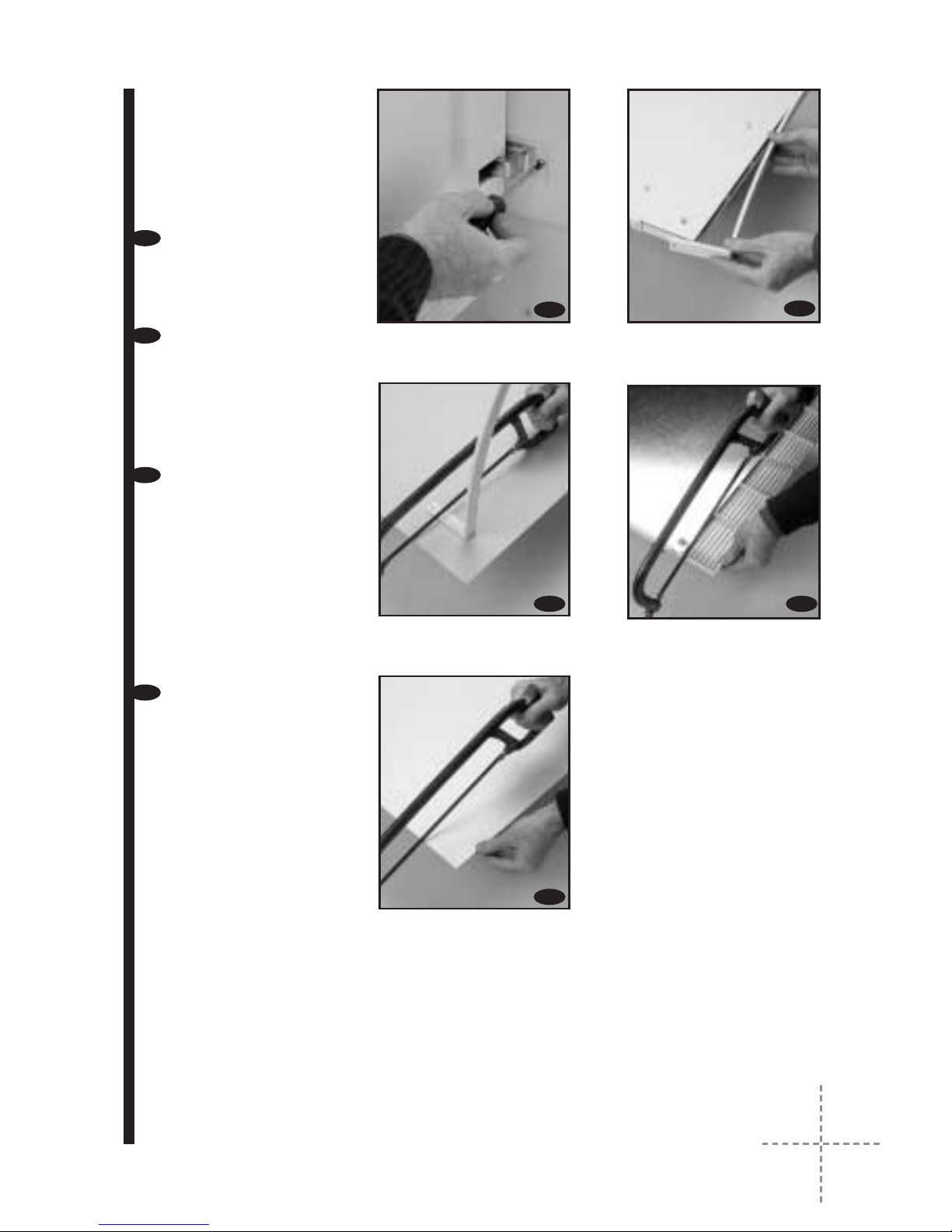

It is possible to place

the washing machine

under the kitchen

worktop.

If you need to change

the worktop of the was-

hing machine, please

ask the Technical

Support Service, for the

guard plate and follow

these steps:

aDismantle the work-

top of your washing

machine by loose-

ning the side screws

and lightly knocking

the worktop back-

ward in order to

extract it.

bRemove the fasteners

that hold the worktop

in place by loosening

the screws.

cPlace and screw in

the guard plate on

the washing machine

in order that you may

introduce it in the

intended spot.

Select

programme 5 at 60ºC

Press the

On/ Off button

a b

PRIOR CLEANING

HOW TO USE THE MACHINE. PRACTICAL TIPS

PREPARING THE LAUNDRY BEFORE A WASH

WASHING MACHINE

Sort your laundry

according to

material or make-

up. We recommend

you use delicate pro-

grammes for delicate

garments. Woollens

may be washed in a

special wool program-

me.

Before putting the

laundry in the drum,

ensure that all the poc-

kets are empty. Small

objects can obstruct

the motor pump for

water discharge.

IMPORTANTEIMPORTANT

Please ensure that your woollen garments are machine washable before run-

ning the wool programme.
