Fagor FU-6116IT Manuale utente
Manual de instalación y uso de la lavadora
Manuel d’installation et d’utilisation de l’appareil
Manual de instalação e utilização da máquina de lavar roupa
Washing machine installation and operation manual
26
27
28
32
42
44
47
AVERTISSEMENTS
SPÉCIFICATIONS
INSTALLATION ET MONTAGE
UTILISATION DE L’APPAREIL
ET CONSEILS PRATIQUES
MAINTENANCE
ET ENTRETIEN DE L’APPAREIL
SÉCURITÉ
ET RÉSOLUTION DE PROBLÈMES
AVERTISSEMENTS SUR
L’ENVIRONNEMENT
index
4
5
6
10
20
22
25
ADVERTENCIAS
ESPECIFICACIONES
INSTALACIÓN Y MONTAJE
USO DEL APARATO
Y CONSEJOS PRÁCTICOS
MANTENIMIENTO
Y LIMPIEZA DEL APARATO
SEGURIDAD
Y SOLUCIÓN DE PROBLEMAS
ADVERTENCIAS SOBRE
EL MEDIO AMBIENTE
lavadoraíndice
lave-linge
70
71
72
76
86
88
91
WARNINGS
SPECIFICATIONS
INSTALLATION AND ASSEMBLY
USING THE APPLIANCE.
PRACTICAL TIPS
MAINTENANCE
AND CLEANING
SAFETY
AND TROUBLESHOOTING
ENVIRONMENTAL
WARNINGS
washing machine
contents
48
49
50
54
64
66
69
ADVERTÊNCIAS
QUADRO TÉCNICO
INSTALAÇÃO E MONTAGEM
UTILIZAÇÃO DO APARELHO
E CONSELHOS PRÁTICOS
MANUTENÇÃO
E LIMPEZA DO APARELHO
SEGURANÇA
E SOLUÇÃO DE PROBLEMAS
ADVERTÊNCIAS SOBRE
O MEIO AMBIENTE
máquina de lavar roupa
índice
70
warnings
This washing machine comes with a
manual that includes operating, maintenance
and installation instructions. Please read all
the instructions before using the washing
machine.
Do not wash items that have previously
been cleaned, washed, soaked or treated
with petrol, solvents for dry cleaning, other
inflammable substances or explosives, as
they produce fumes that could catch fire or
explode.
Do not add petrol, solvents for dry cleaning
or other inflammable or explosive substances
to the wash water as they produce fumes
that could catch fire or explode.
Do not repair or replace any part of the
washing machine or try to carry out any type
of servicing unless it is recommended in the
maintenance instructions in the manual.
Do not climb onto the machine or stand
on the open hatch door.
Do not use an extension lead or adaptor
to connect your washing machine to the
mains supply.
The machine should only be used for the
purpose it is designed for.
Follow the washing instructions
recommended by the manufacturer of the
garment to be washed.
Do not turn your washing machine on until
you are sure that:
• It has been installed in accordance with
the installation instructions.
• All the water, drainage, mains electricity
and earth connections meet the local
regulations and/or other applicable
regulations.
To avoid the risk of fire, electric shocks, injury or damage when using your washing
machine, please take the following precautions:
71
washing machine
Water inlet hose.
specifications
Power
cord
Control
panel
Detergent
dispenser
Stainless
steel drum
Accesible filter
(behind kickplate)
Kickplate
Drain hose
Hatch
Adjustable
feet
Work top
ACCESSORIES
72
washing machine
aRemove the screws holding the plastic
covers to the back of the washing
machine.
bLoosen and remove the 3 blocking
screws.
cCover the holes with the plastic covers
you have just removed.
installation and assembly
Do not throw the blocking screws
away. You may need to move the
washing machine at a later date.
Important
a/c
aRemove the base, corner protectors and
top cover.
1UNPACKING AND
UNBLOCKING THE
WASHING MACHINE
UNBLOCKING
UNPACKING
a
DRAINAGE
CONNECTION
73
CONNECTION TO THE MAINS WATER SUPPLY AND
DRAINAGE
The water supply hose is inside the drum:
aConnect the bent end of the hose to the
threaded inlet of the electrovalve located
at the rear of the washing machine.
bConnect the other end of the hose to
the water intake. Then securely tighten
the connection nut.
installation and assembly
It is important that the drain hose
bend is correctly fastened to the
outlet, to prevent any risk of it
becoming detached and causing
flooding.
If your washing machine has a hot
water intake, connect the hose with
the red threaded end to the hot water
tap, and to the electrovalve with the
red filter.
The washing machine must be
connected to the mains water supply,
using the new supply hoses supplied
with the appliance. Do not use water
supply hoses that have been used
before. For your washing machine to
work properly, the mains water
pressure must be between 0.05 and
1MPa (0.05 and 10 Kgr/cm2).
a
aIt is recommended that you have a fixed
drainage outlet 50 to 70 cm from the
floor.
Avoid the drain hose being too tight,
kinked or restricted.
2
Important
CONNECTION TO THE
MAINS WATER SUPPLY
Important
Use the adjustable feet to level the
washing machine. This will reduce
the noise level and prevent it from
moving during use.
Do not bring the feet too far out, you
will achieve better stability.
You need to use a spanner for the
models that have a nut.
Important
74
LEVELLING THE WASHING MACHINE AND CONNECTING
IT TO THE MAINS ELECTRICITY SUPPLY
installation and assembly
3
Consult the specifications plate located on the
hatch door of the washing machine before
making the electrical connections. Ensure that
the voltage reaching the plug is the same as
that on the plate.
Do not remove the specifications plate.
The information on it is important.
ELECTRICAL CONNECTION
LEVELLING
It is very important to correctly earth the
washing machine. The electrical
installation, plug, socket, fuses or
automatic switch and counter must be
correctly dimensioned for the maximum
power indicated on the specifications
plate.
Do not plug the washing machine plug
into the socket with wet or damp hands.
To remove the power cord, pull on the
body of the plug.
If the power cord is damaged, it must be
replaced by a cord or special unit provided
by either the manufacturer or your after-
sales service.
With built-in washing machines, the plug
must be accessible after installation.
When your washing machine has been
correctly installed, we recommend that you
pre-clean the machine.
This is to check that the installation, the
connections and the drainage are all correct,
and to thoroughly clean the inside of the
washing machine before any wash
programmes are run (see the operating
instructions on the following pages).
aPress ON/OFF button.
bSelect the normal programme at 60ºC.
cPress the start/pause button.
75
INSTALLING THE WASHING MACHINE UNDER A KITCHEN
WORKTOP AND PRE-CLEANING
INSTALLATION UNDER
A WORKTOP
4
PRE-CLEANING
c
a
Your washing machine may be fitted
underneath a kitchen worktop.
If you need to remove the washing machine’s
worktop, for safety reasons you need to fit a
protection plate which you can obtain from
your Dealer or Technical Assistance Service.
Follow these steps to fit the plate:
aRemove the washing machine work top
by taking out the side screws and moving
it gently back.
bTake out the screws and remove the
parts holding the worktop in place.
cPut the protection plate into place and
screw it to the washing machine so it
can then be inserted in the place you
wish, fitting spongy adhesive all around
the perimeter first to prevent noise.
c
b
b
a
PREPARATION
76
washing machine

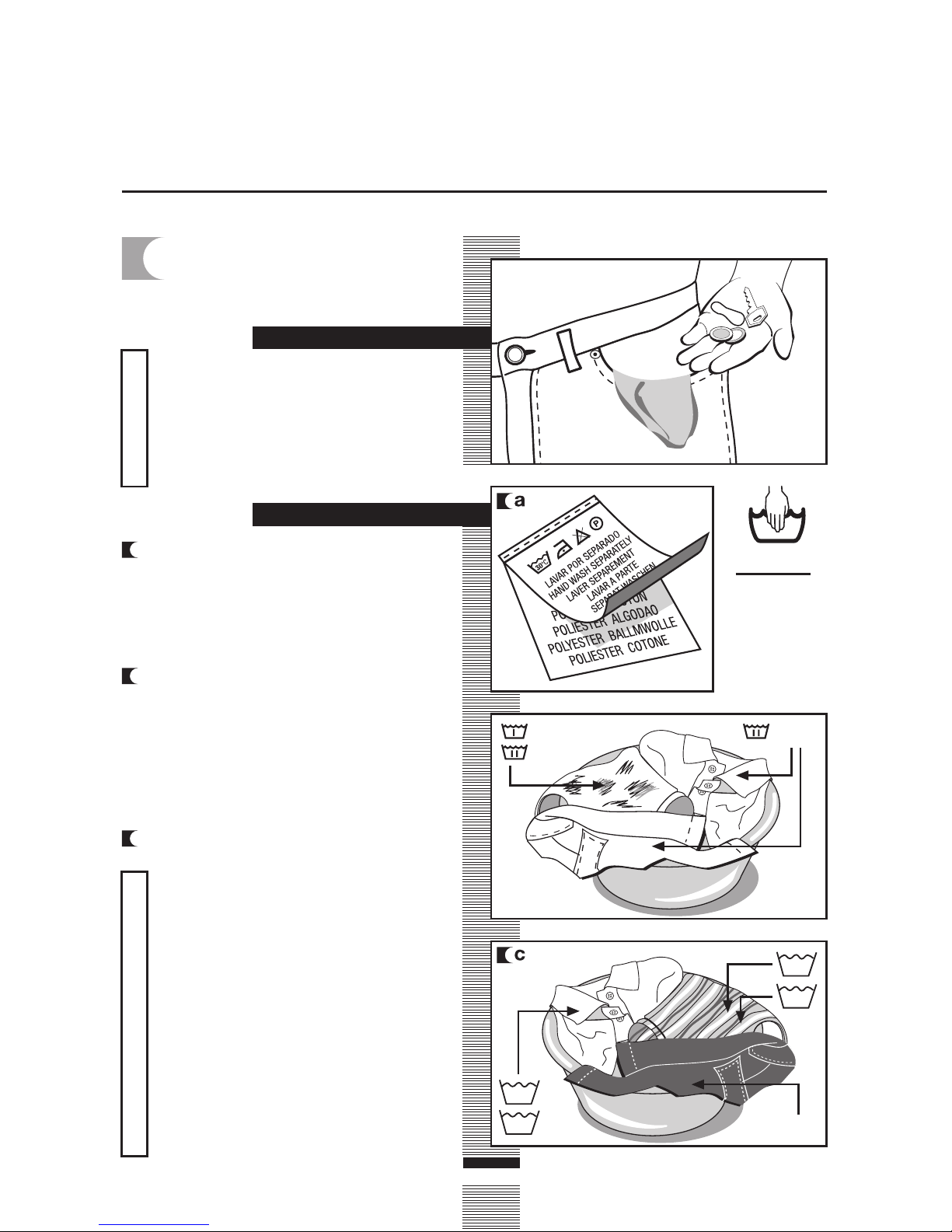

aSort the clothes according to fabric
and how they are made:
We recommend using the delicate
programmes for sensitive fabrics. There
is a special wool programme for
woollens.
bSort clothes according to how soiled
they are.
•Wash lightly soiled garments using a
short programme.
•Use a programme without prewash
for medium-soiled garments.
•Wash heavily soiled garments using a
long programme with prewash.
aSort your clothes according to colour.
Wash whites and coloured separately.
using the appliance and practical tips
Important
Make sure
beforehand
that your
woollens can
be machine-
washed.
Before placing the clothes in the
drum, make sure all the pockets are
empty.
Any small objects may block the drain
pump.
Prewash
Wash
Wash
1PREPARING
GARMENTS FOR
WASHING
30
60
90
40
Cold
Important
We recommend loading the washing
machine to its full capacity. This
means savings on water and energy.
Whenever possible, we recommend
that you wash garments of different
sizes within the same wash
programme. This improves the
washing action and also aids the
correct distribution of the garments
in the drum when spin-drying, and
the washing machine will therefore
be quieter.
It is a good idea to put small garments
in a wash bag.
SORTING THE CLOTHES
Important
