F&F BIS-410-24V Manuale utente
- 1 -
BIS-410 24 V
Bistable relay
with timer
F&F Filipowski sp. j.
Konstantynowska 79/81, 95-200 Pabianice, POLAND
phone/fax (+48 42) 215 23 83 / (+48 42) 227 09 71
www.fif.com.pl; e-mail: biuro@fif.com.pl
Do not dispose of this device in the trash along with other waste!
According to the Law on Waste, electro coming from households free of charge and can
the purchase of new equipment (in accordance with the principle of old-for-new, regard-
less of brand). Electro thrown in the trash or abandoned in nature, pose a threat to the
environment and human health.
Electronic bistable pulse relay BIS-410 allows switching on or off
the lighting or other device from several different points by pa-
rallel connected, momentary (bell) control switches.
The receiver is switched on after a current pulse caused by pres-
sing any momentary (bell) button connected to the relay.
The receiver is turned off after the next impulse or automatically
after the set off time.
A longer pressing of the momentary button (lasting at least 2
seconds) turns on the relay permanently.
The relay will be turned off only after pressing the momentary
button again (or after a power failure).
Purpose
Functioning
- 2 -
1.Disconnect the power supply.
2.Mount relay in the flush-mounted box.
3.Connect the power supply cables to PWR group: (+)-wire to
terminal 5 or 6, (–)-wire to terminal 3 or 4.
4.Momentary switches connected in parallel connect to terminal
1 and (+)-wire.
5.Connect the powered receiver in series to terminal 2 and
(–)-wire.
6.Set the switch-off time with the potentiometer.
BIS-410 24 V is not compatible with backlit buttons.
Mounting

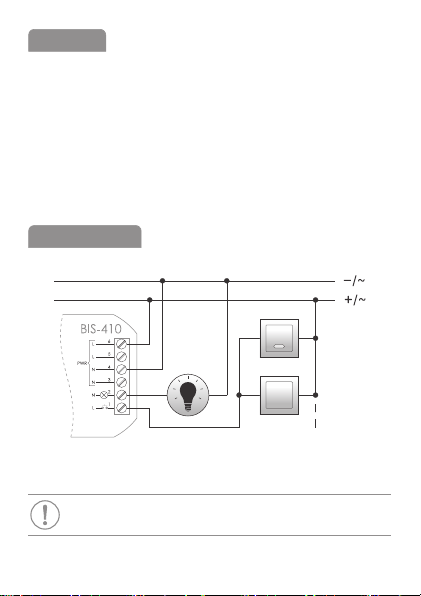

Wiring diagram
- 3 -
1 control input
2 relay output
3/4 (–) power supply
5/6 (+) power supply
power supply 9÷30 V AC/DC
contact 1×NO
maximum load current (AC-1) 16 A
activation delay 0,1÷0,2 s
switch-off time (adjustable) 1÷15 min.
power indication green LED
power consumption
standby 0.15 W
on 0.7 W
tightening torque 0.4 Nm
working temperature -25÷50°C
ingress protection IP20
Technical data
- 4 -
The F&F products are covered by a warranty of the 24 months
from the date of purchase. Effective only with proof of purchase.
Contact your dealer or directly with us.
F&F Filipowski sp. j. declares that the device is in conformity
with the essential requirements of The Low Voltage Directive
(LVD) 2014/35/EU and the Electromagnetic Compatibility (EMC)
Directive 2014/30/UE.
The CE Declaration of Conformity, along with the references to
the standards in relation to which conformity is declared, can be
found at www.fif.com.pl on the product page.
Warranty
CE declaration
E211108
