Fanimation Air Shadow FP820 Series Manuale utente

SPECIFICATION SHEET

Product Speciﬁcations subject to change

The Air Shadow™

FP820** – Mechanical

The Air Shadow™Fan Asm – FP820**

Mechanical Retractable Ceiling Fan

INSTALLATION REQUIREMENTS:

Ceiling fan must be attached to electrical junction box securely anchored and capable of withstanding a load of at least

50 lbs.

ELECTRICAL REQUIREMENTS:

Ceiling fan requires a grounded electrical supply line of 120 volts AC, 60 Hz, 15 amp circuit.

FAN SPEEDS:

High – 240 rpm; Med – 190 rpm; Low – 135 rpm

CONTROL OPTIONS:

Fan is shipped with a reversible remote control (C28) and canopy-style receiver unit (RECCAN57DEMO) is included.

Features include: 3 reversible fan speeds, inﬁnite light level dimming and a demo mode. Demo mode is initiated by

pressing the Demo button on the remote, lights will ﬂash 3 times. Fan runs for 2½ minutes then shuts off for ½ minute.

The 2 ½ /½ minute run cycles continue until any other button is pressed on the remote control. Optional wall control

(C21) is available (to be used in conjunction with fan receiver).

LIGHTING OPTIONS:

Fan is down light adaptable. Optional lighting ﬁtters and light kits are available. See catalog or visit our website, www.

fanimation.com for more lighting options.

DOWN ROD OPTIONS:

The Air Shadow™fan comes with a 1˝Dia. x 6˝(DR1-6) down rod. Optional down rods are available in 12˝, 18˝, 24˝, 36˝,

48˝, 60˝, and 72”. The Air Shadow™fan can be mounted on a sloped ceiling up to 30°. Most sloped ceiling installations

require a down rod longer than the standard 6˝down rod. Optional sloped ceiling ball kits (SCB1-52) are available for

up to 52°. Call tech support for more information.

BLADE SET:

Set of 4 wood blades are included with this fan. Not recommended for Damp Location.

DAMP LOCATION:

Fan not rated for Damp Location usage.

Dimensions shown in inches

10983 Bennett Parkway

Zionsville, IN 46077

Toll Free (888) 567-2055

FAX (866) 482-5215

Outside U.S. call (317) 733-4113

Visit Our Website www.fanimation.com

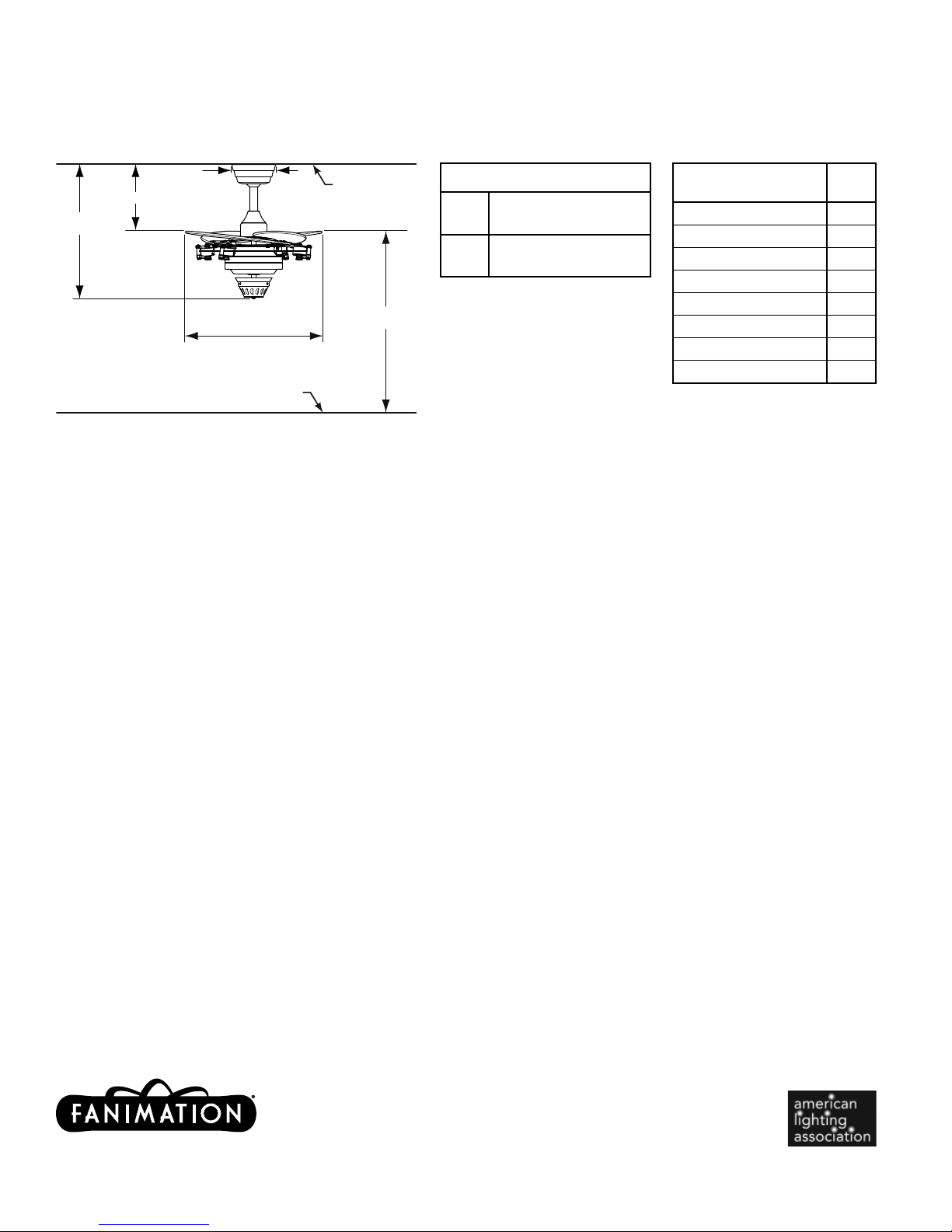

7´ min

Floor

Ceiling

Blade Sweep = 43˝

(expanded)

15° Blade Pitch

Net Hanging Weight: 19 lbs

5¾˝dia

Closed = 18˝dia

8½˝

Distance from Ceiling

to Bottom of Fan A

Fan w/6˝downrod 17½˝

Fan w/12˝downrod 23½˝

Fan w/18˝downrod 29½˝

Fan w/24˝downrod 35½˝

Fan w/36˝downrod 47½˝

Fan w/48˝downrod 59½˝

Fan w/60˝downrod 71½˝

Fan w/72˝downrod 83½˝

Available Finishes

CH Chrome with Maple

Wood Blades

PW Pewter with Cherry

Wood Blades
