Fanimation Multimax FP8008CH Manuale utente

OWNER’S MANUAL

READ AND SAVE THESE INSTRUCTIONS

Be mindful of all warnings shown throughout

Model No. FP8008CH

The Multimax

Ceiling Fan

Net Weight 20.5 lbs (9.3 kgs)

Canopy

Fan assembly

Blades

Mounting Bracket

Downrod

1.Unpack and inspect fan carefully to be certain all contents are

included.

OFF OFF OFF

Turn off power at breaker

box to avoid possible

electrical shock.

Use metal outlet box

suitable for fan support.

Secure outlet box directly to

the building structure using

wood screws (included).

Outlet box must support

50 lbs min.

Glass

6. Blade installation

Deco Ring

Deco Cap

Upper Housing

Hardware bag

Remote Control

Gu24 Bulb x 2

Blade Screw w/Washer 9pcs

Nylon Washer 9pcs

Mounting Screw 2pcs

Spring Washer 2pcs

Lock Washer 2pcs

Wood Screw 2pcs

Star Washer 2pcs

Blade Balance Kit 1pc

Wire Nuts 4pcs

Upper Housing Screw 2pcs

Safety Cable Bag 1pc

Outlet Box

Mounting

Bracket

Screw

Blade

Nylon Washer

To attach ceiling support cable, drill a ¼ in. pilot

hole, located independently from the junction

box, into the ceiling joist or structural member.

Securely attach the ceiling support cable with

3⁄8 in. x 2 in. lag bolt and flat washer.

MUST be able to fully support at least 100 lbs.

Install mounting

bracket to Outlet box

in ceiling using washers

and the mounting

screws provided with

the outlet box.

Do not use

existing

mounting

bracket,

replace it with

new mounting

bracket from

box.

Attach blades to fly wheel

with blade screws and nylon

washers provided in the

hardware bag. Make sure

blade numbers (2, 3 or 4

Blades) correspond with

figures shown on flywheel.

Screw Driver

7. Upper Housing & DownrodAssembly

(1)

Feed motor lead wires and safety cable

through Upper Housing,Deco Ring, Canopy

and downrod and insert downrod into yoke.

Upper Housing

Downrod

Wires & safety cable

Yoke

Cotter Pin

Cross Pin

(2)

Insert the cross pin through Yoke & Downrod and

secure with Cotter Pin.

(3)

Tighten both Downrod Set Screws to further

secure Downrod, then pull down the Upper

Housing to cover wiring Pan.

Downrod Set Screw

Yoke

Cotter Pin

(4)

Attach Upper Housing to brackets on Wiring Pan.

Align rectangular hole with reversing switch, and

secure with 2 screws provided from hardware bag.

8. Hanging the fan

Mounting

Bracket

(1)

Lift fan assembly onto mounting bracket.

(2)

Rotate fan so that the groove on the ball engages

the ridge in the mounting bracket.

Deco Ring

(3)

Ridge

Ball Groove

Mounting

Bracket

Safety cable

Canopy

Attach the safety cable to ceiling support cable. Slide cable

clamp onto safety cable (from fan). Place the end of cable

through the loop of ceiling support cable. Pull as much cable

through loop as possible. Feed end of cable into clamp hole

and firmly tighten screw. Cut off excess safety cable.

Safety Cable

Ceiling Support

Cable

Screw

Screws

Yoke cover

Screws

Reversing

Switch

Cable Clamp

Black White

White

Black

Blue

9. Make wire connection-( for 100~127VAC/60Hz )

-for Remote Receiver

From House From Fan

From Remote

Black

( AC - L )

White

( AC - N )

Green

( for ground wire )

White

( Motor - N )

Black

( Motor - L )

Blue

( for light kit )

( from downrod )

Yellow Green

9-1. Connect black wire from house to black wire from Receiver and secure with wire nut.

9-2. Connect white wire from house to white wire from Receiver and secure with wire nut.

9-3. Connect green wire from house and green wires from fan and secure with wire nut.

9-4. Connect white wire from Receiver to white wire from fan and secure with wire nut.

9-5. Connect blue wire from Receiver and blue wire from fan and secure with wire nut.

9-6. Connect black wire from Receiver and black wire from fan and secure with wire nut.

9-7. Slide the receiver unit into the open

end of the mounting bracket

Yellow Green

10. Install the canopy

( from mounting bracket )

Ribs

Glass

11.Attach the Light Kit:

(Note: Be sure power is off befor

proceeding)

11-1:

Attach lamp to lamp-holder.

11-2:

Attach glass shade onto fan by turning

clockwise.Don’t over tightened.

1. Push up the Canopy until the two

screws on mounting bracket are

engaged with Key Holes in

canopy.

2. Rotate the canopy slightly until

the two screw heads are in the

small end of the Key Holes.

3. Tighten both screws.

4. Push Deco Ring up to Canopy,

align holes on Canopy with ribs on

Deco Ring, and push “snap-in”.

Canopy

Key Holes

Deco

Ring

Receiver Unit

Mounting

Bracket

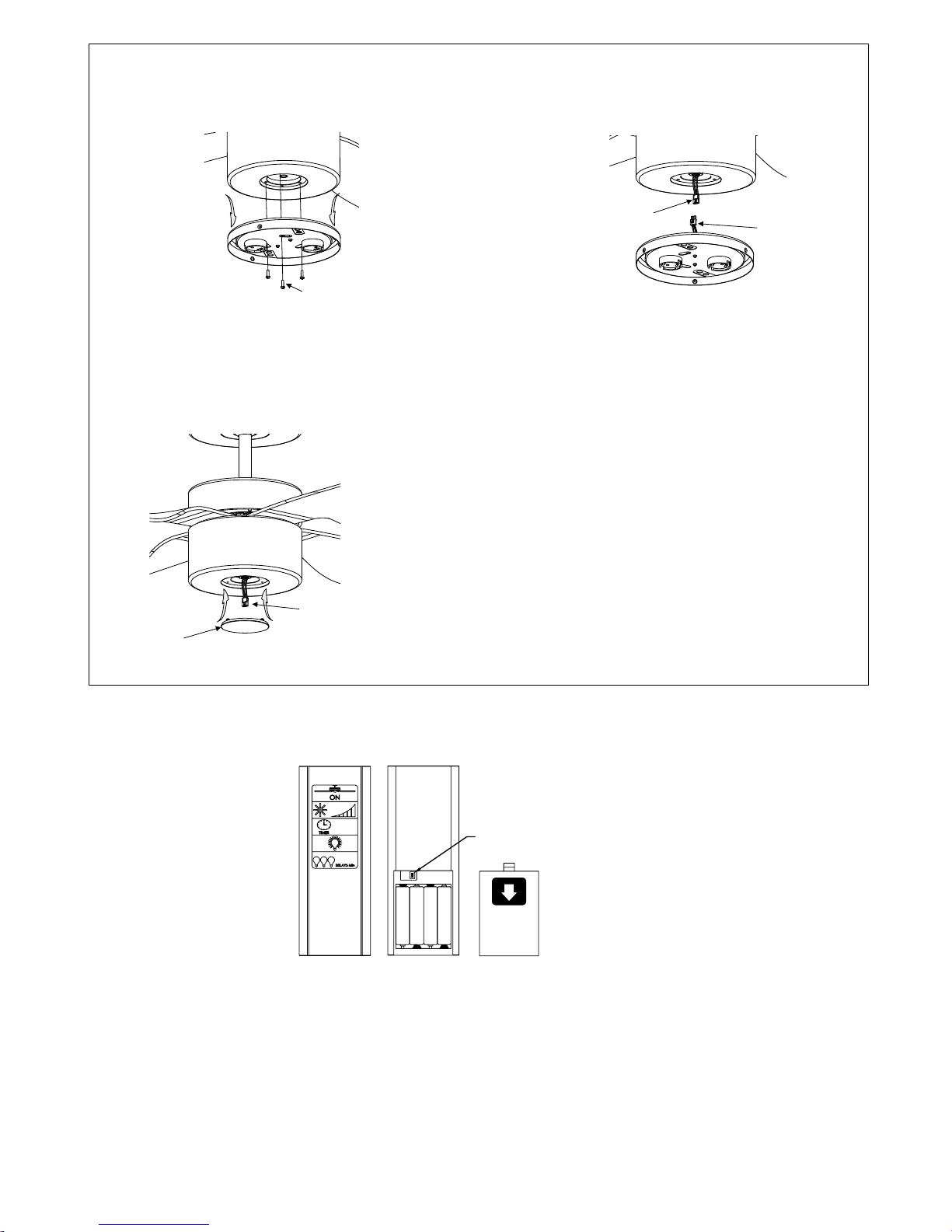

13. Establish connection between your hand-held remote and

your fan

Screws

12-1:

Detach light kit from fan housing by loosening

3 screws.

12-2:

Detach terminal connectors

from light kit and fan.

12-3

Just attach Deco Cap to bottom of fan by “Snap - in”.

12. Fan Installation without light kit:

Wires

Deco Cap

WiresWires

13-1. Restore power to your ceiling fan at the breaker box and/or wall switch.

13-2. Within 60 seconds of restoring power to your fan, press and hold the small button on the

back of your hand-held remote control using a pen or other pointed object until the fan

motor turns on and the fan blades begin moving.

13-3. Your fan receiver and remote are now synced and your fan is ready for normal operation.

Button

Parts List

Model No. FP8008CH

Reference #

Description Part #

Hanger Bracket Assembly w/Screws

Ball-Downrod Assembly

Canopy - Ceiling

Canopy Screw Cover

Housing Upper Asm

Fan Motor Assembly

Light Kit Assembly

Decorative Lower Housing Cover

Light Bulb - Gu24 CFL 18W Low Profile

Glass

Blade Set (4)

Transmitter - Touch Screen

Bag Assembly, Loose Parts

APGFF110BL

ADRFF-6CH

P800801CH

P800802CH

AP800803CH

AMA8008CH

AP800810CH

P800809CH

PPGU24C18

P8008130P

AP800806**

TRL8TS

13 Receiver RECAN54

HDWFP8008CH

**Insert FINISH CODES (Refer to fan model number located on downrod support)

Before discarding packaging material, be certain all parts have been removed.

HOW TO ORDER REPAIR PARTS

When ordering repair parts, always give the following information:

Part Number

Part Description

Fan Model Number

Contact your retail store for repair parts.

15 Screw Driver PSCDR15

NOTE:Theillustrationshownisnottoscaleoritsactualconﬁgurationsmayvary.

10983 Bennett Parkway

Zionsville, IN 46077

Toll Free (888) 567-2055

FAX (866) 482-5215

Outside U.S. call (317) 733-4113

Visit Our Website @ www.fanimation.com
