1. Introduction

The Nano Spotter is a new LED light from Fantasea, similar to

the old "Chemical Stick Lights", but reusable and much more

environmentally friendly. It is a perfect light for signaling and

messaging during night dives.

Included in the kit are the Nano Spotter light, hand lanyard,

white plastic cone with a lanyard and 4 color disks.

2. Installing and Removing Batteries

A. Prior to installing batteries, the white cone should be

removed. Simply detach the cone from the flashlight’s

head by gently pulling them away from each other. Make

sure that when separating the cone from the flashlight,

there is no tension exerted on the cone’s lanyard, which is

wrapped around the flashlight.

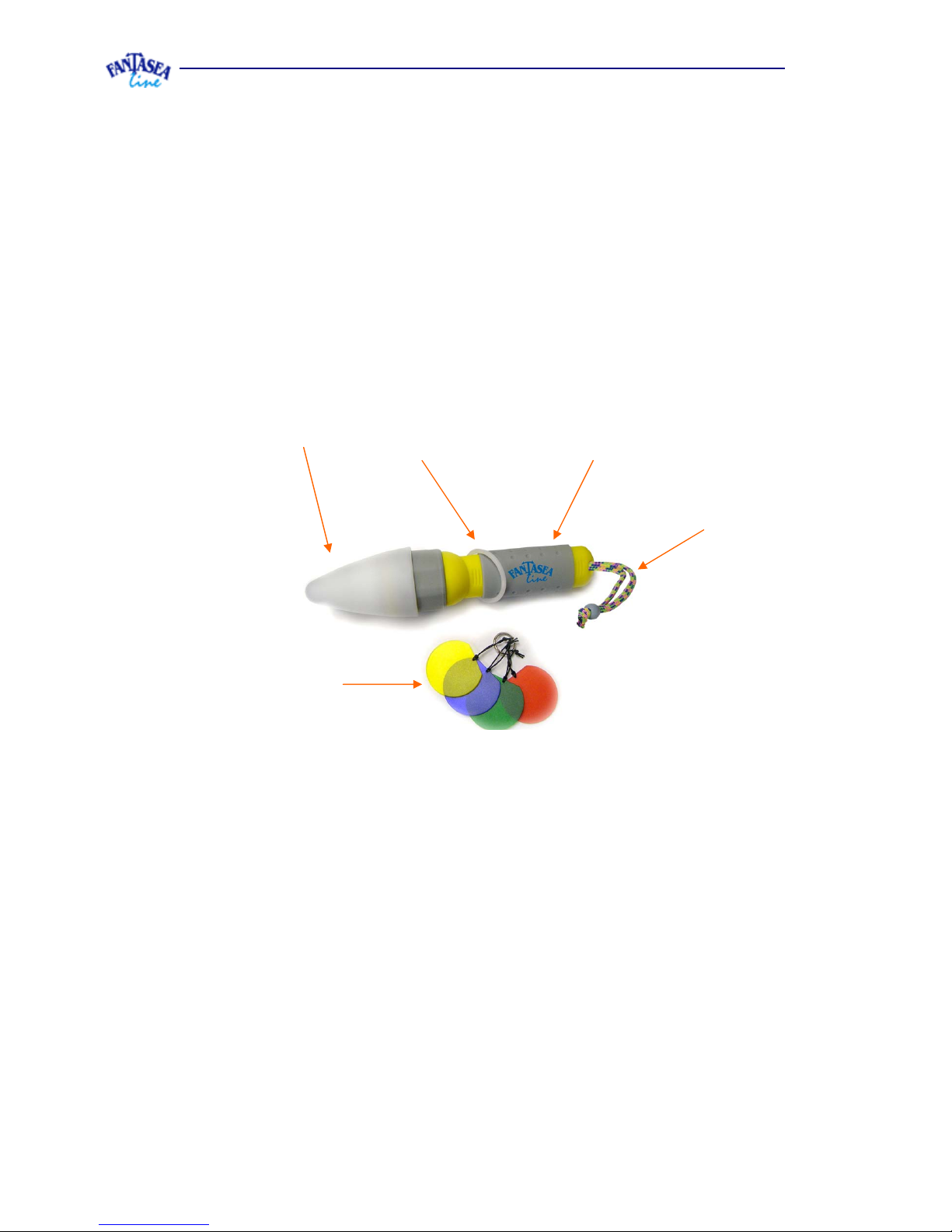

Cone

Color

Disks

Flashli

Cone

Lan

ard

Hand

Lan

ard

B. To open the Nano Spotter, hold the hand grip firmly in one

hand and turn the flashlight head counterclockwise until it

separates. Pull the flashlight head off. Please make sure

that the light is pointed in an upward position so contents

do not fall out when opened. Take special care not to stare

into the light beam which is very powerful and could

damage your eyes.

C. Gently remove the LED head (the white component with 5

LED bulbs) by pulling it out.

D. Install or remove the 4 AAA Alkaline batteries carefully.

Please note that this light should not be used with

rechargeable batteries. Make sure that you follow the

instructions diagram printed on the inside of the light. Note

that there are two sets of two batteries, each set pointing

in a different direction.

E. Replace the LED head carefully, making sure that the two

protrusions on the inside of the battery compartment

correspond with the two niches on the LED head. This is

the only way it will fit properly.

F. Carefully place the flashlight head over the threads, and

tighten evenly in a clockwise fashion. Do not use force and

do not allow it to screw down unevenly. Take special care

not to stare into the light beam which is very powerful and

could damage your eyes.

G. It is recommended to occasionally apply a slight amount of

silicone grease to the black O-ring seal found on the

flashlight after unscrewing the flashlight head

counterclockwise.

H. In order to attach the cone to the flashlight again, simply

cover the flashlight’s head with the open side of the cone,

so it wraps around it. The cone is held by friction on the

flashlight’s head. There is no need to force the cone down

on the rubber light cover, but it should be attached firmly

to assure that it is watertight and does not allow water to

seep into the cone. The cone is what gives the necessary

buoyancy to the Nano Spotter.

3. Turning the Nano Spotter On/Off

A. It is recommended that you detach the cone from the

flashlight’s head prior to turning the Nano Spotter on/off in

order to prevent tension from being exerted on the cone’s

lanyard.

B. In order to switch the light on, carefully turn the flashlight

head counterclockwise just enough for the light to turn on.

Once the light is turned on, do not keep turning the

flashlight head counterclockwise, or else the

watertight seal of the light will be damaged.

C. In order to switch the light back off, turn the flashlight

head clockwise fashion all through the end. Please note

that there is never a need to use force when closing or

opening the light or turning it on or off.

D. Please note: If you are turning the flashlight head more

than half a turn and nothing happens, you are probably

turning it the wrong way.

4. Assembling the Cone and Multi-Colored Plastic Disks

A. Detach the cone from the flashlight’s head by gently

pulling them away from each other. Make sure that when

separating the cone from the flashlight, there is no tension

exerted on the cone’s lanyard, which is wrapped around

the flashlight.

B. Choose one of the colorful plastic disks included with the

kit.

C. Push the chosen plastic disk into the white plastic cone,

until it is positioned inside the dedicated track. Note that

the shiny side of the disk should be positioned towards the

bottom open part of the cone.

D. Cover the flashlight head with the open side of the cone, so

it wraps around it. The cone is held by friction on the

flashlights head.

E. When turned on, the light emits a diffused colorful light.

F. In order to replace the colored plastic disk with a different

colored disk, detach the cone from the flashlight head, and

pull the disk out from the open side of the cone, by gently

pulling the string attached to the disk. Follow steps A-D in

order to insert the new colored disk into the cone.

5. Using the Nano Spotter as a Signaling Device

A. Once the Nano Spotter is turned on, it can be attached to a

diver in order to use it as a signaling device.

B. Tie the flashlight’s hand lanyard to the diver’s equipment.

The best way to do this is to tie the hand lanyard around

the tank valve, where the regulator’s first stage is

connected to the tank.

C. Leave as little slack as possible to the hand lanyard, so the

light is tied to the tank valve as closely as possible.

D. Since the cone consists of positive buoyancy, the Nano

Spotter will be pointing up during the dive.

E. After the dive, detach the Nano Spotter from the tank

valve and soak and rinse exterior components in fresh

water.

6. Using the Nano Spotter as a Back-up Light

A. The Nano Spotter can also be used as a back-up light

during night dives. Its compact size means that it can

easily be stored inside a BCD’s pocket and pulled out when

necessary.

B. Prior to the dive detach the cone from the flashlight’s head

by gently pulling them away from each other. Make sure

that when separating the cone from the flashlight, there is

no tension exerted on the cone’s lanyard.

C. To get maximum light you should pull off the cone from

the end of the rubber LED cover and leave it free only

attached to the light by its lanyard, or you can detach the

cone’s lanyard from the flashlight by gently pulling out the

flashlight out of the plastic lanyard’s ring.

D. Make sure batteries are properly installed (see section 1:

Installing and Removing Batteries).

E. After the dive, carefully soak and rinse exterior

components in fresh water.

7. Specifications

•Batteries: 4 x AAA batteries

•Burn time: Up to 60 hours per set of batteries

•Bulbs: 5 super bright LED bulbs

•Luminance: 500,000 mcd

•Color: Yellow

•Depth ratio: 30 meters/100 feet

For further information please contact us at [email protected] or

visit our website at www.fantasea.com

•You must carefully soak and rinse exterior components in fresh

water after each use.

•Store in a protected, dry and shaded area.

•Remove batteries when storing for an extended period of time.
