Faro ScanPlan Manuale utente

1© 2017 FARO Technologies, Inc.

April 1, 2019

© 2018 FARO Technologies, Inc.

ScanPlan Public Safety-Forensics Manual V1.01

QR code to FARO Assist

Note: Unless specified, all instructions are

applicable for either Android or iPhone

David Dustin, Global Director of Public Safety - Forensics

2

Table of Contents

Pages 1 – 39

Page 4

Page 5-6

Page 7

Page 8-10

Page 11-12

Page 13-16

Page 17-27

Page 28-33

Page 34

Page 35-37

Page 38-42

Page 43-51

Page 52-54

Page 55-56

Getting Started

What Comes in the Case

Getting to Know the ScanPlan

Getting Started –Powering On

Getting Started –Preparing the Cell Phone

Getting Started – Mounting Phone to ScanPlan

Connecting Android Phone to ScanPlan

Connecting the ScanPlan App (Android & iOS)

Connecting to ScanPlan via Wi-Fi

Recommended Settings

Creating a Project

Mapping

Adding Images (from phone and Theta)

Adding Measurements

Finalizing Project

3

Table of Contents

Page 58-60

Page 61

Page 46-49

Page 62-64

Page 65-68

Page 69-74

Page 75-83

Page 84-89

Page 90-111

Page 112-119

Page 120-125

Page 126-131

Page 132-150

Page 151-161

Optimizing Your Project

Preparing to Export Your Project

Exporting Project to USB Drive

Exporting to Scene2Go

Exporting for FARO Zone 2D&3D

Exporting for WebShareCloud

Exporting for Present4D (VR-Suite)

Exporting for DXF

Using “ScanAssist”

Opening the Scene2Go Project (from thumb-drive)

Opening the FARO Zone project

Opening the Project PDF

Configuring the Ricoh Theta Camera (with Android)

Configuring the Ricoh Theta Camera (with iOS)

4

What Comes in the Case

ScanPlan

Cell Phone (if purchased

with ScanPlan)

USB with FAROZone

and ScanPlan

instruction manuals

USB adapters

(Lightning, Micro-USB

and USB-C) and

magnets for cell phone

Hex key for

removing handle

of ScanPlan

USB Cable

Power supply

& cord

USB with FARO Zone 2D, ScanPlan instruction

manuals, and extra handle screws.

5

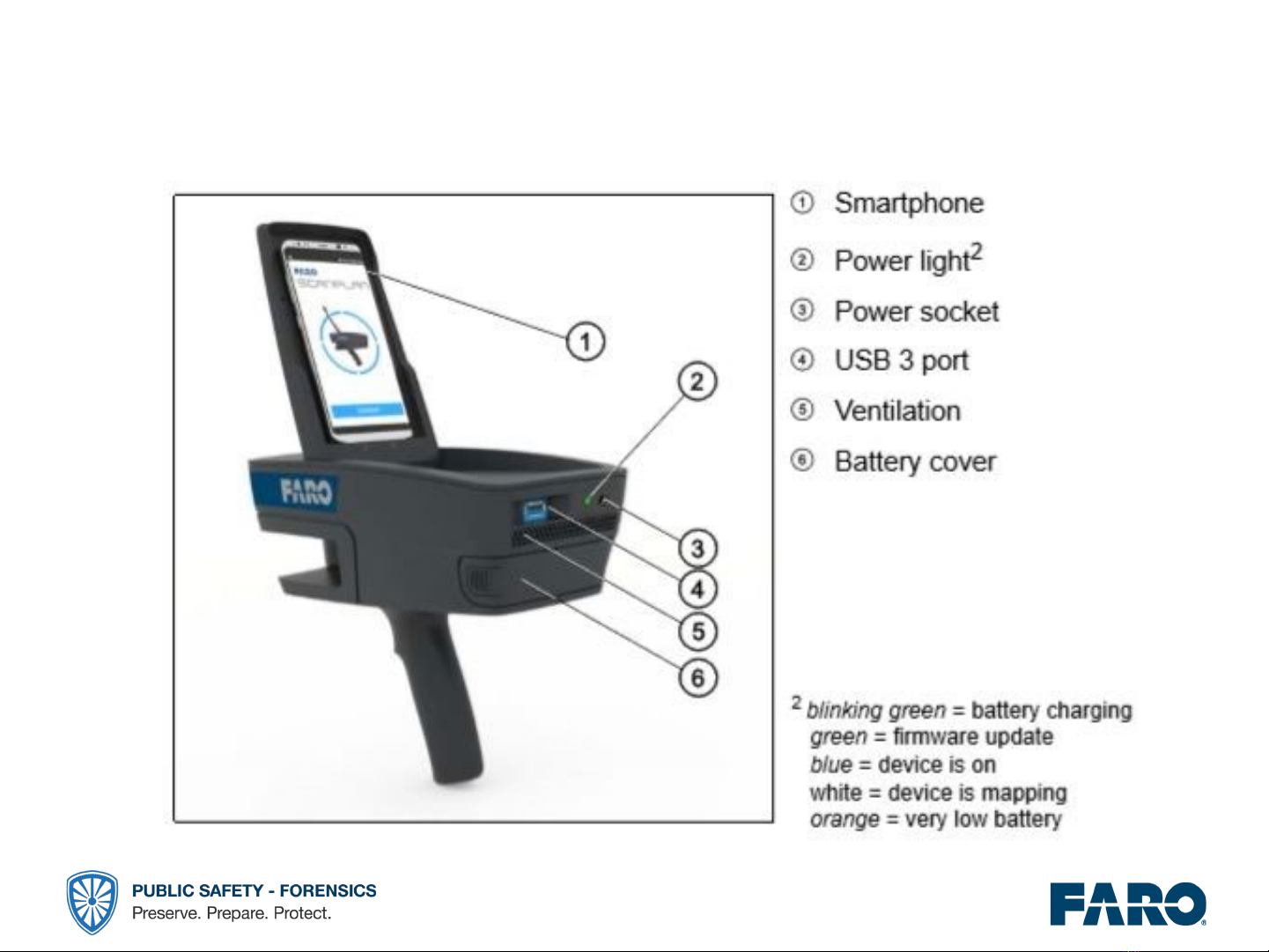

Front of ScanPlan

6

Rear of ScanPlan

7

Getting Started

Power on the ScanPlan

–Power button is on the underside of the ScanPlan to the front of the

handle

Power Button

blink-blink-pause = booting up

Solid illumination = device on

Blink-pause = shutting down

8

Getting Started (cont.)

Note: If magnet is already attached to

phone skip to step 3

1. Place the phone in the tray of

the ScanPlan taking note of

where the two magnets will

contact the phone.

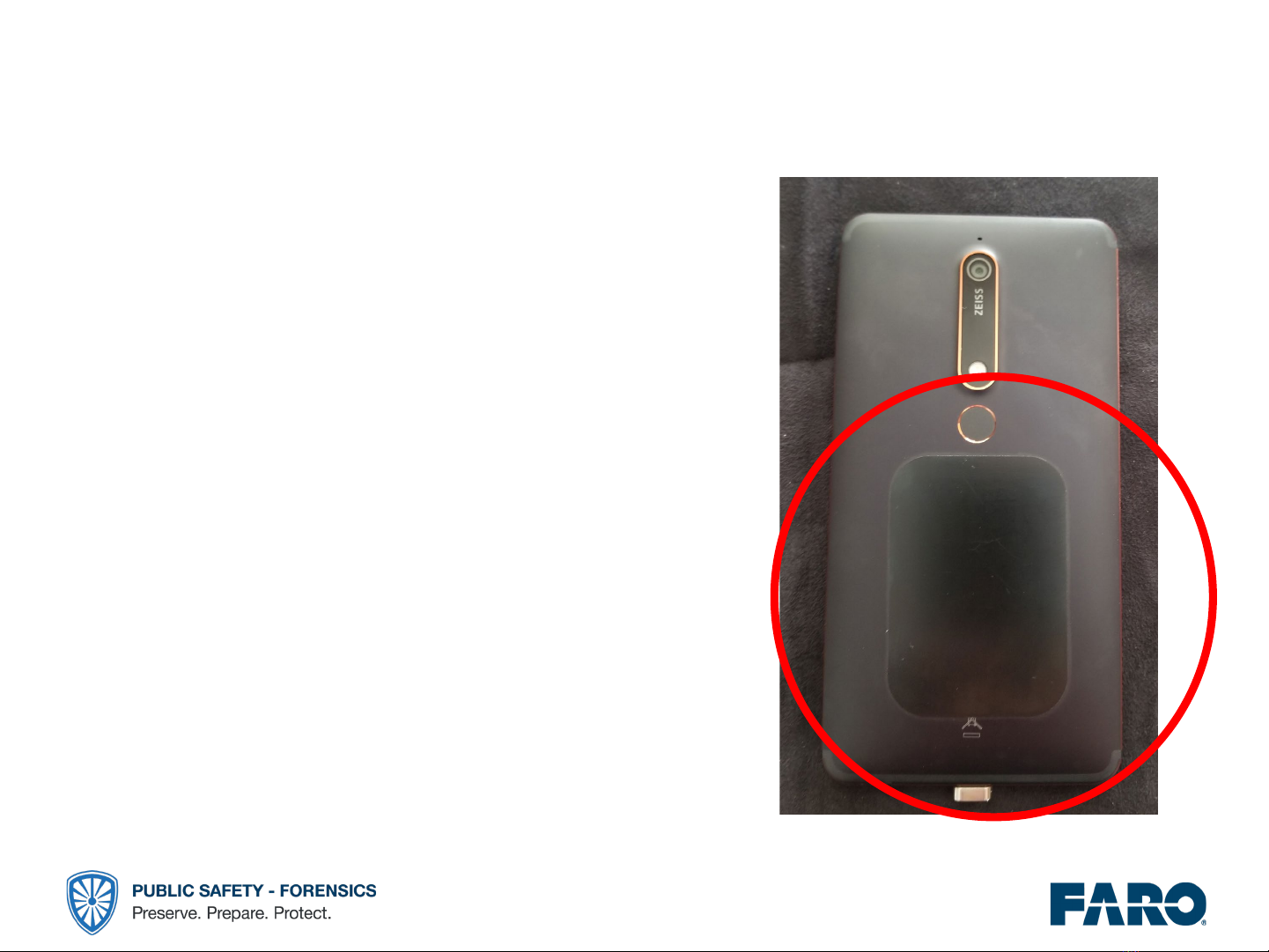

2. Remove the phone from the

tray and attach the adhesive

metallic piece (supplied) to the

back of the phone where the

two magnets will contact the

phone.

3. Power on the cell phone

9

Getting Started (cont.)

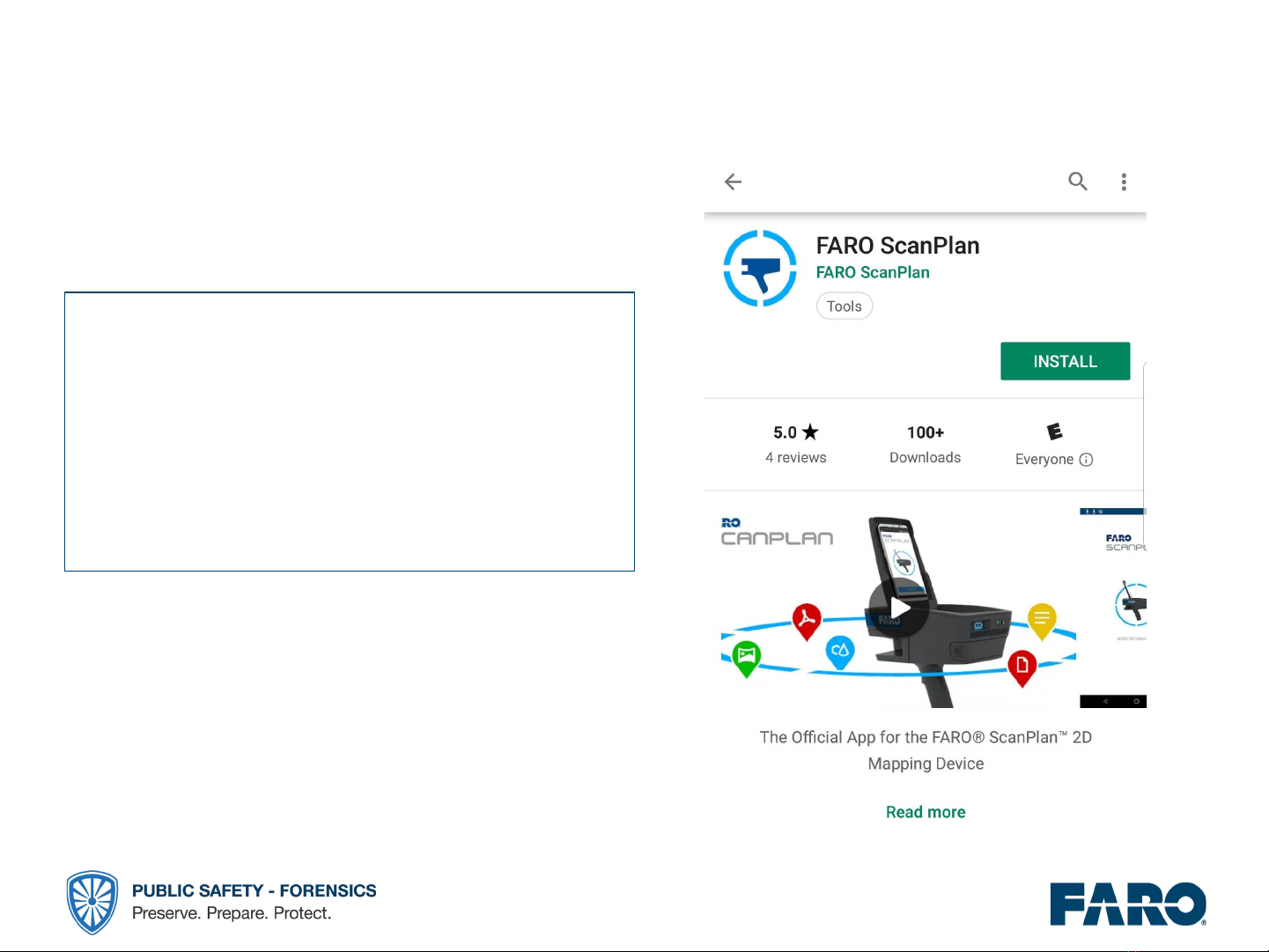

Check to see if FARO

ScanPlan app is installed on

the cell phone. If not,

download the app from the

Google Play store (Android) or

the iTunes App store (iOS)

10

Getting Started (cont.)

1. Choose the appropriate (supplied) USB adapter for

the phone being using with the ScanPlan

2. Insert into charging port of phone

USB adapter inserted

into charging port of

cell phone
