FCC BBQ Performer 4.1S Manuale utente
FCC-G-202113-41 /GD4843S-AC
Sare u cookin!
MANUAL
Installation, use, maintenance and safety
! OUTDOORUSEONLY
READTHEMANUAL, FOLLOWTHE
ASSEMBLYINSTRUCTIONSSTEPBY
STEP. GETTOKNOWYOURGRILL
ANDTHESAFETYINSTRUCTIONS
BEFOREUSINGTHEAPPLIANCE! fccbbq.com
Contents
Warnings .................................................................................................................................3
Technical Data ......................................................................................................................4
Read before assembly ..................................................................................5
Parts list .....................................................................................................................................6
Exploded Drawing ...............................................................................................................7
Hardware ..................................................................................................................................7
Assembly instructions ........................................................................................................8
Connecting gas .................................................................................................................18
Gas leak test .........................................................................................................................19
Lastcheck .............................................................................................................................20
Lighting instructions ........................................................................................................21
Maintenance ......................................................................................................................22
Advice, tips and safety ....................................................................................................24
Troubleshooting ................................................................................................................25
Consumer Contact ........................................................................................................28
2
fccbbq.com
3
WARNINGS!
●ACCESSIBLE PARTS OF THE GRILL BECOME VERY HOT
DURING USE. KEEP CHILDREN AND OTHERS WHO NEED
SUPERVISION AT A SAFE DISTANCE.
●THE GRILL IS INTENDED FOR OUTDOOR USE ONLY IN WELL-
VENTILATED AREAS.
●LEAK TESTS (SEE PAGE 19) MUST ALWAYS BE CARRIED OUT
BEFORE THE GRILL IS USED AND WHEN REPLACING THE
GAS CONTAINER. ALSO PERFORM A LEAK TEST IF THE
PRODUCT HAS NOT BEEN IN USE FOR A LONG TIME AND IN
ADVANCE OF A NEW BARBECUE SEASON. ALWAYS CHECK
THE GAS HOSE FOR DAMAGE AND CRACKS BEFORE USING
THE BARBECUE.
●NEVER BARBECUE IN CLOSED ROOMS OR UNDER ROOFS,
AS THIS MAY LEAD TO A LACK OF OXYGEN.
●FAILURE TO FOLLOW THE INSTRUCTIONS PROVIDED CAN
IMPLY A RISK OF SERIOUS INJURY TO PERSONNEL AND
FIXED INSTALLATIONS.
●REBUILDING / MODIFYING THE BARBECUE CAN CAUSE
DANGER AND WILL INVALIDATE THE WARRANTY.
●ALWAYS SUPERVISE THE BARBECUE DURING USE AND KEEP
SUITABLE EXTINGUISHING EQUIPMENT WITHIN REACH.
THE GRILL SHOULD NOT BE OPERATED BY INTOXICATED
PERSONS.
●THE BARBECUE MUST NOT BE USED IN PLACES THAT ARE
BELOW NORMAL GROUND LEVEL. GAS CAN ACCUMULATE
AND REPRESENT A DANGER OF EXPLOSION. GAS
ACCUMULATION CAN ALSO CAUSE OXYGEN DEFICIENCY.
●THE BARBECUE MUST BE CLEANED REGULARLY AND
THOROUGHLY TO PREVENT UNCONTROLLED GREASE FIRE.
READ MORE ABOUT GREASE FIRE ON PAGE 22.
ALSO READ PAGE 24 FOR MORE ADVICE AND TIPS ON GRILLING AND SAFETY.
WARNINGS!
Width: 146 cm
Height: 120 cm
The product is manufactured in accordance with European Gas Appliances Regulation (EU) 2016/426
2531-20
LU,NL,DK,FI,SE,
CY,CZ,EE,LT, LV,MT,SK,SI,
BG,IS,NO,TR,
HR,RO,IT,HU
G30 (butan), G31(propan)
and their mixtures, LPG
28~30 mbar
I3B/P(30)
DESTINATION OF
COUNTRIES TO USE
GAS TYPEVALVE SIZE GAS CATEGORY
. mm (main burner)
. mm (side burner)
ONLY THE GAS TYPE AND GAS CATEGORY LISTED IN
THE RATING LABEL IS TO BE USED ON YOUR APPLIANCE.
!
Technical information
Total Heat input: 17.2 kW (main
burner 14 kW + side burner 3.2
kW).
Gas consumption: 1253 gram/
hour (main burner: 1020 g/h + side
burner: 233 g/h)
Gascylinder (not included): Use
standard cylinder approved for use
in the Nordic Region.
Even though butane and propane
gas can be used, we recommend
propane for use in the Nordic
Region. Approved hoses and
regulators are available from most
outlets selling gas equipment.
NB! Gas hoses used for this
product must not exceed 120 cm in
length.
4
fccbbq.com
Make sure that all parts and screws are in the box before
mounting the product, please note that some parts may be
placed in the styrofoam in the side walls of the packaging.
Compare the parts list with the contents of the box.
Do not mount this grill if parts are missing, contact your
dealer or support@fccproducts.no.
Remove all packaging material and any plastic wrap from the
grill.
●FOLLOW THE ORDER IN THIS MANUAL TO AVOID ERROR
ASSEMBLY. PARTS OF THE ASSEMBLY WILL REQUIRE HEAVY LIFTS
WHICH SHOULD BE CARRIED OUT BY TWO PERSONS TOGETHER.
SOME METAL PARTS MAY BE SHARP, USE PROTECTIVE GLOVES.
●POWER TOOLS SHOULD NOT BE USED FOR INSTALLATION AS
THIS MAY DAMAGE THE SURFACE TREATMENT ON SCREWS AND
LOOSEN PRE-MOUNTED NUTS.
!
FOLLOW THESE INSTRUCTIONS CAREFULLY
TO AVOID SERIOUS DAMAGE TO YOUR GRILL
AND AVOID CAUSING INJURY.
Read before assenbly
5
CODE hard ware QTY
AM x BOLT
BDOORAXE
DMxBOLT
CODE DESCRIPTION QTY
BODYASSEMBLY
FMETAMER
WARMINGRACK
CASTIRONGRILL
MULTIFUNCTIONCASTIRONCOOKINGGRILL
MULTIFUNCTIONCASTIRONROUNDCOOKINGGRILL
SIDEBURNERWELDASSEMBLY
IDEBURNERDECORATIONBOARD
DECORATIONRING
SIDEBURNER
SIDEBURNERVALVEASSEMBLY
SIDEBURNERBRACKET
KNOBSASSEMBLY
LEFTSIDEPANEL
GREASETRAY
LEFTSTATOROFOILTRAY
GREASECUP
RIGHTSTATOROFOILTRAY
DOORGIRDER
CABINETSTIFFENINGBOARD
BACKBOARD
CABINETSTIFFENINGSCUTE
BOTTOMPANELWELDASSEMBLY
DOORASSEMBLY
CASTORS
CASTORSWITHBREAK
RIGHTSIDEPANEL
LIGHTINGCANDLEASSEMBLY
RIGHTSHELFWELDASSEMBLY
RIGHTSHELFDECORATIONBOARD
MAGNET
6
Parts List
fccbbq.com
Exploded drawing
01
02
03
04
05
06
09
10
11
12
13
14
15
16
18
19
20
21
22
23
24
26
28
29
27
30
32
36
33
35
34
7
30
29
27
4PCS
2PCS
16
B
27
32
A
B
A
1. To assemble 4 castors (number 30 & 29, 2 with break and 2 without) on
the bottom panel, please tighten up the screws.
2. Use screw A to assemble left side panel (16) and right side panel (32) to the
bottom panel(27), and assembly the pivot(B) assembly on the bottom as well.
1.
2.
8
Assembly
fccbbq.com
5PCS
24
A
32
16
27
A
19
32
16
22
21
6PCS
A
A

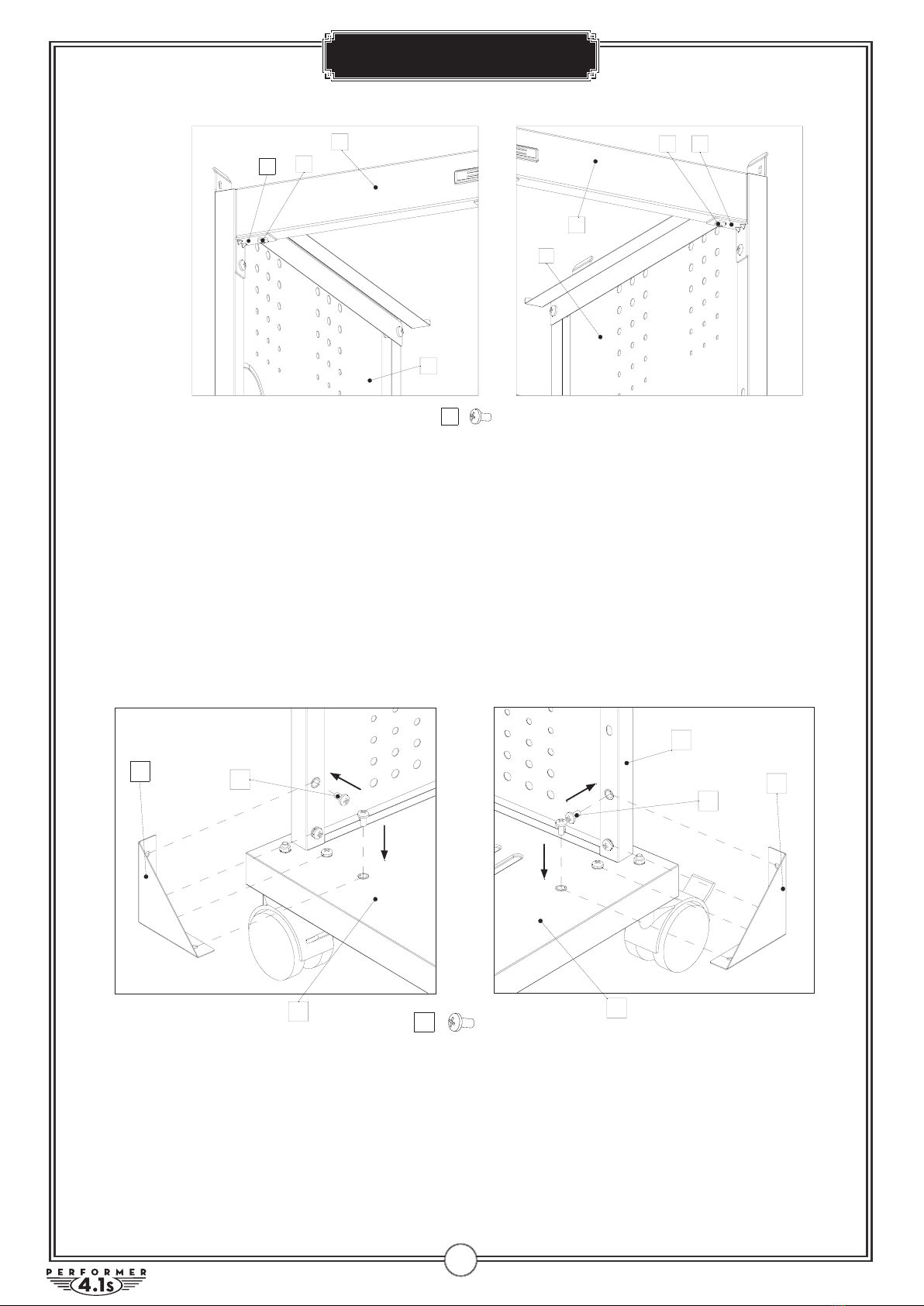

3. Use screw (A) to assemble back panel (24) to left side panel (16) and right side
panel (32) and bottom panel (27)
4. Firstly use the screw (A) to fix the door girder to the left side side panel (16)
and right side panel (32), then use screw (A) to fix the left stator of oil tray (19)
on the left side panel (16), use screw (A) to fix the right stator of oil
tray (21) to the right side panel (32), shown in the illustration above.
3.
4.
9
Assembly
4PCS
A
23
23
A
A
16
32
22
22
8PCS
A
26 A26
A
27 27
32
5. Use screw A to assemble the cabinet stiffening board (23) upper to the door
girder (22) and left side weld assembly (16); use the screw to assemble the cabinet
stiffening board (23) upper to the door girder (22) and right side weld assembly (32).
6. Use screw A to assemble the cabinet stiffening scute (26) upper the bottom (27)
and left side assembly (16); Use screw A to assemble cabinet stiffening scute (26)
upper the bottom (27) and right side assembly (32), shown as below picture.
5.
6.
10
Assembly
