1. Introduction:
1.1 About the Product
The LCM1044xx 10.4” Chassis Monitor series are rugged, high performance Industrial LCD Monitors,
designed for commercial and industrial applications, such as kiosks, arcade games, ATM Machines,
aviation simulators, military, medical, marine, security, industrial equipment, and instrumentation
equipment. This product can provide high brightness and contrast to achieve better viewing effect.
1.2 Features
■10.4 inch SVGAActive Matrix Color TFT LCD Monitor
■High Contrast 400:1 Typical
■Recommend resolution:800×600(SVGA)
■OSD controls: Allow on-screen adjustments of Brightness, Contrast, RGB Auto Color Balance,
H-Position, V-position
■Multi system Video Input
■Quick and easy integrations for Client solutions
■Universal AC Power input and auto detection video system.
■PMMA ( Poly Methyl Methacrylate ) protection (Hard Coating + Anti Glare) (option)
■Touch screen (option)
10.4” Chassis Monitor
Model Number: LCM1044xx
FLAT DISPLAY TECHNOLOGY
■LCM1044xx V0.0
add: NO.85, FuHsing Road, Sec.1,South Dist., TaiChung City 402 TAIWAN R.O.C Tel: 886-4-22619577 Fax: 886-4-22623978
This technical specification is subject to change without notice
2
2. Contents
Contents Index Page
1. Introduction…………………………………………………………………………………………………
…
1
1.1 About the product 1
1.2 Features 1
2. Contents.……………………………….…………………………………………………………………….. 2
3. Specifications………….……….…………………………………...…..…………………………………… 3
4. Ordering Information…………………………………………………………………………………….…. 4
5. VGA Input Format…………………………………………………………………….…………………….. 5
6. Mechanical Drawing…………………………………………………………………………………….….. 6~11
6.1 LCM104403-000R 6
6.2 LCM10445U-000R 7
6.3 LCM10445R-000R 8
6.5 LCM104403-010R 9
6.6 LCM10445U-010R 10
6.7 LCM10445R-010R 11
7. Packing List……………………………………………………………………………….………………... 12
8. Installing the Monitor………………...……………………………………………….……………………. 13
8.1 Power Cable Connection 13
8.2 VGA Signal Cable Connection 13
8.3 Video / S-Video Cable Connection 13
8.4 Switch On The Power 13
9. Key Function by OSD…………………………………………….…………………….…………………… 14~17
9.1 Menu Operation 14~16
9.2 Operations 17
10. Trouble Shooting…………...……………………………………………………..……….……………….. 18
FLAT DISPLAY TECHNOLOGY
■LCM1044xx V0.0
add: NO.85, FuHsing Road, Sec.1,South Dist., TaiChung City 402 TAIWAN R.O.C Tel: 886-4-22619577 Fax: 886-4-22623978
This technical specification is subject to change without notice
3
3. Specifications
Parameter Specifications Unit Remark
Model Name LCM1044x x
Screen Size 10.4” (diagonal) inch
Display Format 800 x (R.G.B) x 600 dot
Display Color 262,144 colors
TFT-LCD Active Area 211.2 (H) x 158.4 (V) mm
Pixel Pitch 0.264 (H) x 0.264 (V) mm
Contrast Ratio 400:1(Typ.)
Brightness 400(Typ.) Cd/m²
Viewing Angle -70~70(H); -60~50(V)(Typ.) deg
Input/Output Interface
Video and S-video /
D-Sub 15 pin female for VGA /
USB (A Type)or RS-232 (DB9 Female) for Touch Screen Driver
(Option)
Power Source 100-240VAC 50-60Hz, Universal / +12VDC @ 3A
Power Consumption < 6.9W
Touch Screen Controller 5 wire Resistive Driver USB/ RS232 (Option)
Operating Temperature -20~70 (With Touch -10~+70) ℃
Storage Temperature -20~80 ℃
LED Life Time 30000(Typ) hr
FLAT DISPLAY TECHNOLOGY
■LCM1044xx V0.0
add: NO.85, FuHsing Road, Sec.1,South Dist., TaiChung City 402 TAIWAN R.O.C Tel: 886-4-22619577 Fax: 886-4-22623978
This technical specification is subject to change without notice
4
4. Ordering Information
Parameter LCM104403-000R LCM10445U-000R LCM10445R-000R Unit
CVBS 1 1 1
S-Video 1 1 1
VGA SVGA (800x600) SVGA (800x600) SVGA (800x600)
Touch Panel Type - 5W Resistive 5W Resistive
Touch Screen Interface - USB RS232
PMMA ◎- -
Outline Dimension 256(W) x 184(H) x 30(D) 256(W) x 184(H) x 30(D) 256(W) x 184(H) x 30(D)
Weight (Include Accessory) 1.9 (2.7) 2 (2.8) 2 (2.8) Kg
Frame Material (Color) Iron (Black) Iron (Black) Iron (Black)
Note: Weight ±10%
Parameter LCM104403-010R LCM10445U-010R LCM10445R-010R Unit
CVBS - - -
S-Video - - -
VGA SVGA (800x600) SVGA (800x600) SVGA (800x600)
Touch Panel Type - 5W Resistive 5W Resistive
Touch Screen Interface - USB RS232
PMMA ◎- -
Outline Dimension 256(W) x 184(H) x 30(D) 256(W) x 184(H) x 30(D) 256(W) x 184(H) x 30(D)
Weight (Include Accessory) 1.8 (2.6) 1.9 (2.7) 1.9 (2.7) Kg
Frame Material (Color) Iron (Black) Iron (Black) Iron (Black)
Note: Weight ±10%
FLAT DISPLAY TECHNOLOGY
■LCM1044xx V0.0
add: NO.85, FuHsing Road, Sec.1,South Dist., TaiChung City 402 TAIWAN R.O.C Tel: 886-4-22619577 Fax: 886-4-22623978
This technical specification is subject to change without notice
5
5. VGAInput Format
Mode Family Resolution H-Freq. (KHz) V-Freq. (KHz)
1 Mode 3 PC 640x480 31.47 (－)59.9 (－)
2 Mode 4 VESA 640x480 37.86 (－)72.8 (－)
3 Mode 5 VESA 640x480 37.50 (－)75.0 (－)
4 Mode 6 VESA 800x600 35.16 (＋)56.3 (＋)
5 Mode 7 VESA 800x600 37.88 (＋)60.3 (＋)
6 Mode 8 VESA 800x600 48.08 (＋)72.2 (＋)
7 Mode 9 VESA 800x600 46.88 (＋)75.0 (＋)
8 Mode 10 VESA 1024x768 48.36 (－)60.0 (－)
9 Mode 11 VESA 1024x768 56.48 (－)70.1 (－)
10 Mode 12 VESA 1024x768 60.02 (＋)75.0 (＋)
11 Mode 13 VESA 1280x1024 63.98 (＋)60.0 (＋)
FLAT DISPLAY TECHNOLOGY
■LCM1044xx V0.0
add: NO.85, FuHsing Road, Sec.1,South Dist., TaiChung City 402 TAIWAN R.O.C Tel: 886-4-22619577 Fax: 886-4-22623978
This technical specification is subject to change without notice
6

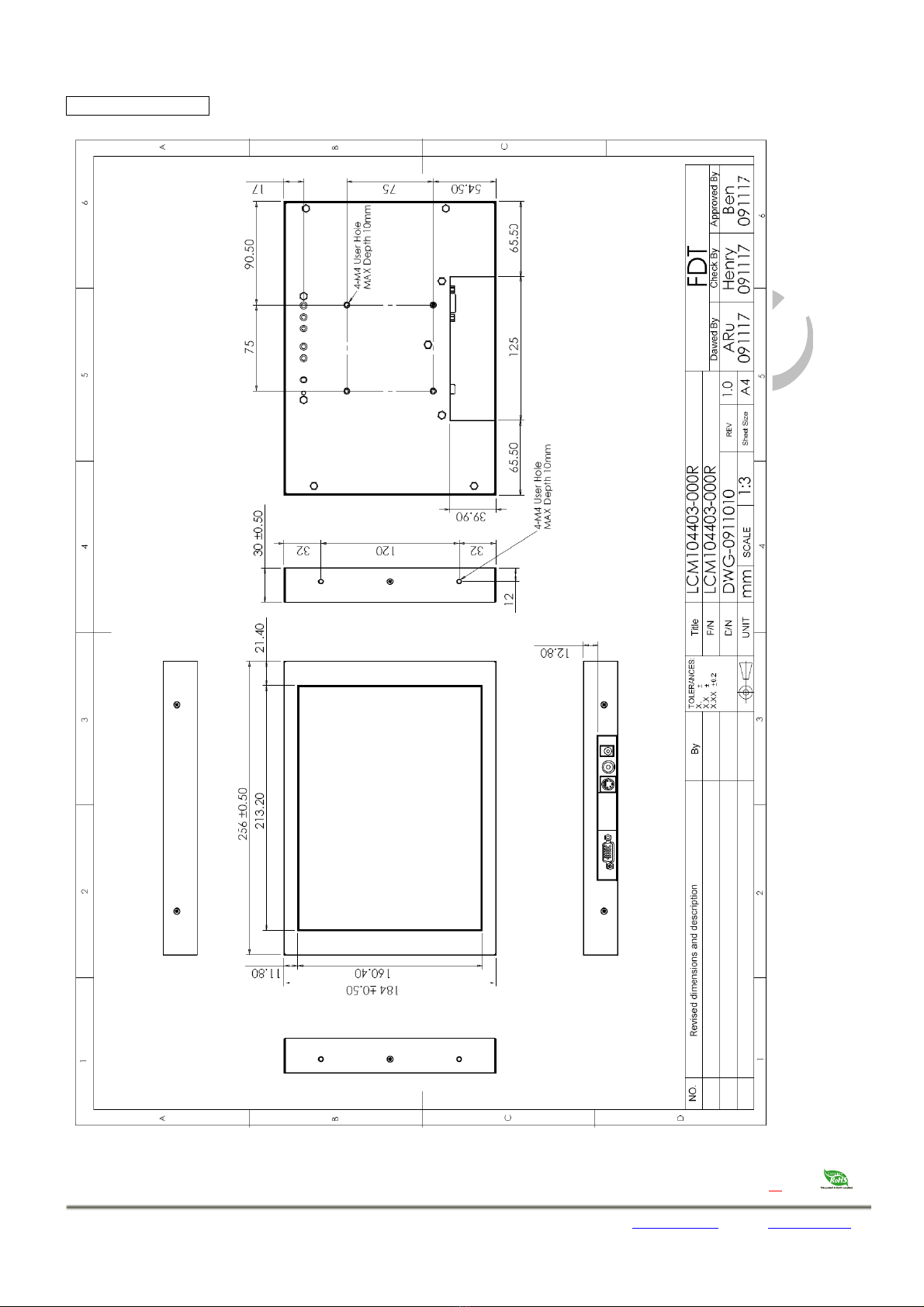

6. Mechanical Drawing
6.1 LCM104403-000R
FLAT DISPLAY TECHNOLOGY
■LCM1044xx V0.0
add: NO.85, FuHsing Road, Sec.1,South Dist., TaiChung City 402 TAIWAN R.O.C Tel: 886-4-22619577 Fax: 886-4-22623978
This technical specification is subject to change without notice
7
6.2 LCM10445U-000R
FLAT DISPLAY TECHNOLOGY
■LCM1044xx V0.0
add: NO.85, FuHsing Road, Sec.1,South Dist., TaiChung City 402 TAIWAN R.O.C Tel: 886-4-22619577 Fax: 886-4-22623978
This technical specification is subject to change without notice
8
6.3 LCM10445R-000R
FLAT DISPLAY TECHNOLOGY
■LCM1044xx V0.0
add: NO.85, FuHsing Road, Sec.1,South Dist., TaiChung City 402 TAIWAN R.O.C Tel: 886-4-22619577 Fax: 886-4-22623978
This technical specification is subject to change without notice
9
6.4 LCM104403-010R
FLAT DISPLAY TECHNOLOGY
■LCM1044xx V0.0
add: NO.85, FuHsing Road, Sec.1,South Dist., TaiChung City 402 TAIWAN R.O.C Tel: 886-4-22619577 Fax: 886-4-22623978
This technical specification is subject to change without notice
10

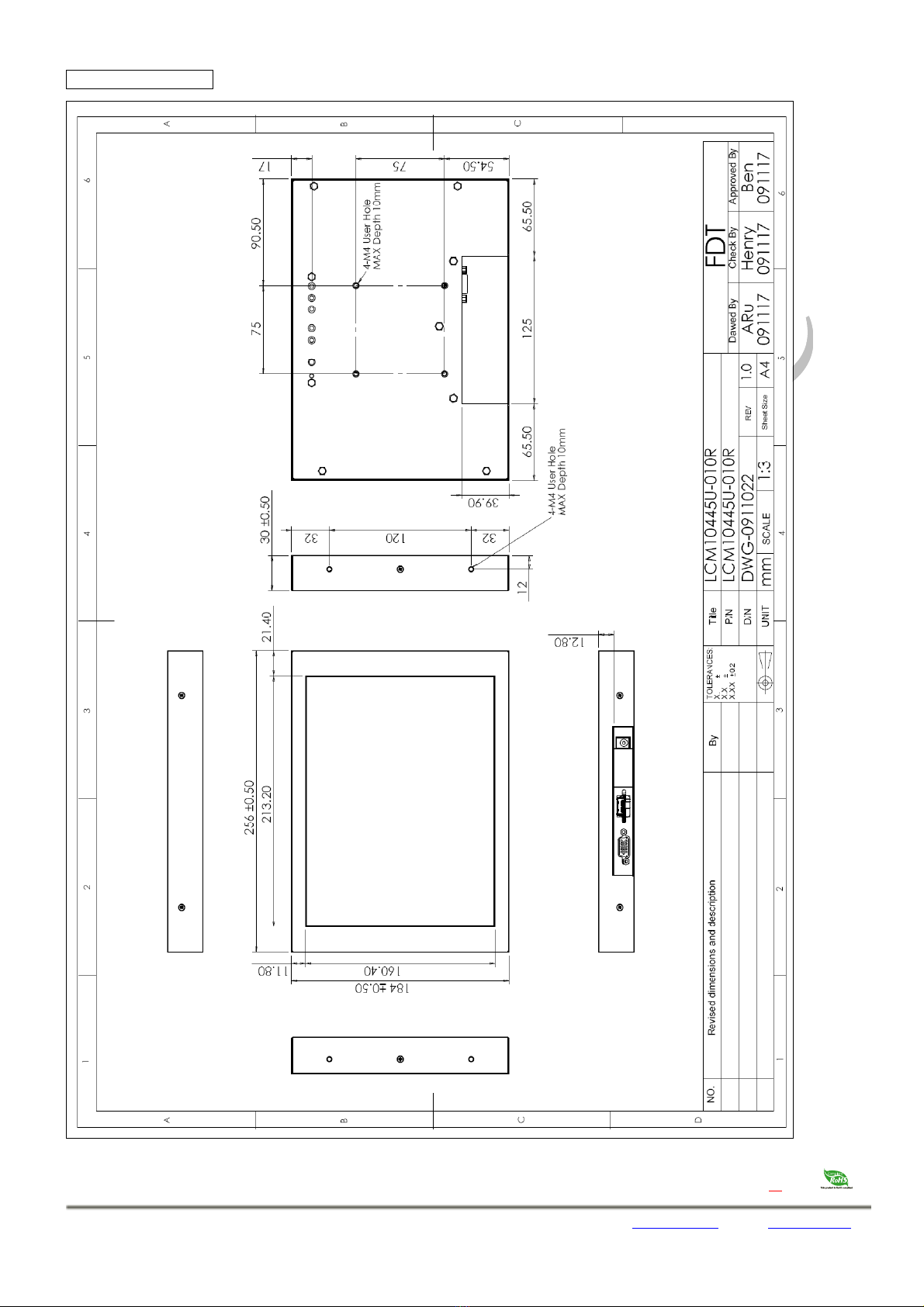

6.5 LCM10445U-010R
