FDT LOF1216 Series Manuale utente
FLAT DISPLAY TECHNOLOGY
■LOF1216xx V1.0
add: No.85, Sec. 1, Fuxing Rd., South Dist., Taichung City 402, Taiwan (R.O.C.) Tel: 886-4-22619577, Fax: 886-4-22623978
This technical specification is subject to change without notice
1
FLAT DISPLAY TECHNOLOGY
This product is RoHS compliant
SPEC No.: SAS-1211001
Version: 1.0
Issue Date: November 25, 2014
1. Introduction:
1.1 About the Product
The LOF1216xx 12.1” Open Frame Monitor series are rugged, high performance Industrial LCD Monitors,
designed for commercial and industrial applications, such as kiosks, arcade games, ATM Machines,
aviation simulators, military, medical, marine, security, industrial equipment, and instrumentation
equipment. This product can provide high brightness and contrast to achieve better viewing effect.
1.2 Features
■12.1 inch XGA Active Matrix Color TFT LCD Monitor
■High Contrast 700:1 Typical
■Recommend resolution:1024×768(XGA)
■OSD controls: Allow on-screen adjustments of Brightness, Contrast, RGB Auto Color Balance,
H-Position, V-position
■Multi system Video Input and auto detection video system.
■Signal loss backlight will be off / signal feed again backlight will be on
■Quick and easy integrations for Client solutions
■Universal AC Power input
■Panel Mount (option)
■Touch screen (option)
■Water Proof (IP54) (option)
■Front Bezel (option)
12.1” Open Frame Monitor
Model Number: LOF1216xx-KxxR
FLAT DISPLAY TECHNOLOGY
■LOF1216xx V1.0
add: No.85, Sec. 1, Fuxing Rd., South Dist., Taichung City 402, Taiwan (R.O.C.) Tel: 886-4-22619577, Fax: 886-4-22623978
This technical specification is subject to change without notice
2
2. Contents
Contents Index Page
1. Introduction…………………………………………………………………………………………………
…
1
1.1 About the product 1
1.2 Features 1
2. Contents.……………………………….…………………………………………………………………….. 2
3. Specifications………….……….…………………………………...…..…………………………………… 3
4. Ordering Information…………………………………………………………………………………….…. 4
5. VGA Input Format…………………………………………………………………….…………………….. 5
6. Mechanical Drawing…………………………………………………………………………………….….. 6-13
6.1 LOF121600-K00R 6
6.2 LOF12165A-K00R 7
6.3 LOF12165B-K00R 8
6.4 LOF121600-K10R 9
6.5 LOF12165A-K10R 10
6.6 LOF12165B-K10R 11
6.7 LOF121603-K00R 12
6.8 LOF121603-K10R 13
7. Packing List……………………………………………………………………………….……………….… 14
8. Installing the Monitor………………...……………………………………………….……………………. 15
8.1 Power Cable Connection 15
8.2 VGA Signal Cable Connection 15
8.3 Video / S-Video Cable Connection 15
8.4 Switch On The Power 15
9. OSD Control…...…………………………………………………………………….…………………….… 16-19
9.1 Menu Operation 16-18
9.2 Operations 19
10.Trouble Shooting…………...……………………………………………………..……….………………... 20
11. Panel Mount Installation (Mount Clamp and Screw )……………………………………………………. 21
12. Revision History……………………………………….……………………………………………………. 22
FLAT DISPLAY TECHNOLOGY
■LOF1216xx V1.0
add: No.85, Sec. 1, Fuxing Rd., South Dist., Taichung City 402, Taiwan (R.O.C.) Tel: 886-4-22619577, Fax: 886-4-22623978
This technical specification is subject to change without notice
3
3. Specifications
Parameter Specifications Unit Remark
Model Name LOF1216xx
Screen Size 12.1” (diagonal) inch
Display Format 1024 x (R.G.B) x 768 dot
TFT-LCD Active Area 249.0 (H) x 187.5 (V) mm
Pixel Pitch 0.240 (H) x 0.240 (V) mm
Contrast Ratio 700:1(Typ.)
Brightness 500(Typ.) Cd/m²
Viewing Angle -80~80(H); -70~70(V)(Typ.) deg
Input/Output Interface
Video and S-video /
D-Sub 15 pin female for VGA /
USB or RS-232 (DB9 Female) for Touch Screen Driver (Option)
Power Source 100-240VAC 50-60Hz, Universal / +12VDC @ 3A
Power Consumption < 9W
Touch Screen Controller 5 wire Resistive Driver USB/ RS232 (Option)
Operating Temperature -20~70 (With Touch -10~70) ℃
Storage Temperature -30~80 ℃
LED Life Time 30000 (Min) Hr 25±2℃
FLAT DISPLAY TECHNOLOGY
■LOF1216xx V1.0
add: No.85, Sec. 1, Fuxing Rd., South Dist., Taichung City 402, Taiwan (R.O.C.) Tel: 886-4-22619577, Fax: 886-4-22623978
This technical specification is subject to change without notice
4
4. Ordering Information
Parameter LOF121600-K00R LOF12165A-K00R LOF12165B-K00R Unit
CVBS 1 1 1
S-Video 1 1 1
VGA XGA (1024x768) XGA (1024x768) XGA (1024x768)
Touch Panel Type - 5W Resistive 5W Resistive
Touch Screen Interface - USB RS232
Outline Dimension 306(W) x 236(H) x 39.5(D) 306(W) x 236(H) x 39.5(D) 306(W) x 236(H) x 39.5(D)
Weight (Include Accessory) 1.49(2.29) 1.76 (2.56) 1.76(2.56) Kg
Frame Material (Color) Iron Iron Iron
Note: Weight ±10%
Parameter LOF121600-K10R LOF12165A-K10R LOF12165B-K10R Unit
CVBS ---
S-Video ---
VGA XGA (1024x768) XGA (1024x768) XGA (1024x768)
Touch Panel Type - 5W Resistive 5W Resistive
Touch Screen Interface - USB RS232
Outline Dimension 306(W) x 236(H) x 39.5(D) 306(W) x 236(H) x 39.5(D) 306(W) x 236(H) x 39.5(D)
Weight (Include Accessory) 1.48(2.28) 1.75 (2.55) 1.75 (2.55) Kg
Frame Material (Color) Iron Iron Iron
Note: Weight ±10%
Parameter LOF121603-K00R LOF121603-K10R Unit
CVBS 1 -
S-Video 1 -
VGA XGA (1024x768) XGA (1024x768)
PMMA ◎◎
Touch Panel Type - -
Touch Screen Interface - -
Outline Dimension 306(W) x 236(H) x 39.5(D) 306(W) x 236(H) x 39.5(D)
Weight (Include Accessory) 1.75(2.55) 1.74(2.54) Kg
Frame Material (Color) Iron Iron
Note: Weight ±10%
FLAT DISPLAY TECHNOLOGY
■LOF1216xx V1.0
add: No.85, Sec. 1, Fuxing Rd., South Dist., Taichung City 402, Taiwan (R.O.C.) Tel: 886-4-22619577, Fax: 886-4-22623978
This technical specification is subject to change without notice
5
5. VGAInput Format
Mode Family Resolution H-Freq. (KHz) V-Freq. (Hz)
1 Mode 1 PC 640x480 31.47 (－)59.9 (－)
2 Mode 2 VESA 800x600 35.16 (＋)56.3 (＋)
3 Mode 3 VESA 800x600 37.88 (＋)60.3 (＋)
4 Mode 4 VESA 1024x768 48.36 (－)60.0 (－)
5 Mode 5 VESA 1024x768 56.48 (－)70.1 (－)
6 Mode 6 VESA 1024x768 60.02 (＋)75.0 (＋)
7 Mode 7 VESA 1280x1024 63.98 (＋)60.0 (＋)
FLAT DISPLAY TECHNOLOGY
■LOF1216xx V1.0
add: No.85, Sec. 1, Fuxing Rd., South Dist., Taichung City 402, Taiwan (R.O.C.) Tel: 886-4-22619577, Fax: 886-4-22623978
This technical specification is subject to change without notice
6
6. Mechanical Drawing
6.1 LOF121600-K00R
FLAT DISPLAY TECHNOLOGY
■LOF1216xx V1.0
add: No.85, Sec. 1, Fuxing Rd., South Dist., Taichung City 402, Taiwan (R.O.C.) Tel: 886-4-22619577, Fax: 886-4-22623978
This technical specification is subject to change without notice
7

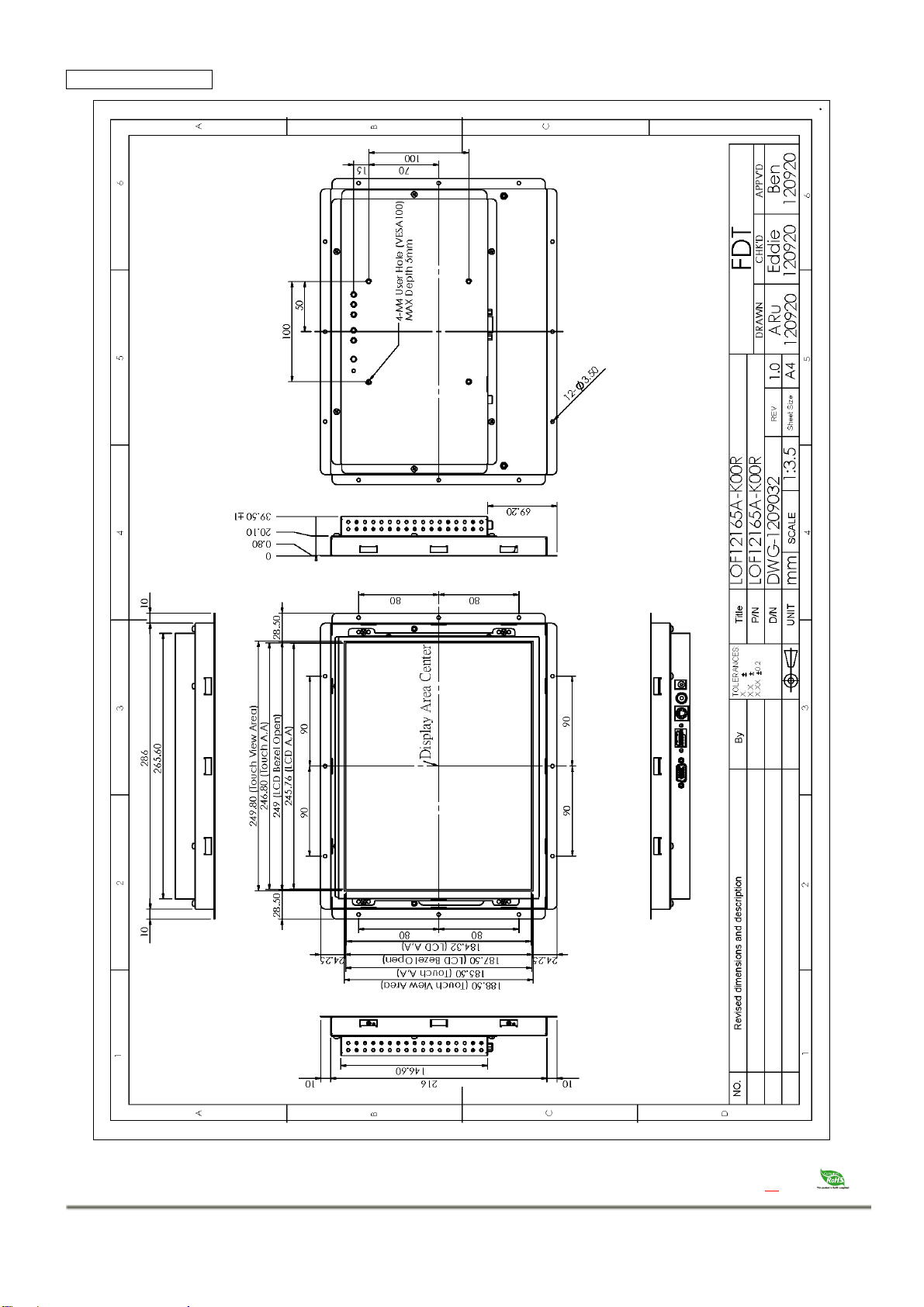

6.2 LOF12165A-K00R
FLAT DISPLAY TECHNOLOGY
■LOF1216xx V1.0
add: No.85, Sec. 1, Fuxing Rd., South Dist., Taichung City 402, Taiwan (R.O.C.) Tel: 886-4-22619577, Fax: 886-4-22623978
This technical specification is subject to change without notice
8
6.3 LOF12165B-K00R
FLAT DISPLAY TECHNOLOGY
■LOF1216xx V1.0
add: No.85, Sec. 1, Fuxing Rd., South Dist., Taichung City 402, Taiwan (R.O.C.) Tel: 886-4-22619577, Fax: 886-4-22623978
This technical specification is subject to change without notice
9
6.4 LOF121600-K10R
FLAT DISPLAY TECHNOLOGY
■LOF1216xx V1.0
add: No.85, Sec. 1, Fuxing Rd., South Dist., Taichung City 402, Taiwan (R.O.C.) Tel: 886-4-22619577, Fax: 886-4-22623978
This technical specification is subject to change without notice
10

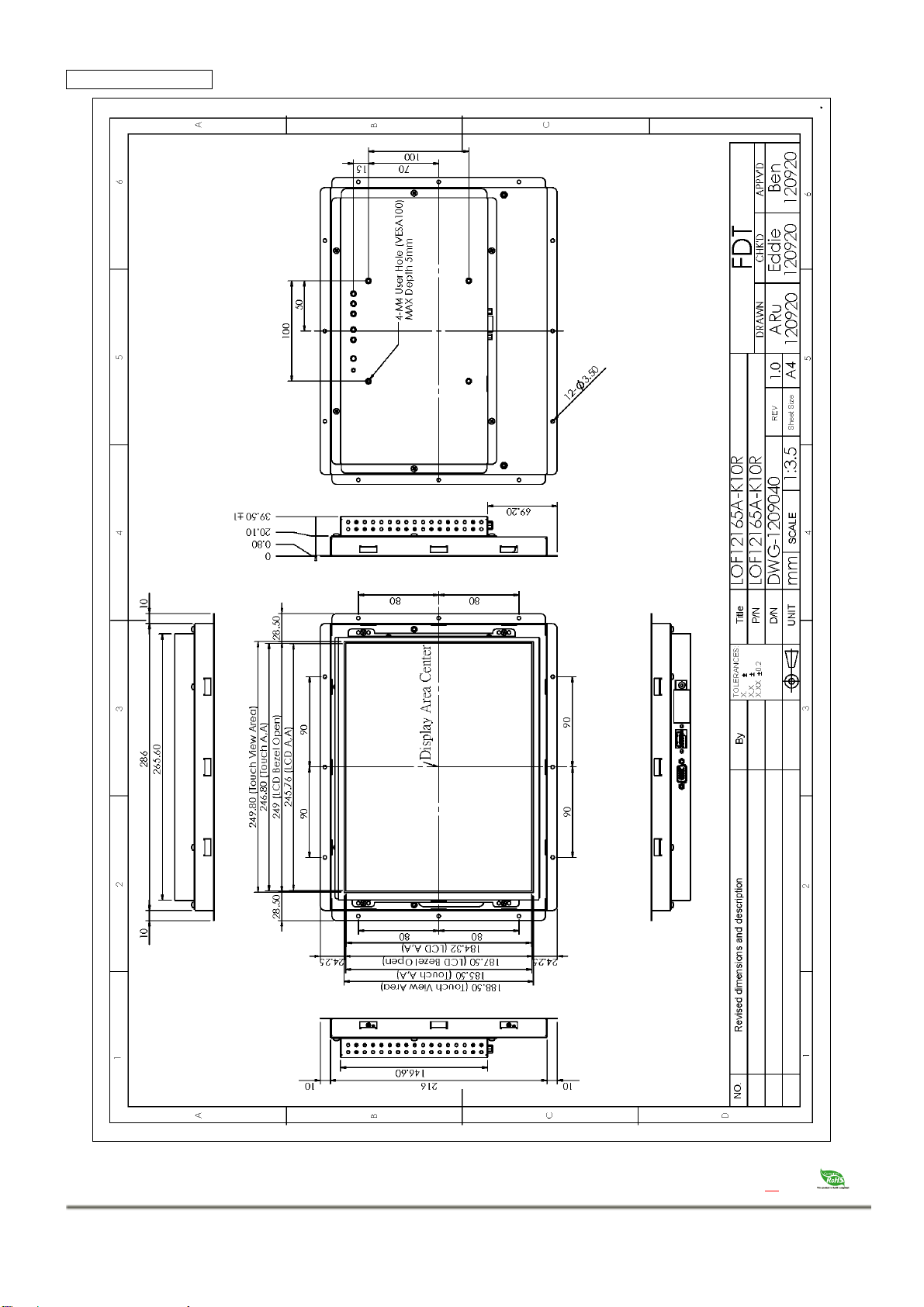

6.5 LOF12165A-K10R
