Feelworld PVR733 Manuale utente

32ChannelAutoSearching

Wireless FPV Monitor with Dual Receiver

LCD Monitor（Built-in DVR）

User Manual

Product description：

Wireless FPV monitor with dual receiver (built-in DVR) LCD

monitor is a new multi-function product; adopts advanced

integrated circuits and high-quality new HD LCD monitor. It

integrates a high-sensitivity dual 5.8GHZ AV wireless receivers,

Aerial receiver, Video recorders, high-definition monitor, not only

can conduct on-site wireless receiver, video, but also can

seamless video, real-time image snapping and video playback.

The monitor build-in battery, if you don’t install the battery, you can

use the 9~18V power supply or use the battery plate for external

power supply. The Monitor casing compact, easy to operate, can

be used for FPV ground station, car video monitors(tachograph),

security monitoring, baby monitors, photography viewfinder,

construction site video surveillance, advertising and other venues.

To insure best use of the unit, please read the

user’s manual carefully.

CAUTION

1. Do not use any damaged or leaking battery and please replace

the battery immediately if its working life becomes short

significantly.

2. Do not expose this product to direct sunlight, heat or humid

conditions.

3. Keep away from strong light while using this product so as to

obtain the clearest and the most colorful picture. Please use sun

shade for the outdoor necessary.

4. Please avoid heavy impact or drop on the ground.

5. Do not use chemical solutions to clean this unit. Please simply

wipe with a clean soft cloth to keep the brightness of the surface.

6. Without adjustable component in the unit, please do not take

apart or repair the unit by yourself, to avoid damage the product.

Product Feature:

●Dual antenna receiver, high-sensitivity, strong anti-interference

●Set DVR, 5.8G wireless receiver, a monitor for the integration of

multi-functional combination machine, compact, suitable for a

variety of purposes

●Real-time image snap and keep the beautiful memory

●DVR seamless video, save the latest data

●Motion detection recording, save memory space

●5.8G wireless receiver, 32 Channel Auto Scan, effectively

avoid signal interference

●High brightness, contrast, anti-glare screen with a sun shade, sun

clearly visible

●With VIDEO input, output, HDMI input, suitable for a variety of

sources. Can be used as video, photography Viewfinder,

advertising machine

●Color Control Systems support, enter the menu to manually

Select the appropriate format, and adaptable

●Front headphone listening to playback of audio effect

●Build-in battery and optional battery plate, can be equipped with a

variety of battery, No power to facilitate use of the site in country

●With VIDEO signal output function, can be used as video

Playback DVR host, connecting multiple monitors

●Check Field

●Picture Screen Markers and Centre Markers

CONTENTS

1. Product description ------------------------------------ 4

2. DVR (Video) Operation instruction-------------- 8

3. Wireless transmission receive operation ---- 18

4. Operation instructions -------------------------------- 20

5. Sun shade installation--------------------------------- 27

6. Power Supply ----------------------------------------------- 29

7. Parameters ------------------------------------------------- 32

Trouble shooting ---------------------------------------- 33

1. Product description:

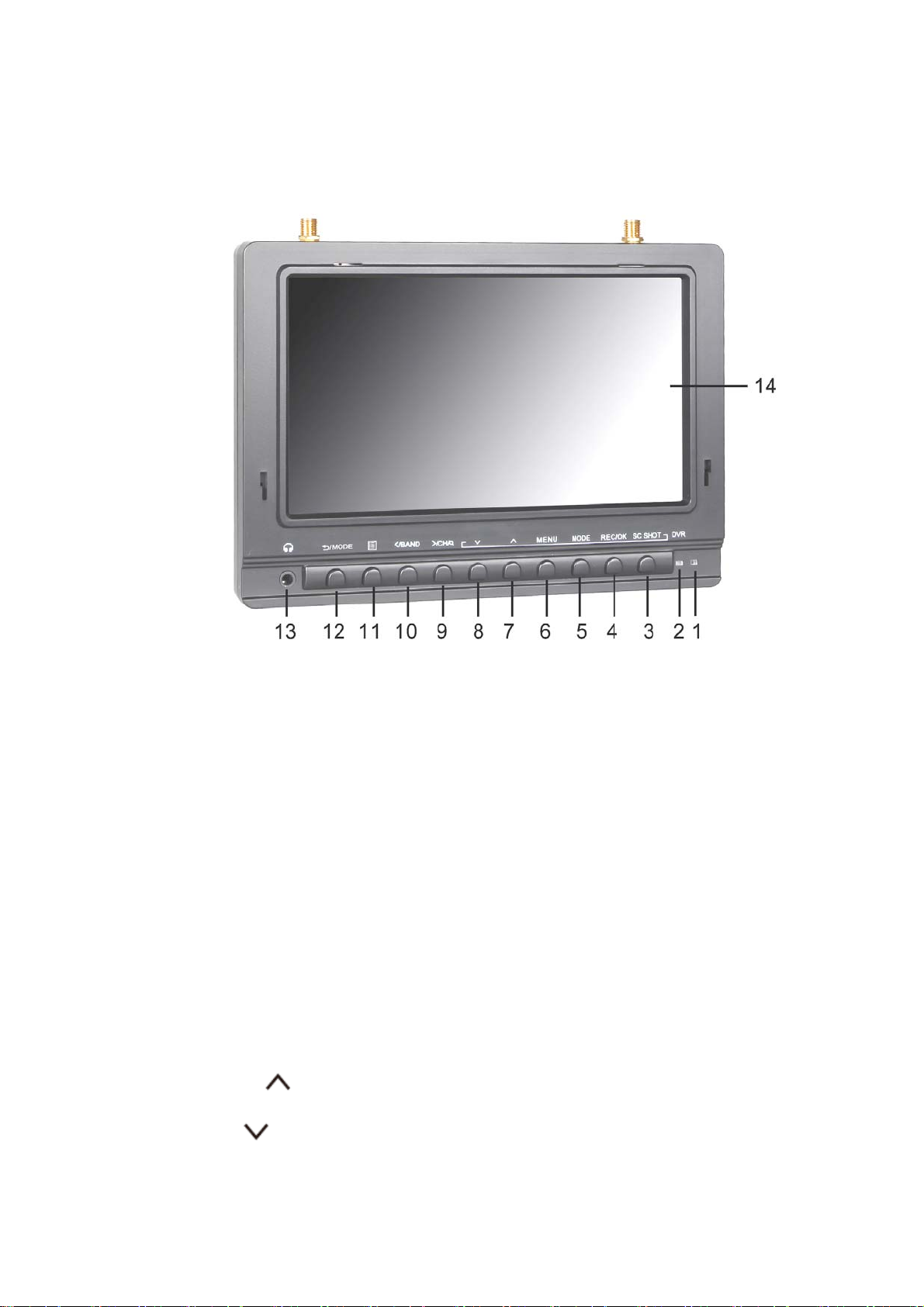

1.1Front view:

1、Video Indicator

2、Power Indicator

★3～8 DVR operation button

3、SC.SHOT: Real-time images snapping

4、REC/OK: Recording start, stop/ function confirm

5、MODE: Mode key to enter/ exit the playback mode

6、MENU: Menu key to enter/ exit the DVR (Video) menu

mode

7、: UP button, up one option

8、: Down button, down one option

★ 9～12 monitor operation button

9、：Multi button for UP /Channel Selection /Search

/ Volume up. Press this button for channel selection, long

pressing for channel auto searching. In OSD for “UP”

button, Volume up

10、: Multi button for DOWN /Channel Selection

/Volume down. Press this button for channel selection

from “A、B、E、F”. In OSD for “DOWN” button,

Volume down

11、: Menu key, under a signal input mode, pressing

this button to pop up the menu, and the current menu

and sub-menu item to confirm the adjustment

12、: Input signal selection or exit the menu

13、: Stereo earphone jack

14、LCD screen

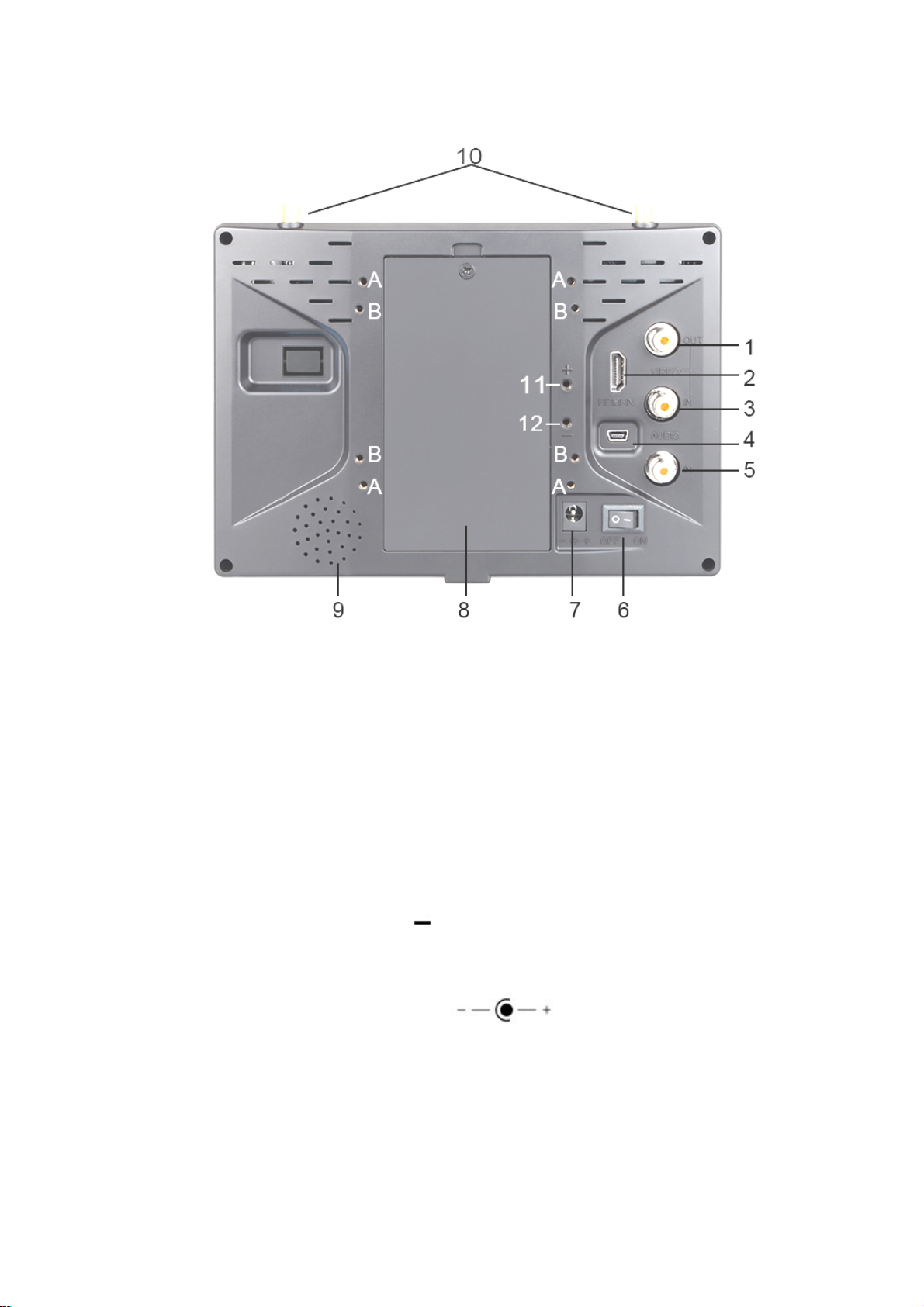

1.2 Rear View:

1、VIDEO OUT: Composite video signal output

2、HDMI IN: HD HDMI signal input

3、VIDEO IN: Composite video signal input

4、USB data upgrade port

5、AUDIO IN: Audio signal input

6、Power switch “ ” Indicates that the power is turned

on, “○”means disconnect the power

7、Power input jack

8、Battery Pack

9、Speaker

10、Antenna connector

11、12：it is a screw hole for battery plate, when you use

battery external,11 is“+”，12 is“-”,Copper Screw

size:M3×9.5mm

A：Battery plate locking screw hole, 4 holes, Copper

Screw size: M3×5.0mm

B:75×75mmVESA, Screw size: M4×5.0mm

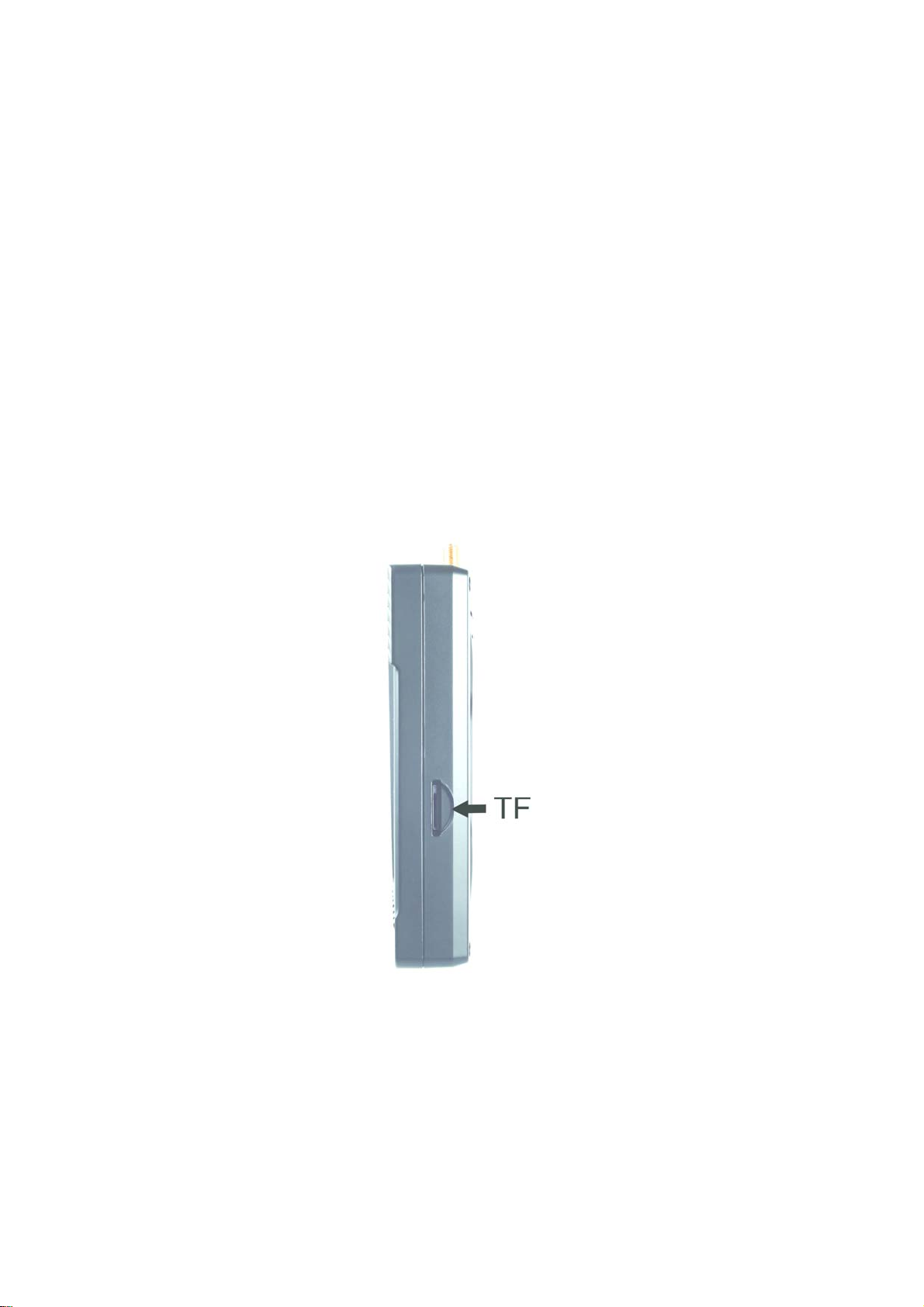

1.3 TF Card Slot：

2. DVR (Video) Operation instruction:

When the monitor's "VIDEO-IN" and "AUDIO-IN" has access to

the appropriate signals or "RF" wireless receiver transmitter has

been reliably received video signal transmitted over and check the

TF card has been reliably into the slot (monitor the HDMI input,

there is no video function).

After the device is turned on, press “ ” to select

“DVR” channel, press “REC/OK”, then the monitor will be on “RF”

channel, if you would like to “VIDEO”, press “ ” again to

change to VIDEO.

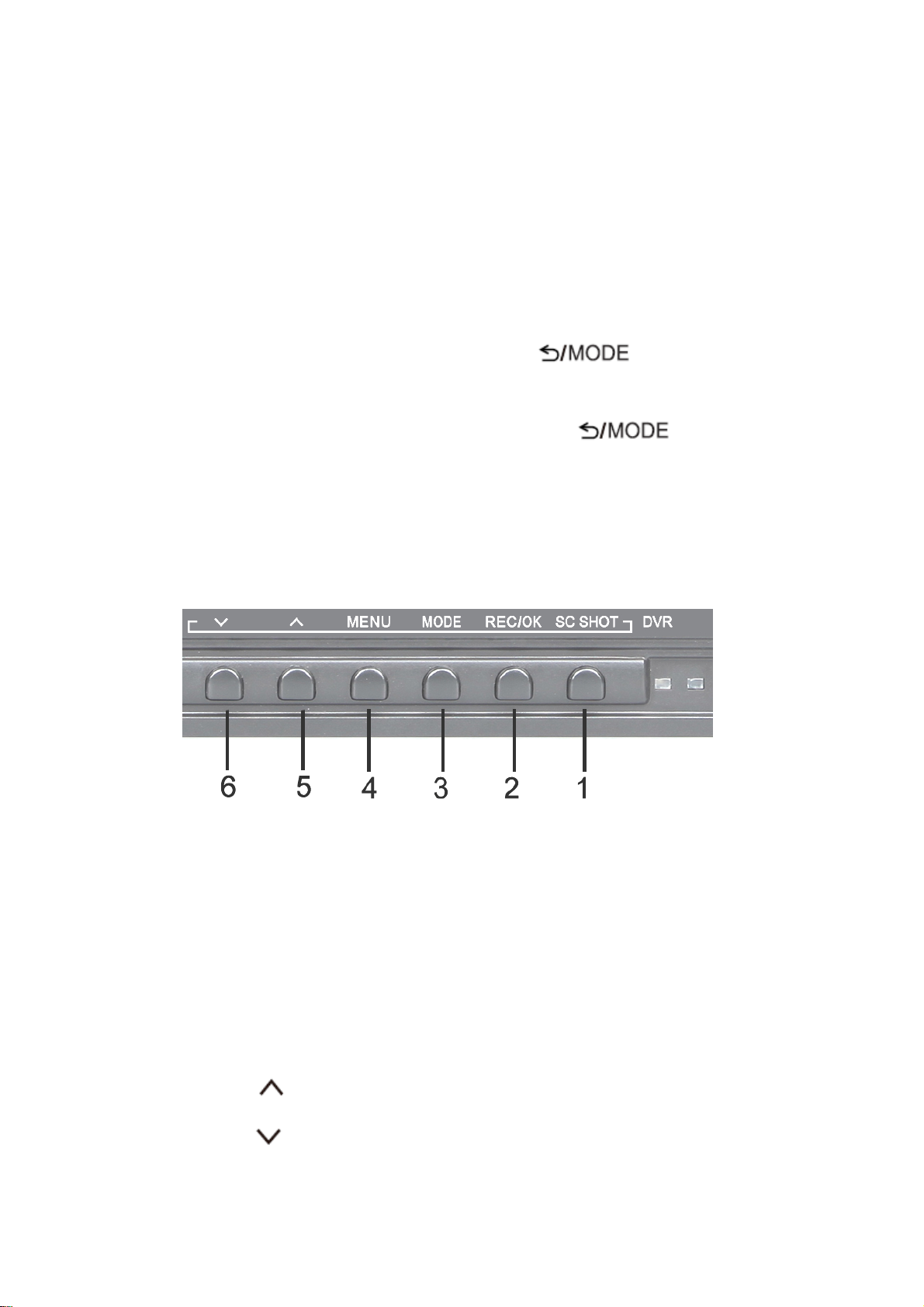

2.1 DVR (Video) button instruction：

1. SC.SHOT: Real-time images snapping

2. REC/OK: Recording start, stop/function confirm

3. MODE: Mode button to enter/ exit the playback mode

4. MENU: Menu key to enter / exit the DVR (Video) menu

mode

5. : UP button, up one option

6. ：Down button, down one option

2.2 Recording start：

The monitor input signal selection "DVR" (video signal) channel,

the monitor screen will display the “RF” channel of the screen,

press the "REC / OK" button will appear when the red flashing ,

meaning that start recording begins, the DVR default to RF channel,

if you would like to “VIDEO” channel, press to switch

(HDMI input without recording function). You want to stop the video,

press "REC / OK" button. Recording or recording by time period

paragraphs packaged storage.

2.3 Video playback：

When the video for some time, you need to playback video

effects observed, press "MODE" button at the top left appears ,

because the video store is packaged stored by time period, can use

“/ ”keys to go forward or backward to select playback file

package, select and press the "REC / OK" button to confirm, the

device begins to enter the playback mode. Playback with the ""

button to select the playback speed, return fast play with " " key

in order to exit. When fast playback is muted trumpet, playing at

normal rate for a voice broadcast.

2.4 Screen shot（SC.SHOT function）:

SC.SHOT means quickly grab its natural, vivid image, one of

the most expressive moments of operation process
