FeiYu Tech FY WG2 Manuale utente
FY WG2 3 Axis Wearable Gimbal
and cameras with similar dimensions
GuiLin FeiYu Technology Incorporated Company
V 1.0ENInstructio n Manual
1
Usage Scenario Demonstration
Guidelines For Usage
WG2 has precision machinery transmission mechanism, water proof design can completely use in raining and water
splash scene, it can be used in the water under certain conditions, please follow the requirements below when use in
the water, otherwise, there are risks of damage.
1.Please ensure the usb plug has been covered before
using underwater, dry it and place in a ventilated place
to dry before charging.
3. Used in sea water environment at risk of damage
that is not recommended.
2. When use under water, depth of water should be less
than 0.5m, and time of continuous use less than 5mins.
4.When it is splashed by sea water, please wash it with
fresh water immediately, and soak it in fresh water for
3mins, otherwise, the rotation of gimbal will be blocked
by the salt crystals after the sea water dried.
※It is normal phenomenon if there is a small amount of liquid
flow from gimbal or the gimbal is smelly, the liquid is waterproof
paint, a few pungent smells.
3
Drift Swimming
21Rainy
!
Fixed block
2
User Guide
1Install the Camera
Hero5
Hero4
Remove fixed block,install the camera on retainer plate,
then fix the camera with retainer bar and screws.
Loosen the knob ring and adjust
the arm length to fit the different
cameras.
Knob ring
Cross
arm
Attention!
(1) Please install the camera before powering
on the gimbal.
(2 )When not in use, turn off the gimbal and then
remove the camera.
!
2Power on / off
Power On: Press and hold function button
until the green light is on.
Power Off: Press and hold function button
until the red light changes from quick
flashing to always on.
Attention: Make sure the camera is secure
before powering on the gimbal.
In case of low battery, the red LED
indicator flashes for three times for
every 5 seconds.Please charge WG2.
!
Reference
point
Session
Knob ring
3
Tilting axis
Rolling axis
Panning axis
USB port
1/4 inch
screw hole
Screw hole
Product Overview
* The showing sports camera is only for reference
1/4 inch
screw hole
T-Clamp
screw Hole
Indicator
status
Thumb screw Waterproof
Bluetooth
Function button
Cross arm
4

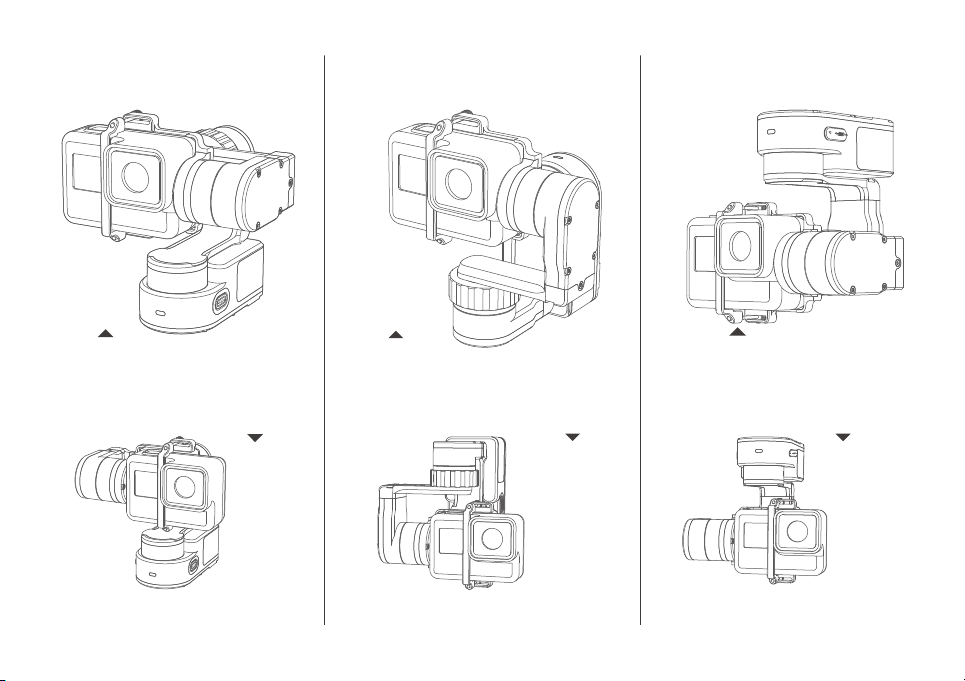

Camera in right
Forward
Camera in left Camera in left
Camera in right
Inverted
Camera in right
Vertical
Camera in left
App download and connect
1
2
Connecting App

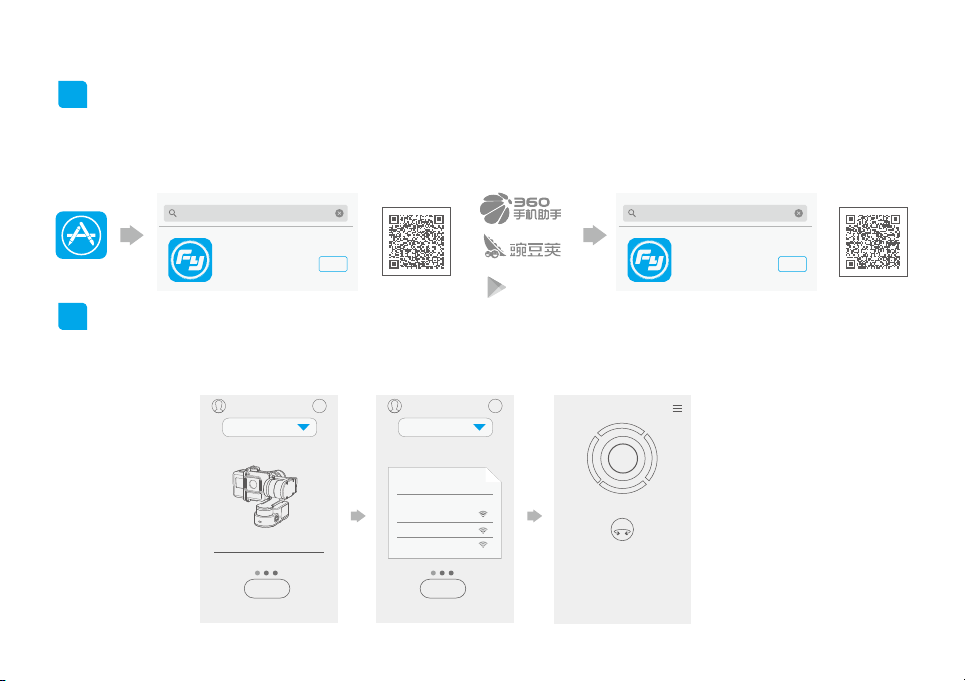

Start the App on your smartphone,follow the instructions to connect the smartphone with gimbal
via bluetooth.
App Store
Download App
Download "Feiyu ON" and install it.
(1) iOS version: (2) Android version:
Google play
5
?
WG 2
WG 2
Connect
?
WG 2
Connect
360°
FY_WG 2_XX
Choose a gimbal
FY_XXX_XX
FY_XXX_XX
FY_XXX_XX
×
Feiyu ON
Download
GuiLin FeiYu Technology Incorporated Company
Feiyu ON
Feiyu ON
Download
GuiLin FeiYu Technology Incorporated Company
Feiyu ON
*Please scan the two-dimensional code via the browser.
6
Mode /Function
The orientation of the
camera is fixed.
Panning Mode
Tilting and rolling direction
are fixed, and the cameralens
moves according to the hand
movement of the user.
Panning and Tilting Mode
The rolling direction is fixed,
and the camera lens moves
according to the hand
movement of the user.
Lock Mode
Reset
Reset the tilting axis of the
gimbal to initial orientation
and initialmode.
Mode /Function Operation Instructions
Indicator Status
Mode / Status
Blue light flashes once
Blue light flashes twice
Panning
Panning and tilting mode
Lock mode / Initializing Blue light on steadily
Blue light keeps flashing Initialization failure /
Malfunction
Low battery Red light flashes three times
Red light keeps flashing Turning off
Function Button
Double tap
Single tap
Mode /Function Explanation
Panning Mode / Lock Mode
Panning and tilting mode
Triple tap
Single tap to switch between panning mode and lock mode
When in panning and tilting mode, press once to switch to lock mode
Rotate 180°in horizontal Make the camera lens rotate 180 °
Quadruple tap Quadruple tap to enter autototation mode
Autorotation Mode
Fifth tap Single tap again to awake the gimbal, or triple tap to initialize the gimbalInitialization
7
Autorotation Mode

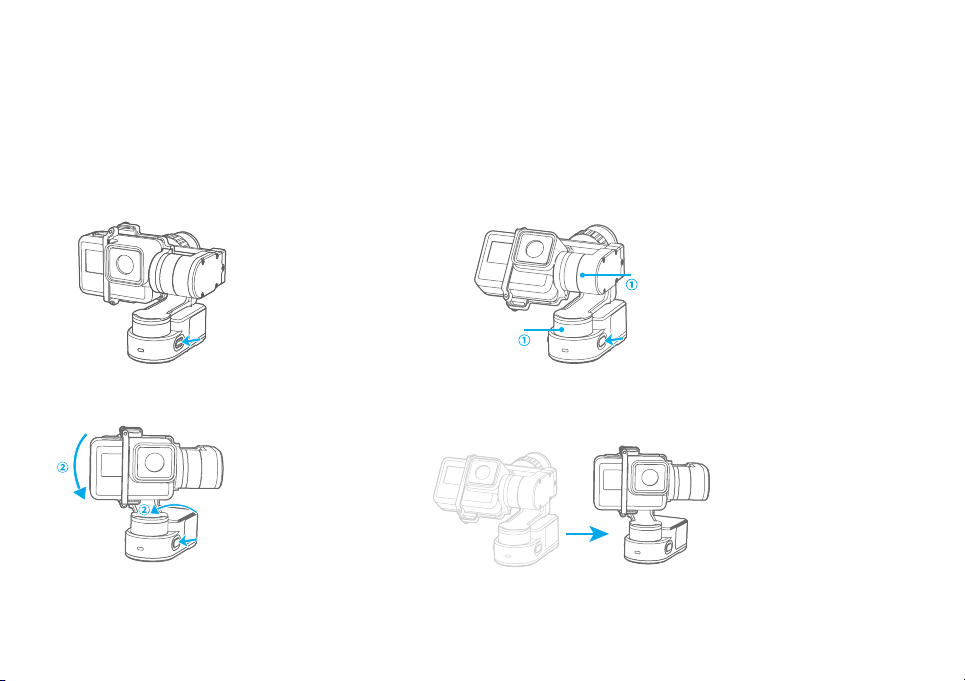

2. Turn the panning axis
and tilting axis to the
position ① and hold for
half a second.Click on
function button,
record the position ①.
1.Four times clicks on
function button, gimbal
will access the autorotation
mode setting.
4.Gimbal will recover to
position ① automatically.
Tilting axis and panning
axis turn to position ②
at constant speed.The gimbal
is automatically reset after
the end.
3 .Turn the panning axis
and tilting axis to the
position ② and hold for
half a second .Lick on the
function button again,
record the position ②.
Tilting
Tilting
Panning
Panning
Four times clicks on function button, gimbal will access the autorotation mode setting. Manually turn the
gimbal to an initial position, then click again on function button for recording it.Manually turn the gimbal
to end position, then click the functionbutton again for recording it. Gimbal will turn to the initial position
and begin autorotation.
8
Manual Lock
Manual lock ，pull to the specified angle to stay half
a second can be lock the current angle.(The tilting
axis and panning axis in the lock mode can be
manual lock and the tilting axis can be manual lock
in the panning mode.)Take the tilting axis as an
example:
2
1
Hold the camera and change its angle in tilting axis
direction.
Keep this position for half second, the current angle
will be locked manually.
Annexed parameter table：

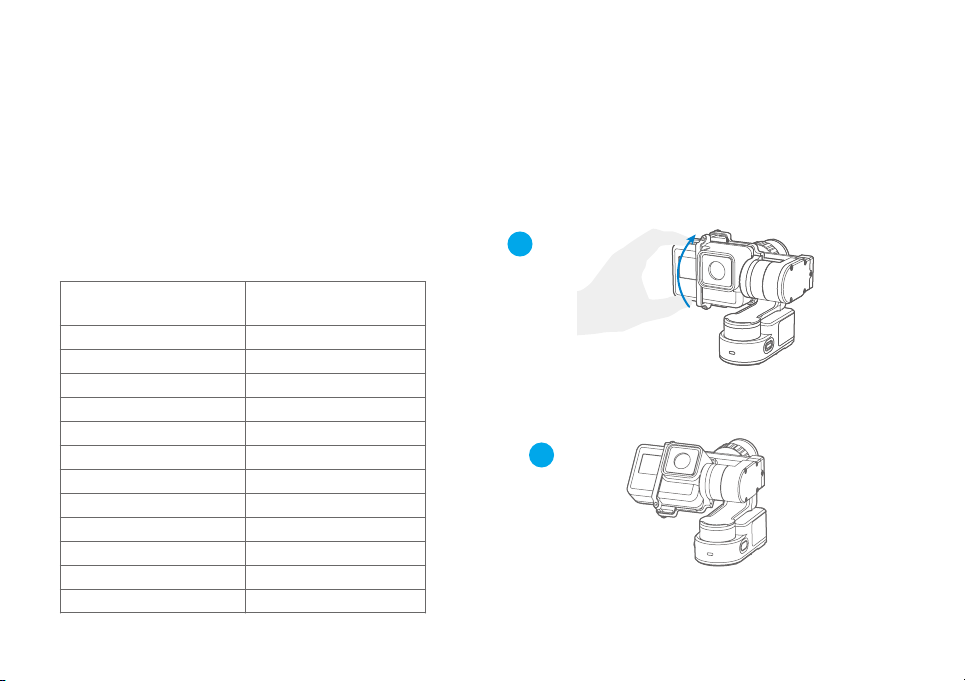

Gimbal speed setting and theory time adaptation reference
table.
Combined use of gimbal autorotation function and
motion camera time-lapse photography function will
make the camera achieve the excellent effect of
time-lapse photography.Theoretical time and gimbal
autorotation speed adaptation effect is better,
Feiyu ON APP can set the autorotation speed.
WG2 theory time
1
2
3
4 (default)
5
6
9
8
7
11
12
10
8 hours / turn
4 hours / turn
2 hours / turn
1 hours / turn (default)
30 minutes / turn
15 minutes / turn
2 minutes / turn
4 minutes / turn
8 minutes / turn
30 seconds / turn
15 seconds / turn
1 minutes / turn
WG2 speed setting
9
USB cable
PC
Upgrade........
Please visit the official website www.feiyu-tech.com to download the relevant software for upgrading,
including USB driver,firmware upgrade software and product firmware, and install the relevant software,
decompress the firmware files .
Feiyu ON
Option 1: connect the gimbal with PC via micro USB cable, and then upgrade the firmware.
Option 2: connect the gimbal with smartphone via bluetooth, and then upgrade the firmware.
(1)
(2)
Charge with micro USB cable.
*Please make sure
the battery is fully
charged before you
use the gimbal for
the first time.
Firmware Upgrade
（equipped by user）
5V
Firmware
Upgrade
Charging
The current used version 1.7.2,
new firmware is available,
do you want to upgrade?
Later Download
and install it.
new firmware is available,
do you want to upgrade?
×
Firmware upgrade
Yes No
