FETtec FC G4 - N

Manual

Page 2

Introduction..................................................................................................................................3
Features.......................................................................................................................................3
Safety warning .............................................................................................................................4
Recommended steps for installation of the FETtec FC G4 - N ....................................................4
Connection Diagram ....................................................................................................................5
Connection Layout top..............................................................................................................5
Connection Layout bottom........................................................................................................6
ESC connection diagram .............................................................................................................8
ESC connection via 8 pin connector.........................................................................................8
Single ESC connection diagram...............................................................................................9
Receiver connection diagram.....................................................................................................10
TBS Crossfire.........................................................................................................................10
SBUS receiver / FrSky R-XSR ...............................................................................................10
Analog FPV connection diagram................................................................................................11
Digital FPV connection diagram.................................................................................................12
Caddx Vista FPV system........................................................................................................12
Fatshark Shark Byte system...................................................................................................13
Caddx Walksnail.....................................................................................................................13
FC configuration.........................................................................................................................14
KISS FC firmware...................................................................................................................14
FC firmware update ............................................................................................................15
FETtec Alpha FC firmware .....................................................................................................16
Get back to KISS ................................................................................................................19
FC firmware update ............................................................................................................21
Settings...............................................................................................................................22
Display connection.....................................................................................................................23
Activation in FETtec Alpha FC firmware .................................................................................24
Dimensions................................................................................................................................25


Page 3

Introduction

Thank you for purchasing the FETtec FC G4 - N.

Features

•Latest STM32G4 Processor

◦170Mhz + Math accelerator

◦MPU6000

•Supply voltage 6-27V (2S-6S Lipo)

•2x dedicated onboard BEC (max. 600mA each)

◦5V BEC for RX

◦5V/16V BEC for VTX (switchable and real Pit*)

•2x 8 pin connector for solder free ESC connection

◦Connector 1: ESC signal 1-4, telemetry, VCC, GND

◦Connector 2: ESC signal 5-8 (depending on UAV type 1-4), telemetry, VCC, GND

•1x 8 pin connector for solder free VTX, cam connection and OSD or digital systems

◦real Pit* VCC, GND, Video in, Video out, BEC 5V/16V, VCS/TX3, RX3

•2x 6 pin connectors for serials

◦RX1, TX1, 3.3V, VCC, 5V, GND

◦RX3, VCS/TX3, RGB LED, VCC, 5V, GND

•1x 4 pin connector for receiver

◦Signal, TLM, 5V, GND

•5 UART serials

◦UART 1 free

◦UART 2 used for Receiver

◦UART 3 free

◦UART 4 free

◦UART 5 used for ESCs / TLM / Onewire

•4 ESC solder pads (Signal/GND) in each corner

•Buzzer pads

•4 tiny RGB LEDs (selectable color)

•Supported ESC protocols

◦PWM, Oneshot125, Oneshot42, Dshot150/300/600/1200/2400, FETtec Onewire

•FETtec KISS firmware

Page 4

•Maximum outside dimensions: 37,2 x 37,2mm, without outside tips 30 x 30mm

◦Mounting hole arrangement:

▪20 x 20mm with M2 mounting hole (expandable to M3)

▪30 x 30mm with M3 mounting hole

▪30 x 30mm mounting hole tips are removable to reduce overall FC size

•Overall height: 7,9mm

•Weight: 5,37g

•Connector type: JST-SH-1mm

*real Pit-Mode: A power supply pin which is remotely switchable

Safety warning

•Remove propeller before flashing and configuration

•always flash latest firmware before operation

Recommended steps for installation of the FETtec FC G4 - N

•Connect to FETtec Configurator and update to the latest firmware (see FC firmware

update)

•Install the FC in your copter (see Connection diagrams for correct wiring and installation)

•Make sure everything is connected properly and check without propellers

•Connect to KISS GUI to proceed with final configuration of the FETtec FC G4 - N (FC

configuration)

Page 5

Connection Diagram

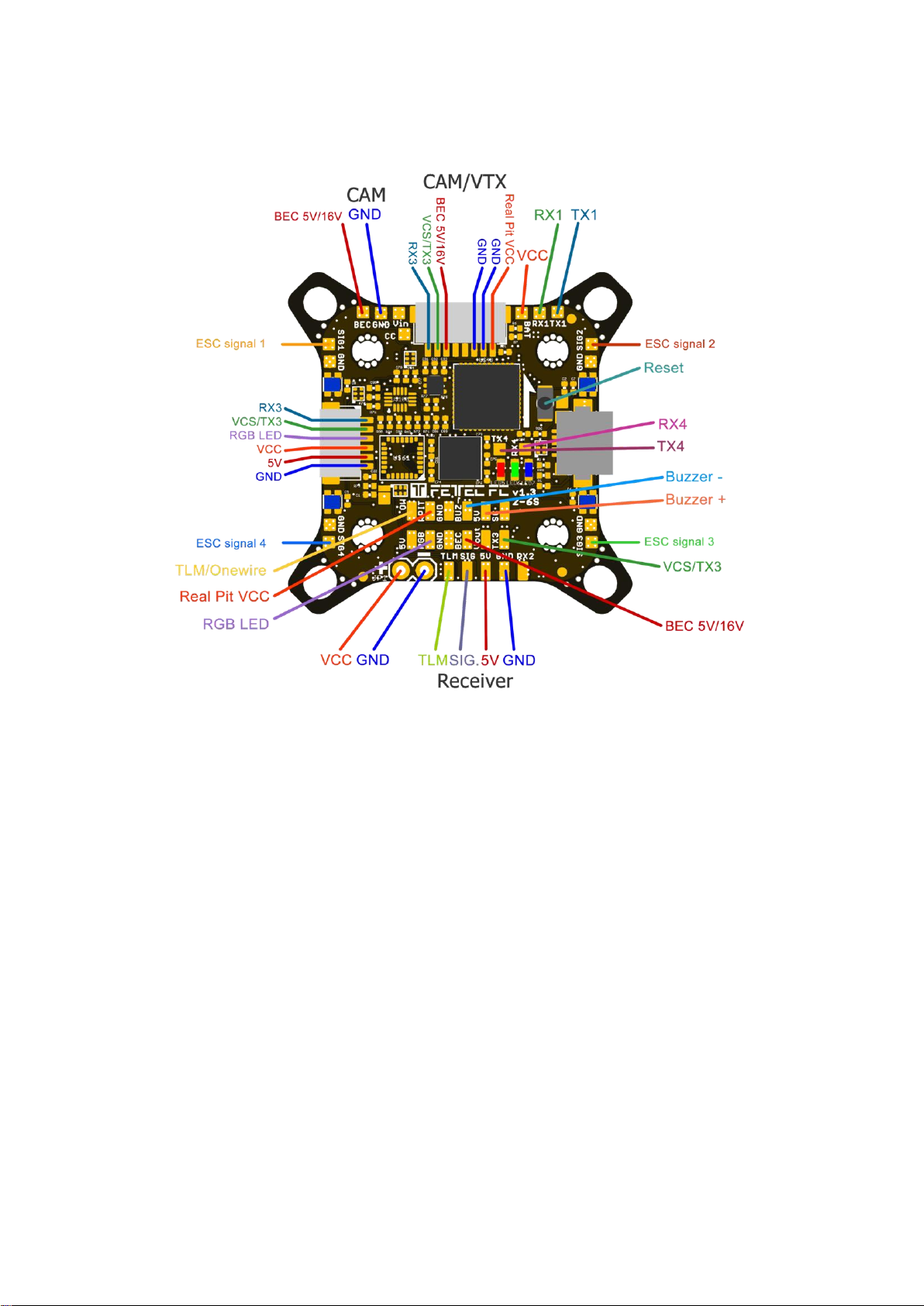

Connection Layout top

The 8 pin connector combines all necessary connections for analog or digital VTX and camera.

It includes:

•Real Pit VCC (Lipo+)

•GND for cam and VTX

•Video in:Analog video signal from cam

•Video out: Analog video to VTX

•BEC 5V/16V: power supply for cam and/or VTX, switchable voltage, real Pit capable

•VCS/TX3: for smart audio / tramp configuration or TX for digital FPV systems

•RX3: for digital FPV systems

6 pin connector (SER3):

•RX3: for digital FPV systems or other functions configurable in GUI (same for VCS/TX3)

•VCS/TX3: for smart audio / tramp configuration or TX for digital FPV systems

•RGB LED: PWM signal pin to control WS2812 LEDs or similar (configurable in GUI)

•VCC: Battery voltage

•5V

•GND

Page 6

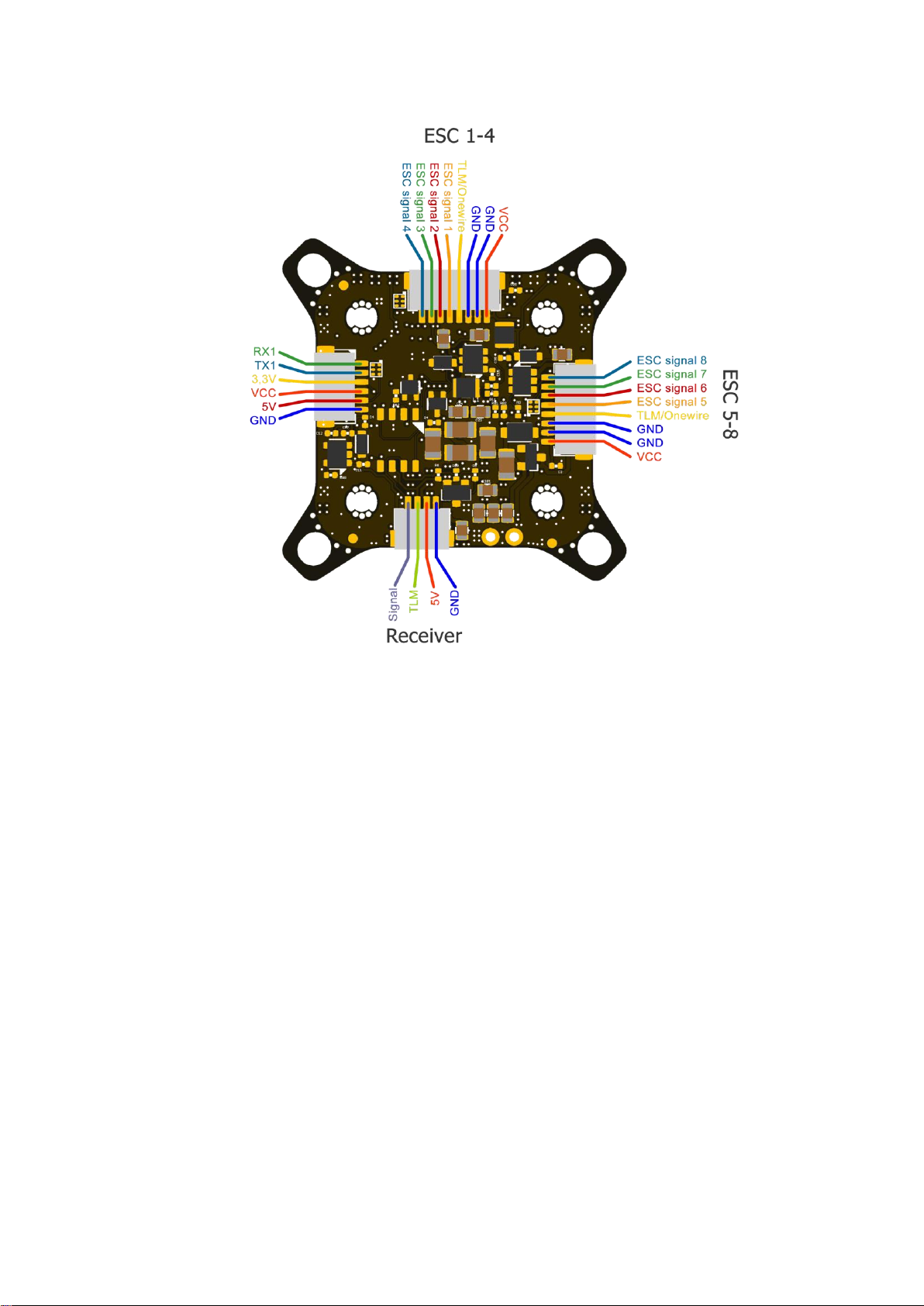

Connection Layout bottom

8 pin ESC connector 1:

•VCC: Battery voltage out to supply FC power

•GND

•TLM/Onewire: ESC Telemetry signal to FC or Onewire signal pin (depending on

configuration)

•ESC signal 1-4: ESC signal output for each ESC

8 pin ESC connector 2:

•VCC: Battery voltage out to supply FC power

•GND

•TLM/Onewire: ESC Telemetry signal to FC or Onewire signal pin (depending on

configuration)

•ESC signal 5-8: ESC signal output for each ESC (outputs ESC signal 1-4 if UAV type is

configured as BI, TRI, QUAD)

Page 7

Receiver connector:

•GND

•5V

•TLM: Telemetry signal to receiver (see page 10 receiver connection diagram for further

information)

•Signal: Receiver signal to FC (see page 10 receiver connection diagram for further

information)

6 pin connector (SER1):

•RX1: function configurable in GUI

•TX1: function configurable in GUI

•3,3V

•VCC: Battery voltage

•5V

•GND

Acronym explanation:

•BEC 5V/16V: switchable voltage (in GUI) and real Pit capable

•GND: Reference Signal Ground

•Real Pit VCC: real Pit capable VCC pin

•Reset: Reset button to force the FC in bootloader mode, not needed for normal operation

•SIG.: receiver signal (serial)

•TLM: Telemetry signal output for receiver (Serial)

•TLM / Onewire: ESC telemetry input or Onewire signal depending on configuration

•VCC: Battery input voltage (6V-27V)

•VCS: Video control signal (smart audio/tramp)

Page 8

ESC connection diagram

ESC connection via 8 pin connector

For easy ESC connection via 8 pin cable

FETtec FC G4 - N to FETtec 4in1 ESC 45A (same for FETtec 4in1 ESC 35A), cable included

with FETtec ESCs.

Any other ESC is usable (please make sure the signal pinout is correct, otherwise change

accordingly

Page 9

Single ESC connection diagram

The FETtec FC G4 - N provides 4 ESC signal pads for solder connection of single ESCs

Page 10

Receiver connection diagram

Receivers can be connected via receiver connector (on bottom side of FC) or receiver solder

pads (on top side of FC)

TBS Crossfire

SBUS receiver / FrSky R-XSR
