Fieldmann FZR 4615-20LIBES Manuale utente

FZR 4615-20LIBES

FZR 4615-20LiBES

English .................................................................................................................................................................................3–20

Čeština............................................................................................................................................................................. 21–38

Slovenčina .....................................................................................................................................................................39–56

Magyarul .........................................................................................................................................................................57–74

Polski .................................................................................................................................................................................75–92

ROTARY PETROL LAWNMOWER USER’S MANUAL

Table of Contents

Petrol Lawnmower

INSTRUCTIONS FOR USE

Thank you for purchasing this rotary petrol lawnmower. Before you start using it, please,

carefully read this user's manual and save it for possible future use.

TABLE OF CONTENTS

1. GENERAL SAFETY REGULATIONS............................................................................................................................4

2. EXPLANATION OF INSTRUCTION LABELS ON THE MACHINE ....................................................................5

3. DESCRIPTION OF THE LAWNMOWER (Fig. 1) ..............................................................................................................7

4. ASSEMBLY/PREPARATION...........................................................................................................................................7

5. ASSEMBLY...........................................................................................................................................................................8

6. ADJUSTMENT ..................................................................................................................................................................11

7. OPERATION.....................................................................................................................................................................11

8. STORING AND MAINTENANCE............................................................................................................................. 14

9. TECHNICAL SPECIFICATIONS..................................................................................................................................17

10. DISPOSAL ........................................................................................................................................................................ 18

11. DECLARATION OF CONFORMITY ....................................................................................................................... 19

EN 4

FZR 4615-20LiBES

General safety regulations

1. GENERAL SAFETY REGULATIONS

IMPORTANT SAFETY NOTICE

Unpack the product carefully and do not throw away any of the packaging until you have found all the parts

of the product.

Store the machine in a dry place out of children’s reach.

Read all the warnings and instructions. Failure to comply with the warnings and instructions may lead to

electric shock, fire and/or serious injuries.

PACKAGING

The product’s packaging prevents damage during transport. This packaging is a resource and can be recycled.

USER MANUAL

Before starting to work with the machine, please read the following safety regulations and instructions for use.

Get familiar with the controls and correct use of the equipment. Keep the user’s manual in a safe place for easy

future reference. Save the original packaging, including the internal packing material, guarantee card and proof

of purchase receipt for at least the time of the guarantee. If you need to ship this machine, pack it in the original

cardboard box to ensure maximum protection during shipping or transport (e.g. when moving or when you need

to send this product for repair).

Note: If you hand over the appliance to somebody else, do so together with this user's manual. Make sure

you use the appliance properly by following the instructions in the included User manual. The user’s manual

also contains operating, maintenance, and repair instructions.

The manufacturer assumes no responsibility for accidents or damages arising from

failure to comply with these instructions.

ROTARY PETROL LAWNMOWER USER’S MANUAL

Explanation of instruction labels on the machine

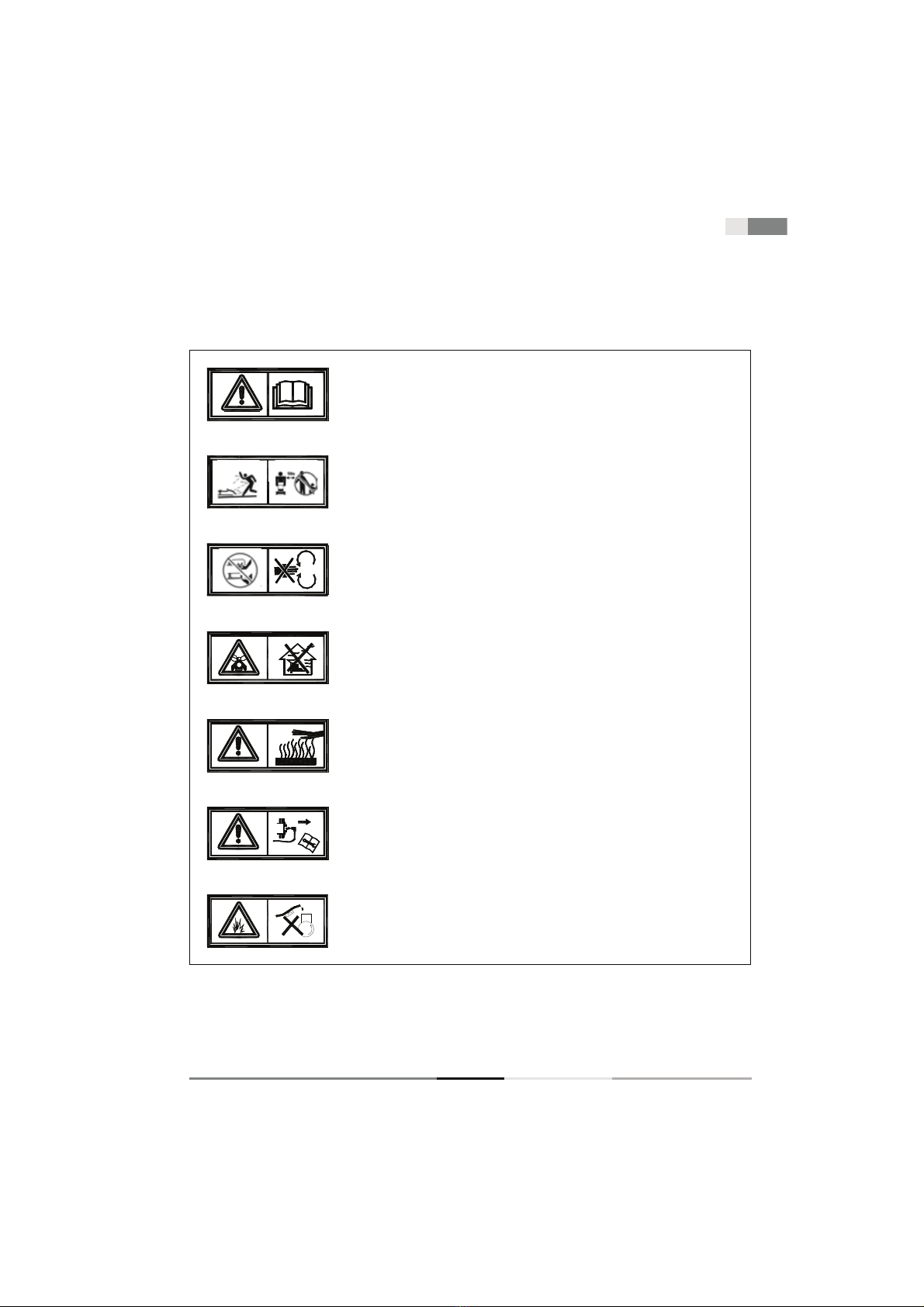

2. EXPLANATION OF THE INSTRUCTION LABELS

ON THE MACHINE

Before putting into operation, please carefully

read the user's manual.

Keep other persons away from the work area.

Attention, rotating blades! Protect yourself against

the danger of injury to limbs.

Emission of toxic gasses. Do not use the petrol

lawnmower in enclosed or unventilated areas.

Hot surfaces, risk of burns!

Before carrying out maintenance, turn off the

engine and disconnect the spark plug.

Never add fuel while the engine is running.

EN 6

FZR 4615-20LiBES

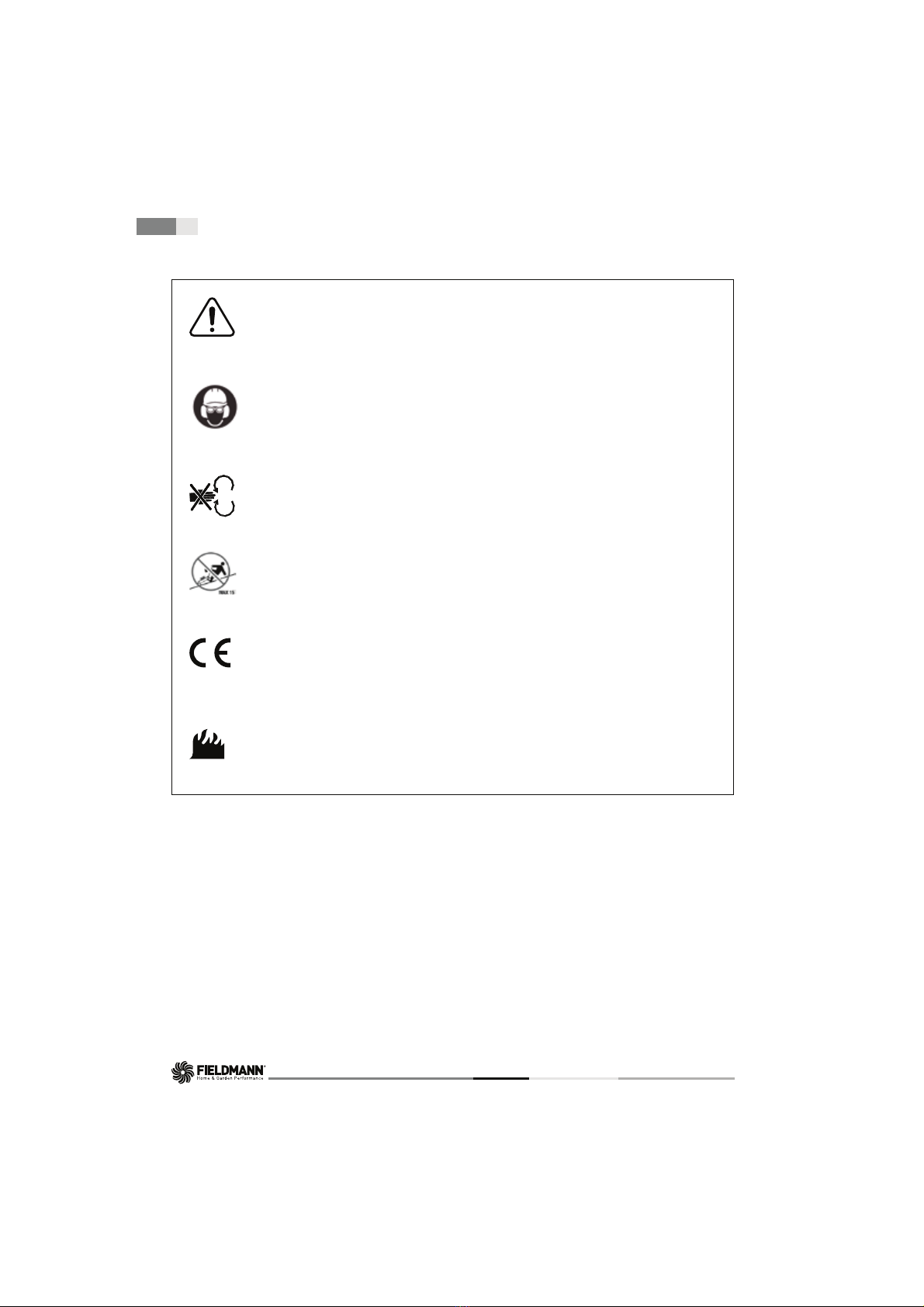

Explanation of instruction labels on the machine

Indicates that there is a risk of injury to persons, death or

damage to the machine if instructions are not followed.

Use ear protection.

Use eye protection.

Use breathing protection.

Always maintain a distance from moving parts.

Travel along the slope on contours, not up and down.

Conforms to all relevant European directives.

Petrol is extremely ﬂammable and therefore allow the

engine to cool down for 2 minutes before adding more

fuel.

ROTARY PETROL LAWNMOWER USER’S MANUAL

Description of the lawnmower | Assembly/Preparation

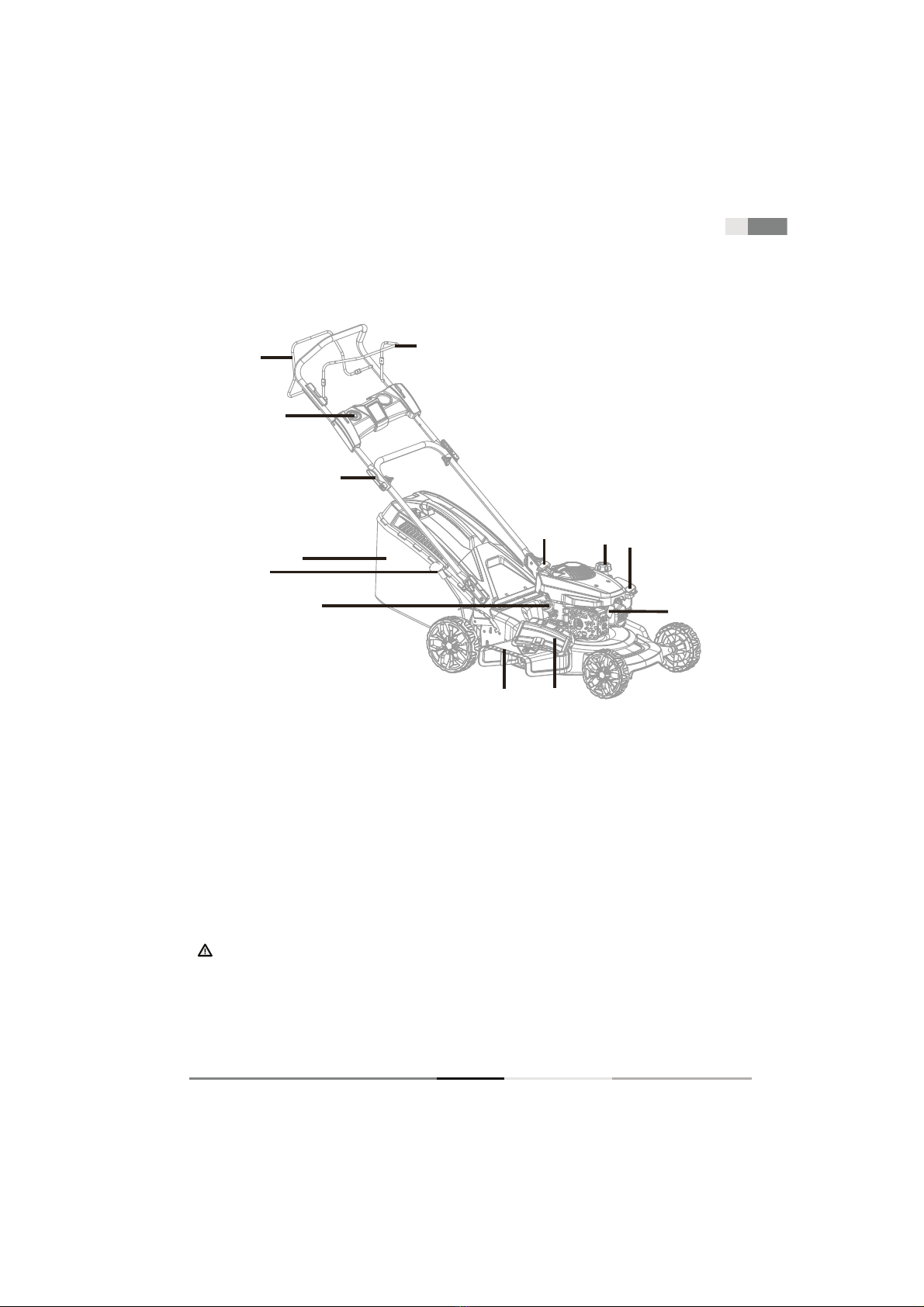

3. DESCRIPTION OF THE LAWNMOWER (Fig. 1)

8910

613

11 12

Fig. 1

1. Drive lever (clutch lever)

2. Brake lever /stop lever

3. Start butt

4. Quick lock handle

5. Grass box

6. Engine oil cap

7. Height adjusting handle

8. Starter handle

9. Fuel tank cap

10. Air ﬁlter

11. Side discharge chute

12. Side discharge cover

13. Spark plug boot

4. ASSEMBLY/PREPARATION

Before assembling and starting the petrol lawnmower, ﬁrst carefully read the entire user's manual and the

instructions contained in it.

IMPORTANT INFORMATION: The lawnmower is supplied WITHOUT FUEL AND OIL in the engine.

Your new lawnmower was tested at the production plant meaning that a small amount of residual oil may

be in the engine.

TAKING THE LAWNMOWER OUT OF THE CARDBOARD PACKAGING

Take the lawnmower out of the cardboard packaging and check that no loose parts are left in the packaging.

EN 8

FZR 4615-20LiBES

Assembly

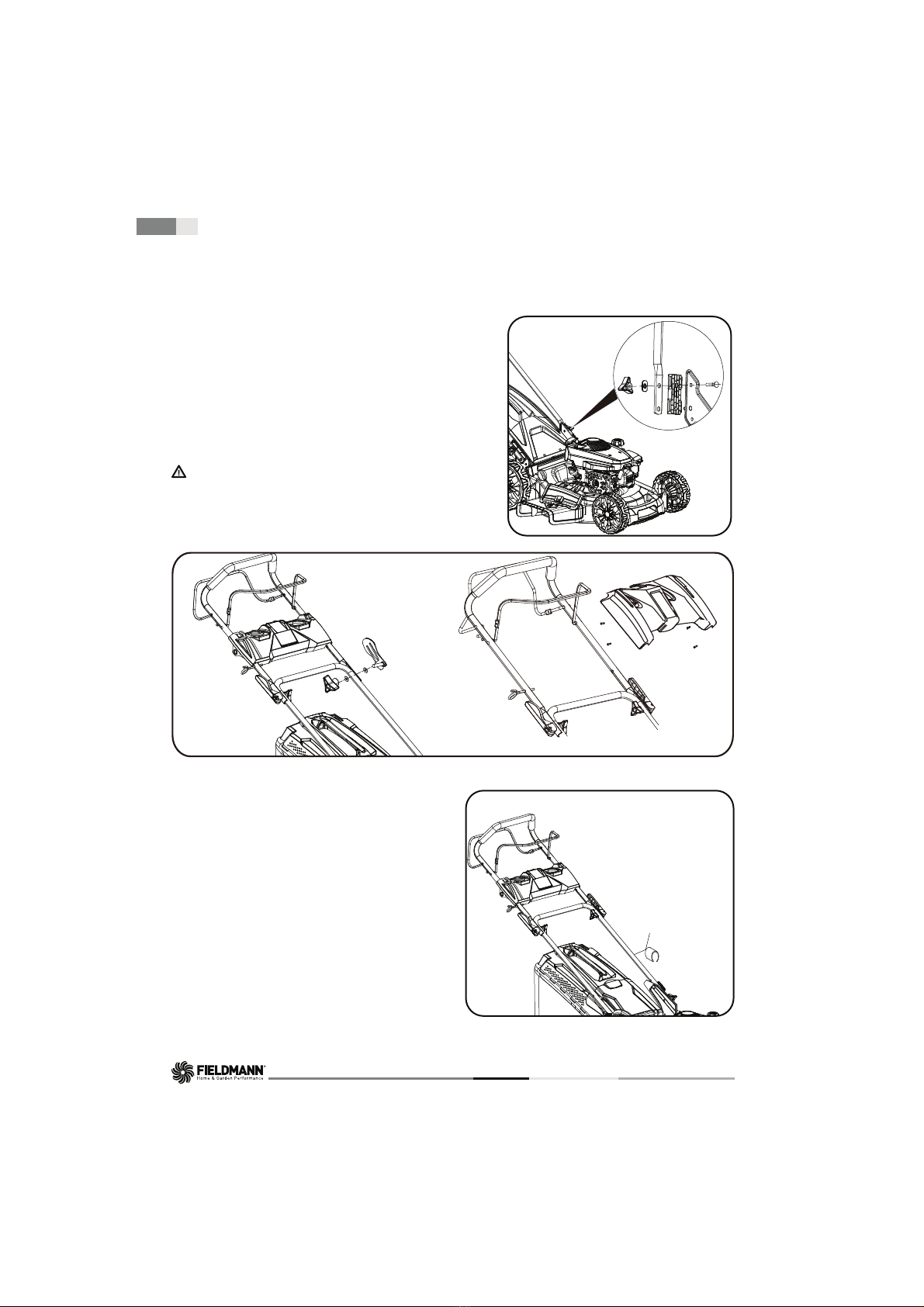

5. ASSEMBLY

ASSEMBLING THE HANDLE

As shown in Fig. 3&4.

1. Fasten the lower handle to

The device by using two blots and two small knobs on each

side .

2. Unfold the upper handle and ﬁx it to lower handle.

By using the big knobs and the blots on each side.

NOTE:

Make sure the rope guide is on the right handle,

when you stand behind the mower.

Fig. 4

TIDY THE CONNECTION CORD

As shown in Fig. 5.

Fix the connection cord to the handle. With the cord clip

(supplied).

Fig. 3

Fig. 5

Clip

ROTARY PETROL LAWNMOWER USER’S MANUAL

Assembly

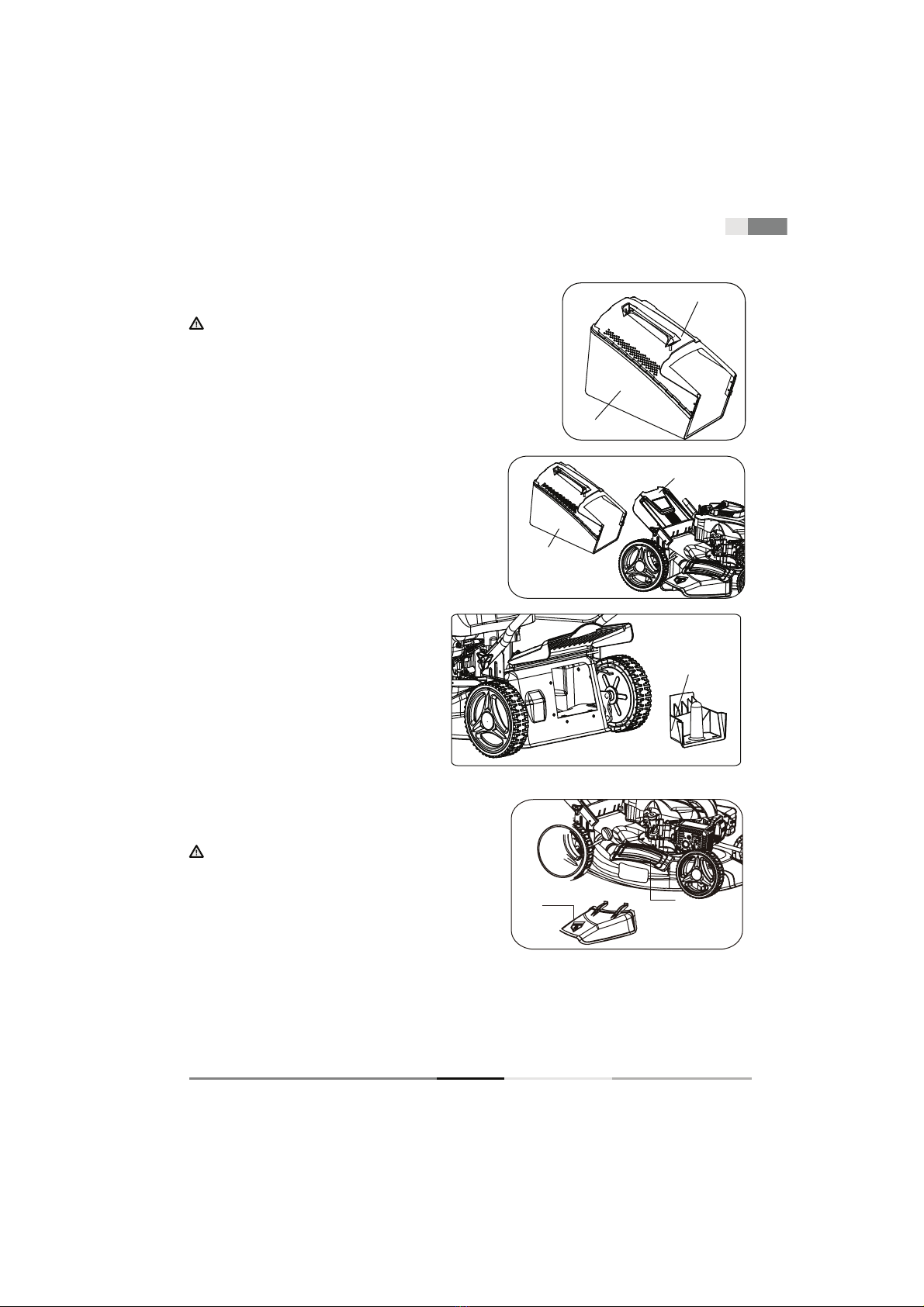

ASSEMBLING THE GRASS BOX FIG6

Fasten the upper cover and the lower cover together.

NOTE:

make sure that each buckle is fully buckled.

ASSEMBLING THE GRASS BOX ONTO THE MOWER

As shown in Fig. 7

1. Lift the back cover by hand, and then buckle the grass

box up.

2. After making sure that the grass box is buckled, loosen

the rear cover.

ASSEMBLING THE MULCHING PLUG

As shown in Fig. 8

1. Remove the grass bag

2. Push the plastic mulching plug. Into the

discharge chute. Until it is locked in place.

3. Then release the ﬂap, it will close. Back to

cover the mulching plug.

ASSEMBLING THE SIDE DISCHARGE CHUTE

As shown in Fig 9

NOTE:

When use side discharge function . First need

remove the grass Bag and plug the mulching plug.

1. According to the pictures show the way. Lift the side

discharge cover with. One hand and hook in the side

discharge. Duct with the other hand.

2. Release the side discharge cover to secure the duct in

position.

Fig. 9

Side discharge chute

Side discharge

cover

Fig. 8

Mulching piug

Fig. 7 Rear discharge cover

Grass bag

Fig. 6 Grass box cover

Koš

EN 10

FZR 4615-20LiBES

Assembly

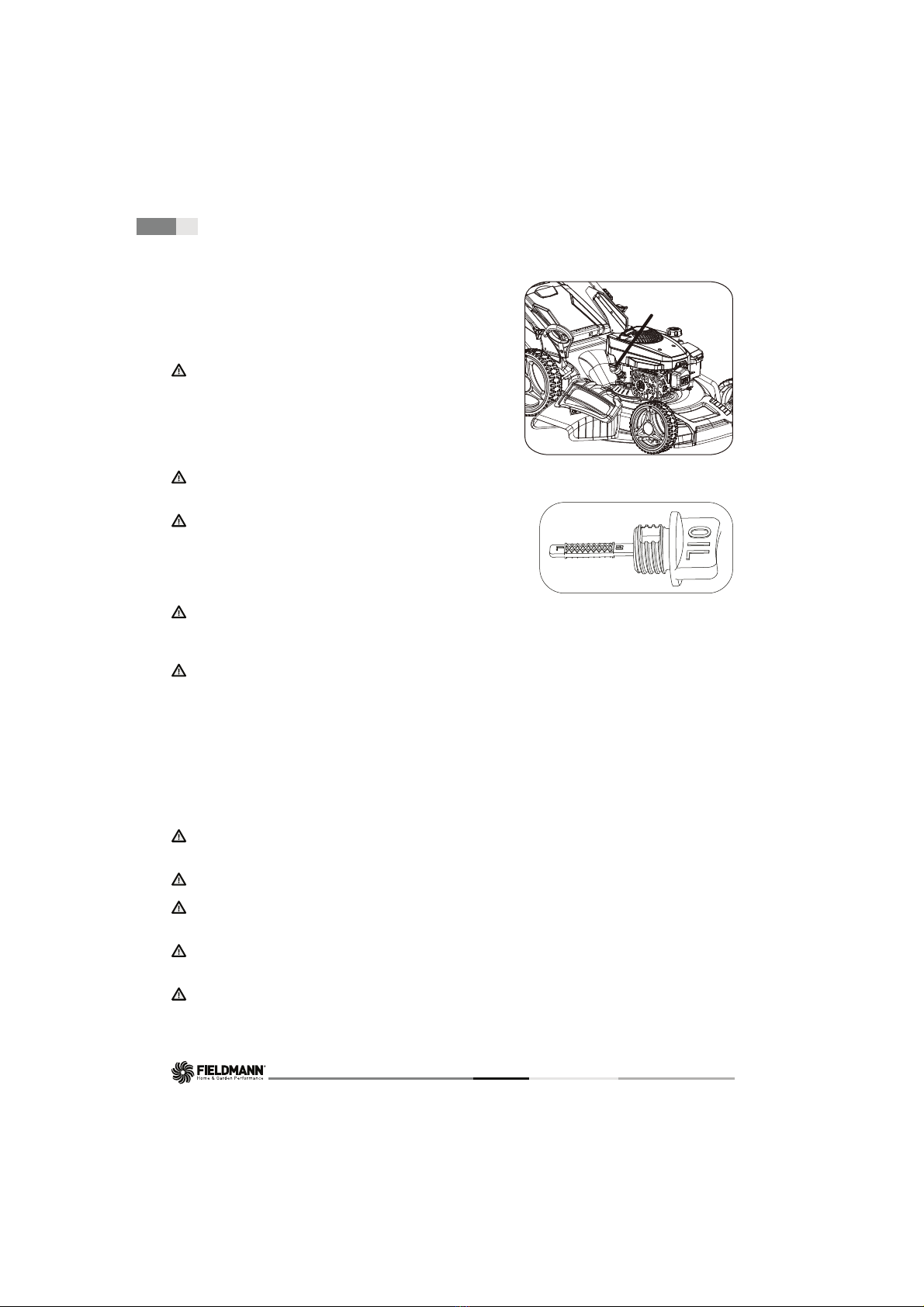

CHECKING THE ENGINE OIL LEVEL

AND FILLING WITH ENGINE OIL

As shown in Fig 10 -11

Caution! The following procedures and adjustments

must be performed before the engine is started.

Do not attempt to make any of these adjustments while the

engine is running.

Caution! To prevent engine damage the engine is shipped without oil or petrol. The engine must be ﬁlled

with the correct grade of oil and petrol before starting the engine.

NOTE:

Running the engine with a low oil level will cause

engine damage. It is recommend that high detergent,

premium quality 4-stroke engine oil used. Using non-

detergent oil can shorten the engine’s service life and using

2-stroke oil will damage the engine.

Caution! Always use high quality detergent oil classiﬁed SAE30 oil (or equivalent e. g SAE 10W/30, often

termed as 4 Stroke lawn mower oil). Never use additives with recommended oil.

To prolong the life of your engine it is important that the oil is changed after the ﬁrst 5 hours of use.

NOTE:

To Check the engine oil level ,stop engine and place the mower on a level surface.

1. Remove the oil ﬁller dipstick and wipe oil from it with a clean cloth.

2. Insert the dipstick into the oil ﬁller neck, but do not turn it in.

3. Then remove the dipstick and check the oil Level . the oil level must be between the Min and Max marks on

the dipstick. If near the lower level ,ﬁll to upper lever with the recommended oil((SAE30 or equivalent). Do not

overﬁll. Wipe away any spilt oil.)

4. Align the ribs of the cap with the groove of the ﬁller neck . then rotate 1/4 turn to secure it.

FILLING WITH ENGINE FUEL. As shown in Fig. 12

Caution! Always use clean, fresh unleaded petrol. Purchase fuel in quantities that can be used within 30

days. Never mix oil with petrol.

Caution! Do not ﬁll into the base of neck to allow for fuel expansion. Do not overﬁll the fuel tank.

CAUTION WARNING: Petrol is highly ﬂammable and extreme precaution must be taken when handling

or working with it. Keep out of reach of children.

Caution! To prevent engine damage the engine is shipped without oil or petrol. The engine must be ﬁlled

with the correct grade of oil and petrol before starting the engine.

WARNING: Refuel in a well-ventilated area with the engine stopped. Do not smoke or allow ﬂame or

sparks in the area where the engine is refueled or where petrol is stored.

Avoid repeated or prolonged contact with skin or inhalation of vapour.

Fig. 11

Fig. 10

Engine oil ﬁller neck
