APPLICABILITY & EFFECTIVITY

Effective for all systems manufactured after May 1 2001

Driver Manual

(Supplement to the FieldServer Instruction Manual)

FS-8700-127 Hanning & Kahl

HCS-R

Driver Version:

1.00

Document Revision:

FS-8700-127 Hanning & Kahl HCS-R Manual Table of Contents

FieldServer Technologies 1991 Tarob Court Milpitas, California 95035 USA Web:www. ieldServer.com

Tel: 408 262-2299 Fax: 408-262-2269 Toll_Free: 888-509-1970 email: support@ ieldServer.com

TABLE OF CONTENTS

1. HANNING & KAHL HCS-R DESCRIPTION.................................................................... 3

2. DRIVER SCOPE OF SUPPLY ........................................................................................ 4

2.1. Supplied by ieldServer Technologies for this driver.................................................. 4

3. HARDWARE CONNECTIONS........................................................................................ 5

3.1. Hardware Connection Tips / Hints.............................................................................. 5

4. CONFIGURING THE FIELDSERVER AS A HCS-R CLIENT.......................................... 6

4.1. Data Arrays/Descriptors............................................................................................. 6

4.2. Client Side Connection Descriptions .......................................................................... 7

4.3. Client Side Node Descriptors ..................................................................................... 7

4.4. Client Side Map Descriptors....................................................................................... 8

4.4.1. FieldServer Related Map Descriptor Parameters.................................................... 8

4.4.2. Driver Related Map Descriptor Parameters............................................................. 8

4.4.3. Timing Parameters ................................................................................................. 8

4.5. Map Descriptor Example: Read Data......................................................................... 9

4.6. Map Descriptor Example: Read Data and Keep History............................................10

5. CONFIGURING THE FIELDSERVER AS A HCS-R SERVER .......................................11

5.1. Server Side Connection Descriptors .........................................................................11

5.2. Server Side Node Descriptors...................................................................................12

5.3. Server Side Map Descriptors ....................................................................................13

5.3.1. FieldServer Specific Map Descriptor Parameters...................................................13

5.3.2. Driver Specific Map Descriptor Parameters ...........................................................13

5.3.3. Map Descriptor xample. - SMD_HCSR_01 Map Descriptor to Serve HCS-R

clients. 14

APPENDIX A. ADVANCED TOPICS .....................................................................................15

Appendix A.1. 1. How Client Stores Data:...........................................................................15

Appendix A.1.1. Data_Type is Ana_Input or not specified................................................15

Appendix A.1.2. Data_Type is Digi_Input.........................................................................15

Appendix A.2. 2. How Server expects Data:........................................................................16

Appendix A.2.1. Data_Type is Ana_Input or not specified................................................16

Appendix A.2.2. Data_Type is Digi_Input.........................................................................16

FS-8700-127 Hanning & Kahl HCS-R Manual Page 3 of 17

FieldServer Technologies 1991 Tarob Court Milpitas, California 95035 USA Web:www. ieldServer.com

Tel: 408 262-2299 Fax: 408-262-2269 Toll_Free: 888-509-1970 email: support@ ieldServer.com

1. Hanning & Kahl HCS-R Description

The Hanning & Kahl HCS-R driver allows the transfer of data from devices over RS-232 HCS-R

protocol. Data is read from HCS-R and current data stored in a specified memory area. The

driver can store the data with its loop data status distinct memory areas depending on wheter

the data is on loop or from loop. The driver is based on section 10.5 of Hanning & Kahl - part

number 40801121. The ieldServer can act as a Client or Server.

Max Nodes Supported

FieldServer Mode Nodes Comments

Client 1 Only 1 virtual client per port allowed on multidrop systems,

Server 1 This is a protocol limit, maximum devices can be polled by Client

FS-8700-127 Hanning & Kahl HCS-R Manual Page 4 of 17

FieldServer Technologies 1991 Tarob Court Milpitas, California 95035 USA Web:www. ieldServer.com

Tel: 408 262-2299 Fax: 408-262-2269 Toll_Free: 888-509-1970 email: support@ ieldServer.com

2. Driver Scope of Supply

2.1. Supplied by FieldServer Technologies for this driver

FieldServer Technologies

PART # Description

S-8915-10 UTP cable (7 foot) for RS-232 use

S-8700-127 Driver Manual.

FS-8700-127 Hanning & Kahl HCS-R Manual Page 5 of 17

FieldServer Technologies 1991 Tarob Court Milpitas, California 95035 USA Web:www. ieldServer.com

Tel: 408 262-2299 Fax: 408-262-2269 Toll_Free: 888-509-1970 email: support@ ieldServer.com

3. Hardware Connections

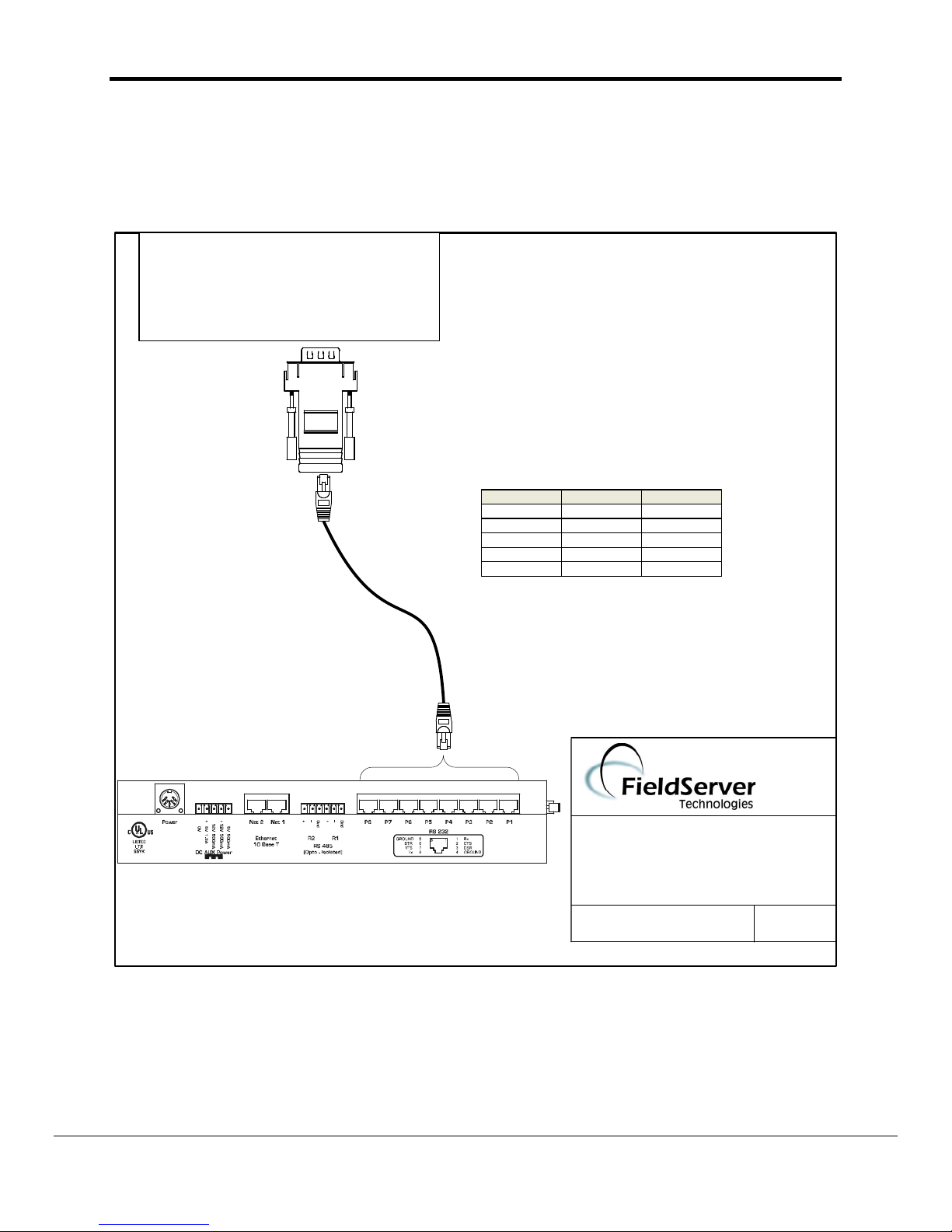

The ieldServer is connected to the Hanning & Kahl HCS-R as shown in connection drawing.

Configure the HCS-R according to manufacturer’s instructions

DATE: 2/12/

BY: MC

(408)-262-2299

BASE NAME: FS-8700-127

FILE NAME:

FIELDSERVER

HANNING KAHL

CONNECTION DIAGRAM

S-8917-02

HCS-R

(Hanning Communication System)

RS-232

RJ45 CAT 5 Cable

8917-02 WIRE LIST

CTS

RTS

GND

FUNCTION

RJ45-08

RJ45-04

RJ45-01

FROM

DB9F-08

DB9F-07

DB9F-02

DB9F-05

DB9F-03

3.1. Hardware Connection Tips / Hints

1. Loop back RTS CTS if it is required by the other device.

FS-8700-127 Hanning & Kahl HCS-R Manual Page 6 of 17

FieldServer Technologies 1991 Tarob Court Milpitas, California 95035 USA Web:www. ieldServer.com

Tel: 408 262-2299 Fax: 408-262-2269 Toll_Free: 888-509-1970 email: support@ ieldServer.com

4. Configuring the FieldServer as a HCS-R Client

or a detailed discussion on ieldServer configuration, please refer to the ieldServer

Configuration Manual. The information that follows describes how to expand upon the factory

defaults provided in the configuration files included with the ieldServer (See “.csv” sample files

provided with the ieldServer).

This section documents and describes the parameters necessary for configuring the ieldServer

to communicate with a HCS-R Server.

4.1. Data Arrays/Descriptors

The configuration file tells the ieldServer about its interfaces, and the routing of data

required. In order to enable the ieldServer for HCS-R communications, the driver

independent ieldServer buffers need to be declared in the “Data Arrays” section, the

destination device addresses need to be declared in the “Client Side Nodes” section, and

the data required from the servers needs to be mapped in the “Client Side Map Descriptors”

section. Details on how to do this can be found below.

Note that in the tables, * indicates an optional parameter, with the bold legal value being the

default.

Section Title

Data_Arrays

Column Title Function Legal Values

Data_Array_Name Provide name for Data Array Up to 15 alphanumeric

characters

Data_Array_ ormat Provide data format. Each Data Array can

only take on one format.

loat, Bit, UInt16, SInt16,

Byte,

Data_Array_Length

Number of Data Objects. Must be larger

than the data storage area required by the

Map Descriptors for the data being placed

in this array.

1-10,000

Example

// Data Arrays

Data_Arrays

Data_Array_Name, Data_Array_ ormat, Data_Array_Length

DA_CURRENT, Uint16, 22

DI_ romLoop01, Bit, 22

DI_OnLoop01, Bit, 22

DI_ romLoop02, Bit, 22

DI_OnLoop02, Bit, 22

DI_ romLoop03, Bit, 22

DI_OnLoop03, Bit, 22

DI_ romLoop014 Bit, 22

DI_OnLoop04, Bit, 22

FS-8700-127 Hanning & Kahl HCS-R Manual Page 7 of 17

FieldServer Technologies 1991 Tarob Court Milpitas, California 95035 USA Web:www. ieldServer.com

Tel: 408 262-2299 Fax: 408-262-2269 Toll_Free: 888-509-1970 email: support@ ieldServer.com

4.2. Client Side Connection Descriptions

Section Title

Connections

Column Title Function Legal Values

Port Specify which port the device is

connected to the ieldServer P1-P8

Protocol Specify protocol used

HCS-R

HCSR

H&K HCS-R

Baud* Specify baud rate 9600 (Vendor limitation)

Parity* Specify parity None (Vendor limitation)

Data_Bits* Specify data bits 8 (Vendor limitation)

Stop_Bits* Specify stop bits 1 (Vendor limitation)

Handshaking* Specify hardware handshaking None (Vendor limitation)

Poll_Delay* Time between internal polls 0-32000 seconds, 0.05 seconds

Example

// Client Side Connections

Connections

Port, Protocol, Baud, Parity, Handshaking, Poll_Delay

P8, HCS-R, 9600, None, None, 0.100s

4.3. Client Side Node Descriptors

Section Title

Nodes

Column Title Function Legal Values

Node_Name Provide name for Node Up to 32 alphanumeric characters

Node_ID HCS-R station address of physical

server Node 240 (Protocol limit)

Protocol Specify protocol used

HCS-R

HCSR

H&K HCS-R

Connection Specify which port the device is

connected to the ieldServer P1-P8

Example

// Client Side Nodes

Nodes

Node_Name, Node_ID, Protocol, Connection

PLC 1, 240, HCS-R, P8

Not all ports shown are necessarily supported by the hardware. Consult the appropriate Instruction

manual for details of the ports available on specific hardware.

FS-8700-127 Hanning & Kahl HCS-R Manual Page 8 of 17

FieldServer Technologies 1991 Tarob Court Milpitas, California 95035 USA Web:www. ieldServer.com

Tel: 408 262-2299 Fax: 408-262-2269 Toll_Free: 888-509-1970 email: support@ ieldServer.com

4.4. Client Side Map Descriptors

4.4.1. FieldServer Related Map Descriptor Parameters

Column Title Function Legal Values

Map_Descriptor_Name Name of this Map Descriptor Up to 32 alphanumeric

characters

Data_Array_Name

Name of Data Array where data

is to be stored in the

ieldServer

One of the Data Array names

from “Data Array” section above

Data_Array_Offset Starting location in Data Array 0 to maximum specified in

“Data Array” section above

unction unction of Client Map

Descriptor RDBC, Passive_Client

4.4.2. Driver Related Map Descriptor Parameters

Column Title Function Legal Values

Node_Name Name of Node to fetch data from

One of the Node Names

specified in “Client Node

Descriptor” above

HCSR_On rom

or Passive_Client Map Descriptor

specify whether data rom Loop or

On Loop should be stored.

On, rom, On rom

HCSR_Loop

or Passive_Client Map Descriptor

specify loop number for which data

should be stored.

1,2,3,4

Length

Length of Map Descriptor

22 (min) for RDBC Map Descriptor:

24 if data_type is Dig_Input

21 for Passive_Client Map

Descriptor.

It also depends upon

HCSR_Data_Stages parameter

Refer to Appendix A

22 or 24, 21

Data_Type* Specify how data will be stored.

Refer to Appendix A

Ana_Input

Digi_Input

HCSR_Data_Stages*

Specify the number of stages to

keep history of data changes.

0 and 1 means no history

01,2,3

4.4.3. Timing Parameters

Column Title Function Legal Values

Scan_Interval Rate at which data is polled ≥0.001s

Default for Digi_Input

FS-8700-127 Hanning & Kahl HCS-R Manual Page 9 of 17

FieldServer Technologies 1991 Tarob Court Milpitas, California 95035 USA Web:www. ieldServer.com

Tel: 408 262-2299 Fax: 408-262-2269 Toll_Free: 888-509-1970 email: support@ ieldServer.com

4.5. Map Descriptor Example: Read Data

The CMD_DI Map Descriptor polls HCS-R Node_A (described in Client Side Node Descriptors sections) every 5 seconds.

The other Map Descriptors are used to store the data for various loops. Refer to Appendix A for data storage format.

Map_Descriptors

Map_Descriptor_Name, Data_Array_Name, Data_Array_Offset, unction, Node_name Length Scan_Interval

CMD_DI_HCSR_01, DA_CURRENT, 0, RDBC, Node_A, 22, 5

Map_Descriptors

Map_Descriptor_Name, Data_Array_Name, Data_Array_Offset, unction, Node_name Length HCSR_Onfrom HCSR_Loop

CMD_ romLoop_01, DI_ romLoop01, 0, Passive_Client, Node_A, 21, rom 1

CMD_OnLoop_01, DI_OnLoop01, 0, Passive_Client, Node_A, 21, On 1

CMD_ romLoop_02, DI_ romLoop02, 0, Passive_Client, Node_A, 21, rom 2

CMD_OnLoop_02, DI_OnLoop02, 0, Passive_Client, Node_A, 21, On 2

CMD_ romLoop_03, DI_ romLoop03, 0, Passive_Client, Node_A, 21, rom 3

CMD_OnLoop_03, DI_OnLoop03, 0, Passive_Client, Node_A, 21, On 3

CMD_ romLoop_4, DI_ romLoop04, 0, Passive_Client, Node_A, 21, rom 4

CMD_OnLoop_04, DI_OnLoop04,, 0, Passive_Client, Node_A, 21, On 4

Name one of

the Data Array

defined in

Data_Array

section to store

data

Starting offset

in Data Array

to hold data

One of the

Nodes declared

in Client Node

Section. This

Node will be

polled if

unction is

RDBC

How often (in

seconds) to poll

target device.

Irrelevant if

unction is

Passive_Client

Maximum

number of

placeholders for

data storage.

RDBC will cause

read poll and

Passive_Client is

used to store data

returned by

response.

FS-8700-127 Hanning & Kahl HCS-R Manual Page 10 of 17

FieldServer Technologies 1991 Tarob Court Milpitas, California 95035 USA Web:www. ieldServer.com

Tel: 408 262-2299 Fax: 408-262-2269 Toll_Free: 888-509-1970 email: support@ ieldServer.com

4.6. Map Descriptor Example: Read Data and Keep History

This Map Descriptor allows the storage of data history up to HCSR_Data_Stages. Data will be shifted to next Stage only if the data

is changed. The driver divides the Data Array into sections corresponding to the number of HCSR_Data_Stages. Current data

(stage1) will be stored in the first section and oldest (last stage) data will be stored in the last section in the Data array.

Map_Descriptors

Map_Descriptor_Name, Data_Array_Name, Data_Array_Offset, unction, Node_name Length Scan_Interval, HCSR_Data_Stages

CMD_DI_HCSR_01, DA_CURRENT, 0, RDBC, Node_A, 72, 5, 3

Map_Descriptors

Map_Descriptor_Name, Data_Array_Name, Data_Array_Offset, unction, Node_name Length HCSR_Onfrom HCSR_Loop HCSR_Data_Stages

CMD_ romLoop_01, DI_ romLoop01, 0, Passive_Client, Node_A, 63, rom 1 3

CMD_OnLoop_01, DI_OnLoop01, 0, Passive_Client, Node_A, 63, On 1 3

CMD_ romLoop_02, DI_ romLoop02, 0, Passive_Client, Node_A, 63, rom 2 3

CMD_OnLoop_02, DI_OnLoop02, 0, Passive_Client, Node_A, 63, On 2 3

CMD_ romLoop_03, DI_ romLoop03, 0, Passive_Client, Node_A, 63, rom 3 3

CMD_OnLoop_03, DI_OnLoop03, 0, Passive_Client, Node_A, 63, On 3 3

CMD_ romLoop_4, DI_ romLoop04, 0, Passive_Client, Node_A, 63, rom 4 3

CMD_OnLoop_04, DI_OnLoop04,, 0, Passive_Client, Node_A, 63, On 4 3

Name one of

the Data Array

defined in

Data_Array

section to store

data

Starting offset

in Data Array

to hold data

One of the

Nodes declared

in Client Node

Section. This

Node will be

polled if

unction is

RDBC

How often (in

seconds) to poll

target device.

Irrelevant if

unction is

Passive_Client

Maximum

number of

placeholders for

data storage.

RDBC will cause read poll

and Passive_Client is used

to store data returned by

response.

The number of

data stages

(data changes)

to be kept as

history.

Altri manuali per Hanning FS-8700-127

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali FieldServer Hardware di rete

FieldServer

FieldServer Metasys N2 FS-8700-19 Nota di rilascio

FieldServer

FieldServer LonWorks FS-8700-21 Nota di rilascio

FieldServer

FieldServer Omron FINS FS-8704-16 Nota di rilascio

FieldServer

FieldServer FS-8704-09 SNMP Nota di rilascio

FieldServer

FieldServer ControlNet FS-8700-24 Nota di rilascio

FieldServer

FieldServer Lutron Machine FS-8700-97 Nota di rilascio

FieldServer

FieldServer Carrier DataLink FS-8700-82 Nota di rilascio

FieldServer

FieldServer Carrier DataPort FS-8700-86 Nota di rilascio

FieldServer

FieldServer FS-8700-03 DF1 Nota di rilascio

FieldServer

FieldServer Profibus FS-8700-113 Nota di rilascio

FieldServer

FieldServer Telnet FS-8704-11 Nota di rilascio

FieldServer

FieldServer FS-8700-22 X30 Nota di rilascio

FieldServer

FieldServer Canatal Satchnet Driver FS-8700-59 Nota di rilascio

FieldServer

FieldServer Genisys FS-8700-133 Nota di rilascio

FieldServer

FieldServer Envirotronics SystemsPlus FS-8700-88 Nota di rilascio

FieldServer

FieldServer Gamewell FCI 7100 Series Nota di rilascio

FieldServer

FieldServer FS-8700-74 Nota di rilascio

FieldServer

FieldServer Honeywell Zellweger IR-148 FS-8700-102 Nota di rilascio

FieldServer

FieldServer Modbus Plus FS-8700-02 Nota di rilascio

FieldServer

FieldServer Data Aire (DAP) FS-8704-49 Nota di rilascio

FieldServer

FieldServer A Sierra Monitor Company FS-8700-122 Nota di rilascio

FieldServer

FieldServer ProtoCessor ProtoNode FPC-N34 Guida utente

FieldServer

FieldServer Gamewell FCI E3 Series Nota di rilascio

FieldServer

FieldServer FS-8704-06 Manuale utente

Manuali Hardware di rete popolari di altre marche

Matrix Switch Corporation

Matrix Switch Corporation MSC-HD161DEL Manuale utente

B&B Electronics

B&B Electronics ZXT9-IO-222R2 Manuale utente

Yudor

Yudor YDS-16 Manuale utente

D-Link

D-Link ShareCenter DNS-320L Manuale utente

Samsung

Samsung ES1642dc Istruzioni per l’uso

Honeywell Home

Honeywell Home LTEM-PV Istruzioni per il montaggio

evertz

evertz 7700 Series Manuale utente

D-Link

D-Link ShareCenter DNS-343 Manuale utente

Asante

Asante AsanteBridge 1012 Manuale utente

FireBrick

FireBrick FB2700 Manuale utente

Audiovox Electronics

Audiovox Electronics ARWH2T Manuale utente

ADC

ADC DSX-1 Manuale

NetComm

NetComm NF2 Manuale utente

Alcatel-Lucent

Alcatel-Lucent 5620 Manuale utente

Dell EMC

Dell EMC XC6420 Series Manuale utente

Lanner

Lanner NCA-1020A Manuale utente

Allied Telesis

Allied Telesis AT-TN121-A Manuale utente

Arista

Arista CCA-ETM-Q12 Manuale utente
