Thermal Printing System
Installation and Operating Manual
Page 2 of Page 18
Introduction
Congratulations on your purchase of the Thermal Printing System designed
exclusively by Filterfab. If this unit is cared for properly, it should provide you a
trouble free Operation.
Please read the instructions below before use
Installation
Place the machine on a solid base ensuring it is firm and level. Ensure there is at least
a 50cm clearance around the press while in use for proper ventilation.
Electrical Connection
The Machine requires a standard socket with 240/250 volts, single phase 50 hertz
electrical supply
This machine has been electrically checked and tested before use, but check your
local state regulations with your local work cover office, as it may require regular
testing and tagging by a qualified electrician in the future like any other appliance.
Page 3 of Page 18

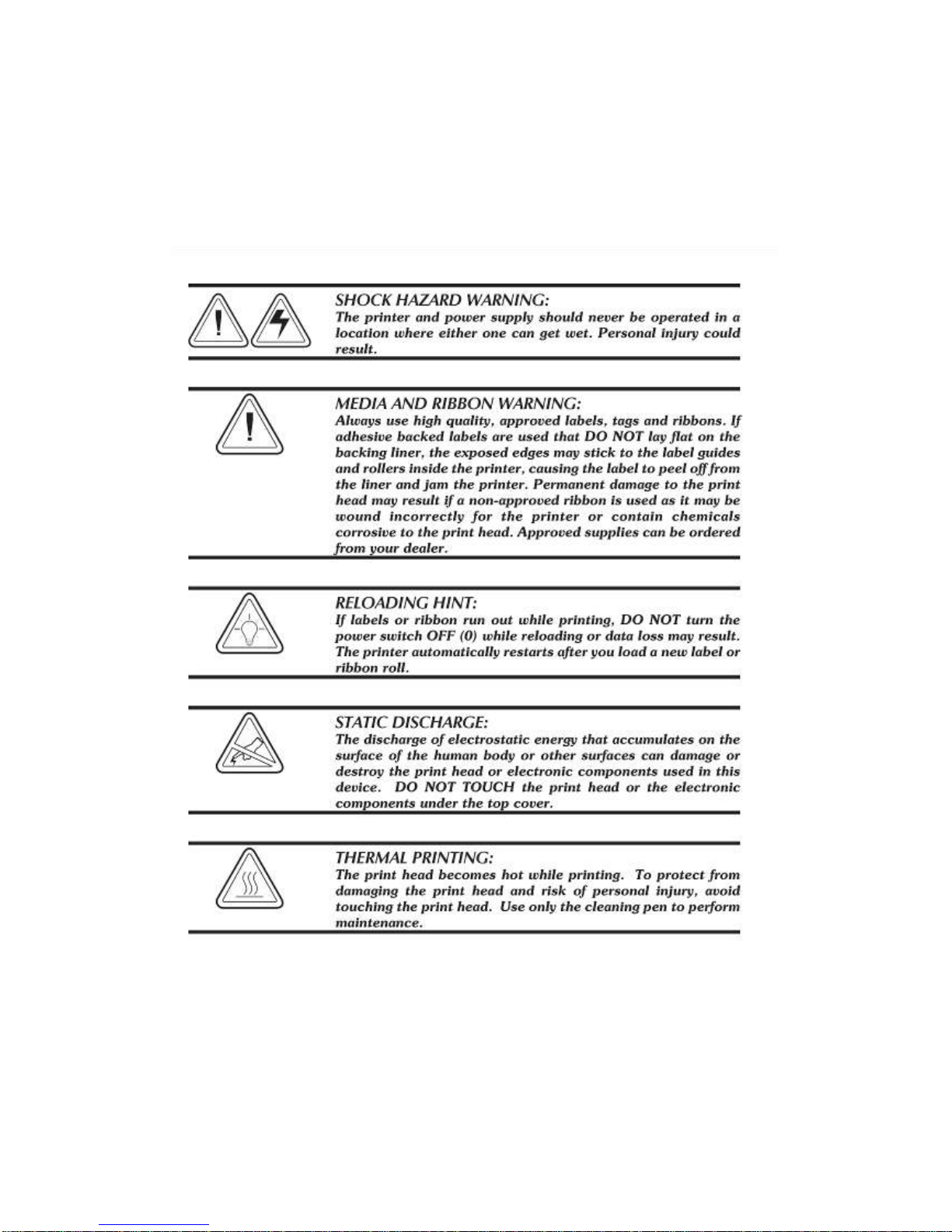

Safety Read Carefully
Page 4 of Page 18
Description of Parts
Page 5 of Page 18
Thermal System Installation Instructions
Plug in Keyboard Display Unit into 9 pin socket on far left back of
printer and tighten 2 screws on plug
Page 6 of Page 18
Ensure Power is off
Plug in Power Cable
Page 7 of Page 18
When your printer is supplied usually Filterfab will have preloaded a
roll of labels and ink ribbon. Please open printer to ensure roll of
labels has not dropped off roll holder in transit. Wind on ink ribbon
about 3 centimetres as described below before using.
Load Labels
Ensure that labels are tight on the roll
Open Printer
Load Labels
Put roll of labels under media
guides. To adjust width move
green wheel. It should be
slightly wider than the labels
and not be pinching the label
roll.
Page 8 of Page 18
Load Thermal Transfer Ink Ribbon
Put empty roll on front roll as per back roll by pressing spring loaded hub and
aligning notches on cardboard roll with spokes
Page 9 of Page 18
Page 10 of Page 18

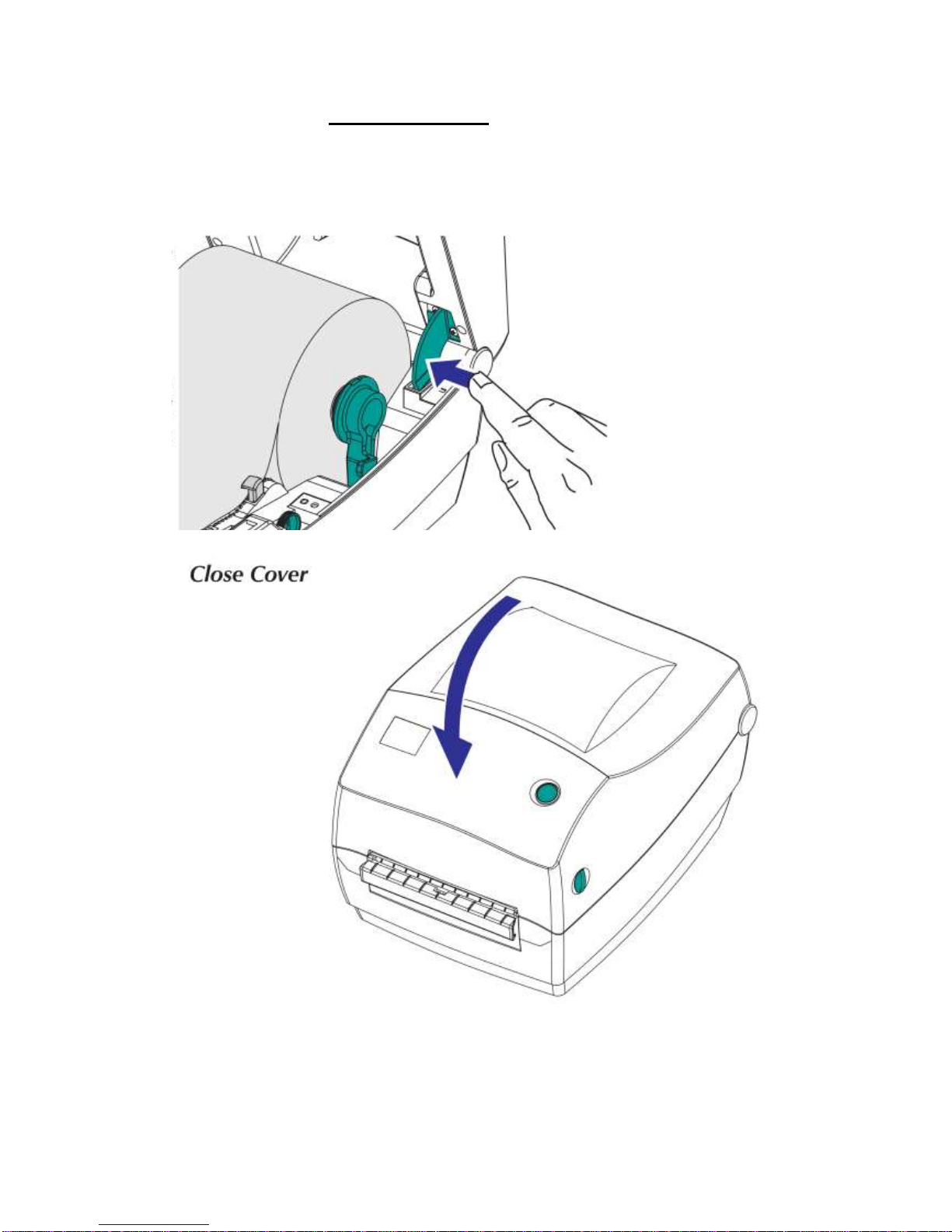

When Closing Printer Do NOT Force Down
Push Top cover lock as in next picture
Release Cover
