Fire Pro FP-08917 Manuale utente

Local Application Fire System

FP-08917

Rev 3.1

Page | 1

CONTENTS

1General Operations ..................................................................................................................2

2Components ...............................................................................................................................3

3Specifications .............................................................................................................................3

4Installation....................................................................................................................................4

5Servicing & Maintenance.........................................................................................................5

6Operation -Activation ...............................................................................................................5

7Installation of FirePro Generators .........................................................................................6

8Connection of Multiple FirePro Generators ....................................................................... 7

9Safety Data Sheet (SDS) ..........................................................................................................8

Local Application Fire System

FP-08917

Rev 3.1

Page | 2

1General Operations

The FirePro local application system is suitable for cabinet protection and other small risk areas. The

system can be connected to a range of available power supplies OR a separate battery may be

connected. The system will draw no current when not activating, so no draw on available power.

This is system can be configured for AUTOMATIC or MANUAL activation.

1.1 The FP-08917 assembly is a non-monitored single detection zone. It designed to operate with

FirePro Condensed aerosol generators.

1.2 Can be configured to operate:

a. Automatic, using Linear Heat Detection Cable which will activate the system.

b. Manual –using a manual activation switch - FP-14053 switch.

c. Combination –which will allow automatic via the LHD or manual from the switch.

1.3 Power Supply –designed to operate on 6 to 30vDC supply. Number of FirePro units will depend

on incoming power supply.

1.4 A thermal Fuse –FP-08825 may be connected to give a signal that system has operated.

1.5 When a fire is detected by the LHD cable (if Installed), the system will operate immediately.

Pressing the manaul switch (if installed) will also operate the system immediately.

How Does it Work

All FirePro Fire Extinguishing Aerosol Generators use the latest generation FPC solid compound.

Upon activation, the solid compound is transformed into a rapidly expanding, highly efficient gas,

based on Potassium salts. It does not deplete oxygen levels. Its built-in fail-safe activation system

ensures operation of the generators when required, even if everything else fails. The FirePro Aerosol

Generators have a certified life of 15 years, with minimal maintenance required.

Ozone Depletion Potential (O.D.P.) = 0

Atmospheric Life Time (A.L.T.) = 0

Global Warming Potential (G.W.P.) = 0

Non-corrosive & Non-toxic

Local Application Fire System

FP-08917

Rev 3.1

Page | 3

2Components

FP-08917

Local Application system

1 x FP-08917 Y Connector

2x DP-3000 Deutsch Plug 3 Pin M/F, c/w heatshrink

2x DP-2000 Deutsch Plug 2 Pin M/F, c/w heatshrink

1 x End-of-line Plug

Installation & Operators Manual

Agent Release Circuit

FP-8919

Splitter Cable for installaion of multiple

FirePro generators.

FP-08825

Thermal Fuse –used to provide

signal that system has operated.

FirePro Condensed Aerosol Generators

FirePro Aerosol Generator

20g –500g Unit.

Constructed from S Steel. Complete with

Deutsch Plug for easy install.

FP-6200

Heavy Duty Bracket 316 SS.

Suits FP-100, 200, 500 FirePro Aerosol

Generators.

FirePro Aerosol Generator

1200g –5700g Unit.

Constructed from S Steel. Complete with

Deutsch Plug for easy install.

FP-6100

Heavy Duty Bracket 316 SS.

Suits FP-1200, 2000, 3000 5700

FirePro Aerosol Generators.

Detection Circuit

FP-9510

Linear Heat Detection Cable 182° C

Supplied in Cut Lengths with Deutsch

Plugs for easy install.

Lengths: 1,2,4,6 & 8m

FP-14053

Heavy Duty Switch

including 316 SS Bracket.

Installation Components

Service Components

FP-9500

2 Hour Fire Rated Shielded Cable.

FP-8800

System Test Module –this unit

simulates a FirePro generator.

Signage

FP-8960

Marine Signage for the System. A sheet

of different size labels.

FP-8962

Cabinet Signage for the System. A

sheet of different size labels.

3Specifications

Max Number of FirePro Units

6v - 1 FP Unit

12v - 2 FP Units

24v - 4 FP Units

Activation Current for FirePro Units

Max 0.25A

Max 0.50A

Max 1.00A

Quiessant Current

0 A –No current drawn from supply

Power Supply

6-30vDC

Fuse for Power Supply

Max Length of Linear Heat Detection

50m

Max Number of FP-14053 Switches

6 switches over 50m

Local Application Fire System

FP-08917

Rev 3.1

Page | 4

4Installation

4.1 FirePro Aerosol Genrators must be selected in accordance with approved FirePro design

calculations and guidelines. FirePro Brackets must be installed using Bolts –Tec Screws will

vibrate loose in vehicle/marine installations.

4.2 FirePro units have a self-activation temperature of 300⁰C. Placement of units should be carefully

selected.

4.3 All cabling in the FirePro Installation MUST be Installed using min 0.75mm shielded Fire Rated

Cable

4.4 Power MUST be connected directly power supply OR Battery to ensure operation of the system.

6 –30v DC. 5A fuse or circuit breaker to be installed on power supply.

4.5 Manual Actuator(s) where installed, placement is to be carefully considered –ensure that it is

easily accessible in case of emergency. Follow instructios for the installation of the FP-14053

switch.

4.6 Linear Heat Detection where installed, the system will activate automatically. Follow instructions

as per FP-09510 product manual.

Incorrect installation may cause activation.

4.7 Cable Requirements - All cabling in the FirePro

Installation MUST be done using 0.75mm shielded

Fire Rated Cable. Care taken to ensure that all

cables are isolated, and that RF shielding on cable is

stripped back to ensure that there is not accidental grounding. Cables are colour coded for easy

identification.

4.8 Extension Leads - Deutsch Plugs must be used to

ensure water-proof connections are made

throughout the installation.

Colour

Circuit

Red

Power

Yellow

Activation

Green

Detection / Manual Switch

Local Application Fire System

FP-08917

Rev 3.1

Page | 5

5Servicing & Maintenance

The FirePro Suppression system should be serviced at least every 6 months in accordance with AS

1851, more often in aggressive environments. Periodic visual inspections of the installed system must

also be conducted by the operators to ensure all installed parts are free from debris, rust, or electrical

faults. Six Monthly servicing must only be undertaken by accredited service technicians.

NO PERSONNEL SHOULD BE IN THE RISK AREA DURING TESTING

UNTIL THE FIREPRO UNITS ARE DISCONNECTED AND TEST MODULES IN PLACE

Servicing and Maintenance Procedure

5.1 Disconnect the FirePro activation circuit (Yellow) at the panel, and connect

the FirePro simulator.

5.2 Visually inspect all installed FirePro Generators, cable, connections,

detection devices and siren/strobes. Look for any signs of damage or wear

and replace as necessary.

5.3 Activate the system –after ensuring the FirePro Simulator is connected.

Note: the FirePro Simulator stay illuminated until the reset button on the

simulator is pressed.

5.4 Reconnect the FirePro activation circuit.

System Logbook

A logbook must be kept, recording all the relevant events concerning the installation. The logbook

contains the items required that give a picture and provide for the recording of various things during

the life of the installation. In the logbook you will find the following:

Content of logbook:

•General details

•Devices used

•Schematic diagrams

•Photos of the Original FirePro Installation

•Inspection reports

6Operation -Activation

Should the system be activated :

6.1 Keep the FirePro suppression gas within the risk until the fire is extinguished and not re-ignite.

6.2 In case of emergency, ensure all occupants have left the risk area and where possible alert

emergency services.

6.3 DO NOT open any doors/hatches to the risk area for at least 20 minutes, to prevent re-ignition.

6.4 After 20 minutes, the Aerosol will fall to the ground as dust. Check risk area that is safe and

commence clean-up with warm, soapy water.

6.5 The FirePro Aerosol generators are single use items, so will need to be replaced.

Local Application Fire System

FP-08917

Rev 3.1

Page | 6

7Installation of FirePro Generators

7.1 FirePro Condensed Aerosol Fire Extinguishing System Arrangement.

FirePro units and system components installed to allow inspection and maintenance.

Locate FirePro units where they are not exposed to mechanical damage, exposed to

chemicals, or weather conditions, that may render them inoperative. Protective provisions

shall be adopted, if necessary.

Firepro units shall be securely installed. Use heavy duty brackets where necessary.

Brackets should be capable of handling the risk evironment, including vibration.

7.2 Firepro units must be installed at NOT less than the minimum safe distances as specified in the

design calcuations.

7.3 Means for prompt rescue of any trapped personnel shall be provided, including:

Adequate aisle ways/routes of exit.

Alarms –audible and visual, that operate immediately on detection of the fire.

Signs in accordance with relevent standards for the installation.

7.4 System components shall be positioned to the minimum clearances from energized electrical

parts as per:AS 4487 and AS 3000.

7.5 Handling and Storage - when handling theCondensed Aerosol Generators do not:

•Disassemble the unit

•Carry out any welding work in the vicinity of

the fire extinguishing system components.

•Exert force or impact which creates

physical or mechanical damage to the

casing.

STORAGE and OPERATIONAL CONDITIONS

•Temperature: –54 and +54°C

•Humidity: maximum 98% RH

•Service life: 15 years (date of manufacture appears on each generator)

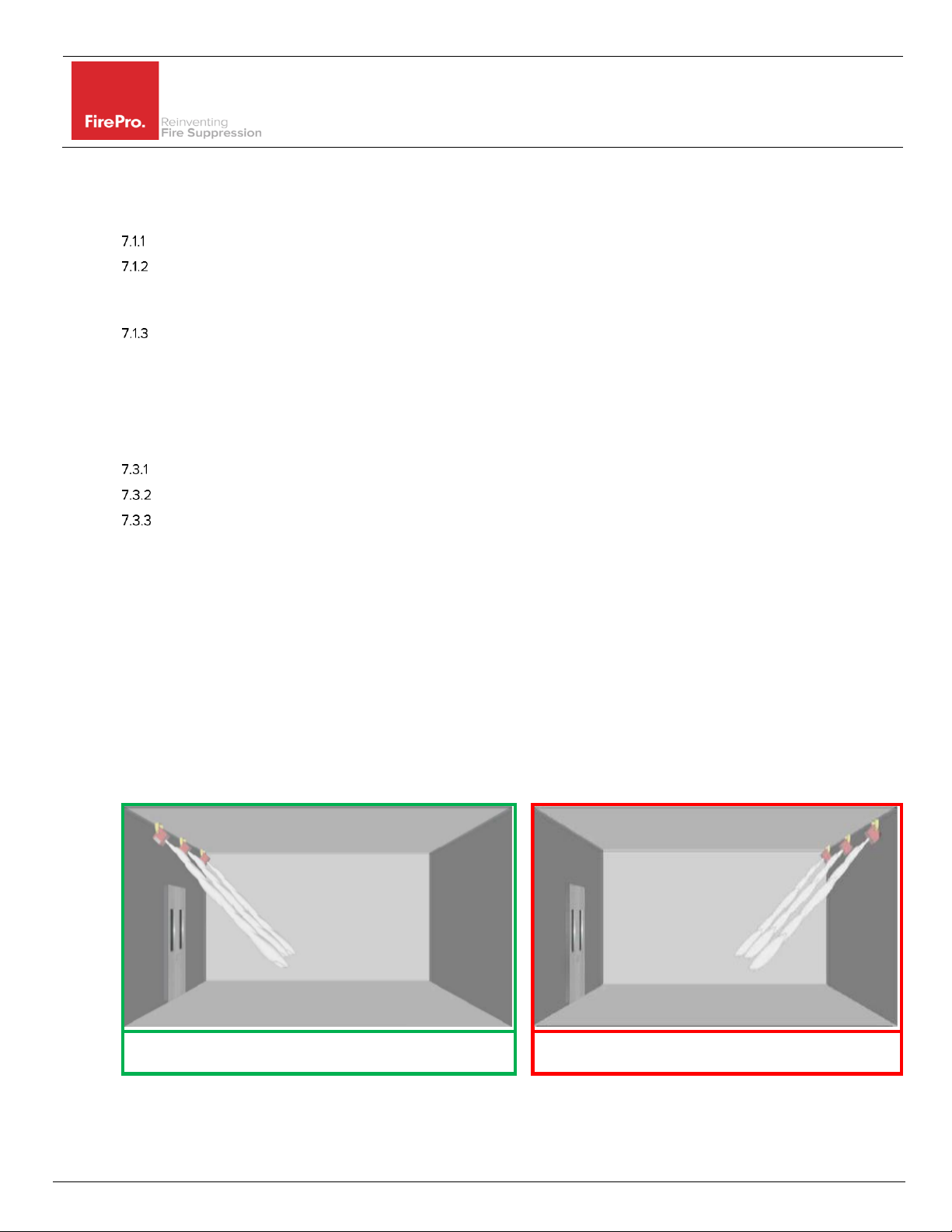

7.6 Positioning

CORRECT

FP Units directing the aerosol stream away from opening

INCORRECT

FP units are directing the stream towards the opening.

Local Application Fire System

FP-08917

Rev 3.1

Page | 7

FP Unit 1

FP Unit 2

FP Unit 1

FP Unit 4

Activation

Cable

Splitter

Lead

Extension Lead

FP Unit 2

Activation

Cable

Extension Lead

Splitter Lead

FP Unit 3

8Connection of Multiple FirePro Generators

Where multiple FirePro Generators are installed, they must be connected

using the FP-08919 Splitter Lead. The Splitter Lead enables the activation

current to pass to all FirePro generators and for monitoring of the circuit.

Splitter Leads can be installed at any point on the activation circuit and do

not need to be installed adjacent to the fire control panel. For ease of install, servicing and more efficient

field wiring, Splitter Leads should be installed in areas easy to access and minimise extension leads.

Installation

8.1 FirePro generators must remain disconnected until system is completed and fire control panel is

no longer in a fault or alarm condition. The FirePro Universal Test Module (P/N FP-08800) can be

used to take the panel out of a fault condition.

8.2 The supply voltage of any system will determine the wiring which can be used

6vDC Max = 1 FP Units

12vDC Max = 2 FP Units

24vDC Max = 4 FP Units

8.3 Where additional units are required in the system a discharge delay module may be required.

Need to check the system manual for specifications.

8.4 Connection of units

Connection of 2 FirePro Units

Connection of 4 FirePro Units

Local Application Fire System

FP-08917

Rev 3.1

Page | 8

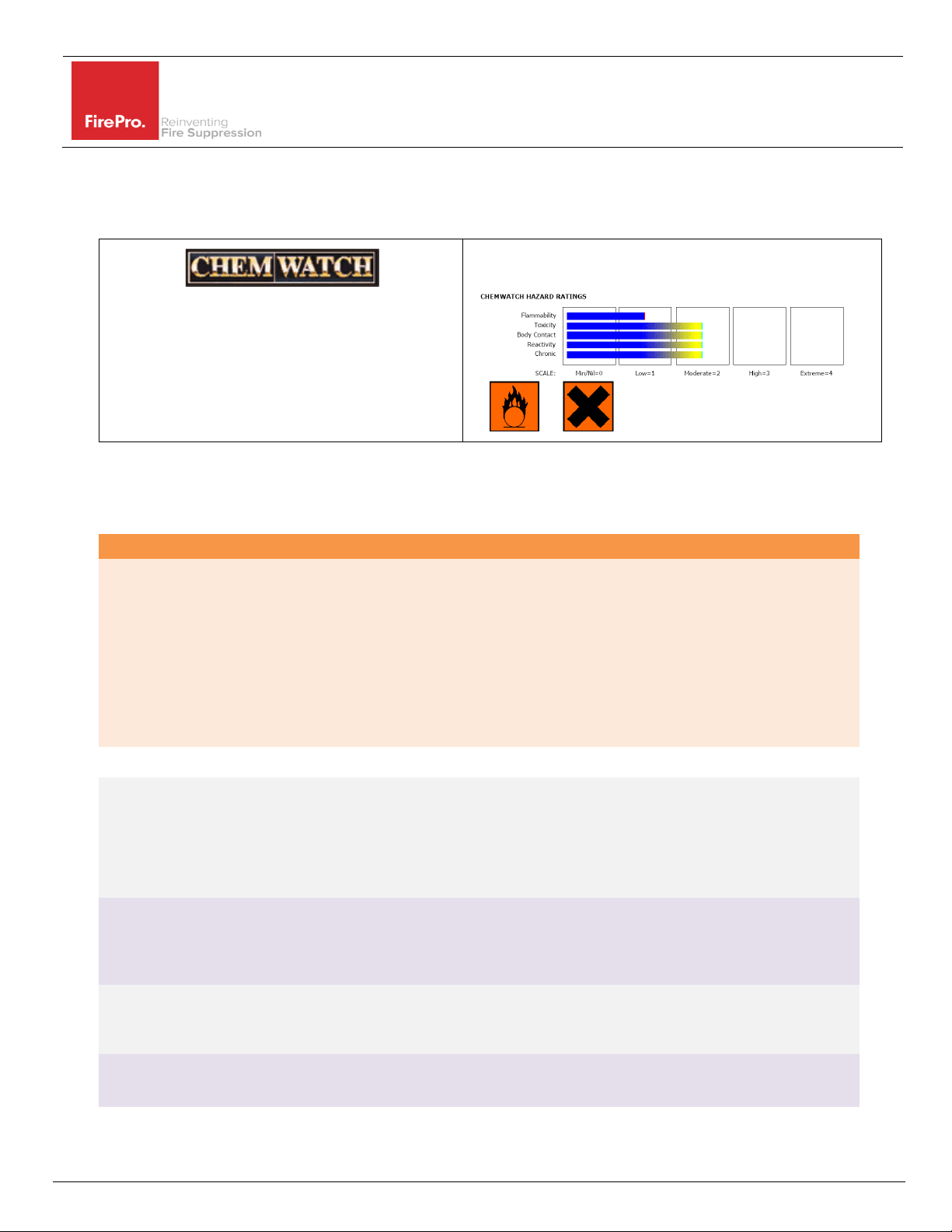

9Safety Data Sheet (SDS)

This is an EXTRACT ONLY from the full SDS. The SDS is prepared by Chemwatch - to view the full

SDS go to

www.chemwatch.com.au

PRODUCT NAME CELANOVA FIREPRO

PRODUCT USE Fire extinguishing

agent.

HAZARDOUS SUBSTANCE. DANGEROUS GOODS.

According to NOHSC Criteria, and ADG Code.

POISONS SCHEDULE - None

RISK

SAFETY

•Contact with combustible material may cause fire.

•Harmful if swallowed

•Irritating to eyes and skin.

•May cause SENSITISATION by skin contact.

•Harmful to aquatic organisms may cause long-

adverse effects in the aquatic environment.

•Cumulative effects may result following exposure

•May produce discomfort of the respiratory. system*

•Possible respiratory sensitiser*.

•May possibly affect fertility* (limited evidence).

•Keep away from combustible material

•Avoid exposure - obtain special instructions before use.

•To clean the floor and all objects contaminated by this

material use water and detergent.

•Keep away from food drink and animal feeding stuffs.

•In case of contact with eyes rinse with plenty term of water

and contact Doctor or Poisons Information Centre.

•If swallowed IMMEDIATELY contact Doctor or. Poisons

Information Centre (show this container or label).

•This material and its container must be disposed of as

hazardous waste.

FIRST AID MEASURES

SWALLOWED

•If swallowed do NOT induce vomiting.

•If vomiting occurs, lean patient forward or place on left side (head-down position, if possible) to

maintain open airway and prevent aspiration. Observe the patient carefully.

•Never give liquid to a person showing signs of being sleepy or with reduced awareness.

•Give water to rinse out mouth, then provide liquid slowly and as much as casualty can comfortably

drink.

•Seek medical advice.

EYE

•If this product comes in contact with the eyes:

•Wash out immediately with fresh running water.

•Ensure complete irrigation of the eye.

•Seek medical attention without delay; if pain persists or recurs seek medical attention.

•Removal of contact lenses after an eye injury should only be undertaken by skilled personnel.

SKIN

•If skin contact occurs:

•Immediately remove all contaminated clothing, including footwear.

•Flush skin and hair with running water (and soap if available).

•Seek medical attention in event of irritation.

INHALED

•If dust is inhaled, remove from contaminated area.

•Encourage patient to blow nose to ensure clear passage of breathing.

•If irritation or discomfort persists, seek medical attention.

Indice

Altri manuali Fire Pro Generatore portatile

Fire Pro

Fire Pro FP-20SE Foglio di istruzioni

Manuali Generatore portatile popolari di altre marche

Kohler

Kohler 20EORZ Manuale di istruzioni

Powerhorse

Powerhorse 83171 Manuale utente

HURST

HURST ML-630-SI Manuale utente

ETQ

ETQ TG4000 Manuale utente

Briggs & Stratton

Briggs & Stratton 40265 Guida all'installazione

ConMed

ConMed 7550 Manuale utente

Owon

Owon Waveform Generator Manuale utente

evertz

evertz 7700 Series Manuale utente

Power Stroke

Power Stroke PS906025 Manuale utente

Firefly

Firefly Cygnus CYG2400/460/24 Manuale utente

Draper

Draper PG950S Aggiornamento firmware

PowerBoss

PowerBoss PowerBoss Manuale utente

SDMO

SDMO SH 4000 Manuale utente

EINHELL

EINHELL STE 5500 Manuale utente

Wanco

Wanco WI3000P Manuale utente

Full Boar

Full Boar FBT-3300 Manuale utente

Dwyer Instruments

Dwyer Instruments ASG Manuale utente

Westinghouse

Westinghouse WH1000i Series Manuale utente
